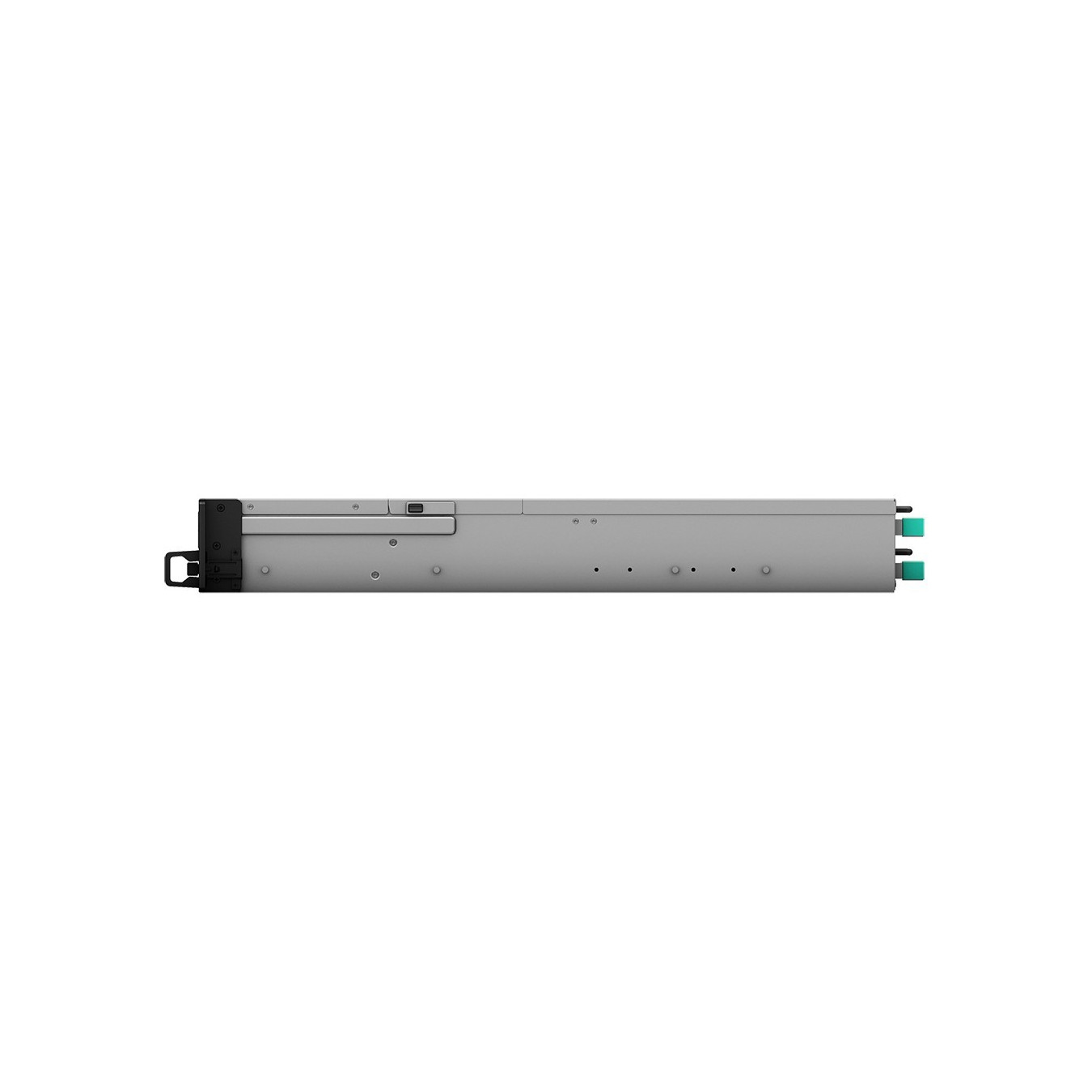

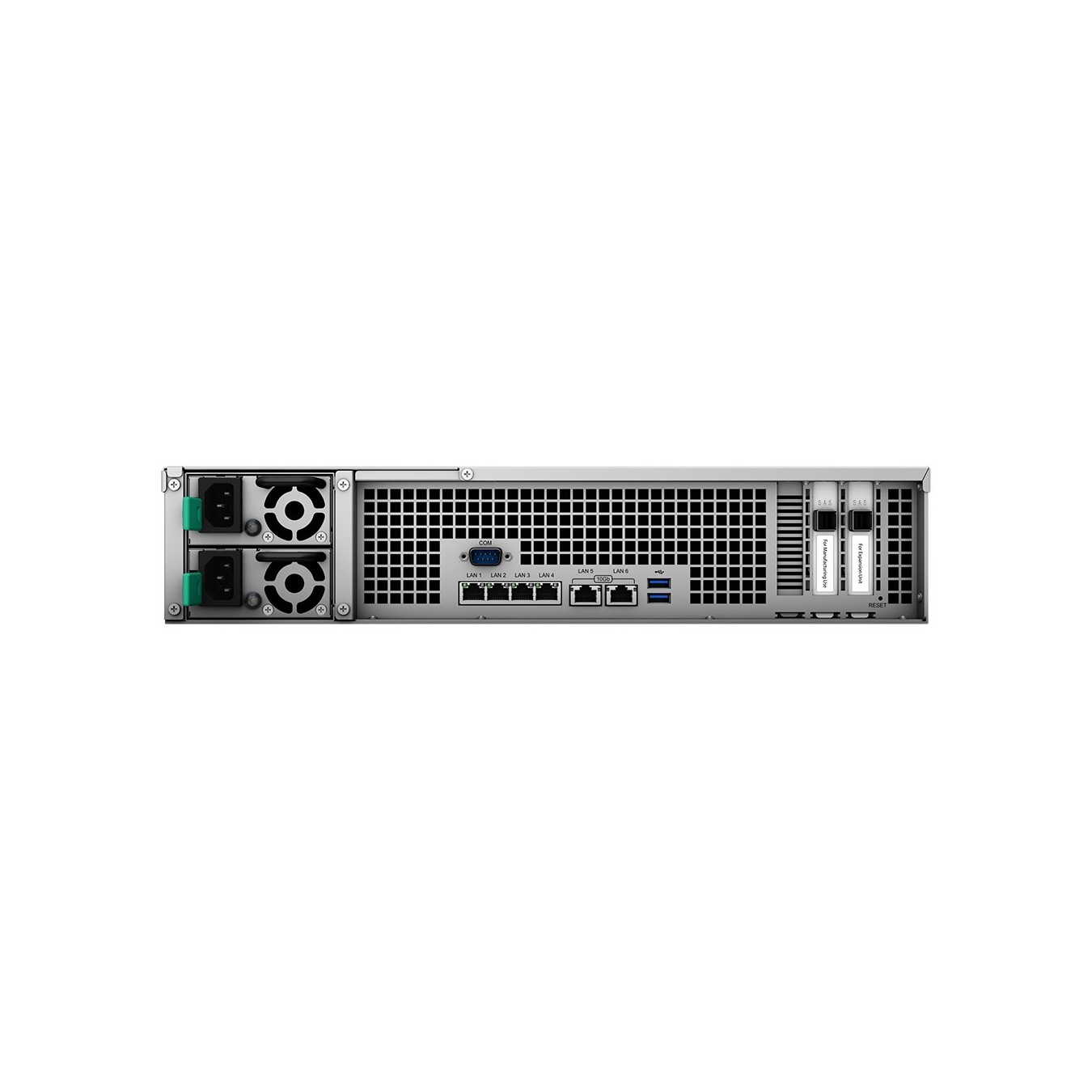

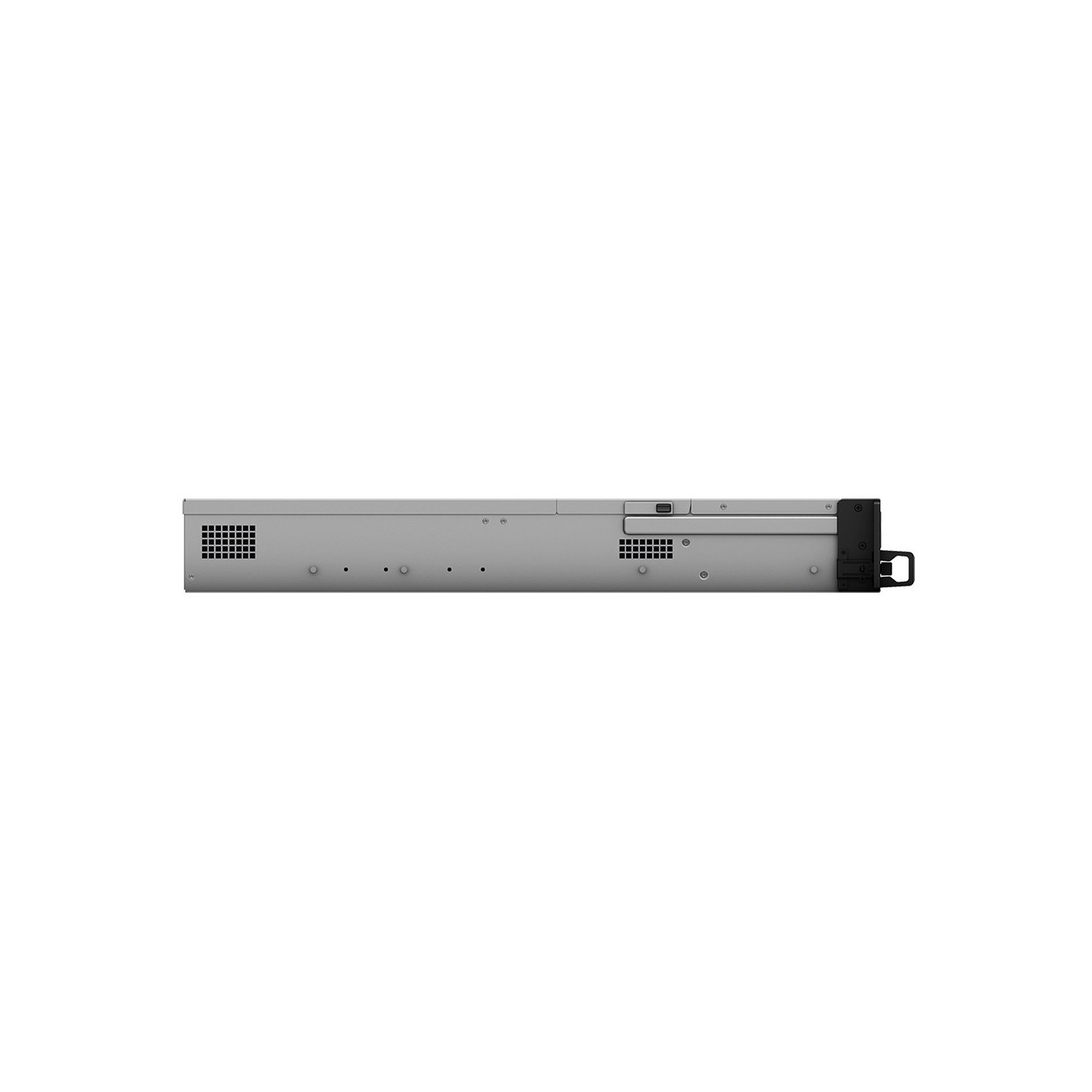

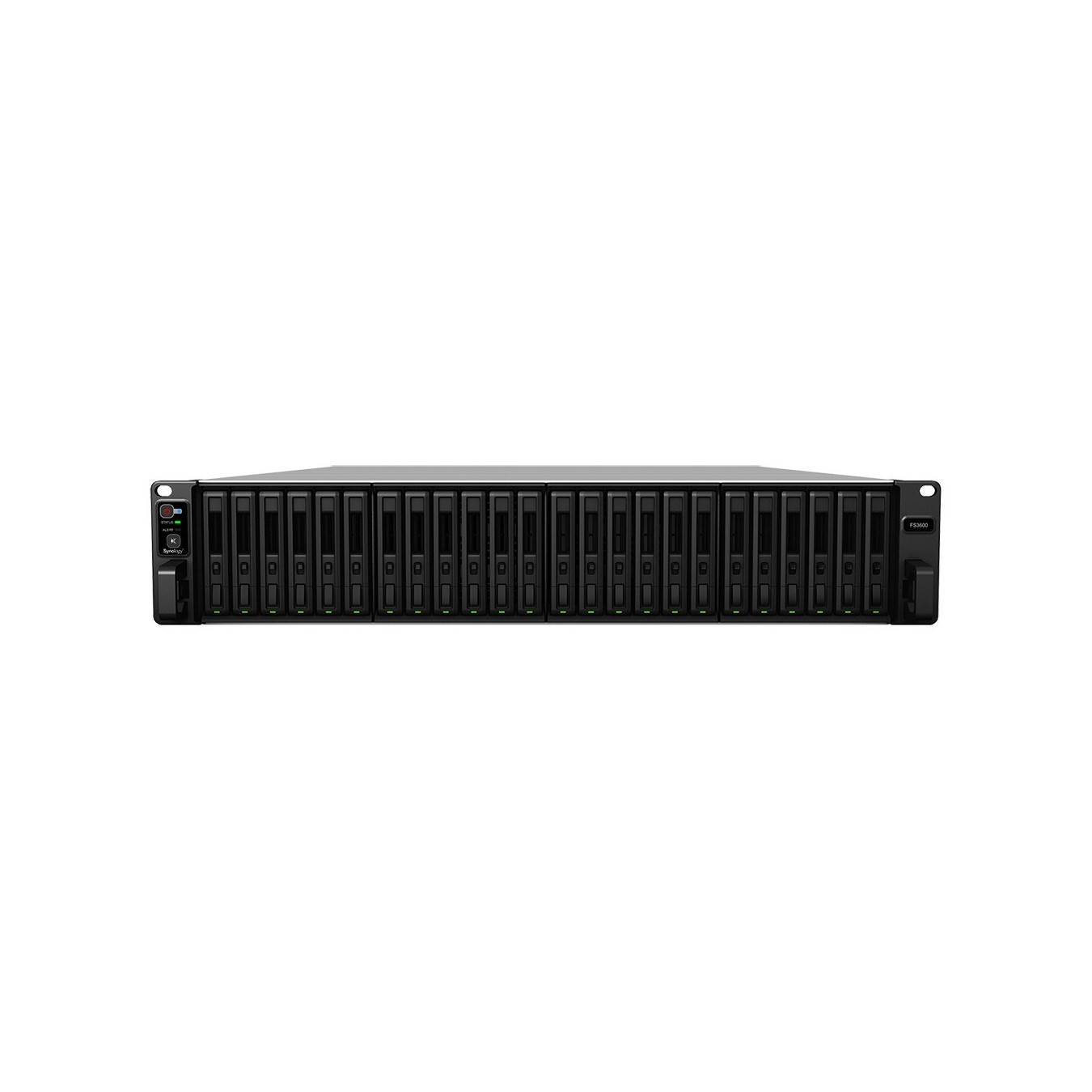

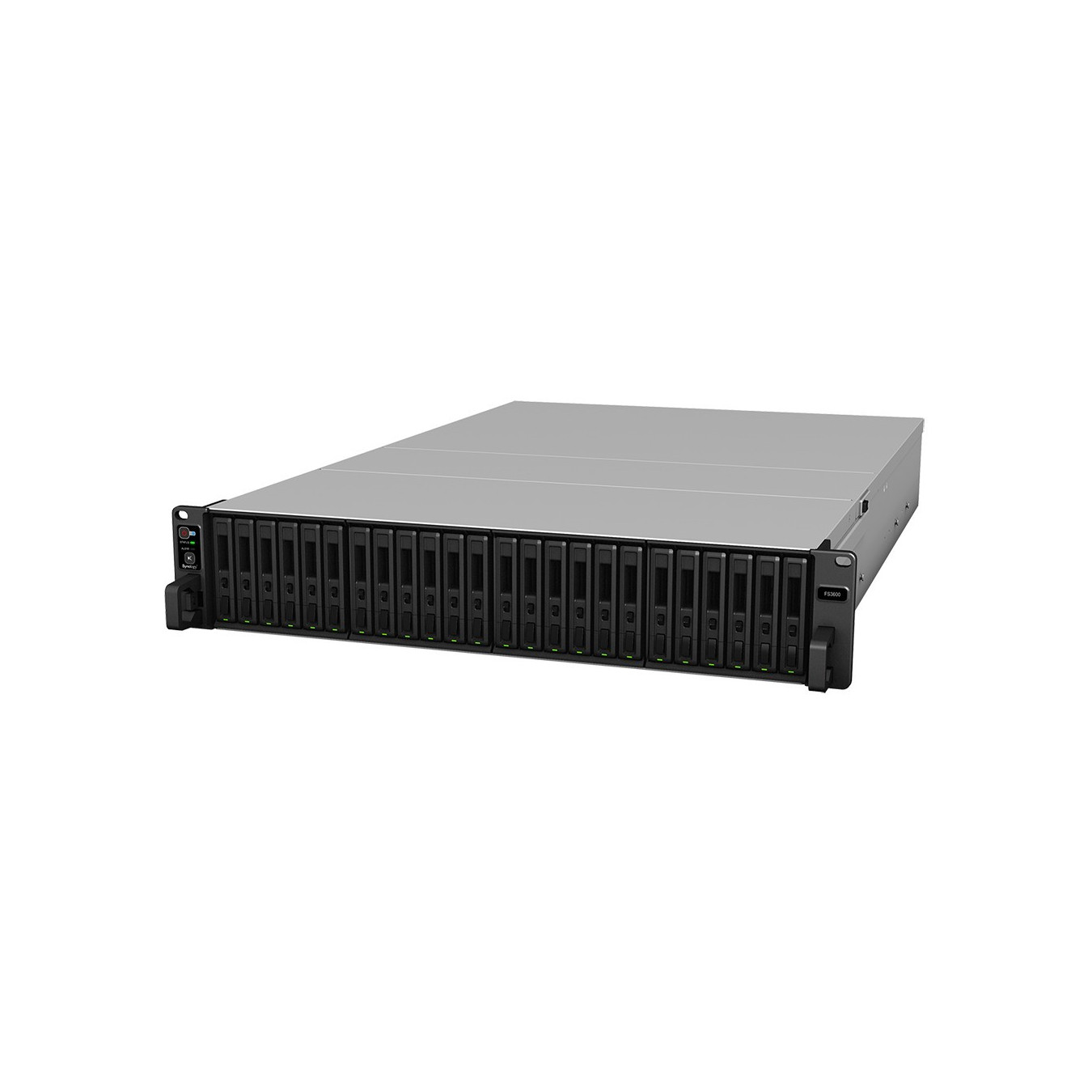

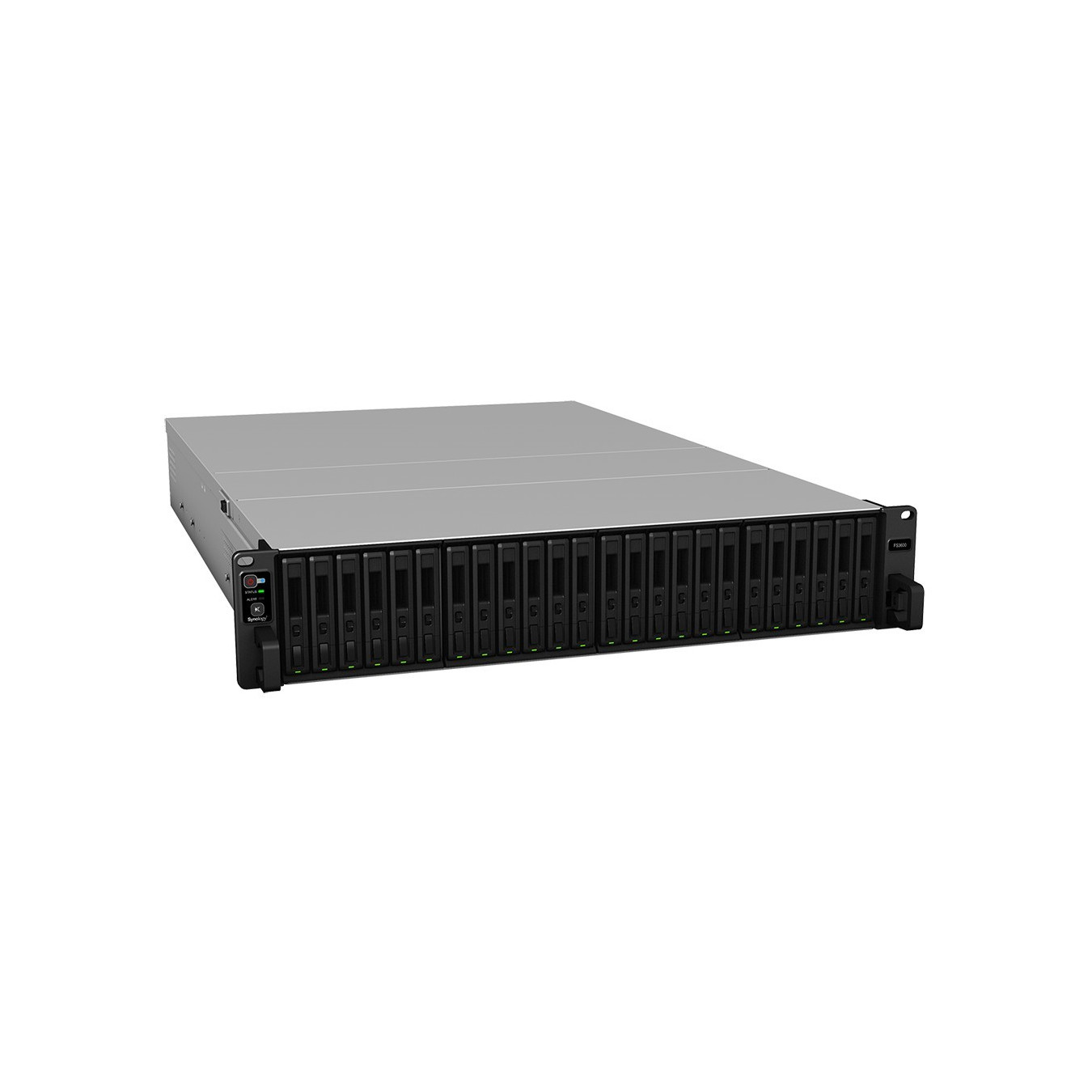

Synology FlashStation FS3600 - 24-Bay 2U Rack NAS - Intel Xeon D-1567 2.1/2.7GHz, 16GB DDR4, Black
24-bay 2U Synology FlashStation FS3600 NAS — Intel Xeon D-1567 (2.1/2.7GHz), 16GB DDR4, supports SATA/SAS HDD & SSD, 6x RJ-45 LAN, 2x USB3, built-in 500W PSU.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - USB | USB 3.0 |
|---|---|
| NAS (Network Attached Storage) - Hot-swap | Yes |
Synology FlashStation FS3600. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Xeon® D. Processor model: D-1567. Processor frequency: 2.1 GHz. Internal memory: 16 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA III. Serial Attached SCSI (SAS) |
| Feature | UART |
| Supported file systems | BTRFS. Fat. HFS+. NTFS. exFAT. ext3. ext4 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 24 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® D |
| Processor model | D-1567 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 2.7 GHz |
| Processor cores | 12 |
| Processor threads | 24 |
| Processor cache | 18 MB |
| L3 cache | 18 MB |
| CPU configuration (max) | 1 |
| PCI Express configurations | 1x16. 1x4. 1x8 |
| PCI Express slots version | 2.0. 3.0 |
| Processor cache type | L3 |
| Processor code | SR2M3 |
| Processor codename | Broadwell |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon D-1500 |
| Processor socket | BGA 1667 |
| Scalability | 1S |
| Stepping | Y0 |
| Thermal Design Power (TDP) | 65 W |
| Maximum internal memory supported by processor | 128 GB |
| Internal memory | 16 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Memory form factor | DIMM |
| Ethernet LAN data rates | 10.100.1000.10000 Mbit/s |
| Supported network protocols | SMB. AFP. NFS. FTP. WebDAV. CalDAV. iSCSI. Telnet. SSH. SNMP. VPN (PPTP. OpenVPN™. L2TP) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 6 |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Fan diameter | 8 cm |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup features | Cloud. USB drive |
| Noise level | 57 dB |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 482 mm |
| Depth | 724 mm |
| Height | 88 mm |
| Weight | 14.9 kg |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel® Turbo Boost Technology | 2.0 |
| Maximum number of PCI Express lanes | 32 |
| Memory types supported by processor | DDR3-SDRAM. DDR4-SDRAM |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 84714100 |
| Compliance certificates | RoHS |
| Processor ARK ID | 93356 |
