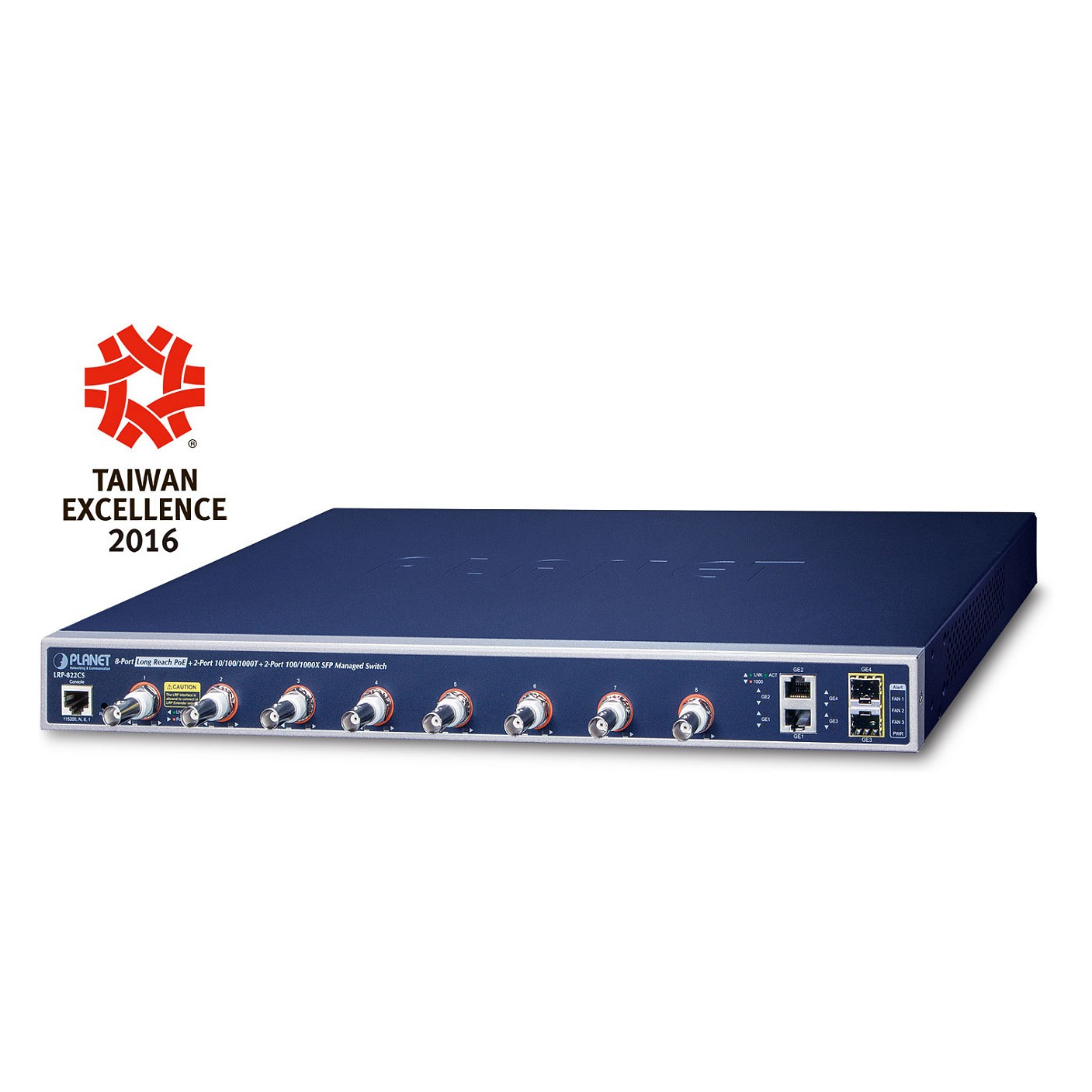

Planet LRP-822CS 8-port Long Reach PoE + 2-port 10 100 1000T
PLANET LRP-822CS, Managed, Gigabit Ethernet (10/100/1000), Vollduplex, Power over Ethernet (PoE), Rack-Einbau, 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET LRP-822CS. Switch-Typ: Managed. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 2, Konsolen-Port: RJ-45. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen, Routing-/Switching-Kapazität: 9,6 Gbit/s. Netzstandard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack-Einbau, Formfaktor: 1U
| Switch-Typ | Managed |
| Quality of Service (QoS) Support | Ja |
| Web-basiertes Management | Ja |
| Traffic-Klassifizierung | Ja |
| ARP-Inspektion | Ja |
| Systemereignisprotokoll | Ja |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 2 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 2 |
| Menge SFP-Modul-Steckplätze | 2 |
| Konsolen-Port | RJ-45 |
| Netzstandard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G-Unterstützung | Nein |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port-Spiegelung | Ja |
| Vollduplex | Ja |
| Unterstützung Datenflusssteuerung | Ja |
| Link Aggregation | Ja |
| Ratenbeschränkung | Ja |
| Auto MDI/MDI-X | Ja |
| Spannbaum-Protokoll | Ja |
| Auto-Abtastung | Ja |
| Auto-Negotiation-Funktion | Ja |
| VLAN-Unterstützung | Ja |
| Virtuelle LAN-Funktionen | Private VLAN, Tagged VLAN, Protocol-based VLAN |
| Anzahl der VLANs | 4094 |
| Ethernet-Kabel Verkablungstechnologie | 1000BASE‑LX, 1000BASE‑SX |
| Routing-/Switching-Kapazität | 9,6 Gbit/s |
| MAC-Adressentabelle | 8000 Eintragungen |
| Store-and-Forward | Ja |
| Anzahl Queues | 8 |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 10000 |
| Zugriffkontrollliste | Ja |
| IGMP-Snooping | Ja |
| Unterstützte Sicherheitsalgorithmen | 128-bit AES |
| MAC Adressen Filtern | Ja |
| SSH-/SSL-Unterstützung | Ja |
| Loop Protection | Ja |
| BPDU-Filterung/Schutz | Ja |
| IP-MAC-Portbindung | Ja |
| Authentifizierung | Port-basierte Authentifizierung |
| Multicast Unterstützung | Ja |
| Management-Protokolle | web, telnet, SNMP |
| Unterstützte Netzwerkprotokolle | IPv4 / IPv6 |
| Rack-Einbau | Ja |
| Formfaktor | 1U |
| Produktfarbe | Blau |
| Gehäusematerial | Metall |
| Reset-Knopf | Ja |
| LED-Anzeigen | Ja |
| DIN-Schienen-Montage | Nein |
| Upgradefähige Firmware | Ja |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (max.) | 320 W |
| Power over Ethernet (PoE) | Ja |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 8 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 36 W |
| Gesamtleistung Power over Ethernet (PoE) | 240 W |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -10 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Wärmeableitung | 1091,8 BTU/h |
| Breite | 440 mm |
| Tiefe | 300 mm |
| Höhe | 44,5 mm |
| Gewicht | 3,88 kg |
| Warentarifnummer (HS) | 85176990 |
