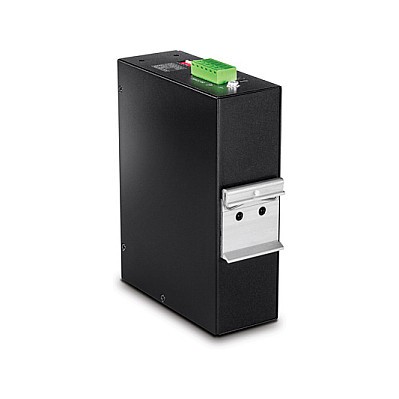

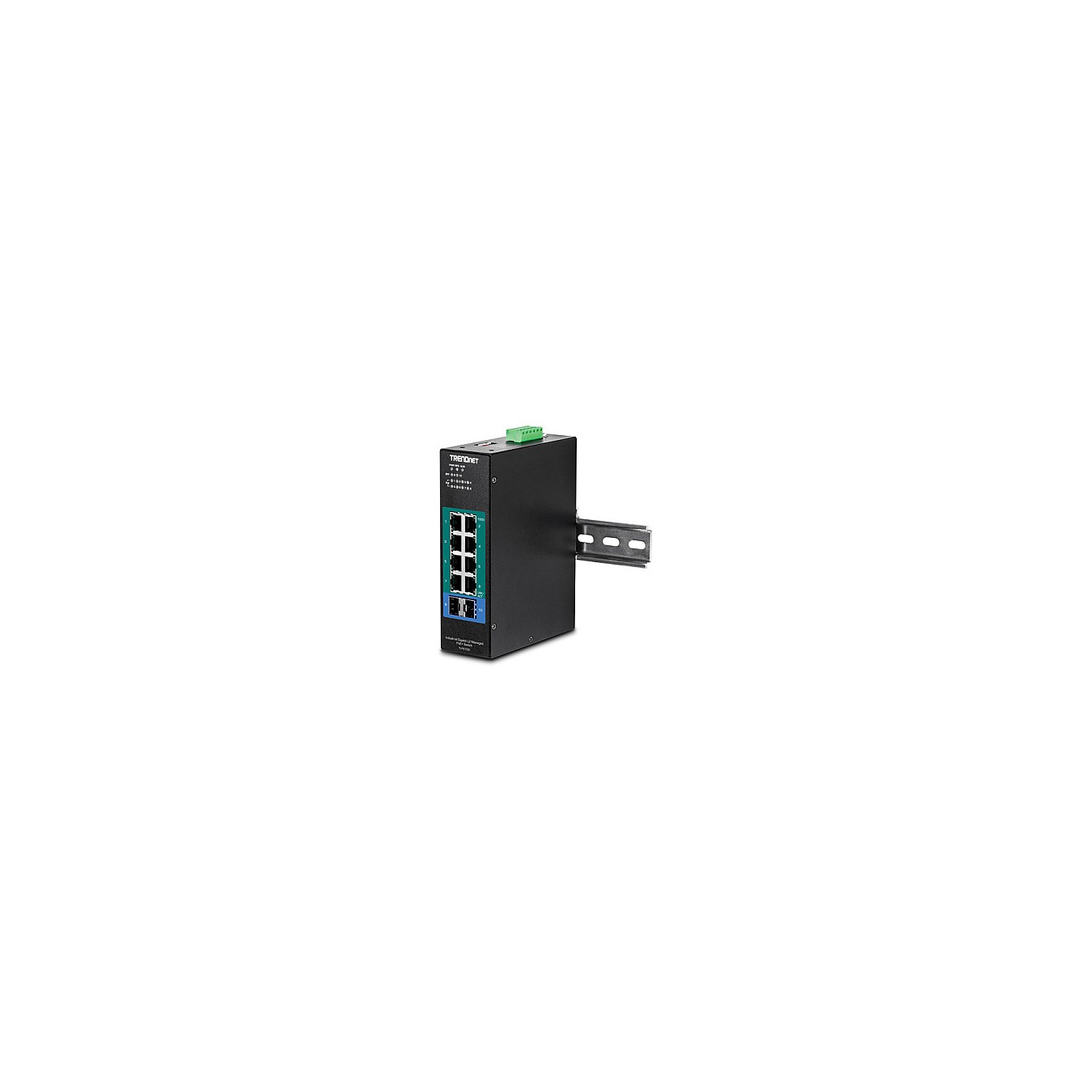

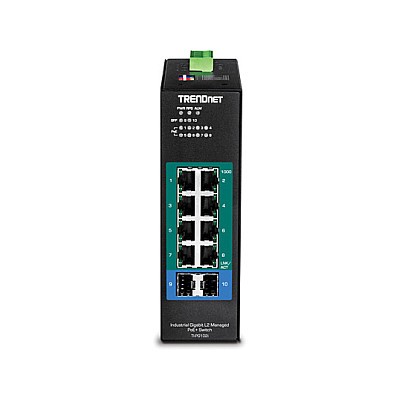

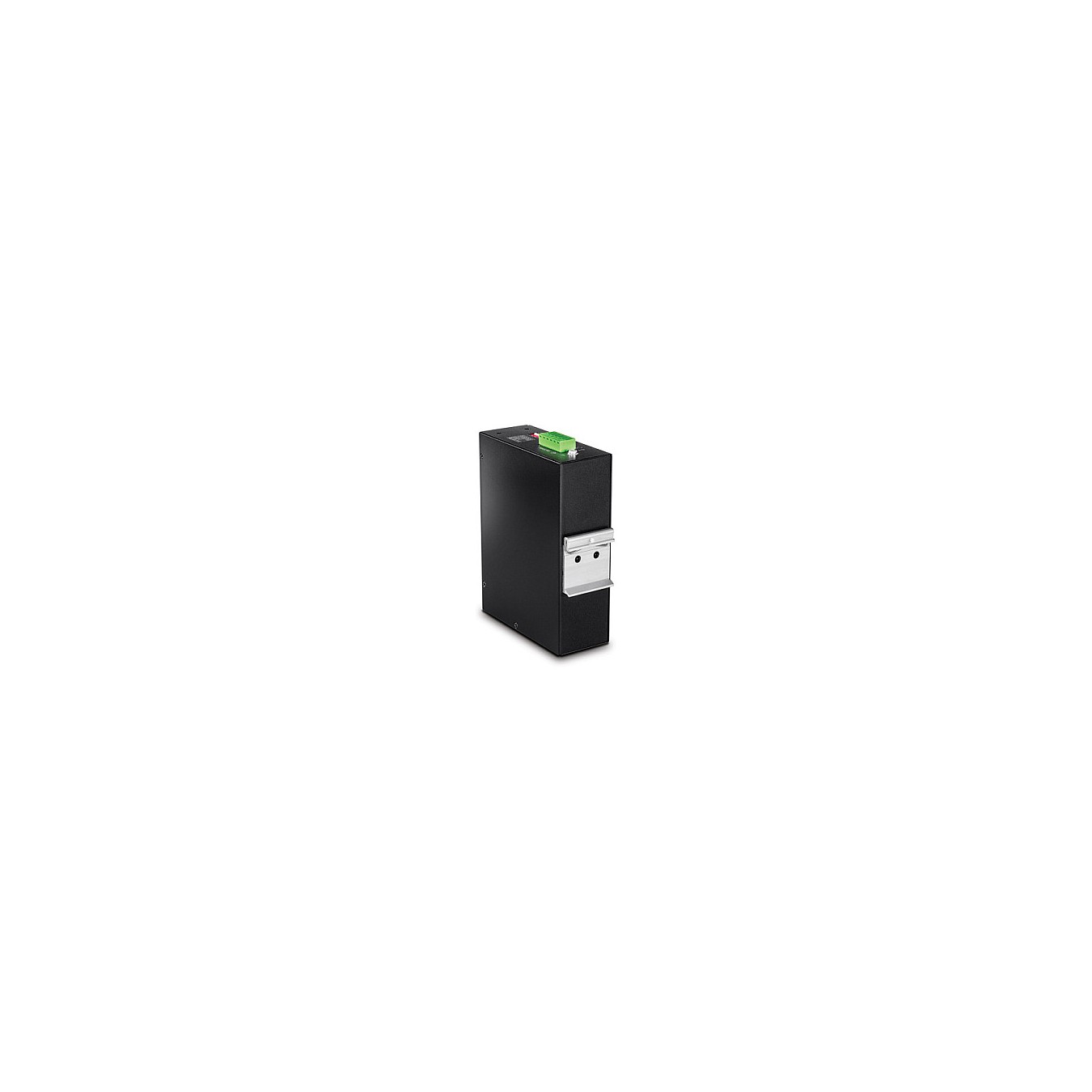

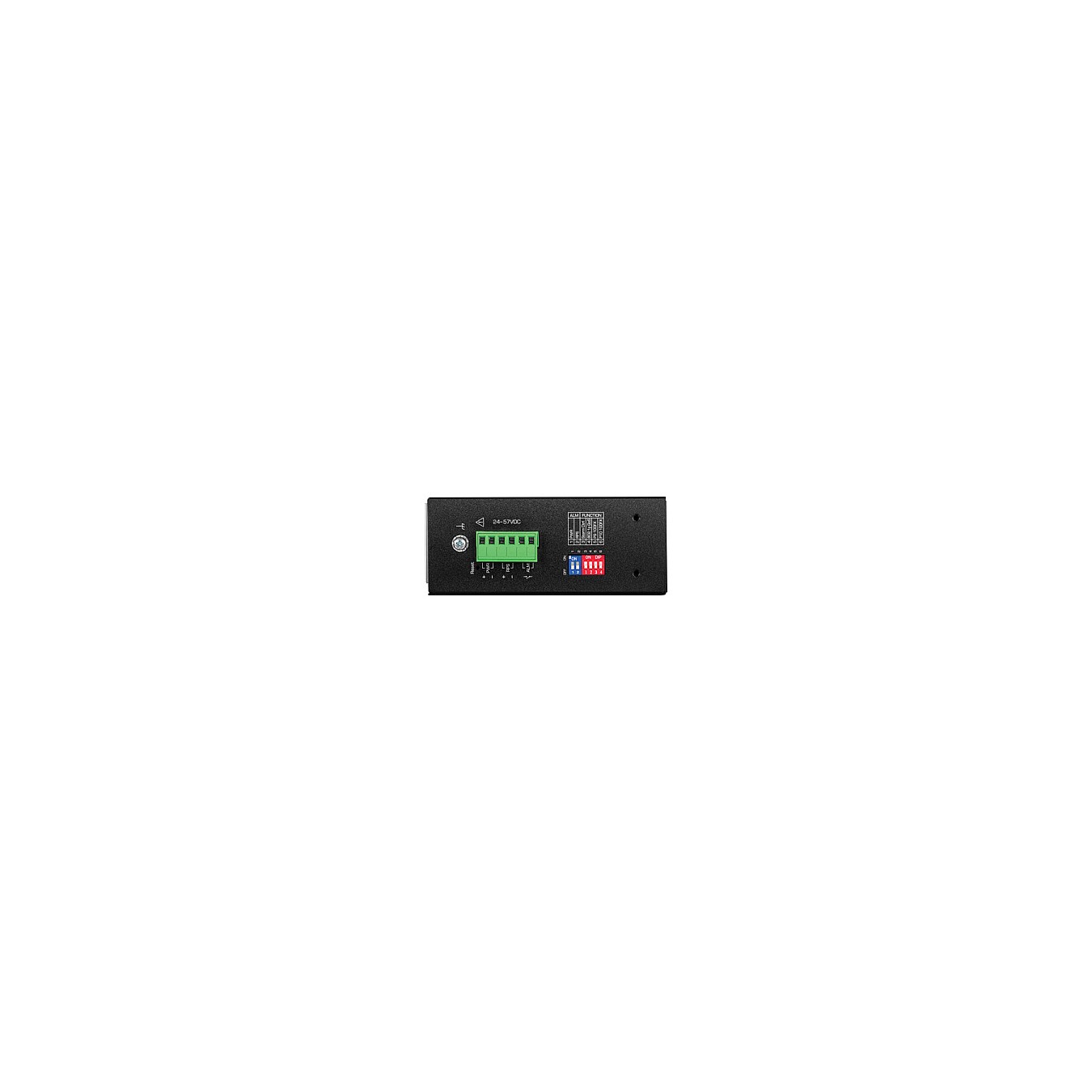

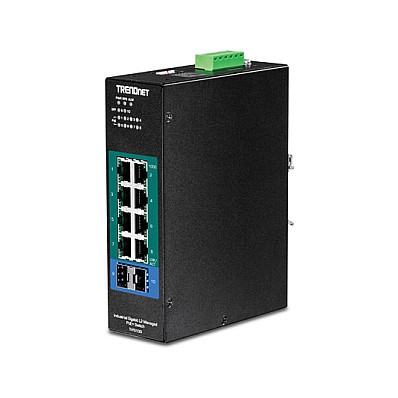

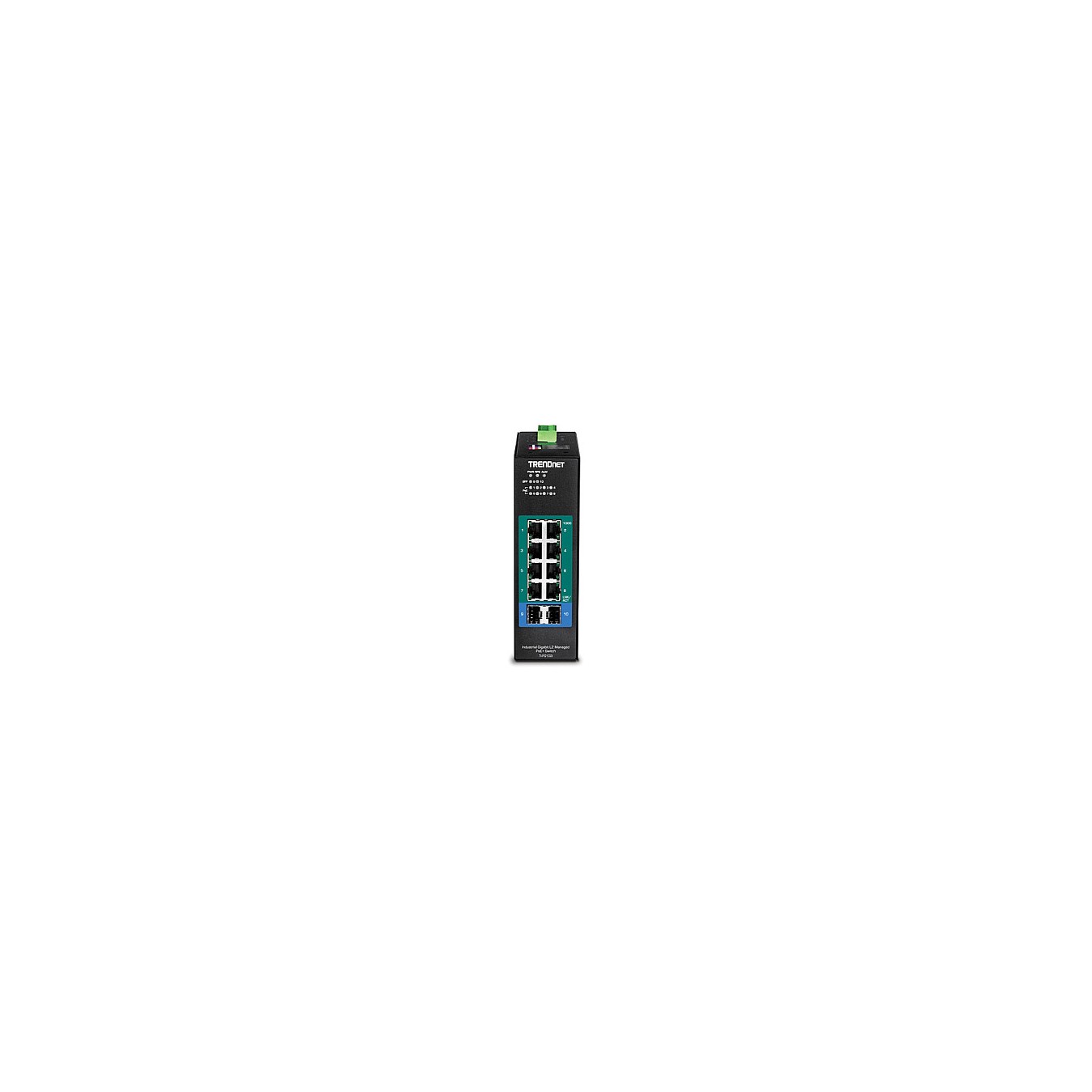

TRENDnet TI-PG102i 10-Port DIN-Rail Switch Industrial Gigabit Managed PoE+
Trendnet TI-PG102I. Managed. L2. Gigabit Ethernet (10/100/1000). Vollduplex. Power over Ethernet (PoE)
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Trendnet TI-PG102I. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen. Routing-/Switching-Kapazität: 20 Gbit/s. Netzstandard: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1w. IEEE 802.1x. IEEE.... DC input Spannung: 24 - 57 V. Power over Ethernet (PoE)
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Feature | DIN-Schiene enthalten |
| MIB Unterstützung | MIB II RFC 1213. MIB RFC 1493. RMON (1.2.3.9) RFC 2819 RFC 1757 |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 2 |
| Virtuelle LAN-Funktionen | Tagged VLAN. MAC address-based VLAN |
| Anzahl der VLANs | 256 |
| Routing-/Switching-Kapazität | 20 Gbit/s |
| Transferrate | 14.88 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Jumbo-Frames | 10000 |
| Datenpaket-Pufferspeicher | 128 MB |
| DHCP-Funktionen | DHCP server. DHCP relay |
| Unterstützte Sicherheitsalgorithmen | SNMP. SNMPv3. SSH |
| Anzahl der gefilterten Multicast-Gruppen | 256 |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| Internationale Schutzart (IP-Code) | IP30 |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 562234 h |
| DC input Spannung | 24 - 57 V |
| Stromverbrauch (max.) | 253 W |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 8 |
| Betriebstemperatur | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Breite | 160 mm |
| Tiefe | 120 mm |
| Höhe | 50 mm |
| Gewicht | 930 g |
| Zertifizierung | CE. FCC. (IEC 60068-2-27). (IEC 60068-2-32). (IEC 60068-2-6) |
| Warentarifnummer (HS) | 85176990 |
