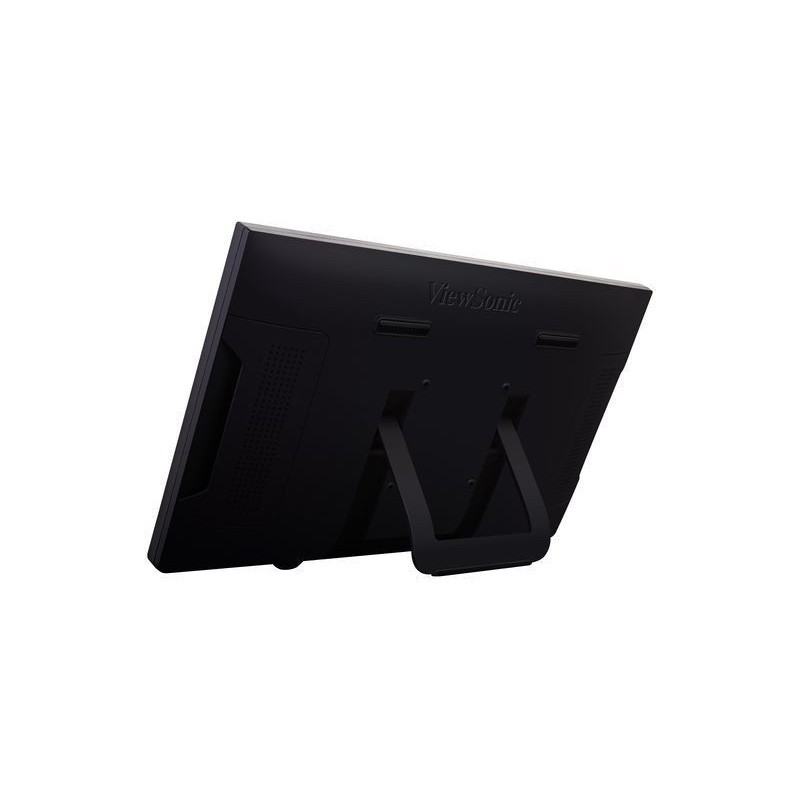

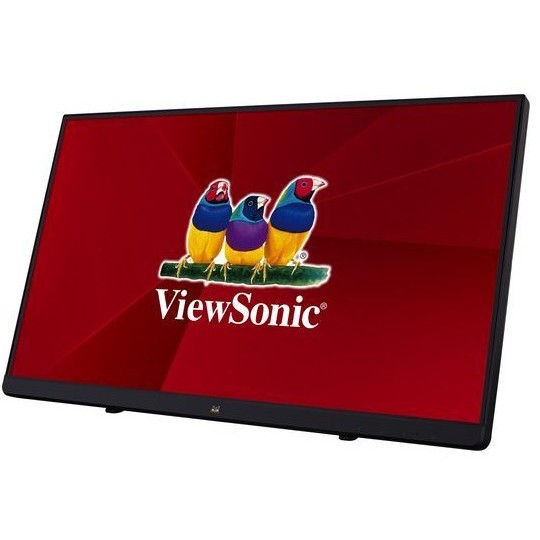

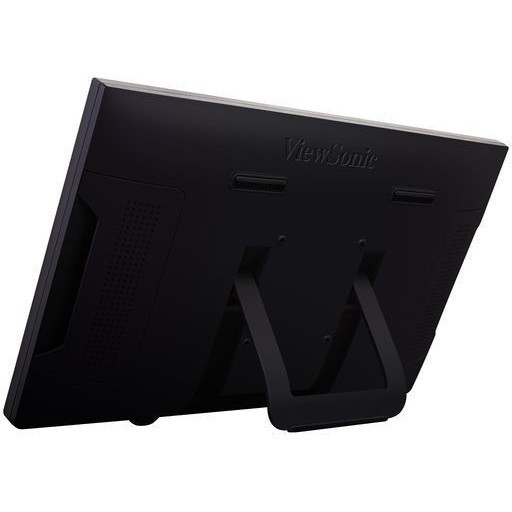

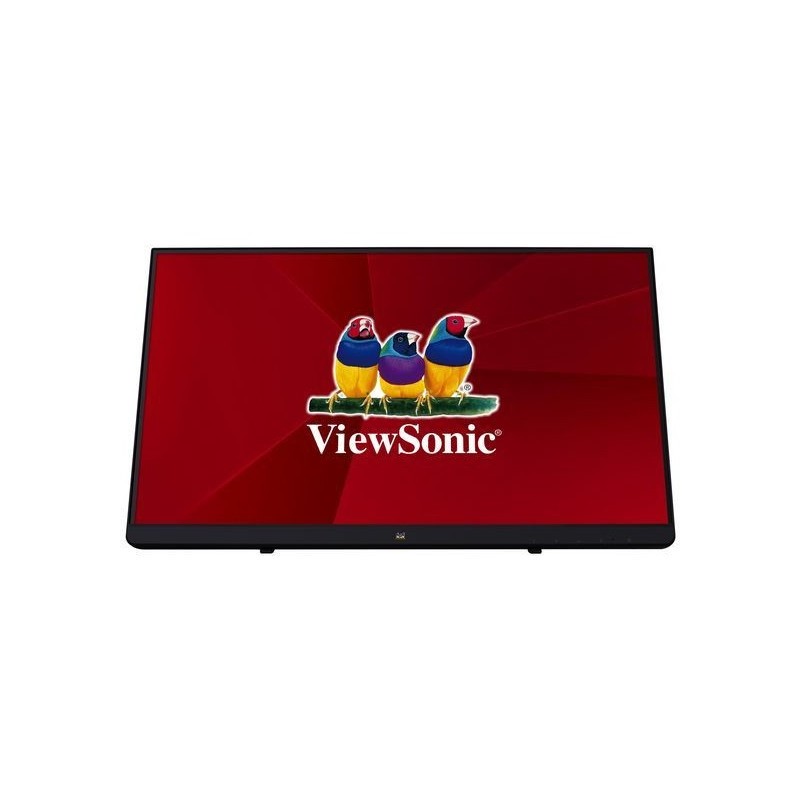

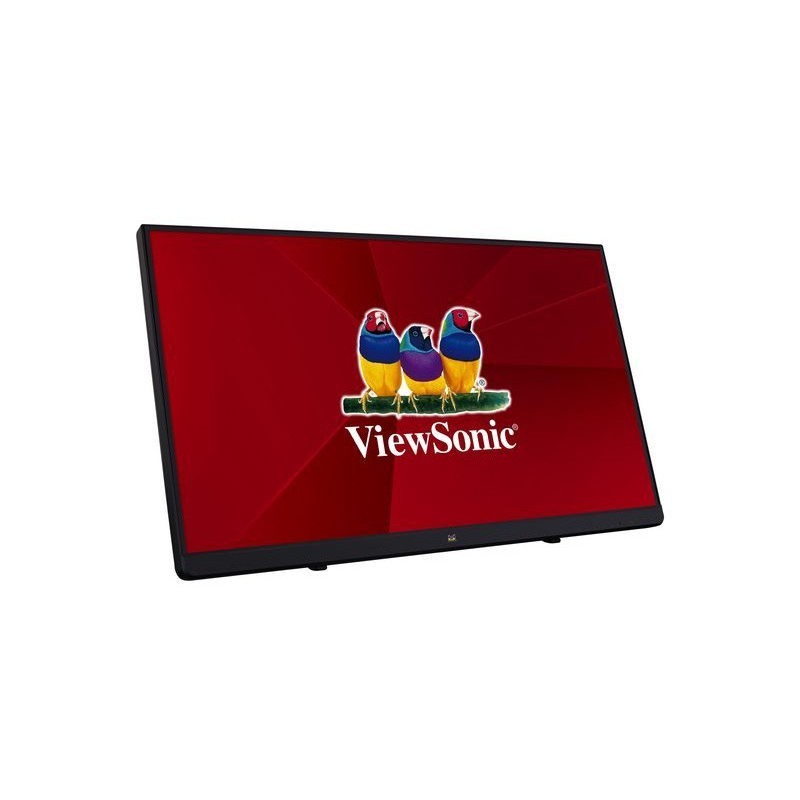

ViewSonic TD2230 - 21.5" Touchscreen Monitor - Full HD 1920x1080, 10-Point Multi-Touch, ADS Panel, HDMI/DP/VGA, Black
21.5" ViewSonic TD2230 touchscreen monitor — Full HD 1920x1080, ADS panel, 10-point projected capacitive multi-touch, 5 ms, 250 cd/m², HDMI/DisplayPort/VGA, VESA 100x100
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Monitors - Screen Size | 22inch |
|---|---|
| Monitors - Resolution | 1920x1080 (FHD) |
| Monitors - Panel Type | IPS |
| Monitors - Response Time (GtG) | 5 ms |
| Monitors - Curvature | Flat |
| Monitors - Video Inputs | DisplayPort 1.2 |
| Monitors - USB Hub | 2xUSB-A |
| Monitors - Stand Adjustments | Tilt only |
| Monitors - VESA Mount | 100x100 |
Viewsonic TD2230. Display diagonal: 54.6 cm (21.5"). Display resolution: 1920 x 1080 pixels. HD type: Full HD. Display technology: LCD. Response time: 5 ms. Viewing angle. horizontal: 178°. Viewing angle. vertical: 178°. Built-in speaker(s). Built-in USB hub. USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Display technology | LCD |
| Panel type | ADS |
| Feature | On Screen Display (OSD) |
| Touchscreen type | Multi-user |

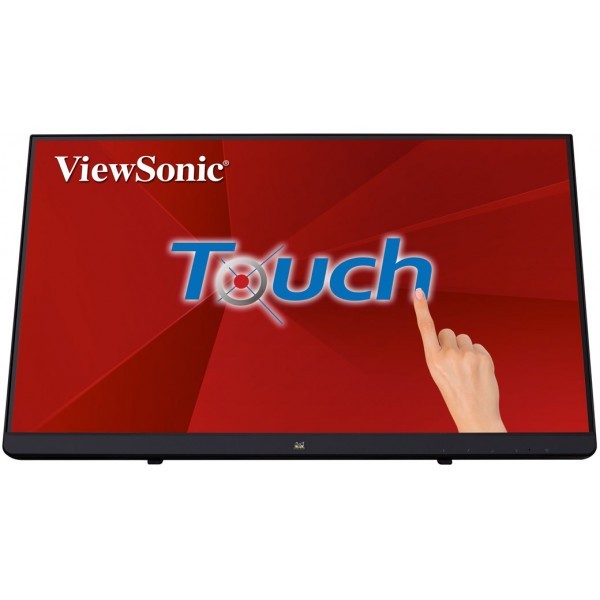

| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA). 720 x 400. 800 x 600 (SVGA). 1024 x 768 (XGA). 1280 x 1024 (SXGA). 1440 x 900 (WXGA+). 1680 x 1050 (WSXGA+). 1920 x 1080 (HD 1080) |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Maximum refresh rate | 76 Hz |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Pixel pitch | 0.24825 x 0.24825 mm |
| Horizontal scan range | 24 - 82 kHz |
| Vertical scan range | 50 - 76 Hz |
| Display diagonal (metric) | 54.6 cm |
| Windows operating systems supported | Windows 10. Windows 7. Windows 8. Windows 8.1 |
| Other operating systems supported | Android |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Product colour | Black |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |

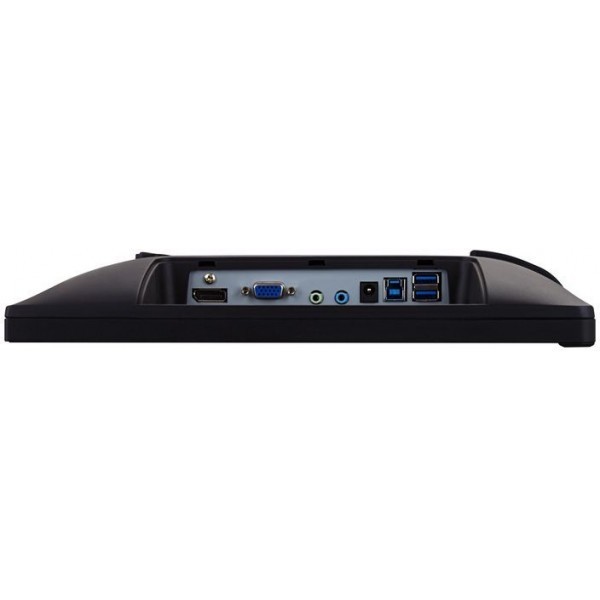

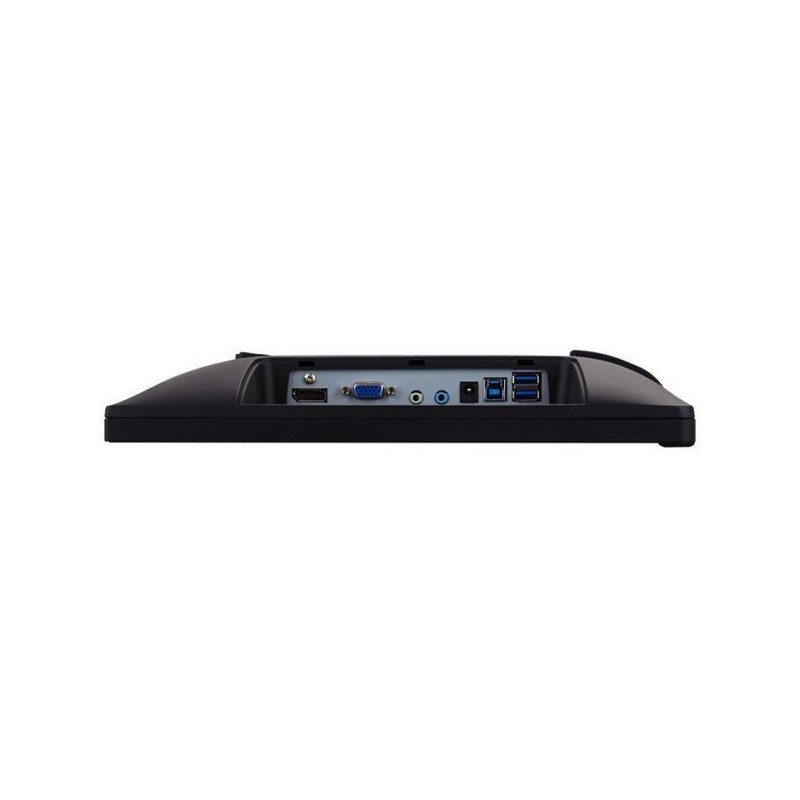

| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| Number of USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |

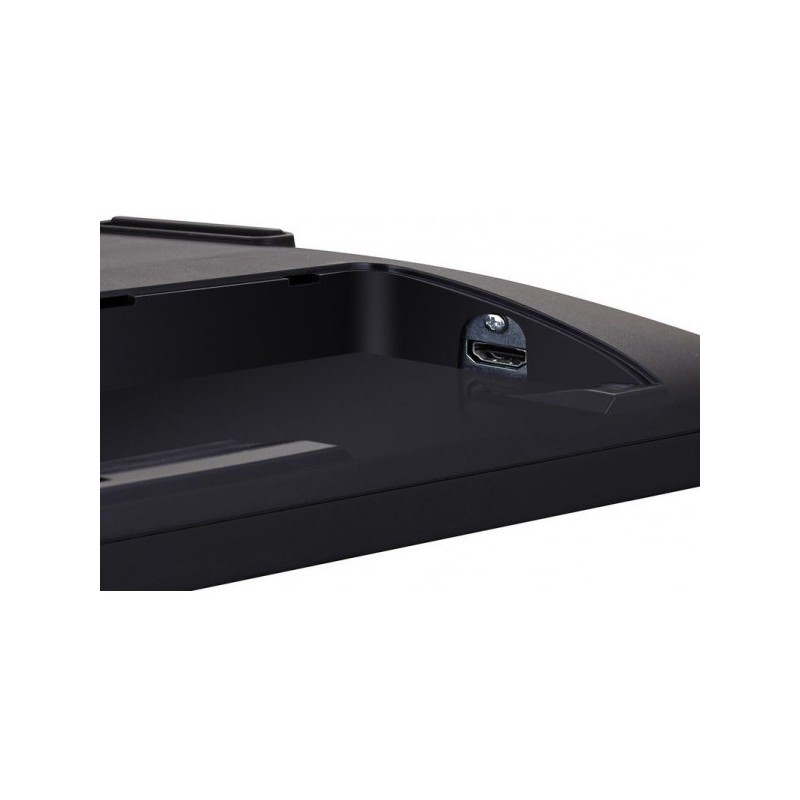

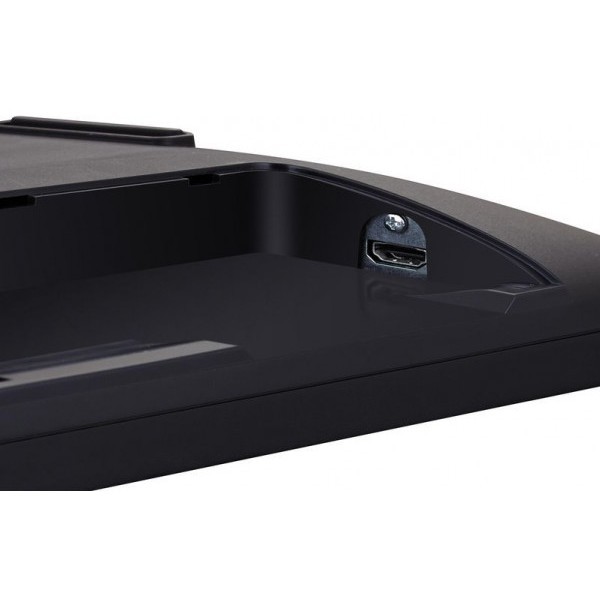

| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Audio input | 1 |
| Audio output | 1 |

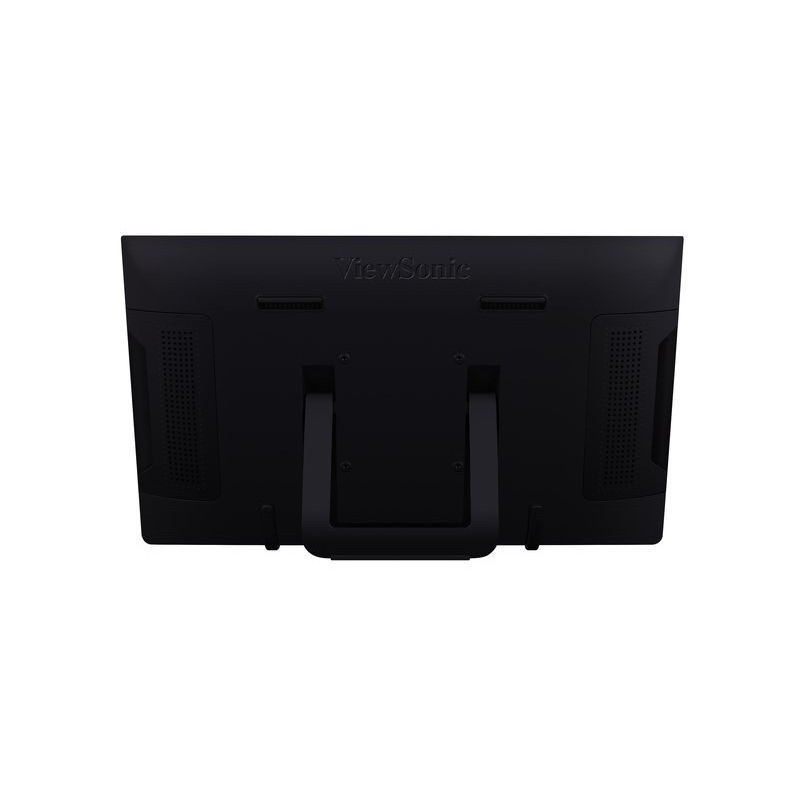

| Panel mounting interface | 100 x 100 mm |

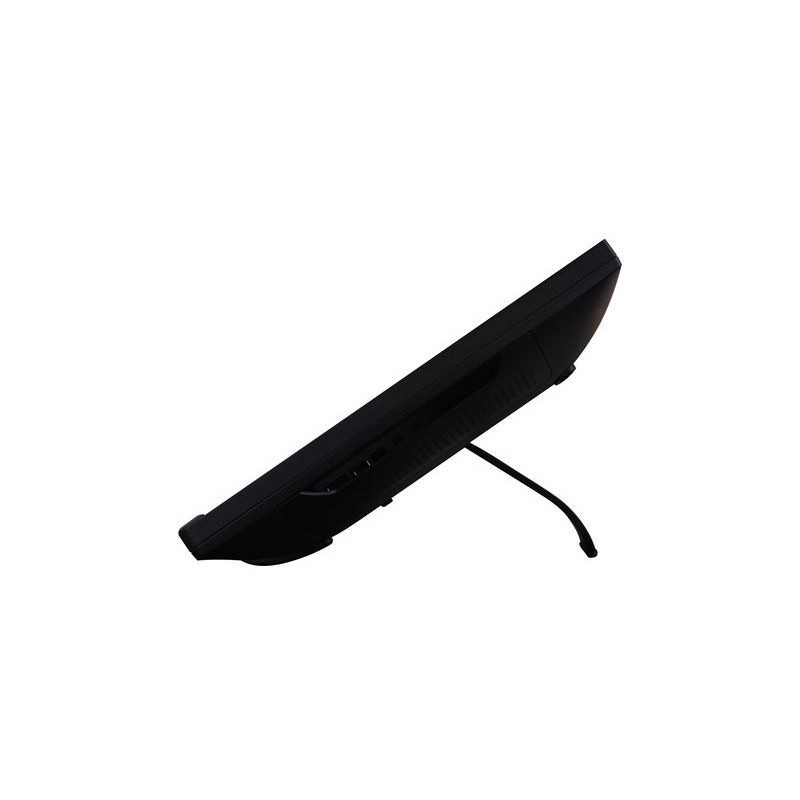

| Tilt angle range | 20 - 70° |
| Number of OSD languages | 12 |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 25 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| European Product Registry for Energy Labelling (EPREL) code | 389769 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width (with stand) | 490 mm |
| Depth (with stand) | 47 mm |
| Height (with stand) | 299 mm |
| Weight (with stand) | 3.58 kg |
| Package width | 550 mm |
| Package depth | 114 mm |
| Package height | 371 mm |
| Package weight | 4.7 kg |
| Cables included | AC. Audio (3.5mm). HDMI. USB |
| Sustainability certificates | EPEAT Bronze. ErP |
| Display viewable area (HxV) | 476.64 x 268.11 mm |
| Compliance certificates | CE. REACH. RoHS |
| Harmonized System (HS) code | 85285210 |
