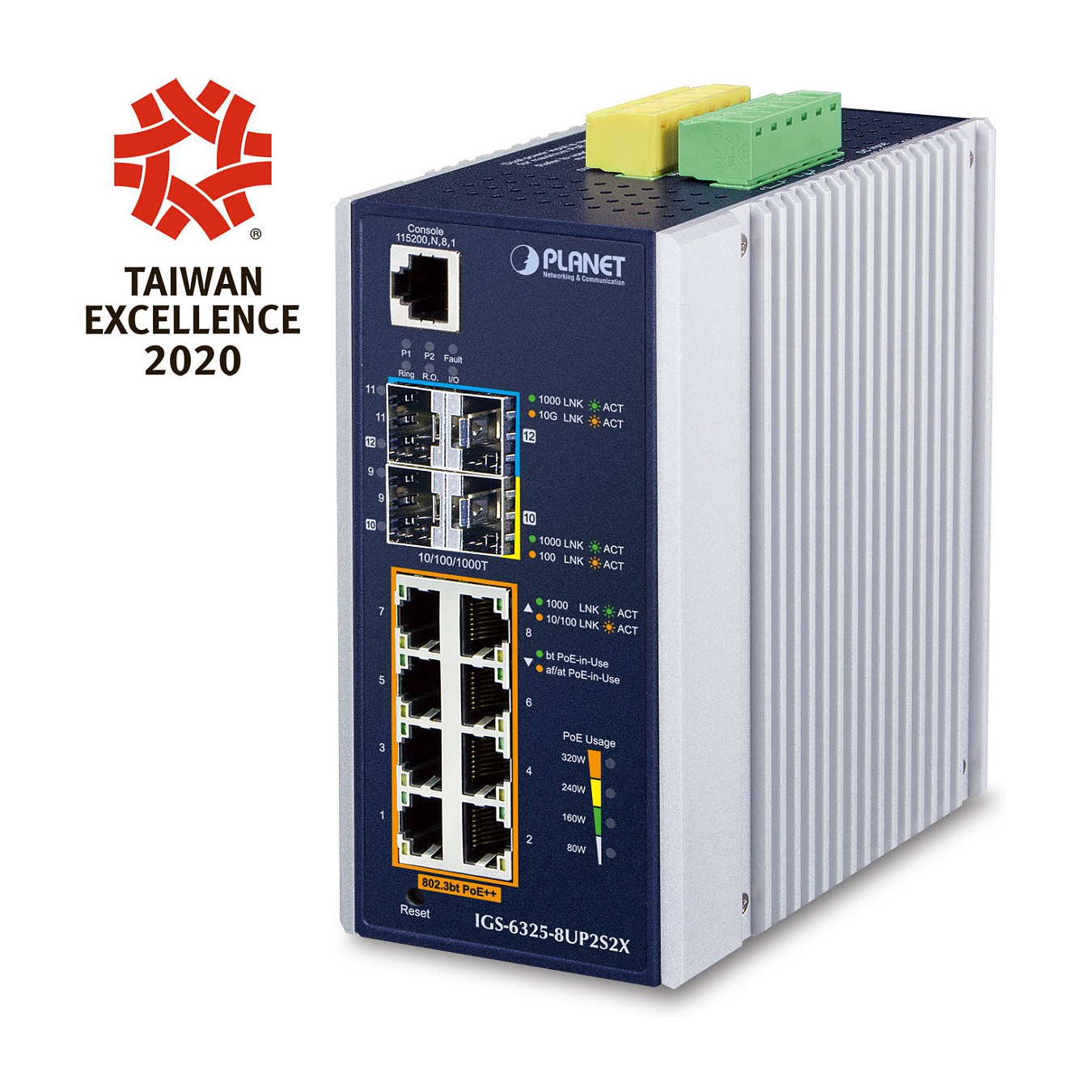

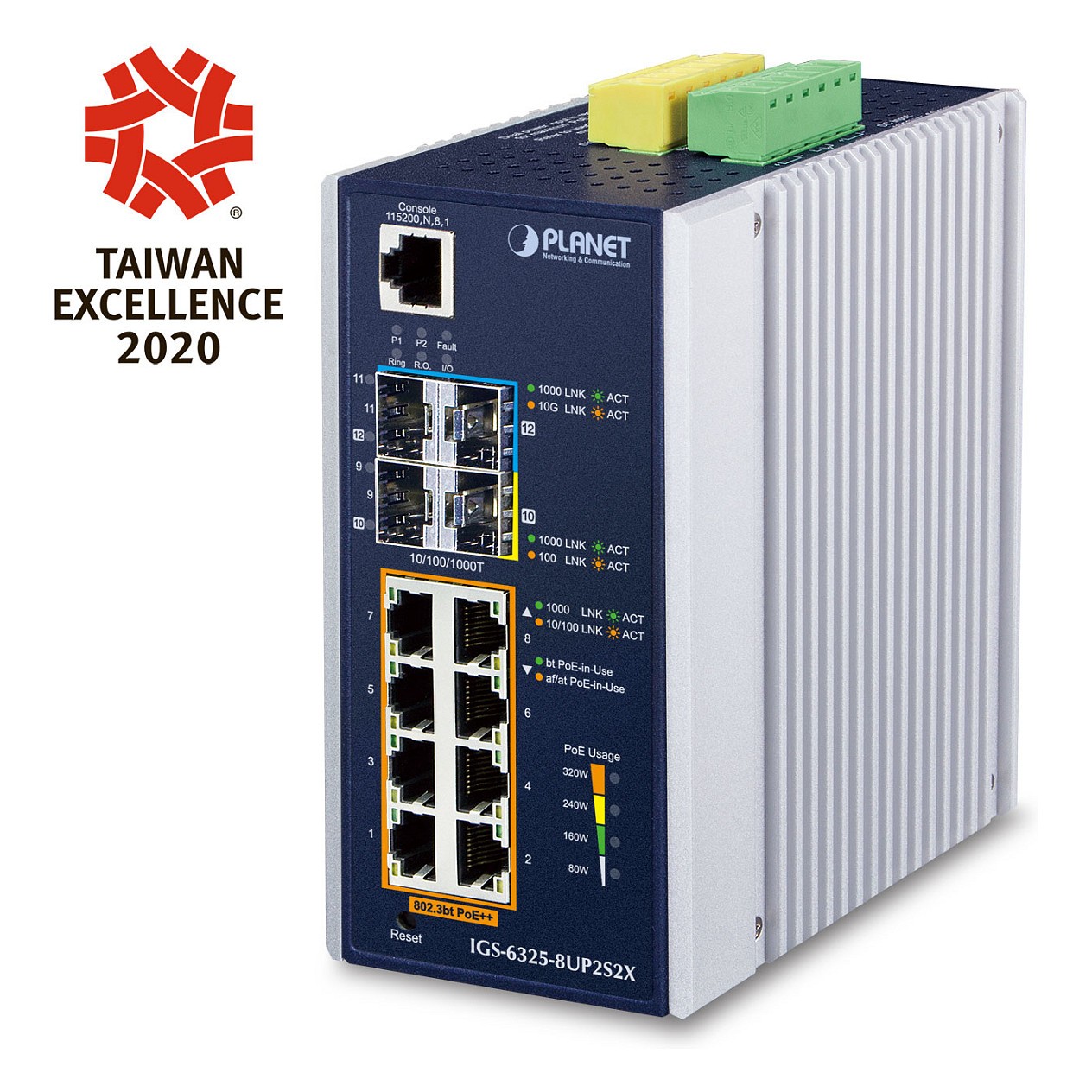

Planet IGS-6325-8UP2S2X Industrie L3 8-Port PoE SFP+ Managed Ethernet Switch
PLANET IP30 DIN-rail Industrial L3 8P. Managed. L3. Gigabit Ethernet (10/100/1000). Vollduplex. Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET IP30 DIN-rail Industrial L3 8P. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Anzahl installierten SFP Module: 2. Anzahl installierte SFP Module: 2. Konsolen-Port: RJ-45. Vollduplex. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 60 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1ag. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE.... Wandmontage
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | DIN-Schienen-Montage |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl installierten SFP Module | 2 |
| Anzahl installierte SFP Module | 2 |
| Konsolen-Port | RJ-45 |
| Anzahl der VLANs | 4095 |
| Routing-/Switching-Kapazität | 60 Gbit/s |
| Durchgang | 44.64 Mpps |
| MAC-Adressentabelle | 16000 Eintragungen |
| Jumbo-Frames | 10000 |
| Datenpaket-Pufferspeicher | 32 MB |
| DHCP-Funktionen | DHCP Option 82. DHCP relay. DHCP server. DHCP snooping |
| Produktfarbe | Aluminium. Blau |
| Gehäusematerial | Aluminium |
| Internationale Schutzart (IP-Code) | IP30 |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Breite | 76.8 mm |
| Tiefe | 107.3 mm |
| Höhe | 152 mm |
| Gewicht | 1.15 kg |
| Zertifizierung | FCC Part 15 Class ACE:EN55032EN55035IEC60068-2-32 (free fall)IEC60068-2-27 (shock)IEC60068-2-6 (vibration) |
| Warentarifnummer (HS) | 85176990 |
