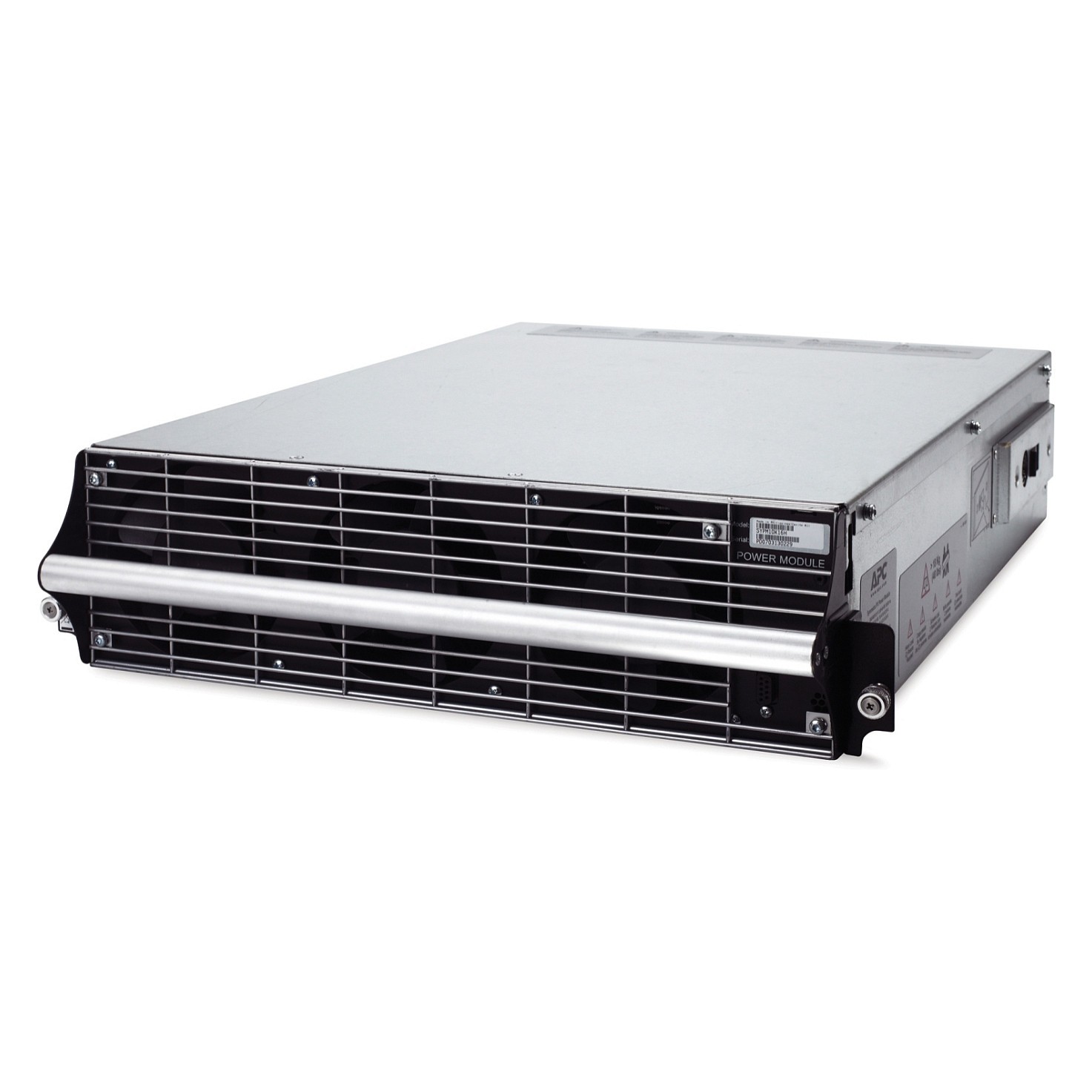

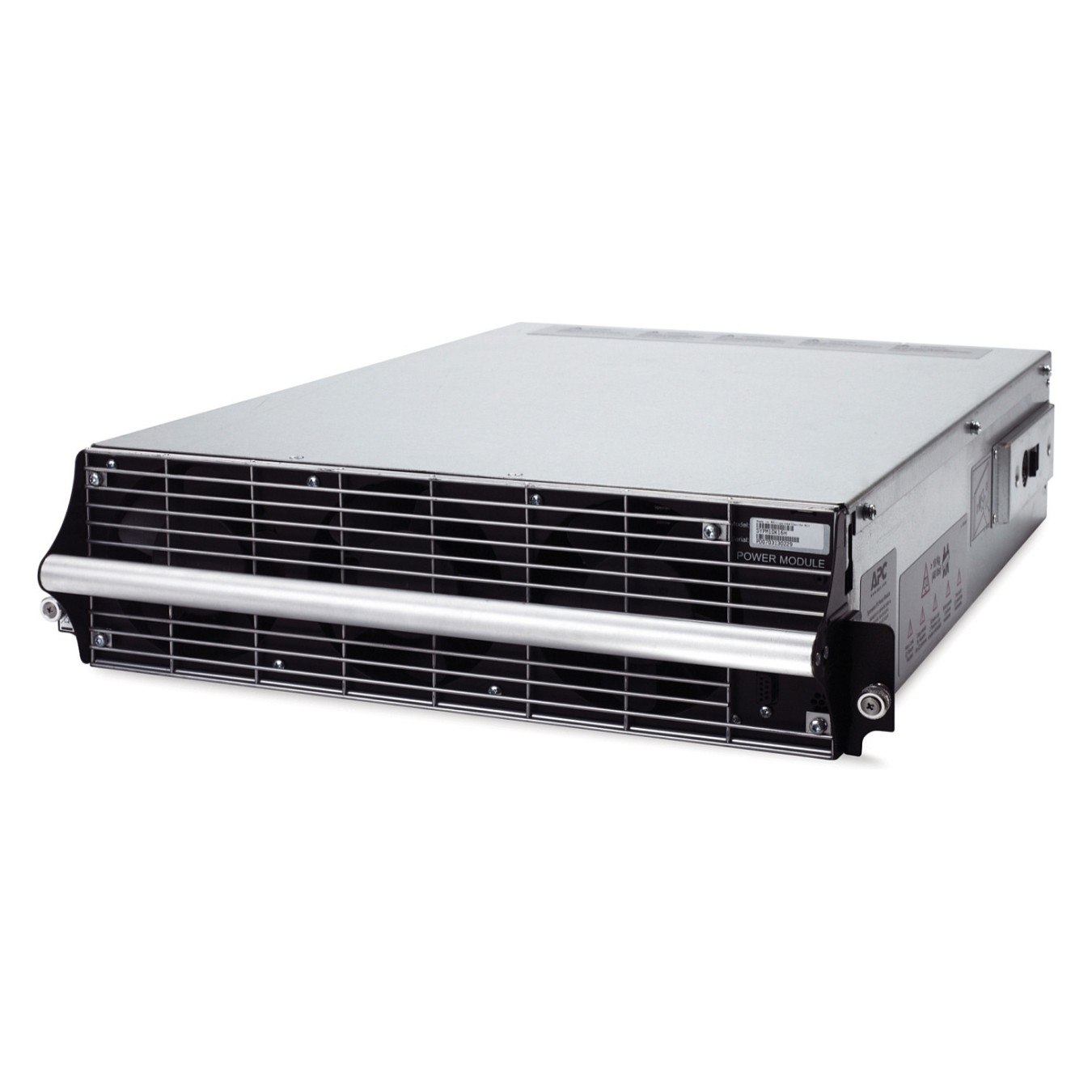

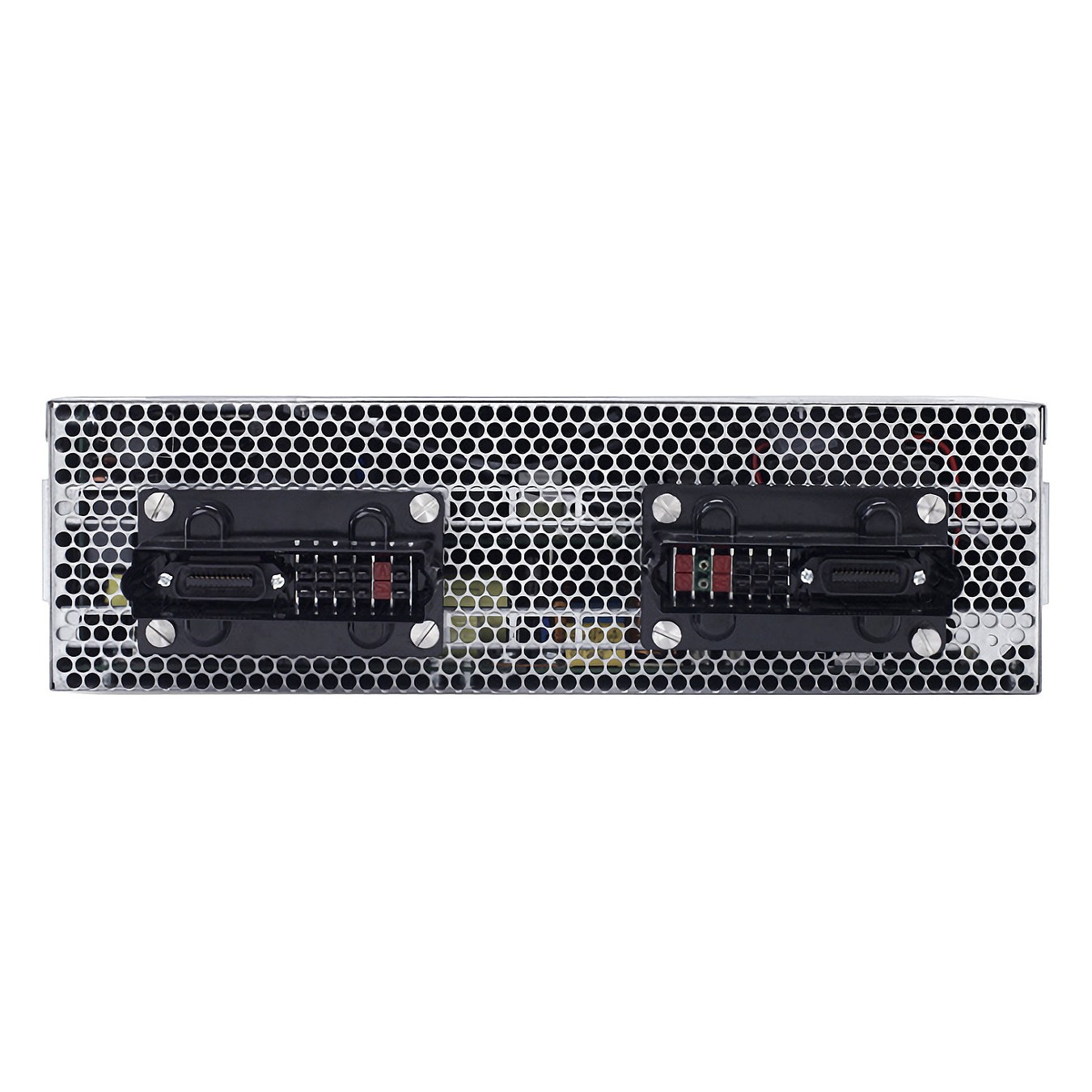

APC Symmetra PX Power Module UPS plug-in module AC 400V 16 kW 16000VA 3-phase no battery output connectors 1 3U
APC Symmetra PX Stromversorgungsmodul, 10/16 kW, 400 V, Leistungsmodul, Schwarz, Grau, 63 dB, 16000 VA, 16000 W, 400 V
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
APC Symmetra PX Stromversorgungsmodul, 10/16 kW, 400 V. Produkttyp: Leistungsmodul, Produktfarbe: Schwarz, Grau, Geräuschpegel: 63 dB. Ladekapazität: 16000 VA, Kapazität: 16000 W, Eingangsspannung: 400 V. Zertifizierung: CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111. Breite: 483 mm, Tiefe: 70 mm, Höhe: 132 mm. Verpackungsbreite: 700 mm, Verpackungstiefe: 595 mm, Verpackungshöhe: 225 mm
| Produkttyp | Leistungsmodul |
| Produktfarbe | Schwarz, Grau |
| Geräuschpegel | 63 dB |
| Ladekapazität | 16000 VA |
| Kapazität | 16000 W |
| Eingangsspannung | 400 V |
| Eingangsfrequenz | 40/70 Hz |
| Ausgangsspannung | 400 V |
| Anzahl der Phasen | 3 |
| Maximale Gesamtstromaufnahme pro Phase | 33 A |
| Ausgangskapazität | 16 kVA |
| Zertifizierung | CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111 |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -15 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Luftfeuchtigkeit bei Lagerung | 0 - 95% |
| Höhe bei Betrieb | 0 - 1015 m |
| Höhe bei Lagerung | 0 - 4572 m |
| Breite | 483 mm |
| Tiefe | 70 mm |
| Höhe | 132 mm |
| Gewicht | 28,5 kg |
| Verpackungsbreite | 700 mm |
| Verpackungstiefe | 595 mm |
| Verpackungshöhe | 225 mm |
| Paketgewicht | 59,5 kg |
| Exportkontroll-Klassifizierungsnummer (ECCN) | EAR99 |
| Warentarifnummer (HS) | 85079080 |
