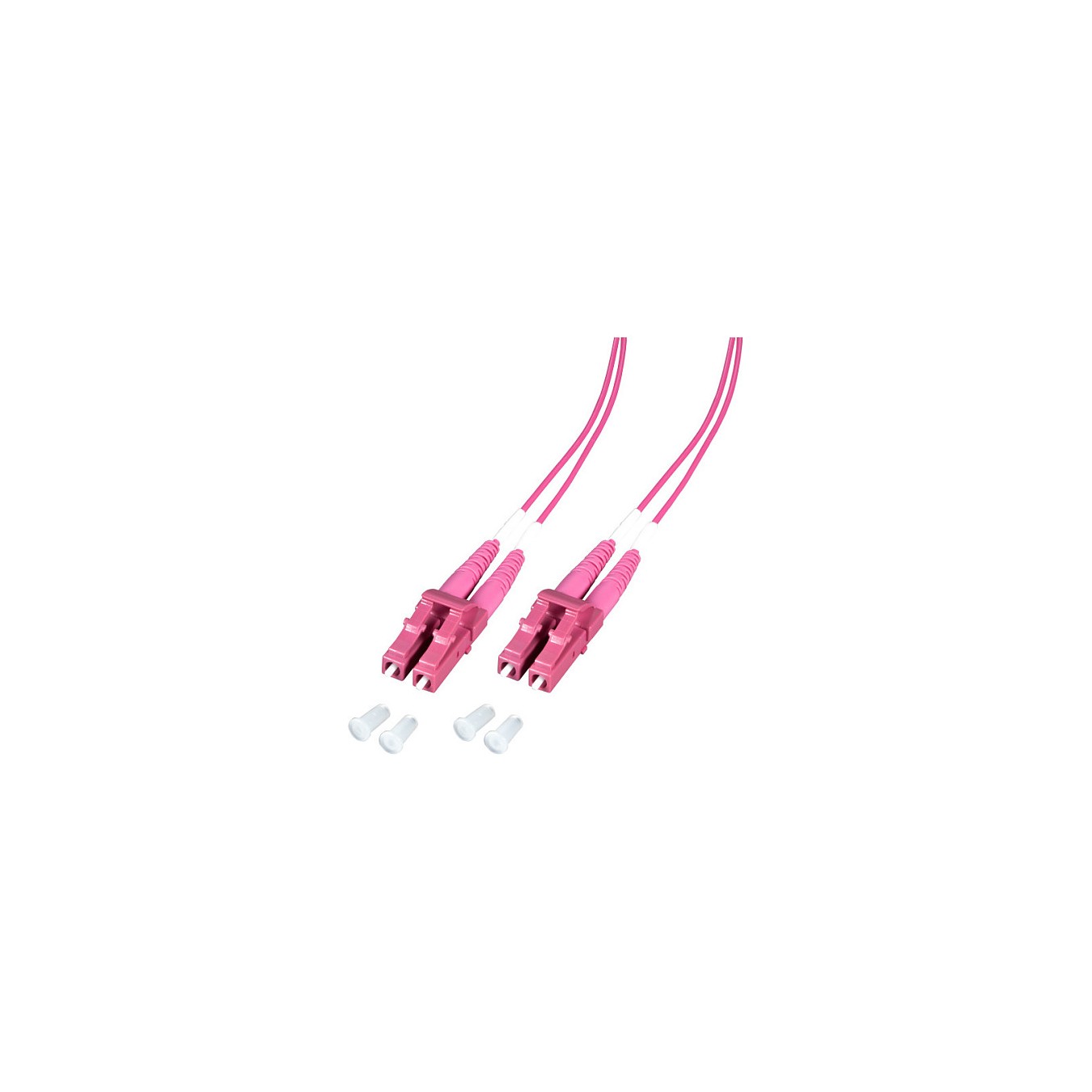

EFB Duplex Patchkabel LC-LC 50 125 OM4 LSZH 1.2mm 1.0m viol.
EFB Elektronik O0319.1-1.2, 1 m, OM4, 2x LC, 2x LC
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
EFB Elektronik O0319.1-1.2. Kabellänge: 1 m, Lichtleitertyp: OM4, Anschluss 1: 2x LC, Anschluss 2: 2x LC, Lochdurchmesser: 50 µm, Vollduplex
| Kabellänge | 1 m |
| Lichtleitertyp | OM4 |
| Anschluss 1 | 2x LC |
| Anschluss 2 | 2x LC |
| Steckverbinder 1 Geschlecht | Stecker |
| Steckverbinder 2 Geschlecht | Stecker |
| Produktfarbe | Violett |
| Vollduplex | Ja |
| Lochdurchmesser | 50 µm |
| Verkleidungsdurchmesser | 125 µm |
| Kabel mode struktur | Multi-Modus |
| Einführungsverlust | 0,25 dB |
| Mantelmaterial | Raucharm halogenfrei (LSZH) |
| Enthält nicht | Halogen |
| Konformitätsbescheinigungen | RoHS |
| Zertifizierung | IEC-60754-2, IEC-60332-1, IEC-61034, IEC-61753-122-2, EN 50265-2-1, IEC 61754-20, IEC 60793-2 |
| Betriebstemperatur | -20 - 75 °C |
| Temperaturbereich bei Lagerung | -20 - 85 °C |
| Kabeldurchmesser | 1,2 mm |
| Biegeradius | 3,8 mm |
| Warentarifnummer (HS) | 85447000 |
