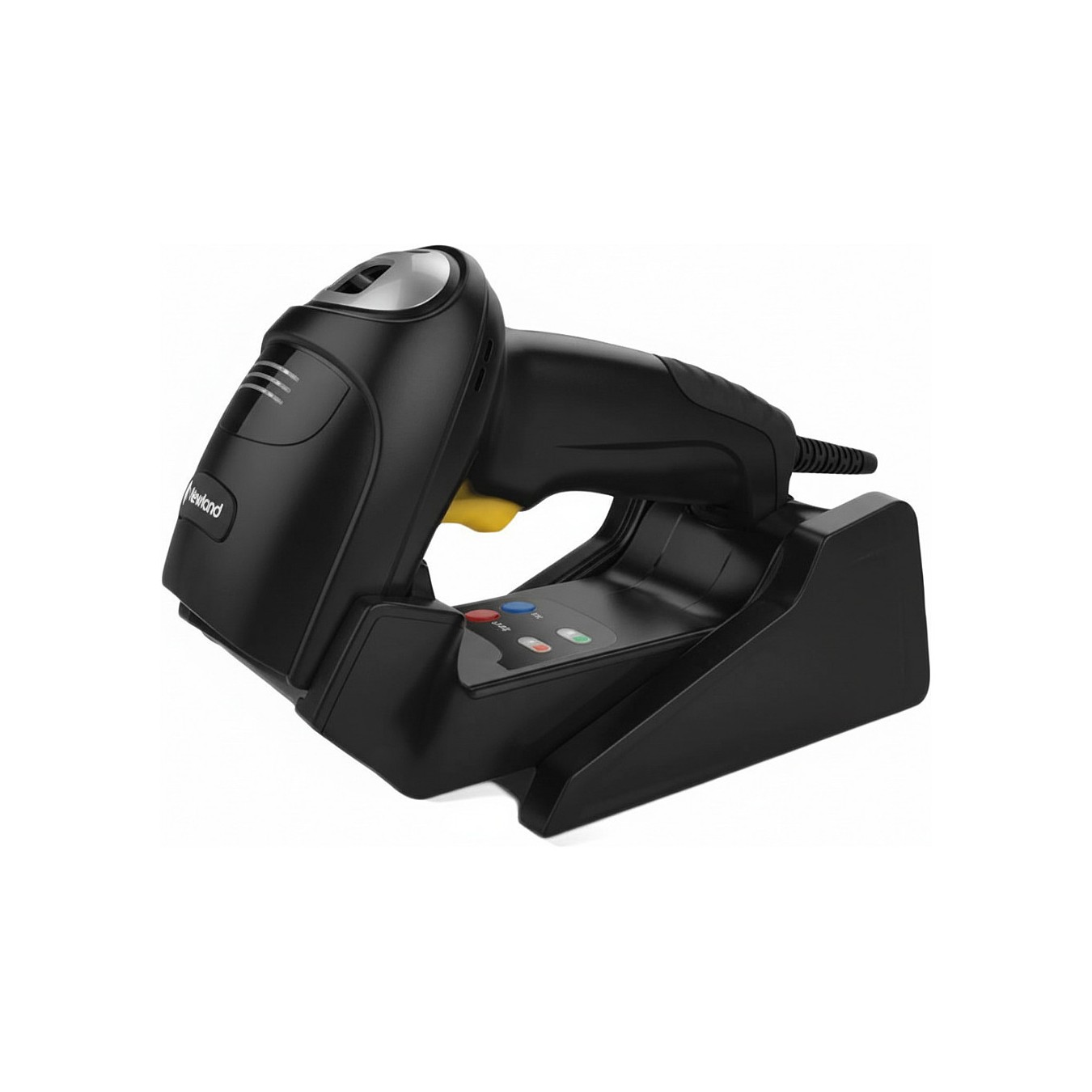

HR52 Bonito, portable barcode reader, 1D-2D, CMOS, Codabar, Code 11, Code 128, Code 39
Newland HR52 Bonito, Tragbares Barcodelesegerät, 1D/2D, CMOS, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, ITF-14,..., Aztec Code, Datenmatrix, MaxiCode, PDF417, QR Code, 1280 x 800 Pixel
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Newland HR52 Bonito. Typ: Tragbares Barcodelesegerät, Scanner-Typ: 1D/2D, Sensor-Typ: CMOS. Übertragungstechnik: Kabelgebunden, Standard-Schnittstellen: USB, Kabellänge: 3 m. Produktfarbe: Schwarz, Internationale Schutzart (IP-Code): IP54, Schutzfunktion: Tropfsicher, Schutz vor elektrostatischer Entladung (ESD). Energiequelle: USB, Eingangsspannung: 5 V, Energieverbrauch: 81 mA. Gewicht: 180 g, Breite: 77,5 mm, Tiefe: 95,5 mm
| Typ | Tragbares Barcodelesegerät |
| Scanner-Typ | 1D/2D |
| Sensor-Typ | CMOS |
| Lineare (1D) Barcodes unterstützt | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E |
| 2D (Matrix & gestapelte) Barcodes unterstützt | Aztec Code, Datenmatrix, MaxiCode, PDF417, QR Code |
| Optische Sensorauflösung (B x H) | 1280 x 800 Pixel |
| Wellenlänge | 650 nm |
| Neigungslesewinkel | -55 - 55° |
| Steigungslesewinkel | -55 - 55° |
| Gierlesewinkel | 0 - 360° |
| Übertragungstechnik | Kabelgebunden |
| Standard-Schnittstellen | USB |
| Kabellänge | 3 m |
| Internationale Schutzart (IP-Code) | IP54 |
| Schutzfunktion | Tropfsicher, Schutz vor elektrostatischer Entladung (ESD) |
| Alarm | Ja |
| Druckkontrast | 20% |
| Produktfarbe | Schwarz |
| Zertifizierung | FCC Part15 Class B, CE EMC Class B |
| Energiequelle | USB |
| Eingangsspannung | 5 V |
| Energieverbrauch | 81 mA |
| Breite | 77,5 mm |
| Tiefe | 95,5 mm |
| Höhe | 172,5 mm |
| Gewicht | 180 g |
| Mitgelieferte Kabel | USB |
| Betriebstemperatur | -20 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
