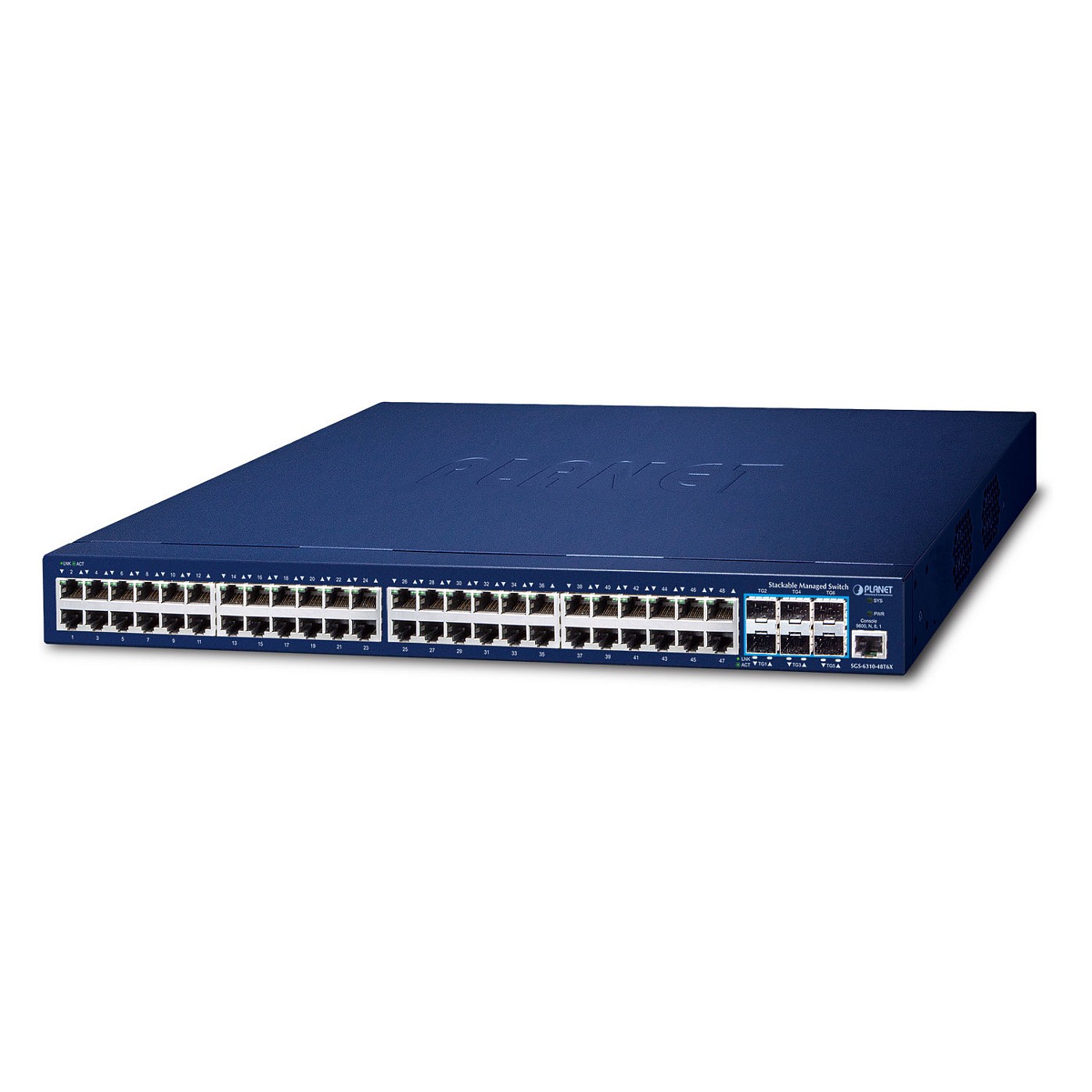

Planet SGS-6310-48T6X 48-Port Switch
PLANET SGS-6310-48T6X, Managed, L3, Gigabit Ethernet (10/100/1000), Vollduplex, Rack-Einbau, 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET SGS-6310-48T6X. Switch-Typ: Managed, Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 48, Anzahl installierte SFP Module: 6. Vollduplex. MAC-Adressentabelle: 16000 Eintragungen, Routing-/Switching-Kapazität: 216 Gbit/s. Netzstandard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack-Einbau, Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Quality of Service (QoS) Support | Ja |
| Web-basiertes Management | Ja |
| Traffic-Klassifizierung | Ja |
| Traffic-Shaping | Ja |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 48 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl installierte SFP Module | 6 |
| Netzstandard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G-Unterstützung | Ja |
| Vollduplex | Ja |
| Halb-Duplex | Ja |
| Unterstützung Datenflusssteuerung | Ja |
| Link Aggregation | Ja |
| Broadcast-Sturmkontrolle | Ja |
| Spannbaum-Protokoll | Ja |
| Auto-Negotiation-Funktion | Ja |
| VLAN-Unterstützung | Ja |
| Routing-/Switching-Kapazität | 216 Gbit/s |
| Durchgang | 160,7 Mpps |
| MAC-Adressentabelle | 16000 Eintragungen |
| Store-and-Forward | Ja |
| Anzahl IP-Schnittstellen | 64 |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 9000 |
| Datenpaket-Pufferspeicher | 1,5 MB |
| DHCP-Funktionen | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Zugriffkontrollliste | Ja |
| IGMP-Snooping | Ja |
| SSH-/SSL-Unterstützung | Ja |
| Rack-Einbau | Ja |
| Stapelbar | Ja |
| Formfaktor | 1U |
| Produktfarbe | Blau |
| Gehäusematerial | Metall |
| LED-Anzeigen | Ja |
| Anzahl Lüfter | 2 Lüfter |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (Standardbetrieb) | 48 W |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -20 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 440 mm |
| Tiefe | 280 mm |
| Höhe | 44 mm |
| Gewicht | 4,3 kg |
| Zertifizierung | FCC Part 15 Class A, CE |
