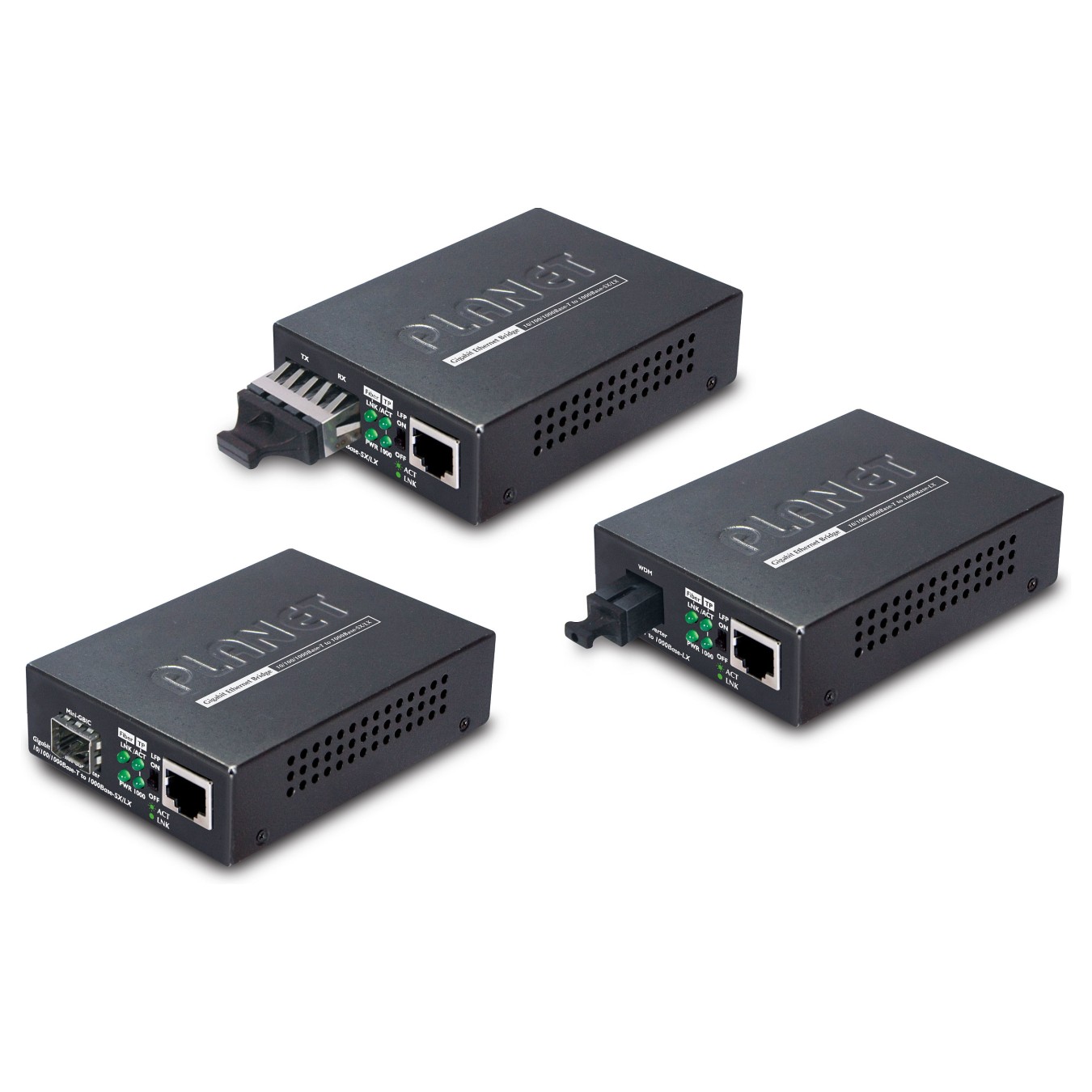

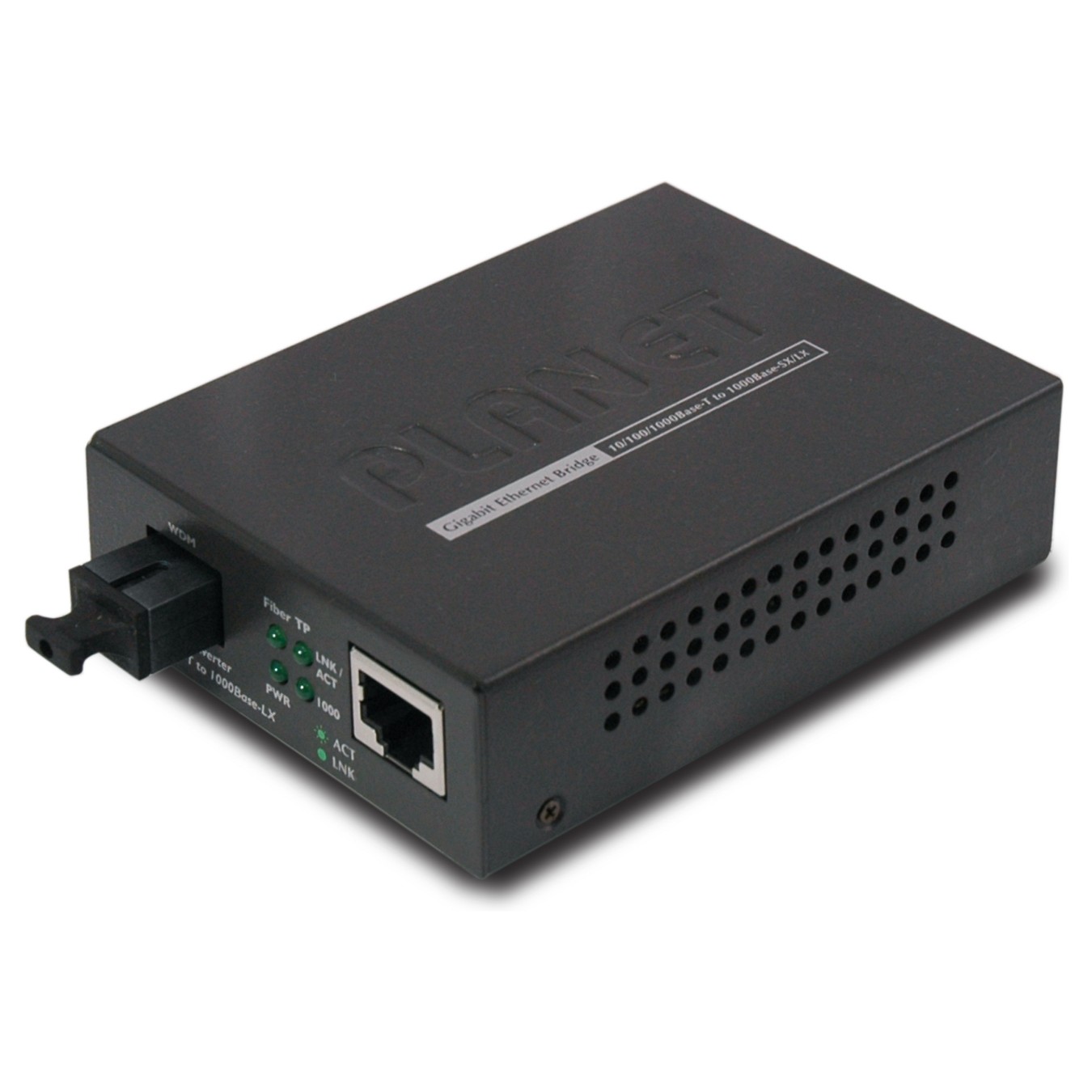

PLANET 10 100 1000Base-T to 1000Base-LX WDM - Tx: 1550) -
PLANET GT-806B15, 2000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE‑LX
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET GT-806B15. Maximale Datenübertragungsrate: 2000 Mbit/s, Netzstandard: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet Schnittstellen Typ: Gigabit Ethernet. Maximal mögliche Übertragungsstrecke: 15000 m, Wellenlänge: 1550 nm, Tx-Leistung (min): -9 dBmW. Produktfarbe: Schwarz. Optischer Kabelverbinder: SC, Übertragungstechnik: Kabelgebunden. Eingangsspannung: 5 V, Eingangsstrom: 2 A, Stromverbrauch (Standardbetrieb): 4,6 W
| Maximale Datenübertragungsrate | 2000 Mbit/s |
| Netzstandard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10,100,1000 Mbit/s |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet-Kabel Verkablungstechnologie | 1000BASE‑LX |
| Datenübertragungsrate | 1000 Mbit/s |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 9000 |
| Auto MDI/MDI-X | Ja |
| Maximal mögliche Übertragungsstrecke | 15000 m |
| Wellenlänge | 1550 nm |
| Wellenlängen-Multiplex-Technik (WDM) | Ja |
| Tx-Leistung (min) | -9 dBmW |
| Tx-Leistung (max) | -3 dBmW |
| Eingebaut | Nein |
| LED-Anzeigen | Ja |
| Produktfarbe | Schwarz |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Optischer Kabelverbinder | SC |
| Eingangsspannung | 5 V |
| Eingangsstrom | 2 A |
| Stromverbrauch (Standardbetrieb) | 4,6 W |
| Breite | 94 mm |
| Tiefe | 70 mm |
| Höhe | 26 mm |
| Gewicht | 200 g |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -10 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Zertifizierung | FCC, CE |
| Warentarifnummer (HS) | 85176990 |
