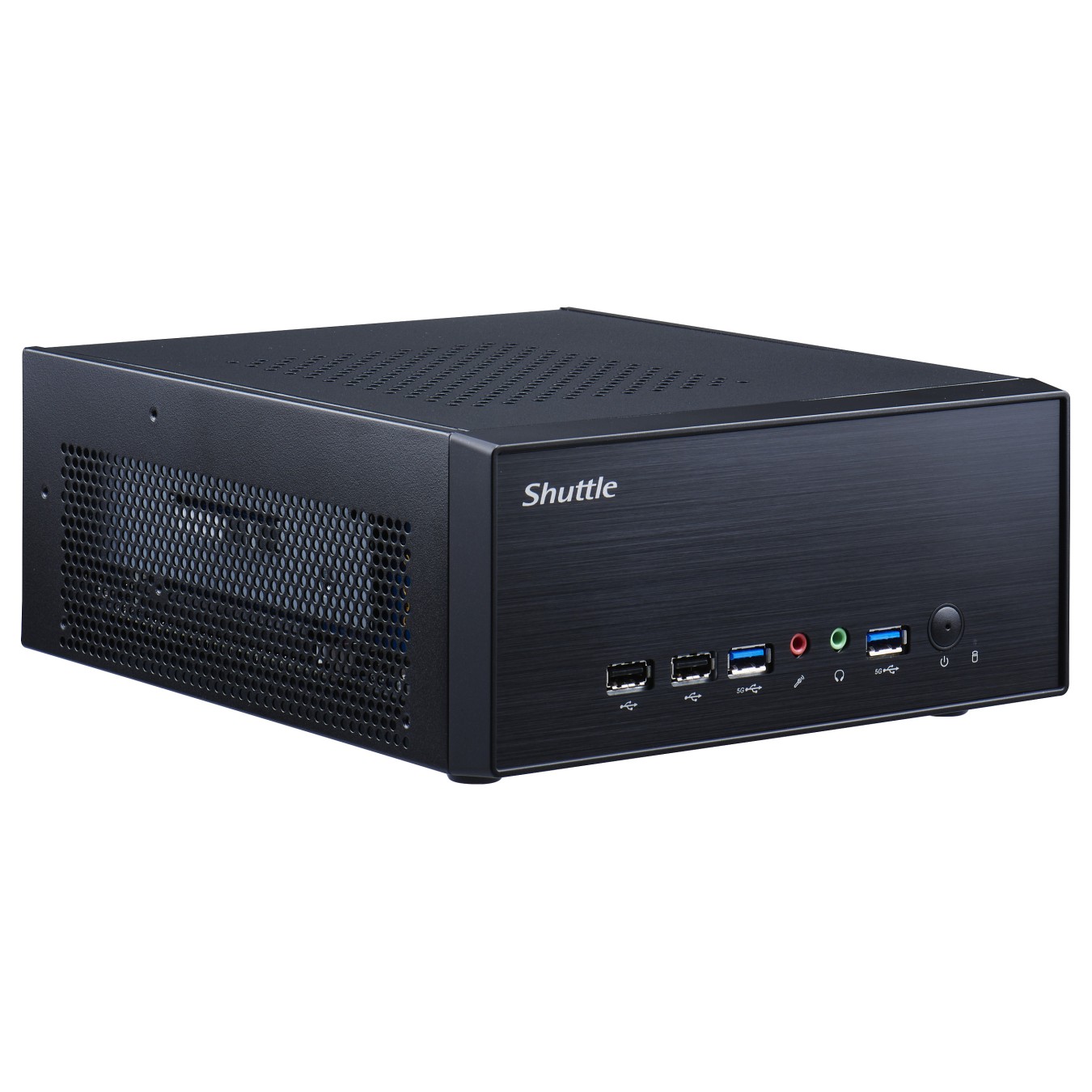

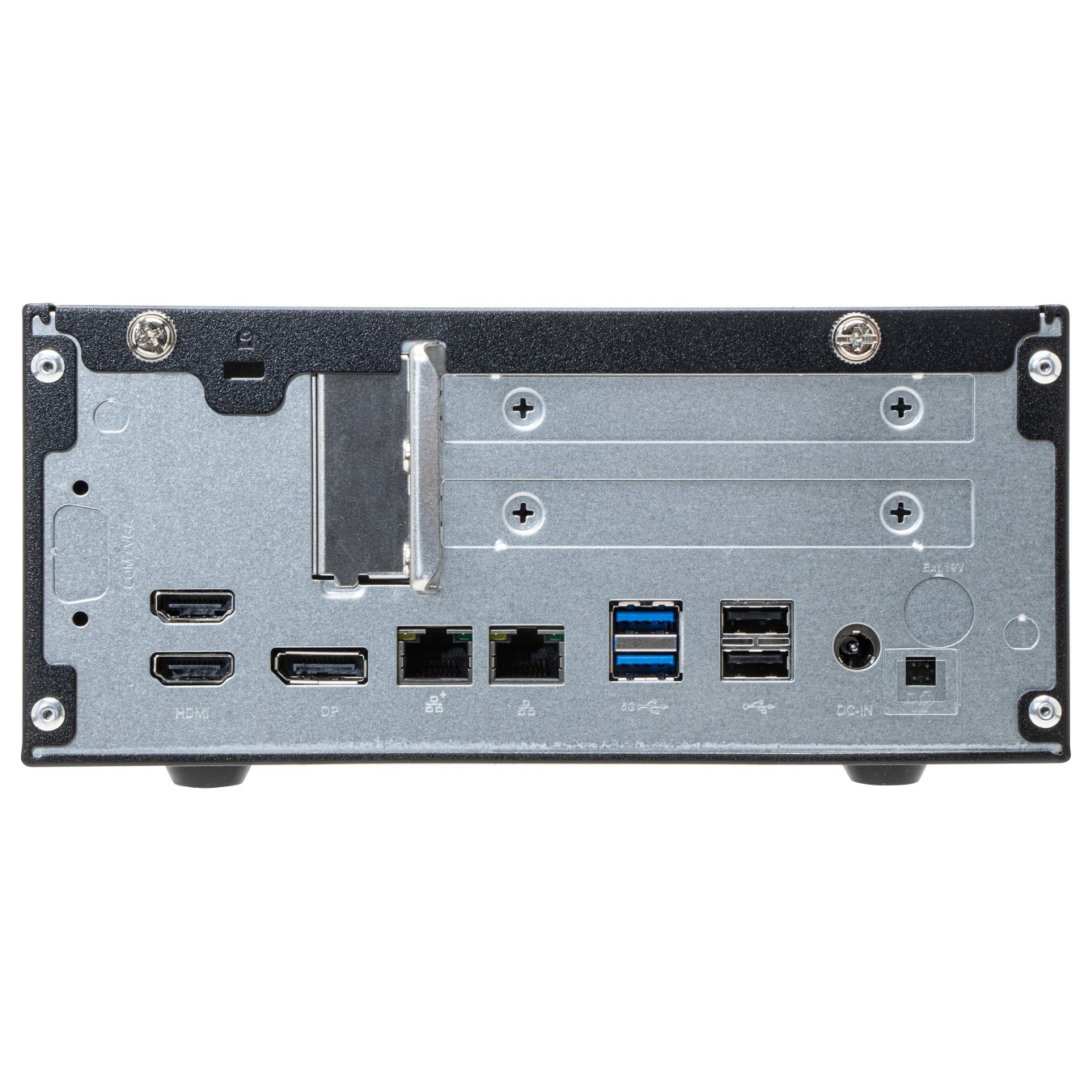

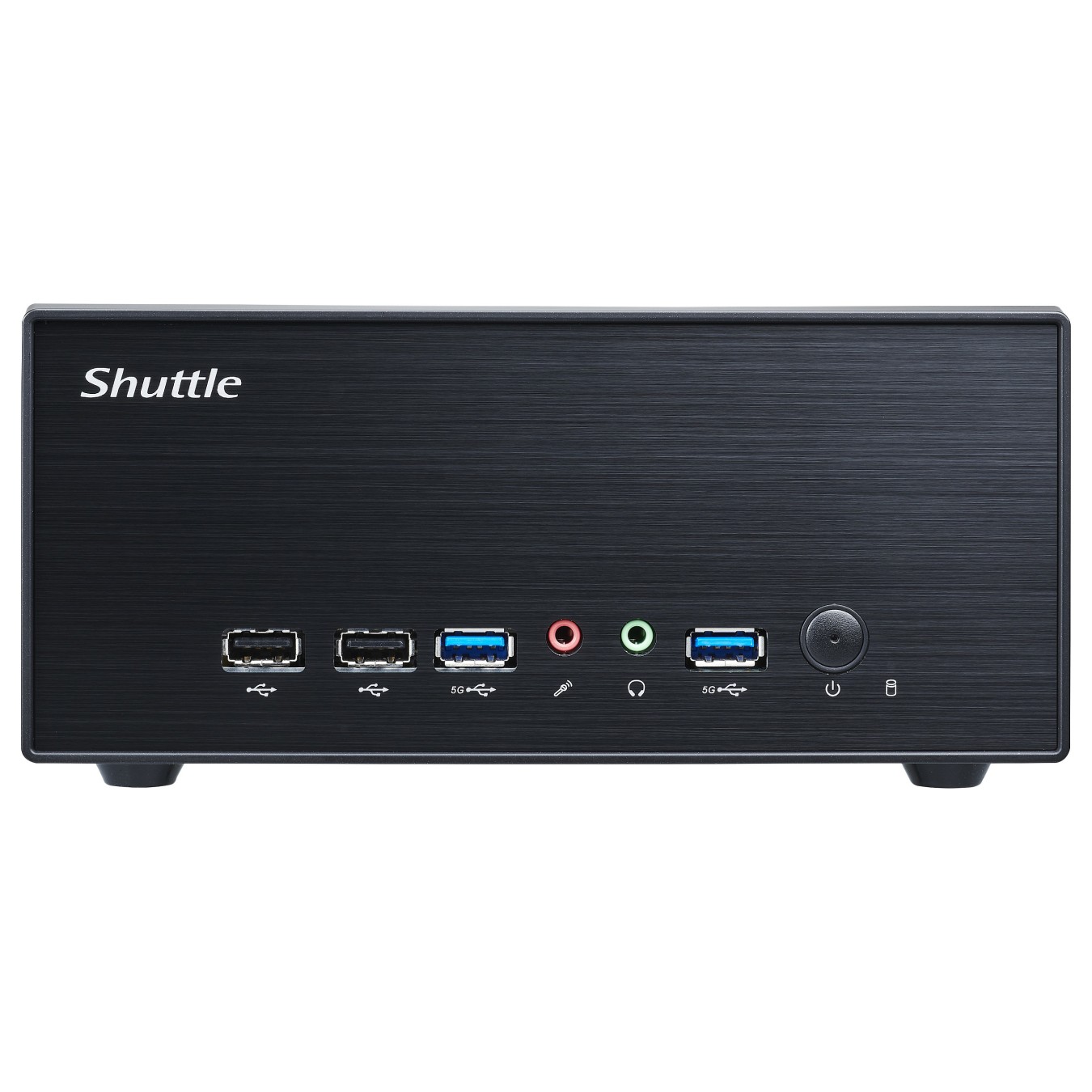

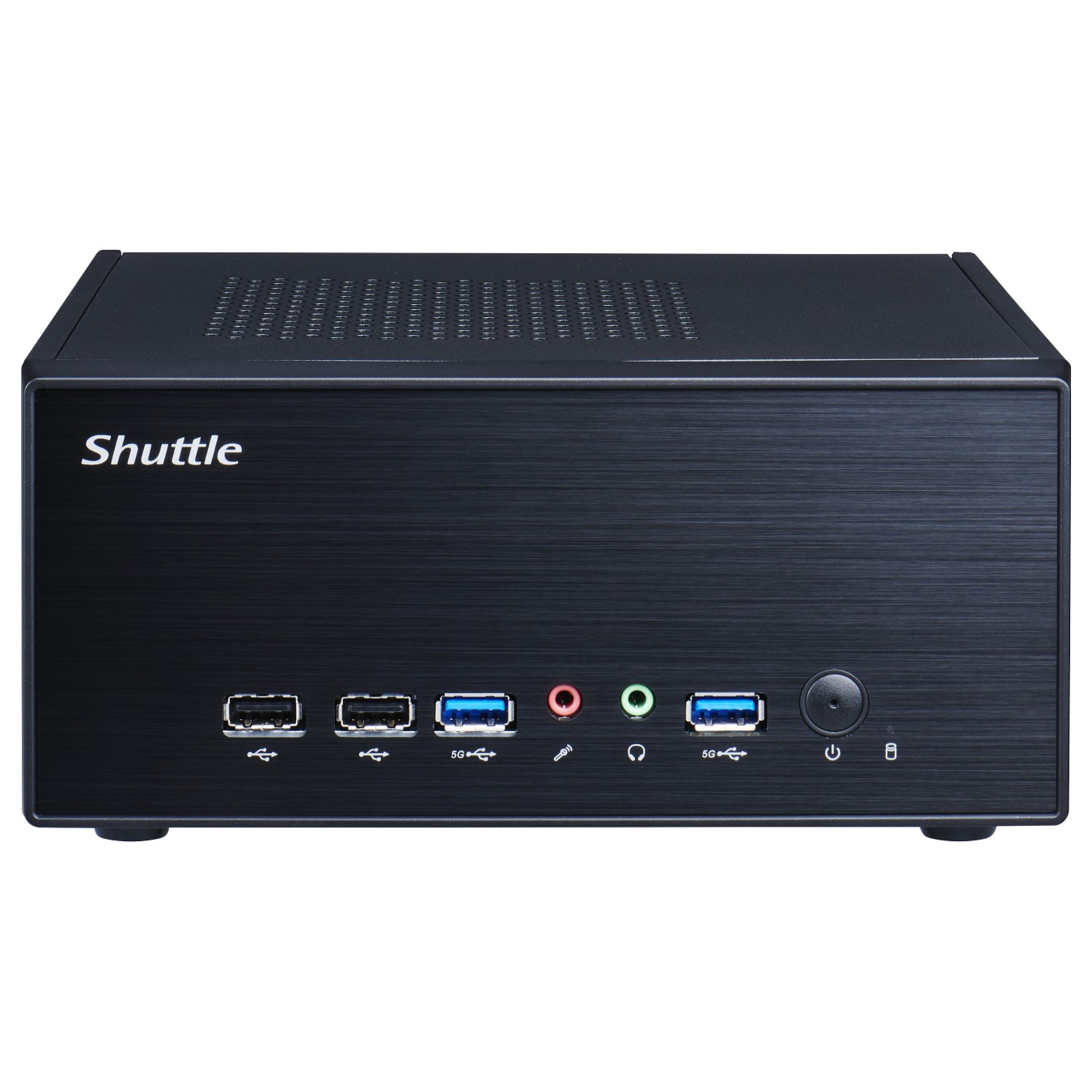

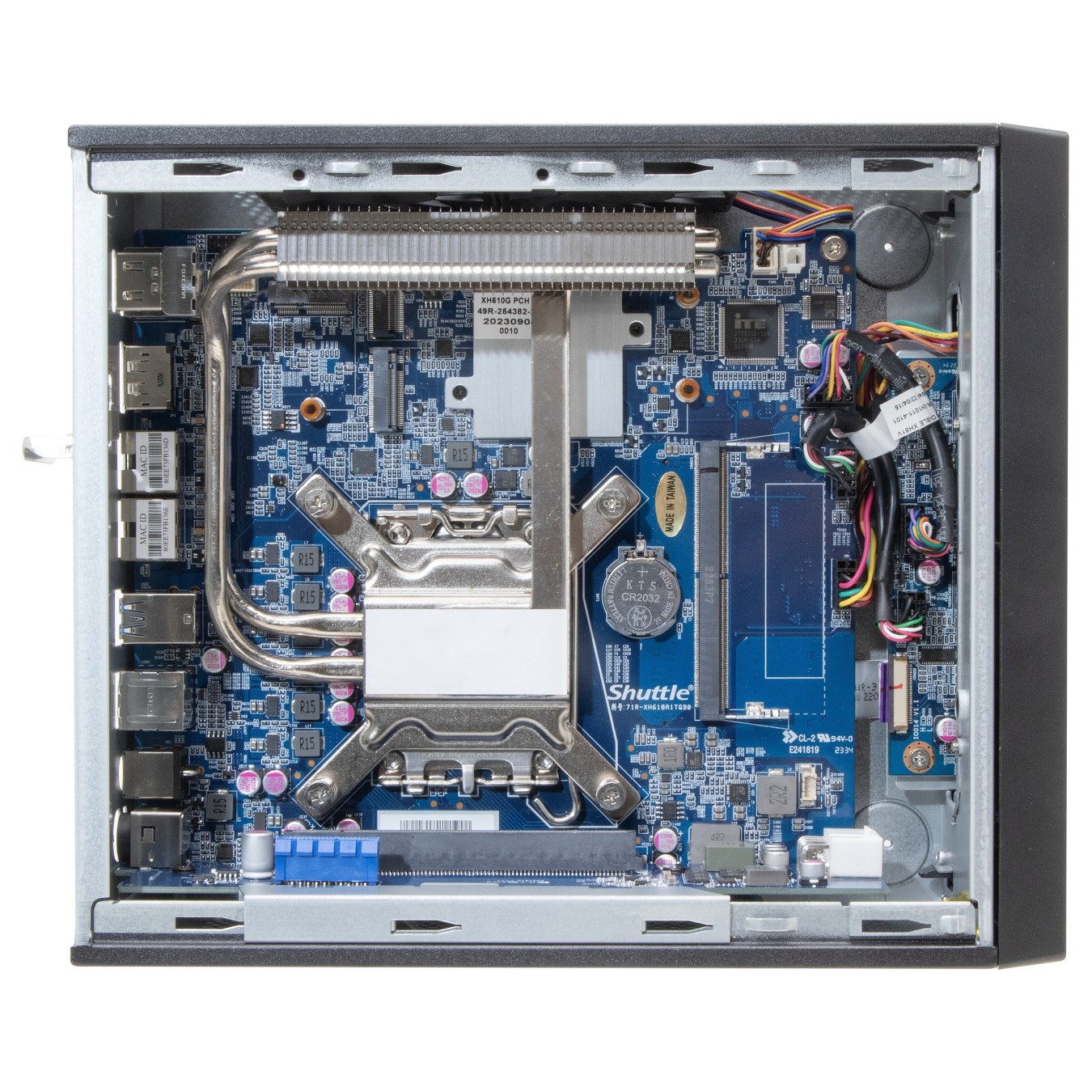

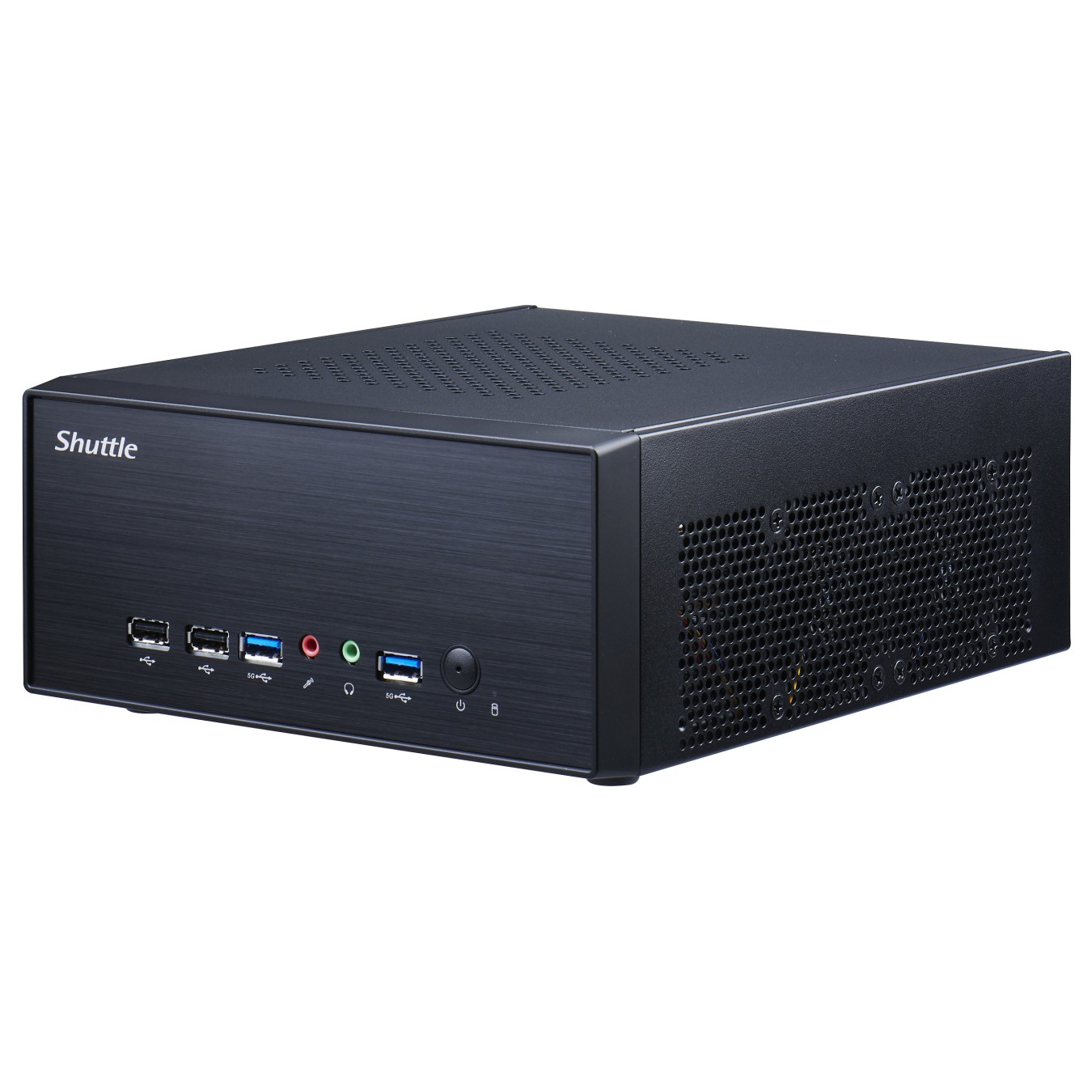

Barebone Shuttle XH81V
Shuttle XPС slim XPC slim Barebone XH610G2 - S1700, Intel H610, 1xDP, 2xHDMI, 2 PCIe Slots (1x 16X & 1x X1), 2x Intel LAN (1G + 2.5G), 8x USB, 1x 2.5", 3x M.2, 24/7 Dauerbetrieb, Desktop, PC Barebone, Intel H610, LGA 1700, DDR5-SDRAM, PCI Express, Serial ATA III
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Shuttle XPС slim XPC slim Barebone XH610G2 - S1700, Intel H610, 1xDP, 2xHDMI, 2 PCIe Slots (1x 16X & 1x X1), 2x Intel LAN (1G + 2.5G), 8x USB, 1x 2.5", 3x M.2, 24/7 Dauerbetrieb. Gehäusetyp: Desktop, Produkttyp: PC Barebone. Motherboard Chipsatz: Intel H610, Prozessorsockel: LGA 1700, BIOS-Typ: UEFI AMI. Unterstützte Arbeitsspeicher: DDR5-SDRAM, Anzahl der Speichersteckplätze: 2, RAM-Speicher maximal: 64 GB. Unterstützte Speicherlaufwerke: HDD & SSD, Speicherlaufwerk Schnittstelle: PCI Express, Serial ATA III. Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 2. Kühlung: Aktiv. Stromversorgung: 180 W
| Prozessorhersteller | Intel |
| Eingebauter Prozessor | Nein |
| Arbeitsspeicher Typ | SO-DIMM |
| Anzahl der Speichersteckplätze | 2 |
| RAM-Speicher maximal | 64 GB |
| Unterstützte Arbeitsspeichergeschwindigkeit | 5600 MHz |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Speicherkanäle | Zweikanalig |
| Speicherspannung | 1.1 V |
| Ohne ECC | Ja |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| unterstützte Speicherlaufwerksgrößen | 2.5,M.2 |
| Speicherlaufwerk Schnittstelle | PCI Express, Serial ATA III |
| NVMe | Ja |
| Eingebaute Grafikadapter | Ja |
| Motherboard Chipsatz | Intel H610 |
| Prozessorsockel | LGA 1700 |
| Anzahl unterstützter Prozessoren | 1 |
| BIOS-Typ | UEFI AMI |
| Trusted Platform Module (TPM) | Ja |
| Trusted Platform Module (TPM) Version | 2.0 |
| Audio Kanäle | 7.1 Kanäle |
| Audio-Chip | Realtek ALC888S |
| Eingebaute Lautsprecher | Nein |
| Ethernet/LAN | Ja |
| WLAN | Nein |
| LAN-Controller | Intel® I219-LM, Intel I226-LM |
| Anzahl USB 2.0 Anschlüsse | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 4 |
| Anzahl HDMI-Anschlüsse | 2 |
| HDMI-Version | 2.0b |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 1.4 |
| Mikrofon-Eingang | Ja |
| Kopfhörerausgänge | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Gleichstrom-Anschluss (DC) | Ja |
| Gehäusetyp | Desktop |
| Produktfarbe | Schwarz |
| Kühlung | Aktiv |
| Ein-/Ausschalter | Ja |
| LED-Anzeigen | Ja |
| Produkttyp | PC Barebone |
| Konformitätsbescheinigungen | BSMI, CB, CE, Eidgenössische Kommunikationskommission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus |
| Warentarifnummer (HS) | 84733080 |
| Unterstützt Windows-Betriebssysteme | Windows 11 |
| Unterstützte Linux-Betriebssysteme | Ja |
| Nachhaltigkeitszertifikate | ENERGY STAR, ErP |
| Netzteiltyp | Externer AC-Adapter |
| Stromversorgung | 180 W |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Netzteil Ausgangsspannung | 19.5 V |
| AC-Adapter Ausgangssstrom | 9,23 A |
| Betriebstemperatur | 0 - 50 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Breite | 250 mm |
| Tiefe | 200 mm |
| Höhe | 95 mm |
| Gewicht | 2,98 kg |
| Paketgewicht | 3,49 kg |
| Netzkabel enthalten | Ja |
| AC-Netzadapter | Ja |
| Schnellstartübersicht | Ja |
| Treiber enthalten | Ja |
| Ursprungsland | China |
