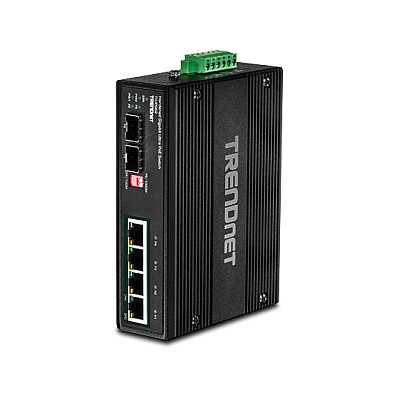

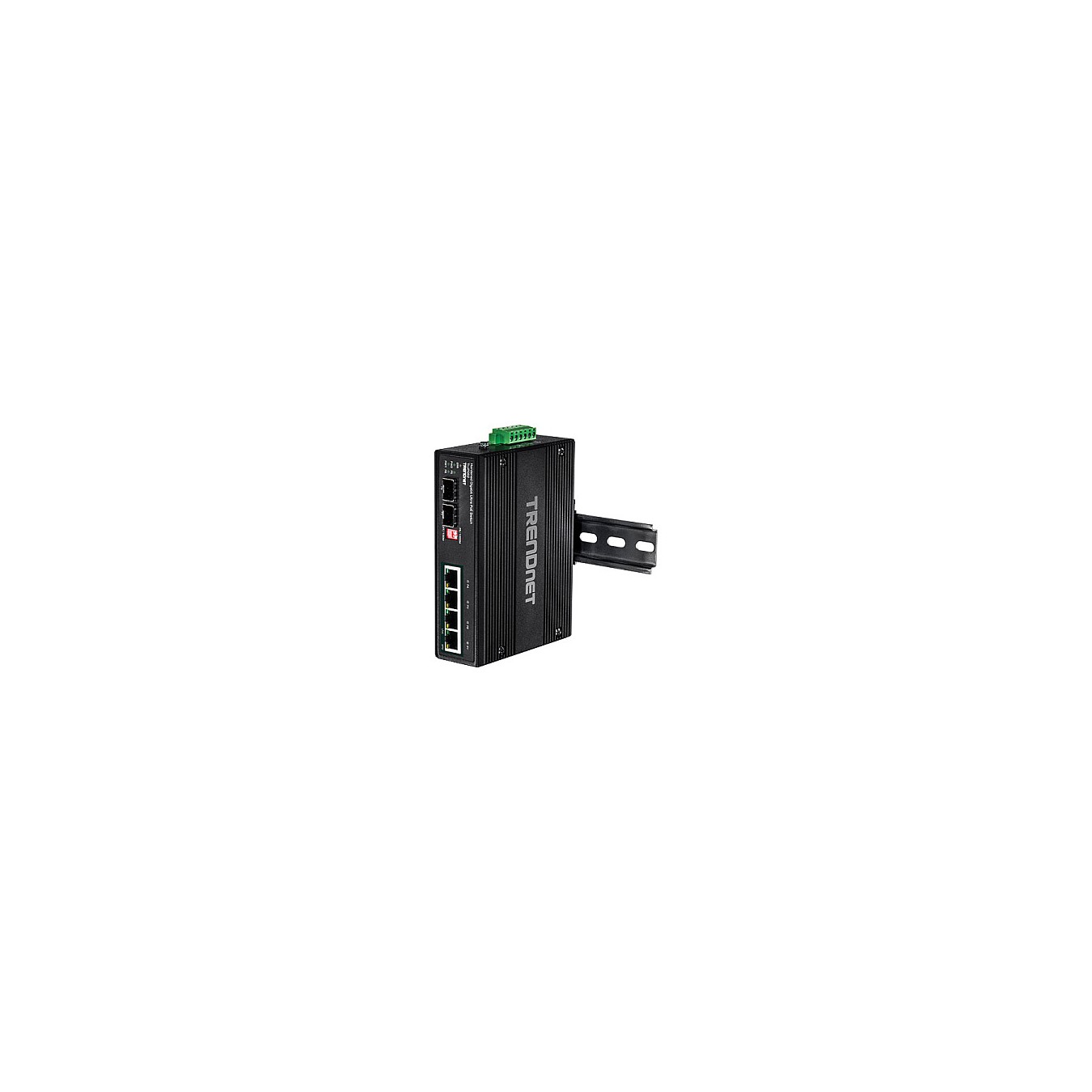

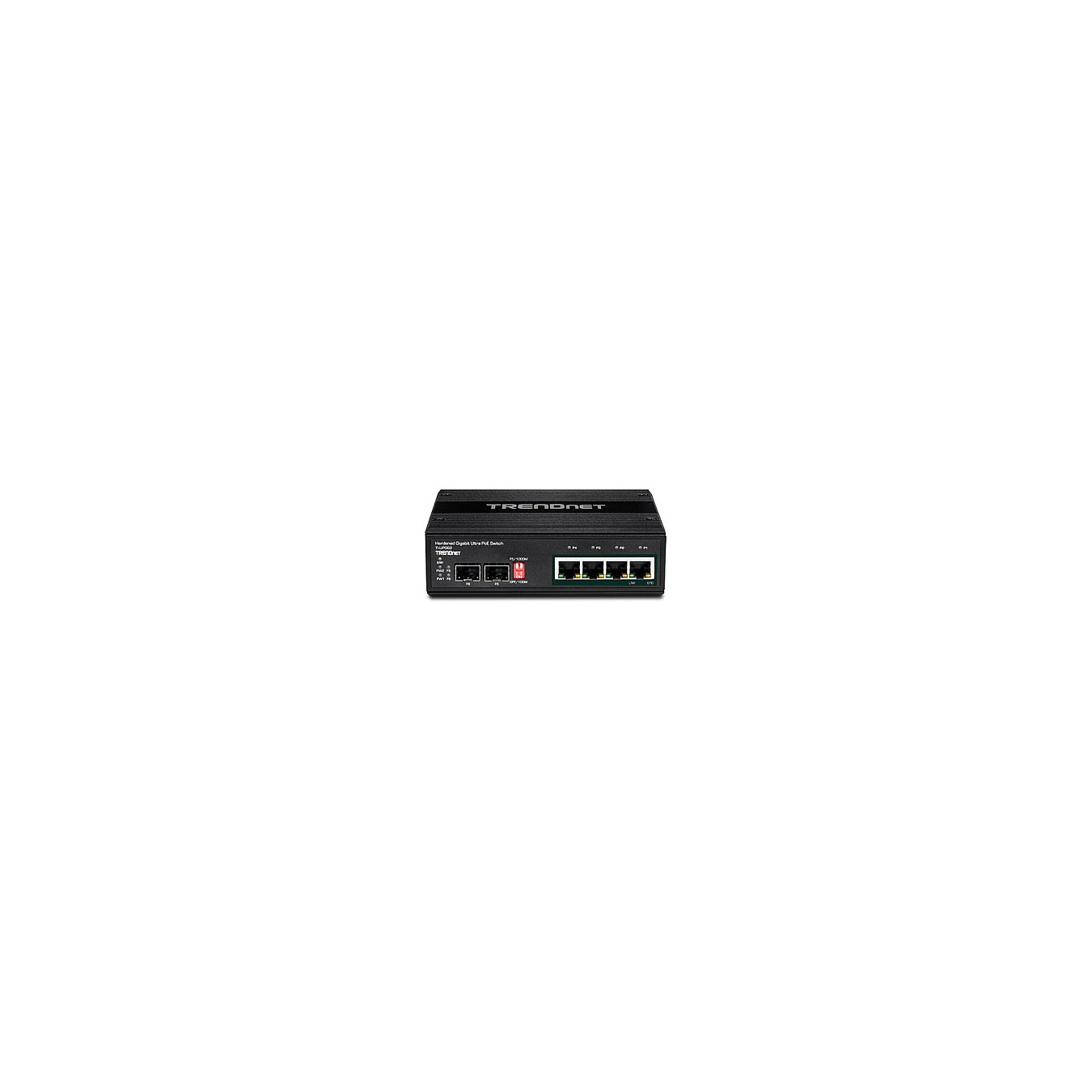

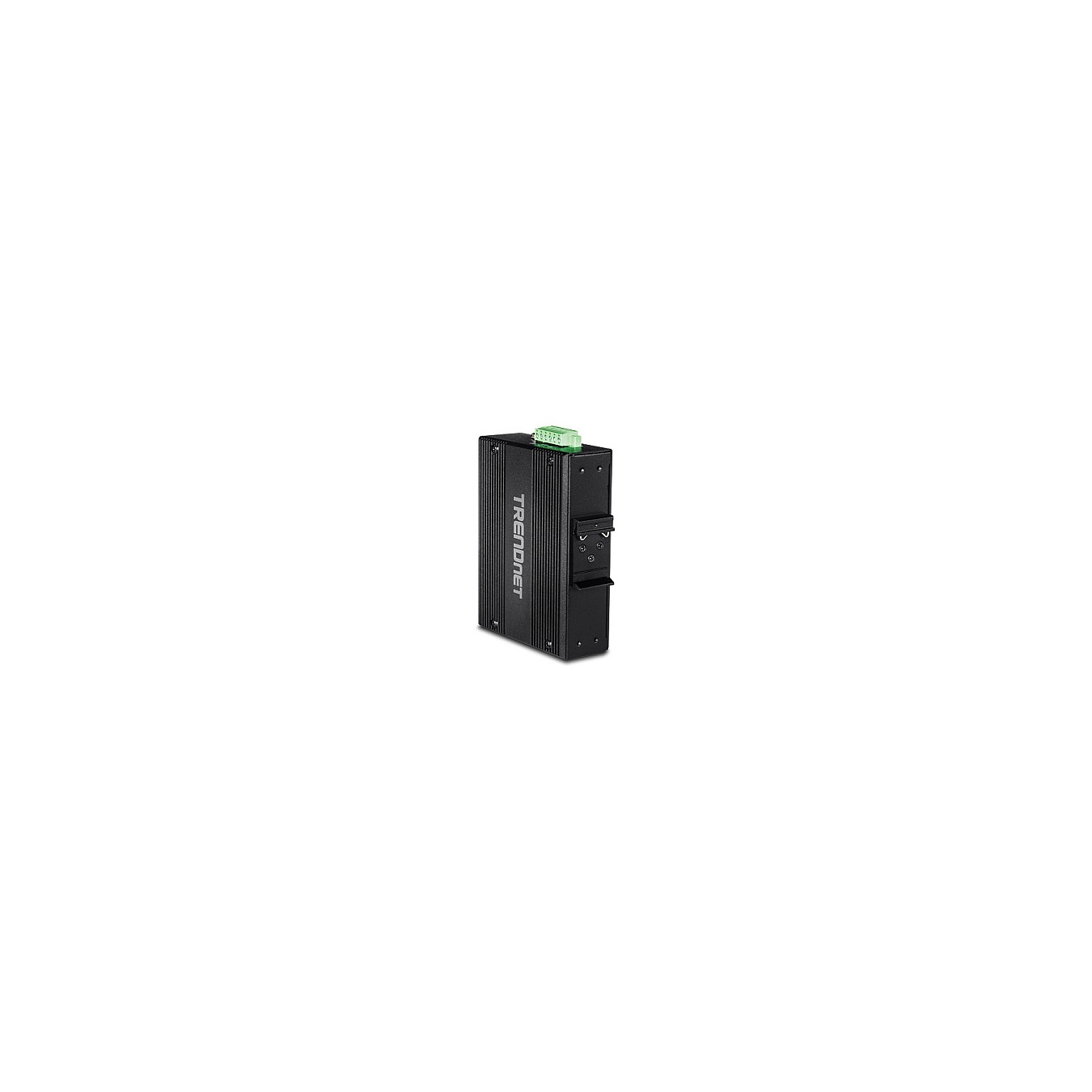

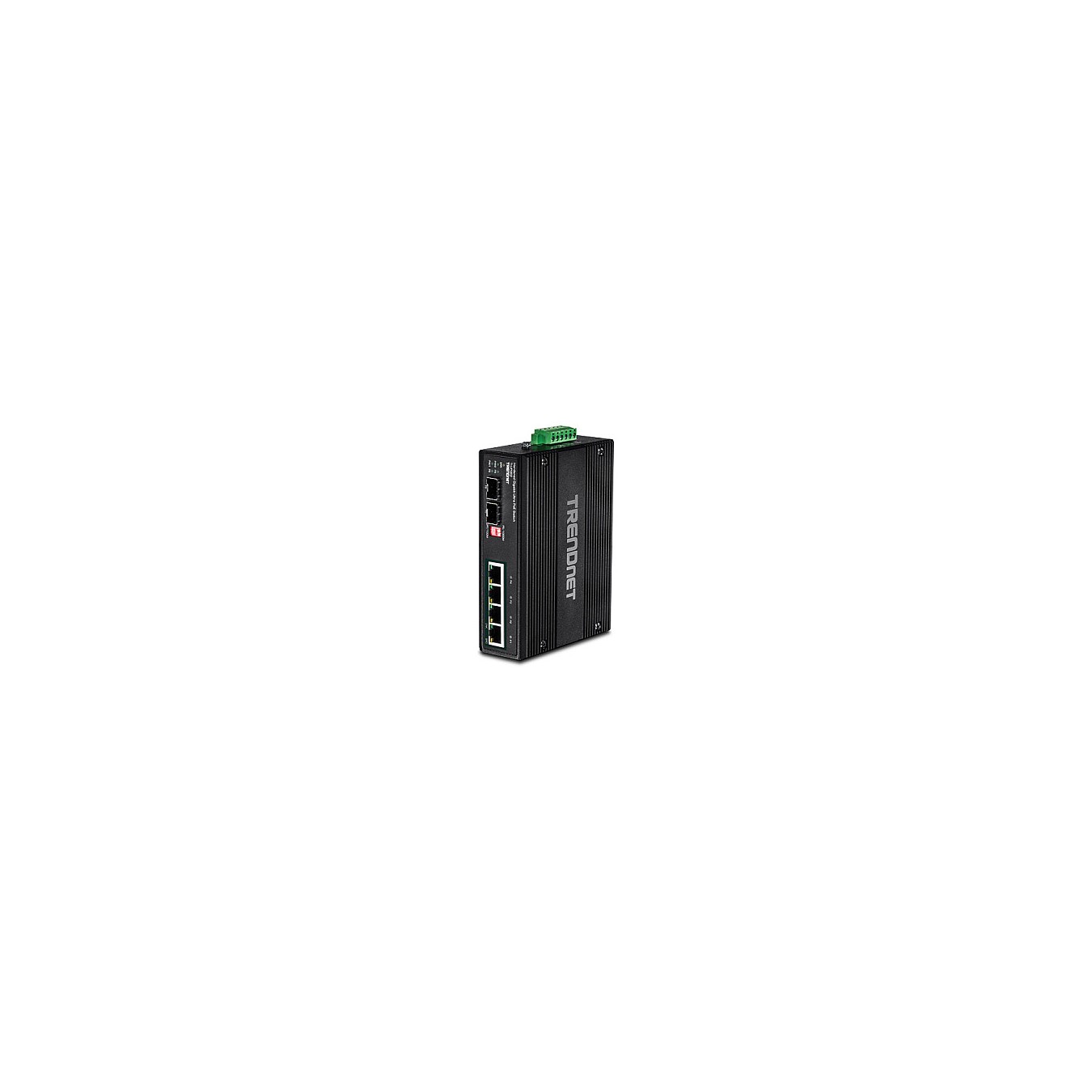

TRENDnet TI-UPG62 6-Port Gigabit Switch Ultra PoE DIN-Rail Industrial
Trendnet TI-UPG62. Unmanaged. L2. Gigabit Ethernet (10/100/1000). Vollduplex. Power over Ethernet (PoE). Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Trendnet TI-UPG62. Switch-Typ: Unmanaged. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 4. Vollduplex. MAC-Adressentabelle: 1024 Eintragungen. Routing-/Switching-Kapazität: 12 Gbit/s. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x. Power over Ethernet (PoE). Wandmontage
| Switch-Typ | Unmanaged |
| Switch-Ebene | L2 |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 4 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 4 |
| Menge SFP-Modul-Steckplätze | 2 |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |

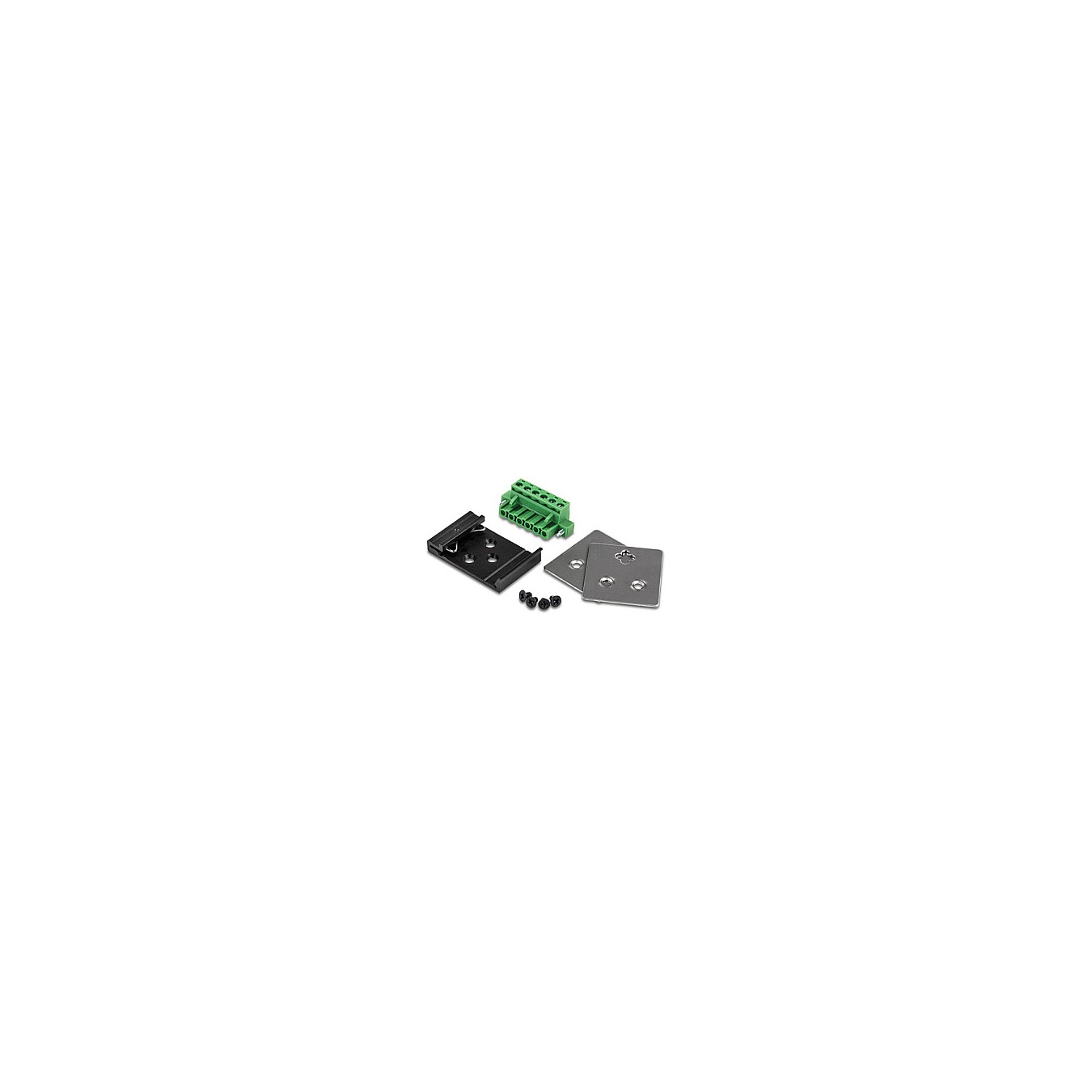

| Feature | Montageblöcke enthalten |
| Routing-/Switching-Kapazität | 12 Gbit/s |
| Durchgang | 8.9 Mpps |
| MAC-Adressentabelle | 1024 Eintragungen |
| Jumbo-Frames | 9000 |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| Internationale Schutzart (IP-Code) | IP30 |

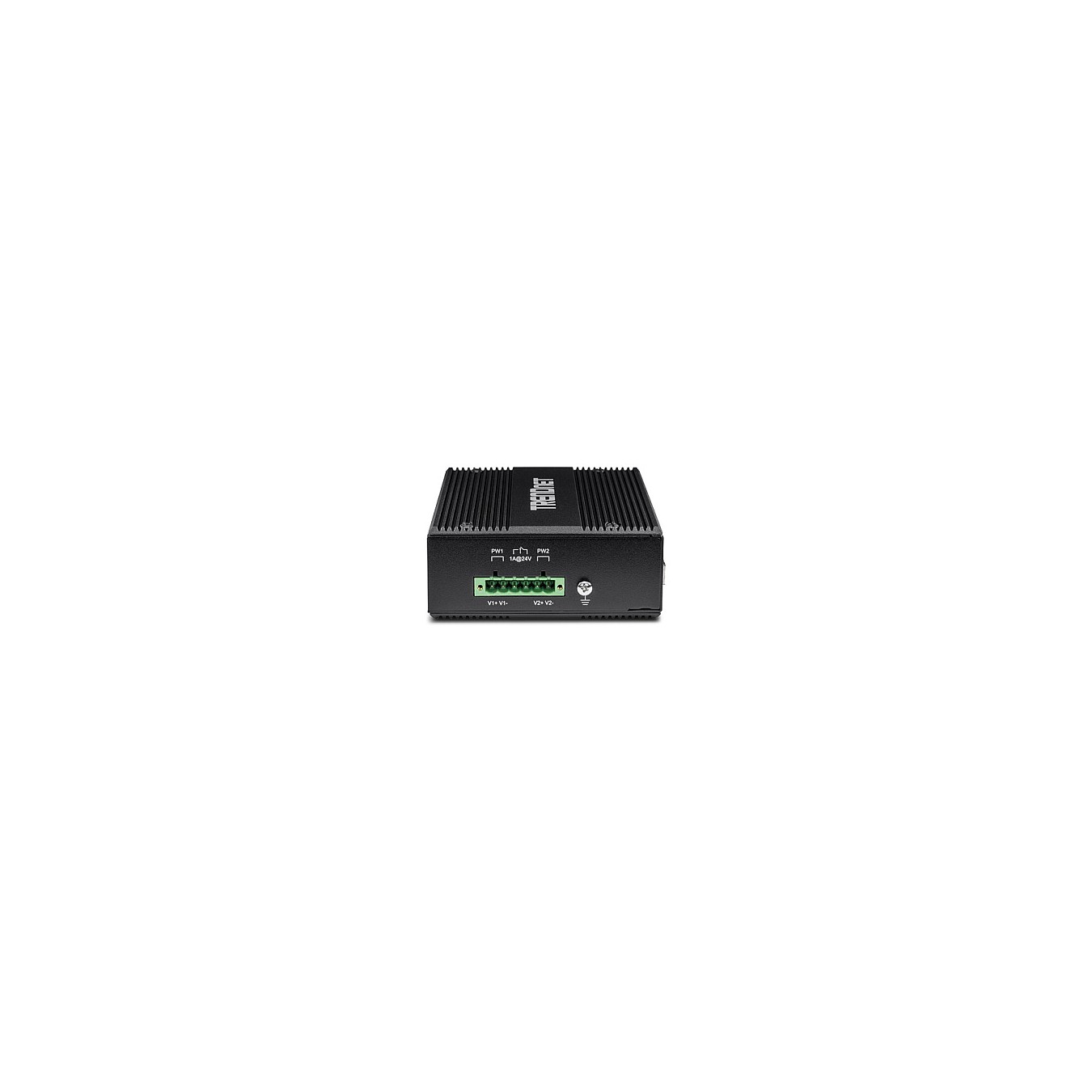

| Eingangsspannung | 48 - 56 V |
| Stromverbrauch (max.) | 5.76 W |
| Energieschutzeigenschaften | Überlastschutz |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 4 |
| Gesamtleistung Power over Ethernet (PoE) | 240 W |
| Betriebstemperatur | -40 - 75 °C |
| Breite | 143 mm |
| Tiefe | 105 mm |
| Höhe | 36 mm |
| Gewicht | 514 g |
| Zertifizierung | FCC. CERoHS |
| Warentarifnummer (HS) | 85176990 |
