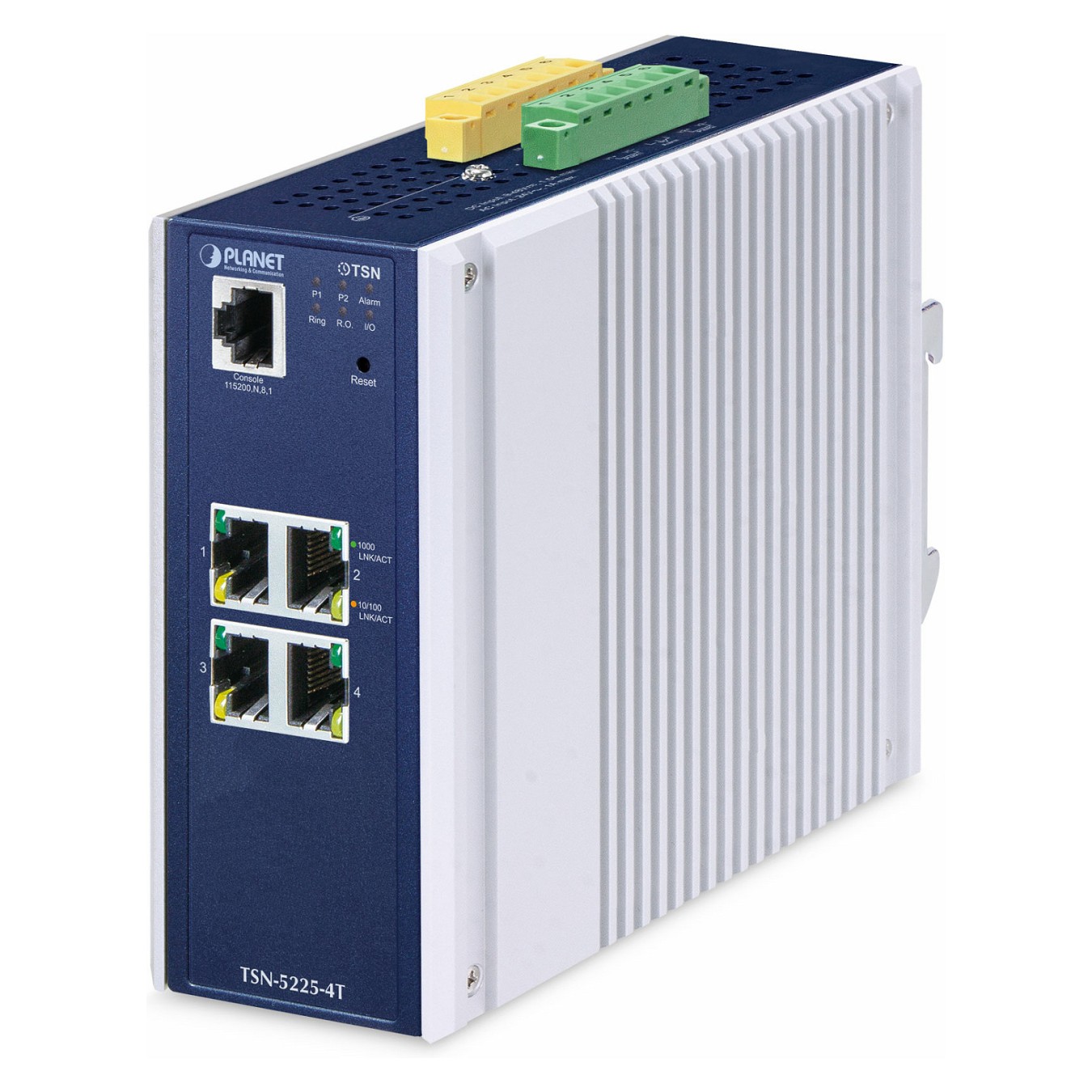

PLANET Industrial L2+ 4-Port Managed TSN Ethernet Switch TS
PLANET IP30 DIN-rail Industrial L2+. Managed. L2+. Gigabit Ethernet (10/100/1000). Vollduplex. Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET IP30 DIN-rail Industrial L2+. Switch-Typ: Managed. Switch-Ebene: L2+. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 4. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen. Routing-/Switching-Kapazität: 8 Gbit/s. Netzstandard: IEEE 1588. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1Qbv. IEEE 802.1ab. IEEE 802.1ag. IEEE 802.1as. IEEE.... DC input Spannung: 9 - 48 V. Wandmontage
| Switch-Typ | Managed |
| Switch-Ebene | L2+ |
| Feature | DIN-Schienen-Montage |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 4 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Routing-/Switching-Kapazität | 8 Gbit/s |
| Durchgang | 5.95 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| DHCP-Funktionen | DHCP Option 82. DHCP relay. DHCP server. DHCP snooping |
| Produktfarbe | Aluminium. Blau |
| Gehäusematerial | Aluminium |
| Internationale Schutzart (IP-Code) | IP30 |
| Energiequelle | AC/DC |
| AC Eingangsspannung | 24 V |
| DC input Spannung | 9 - 48 V |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 60 mm |
| Tiefe | 135 mm |
| Höhe | 135 mm |
| Gewicht | 962 g |
| Zertifizierung | FCC Part 15 Class ACE: EN55032 EN55035IEC60068-2-32 (free fall)IEC60068-2-27 (shock)IEC60068-2-6 (vibration) |
