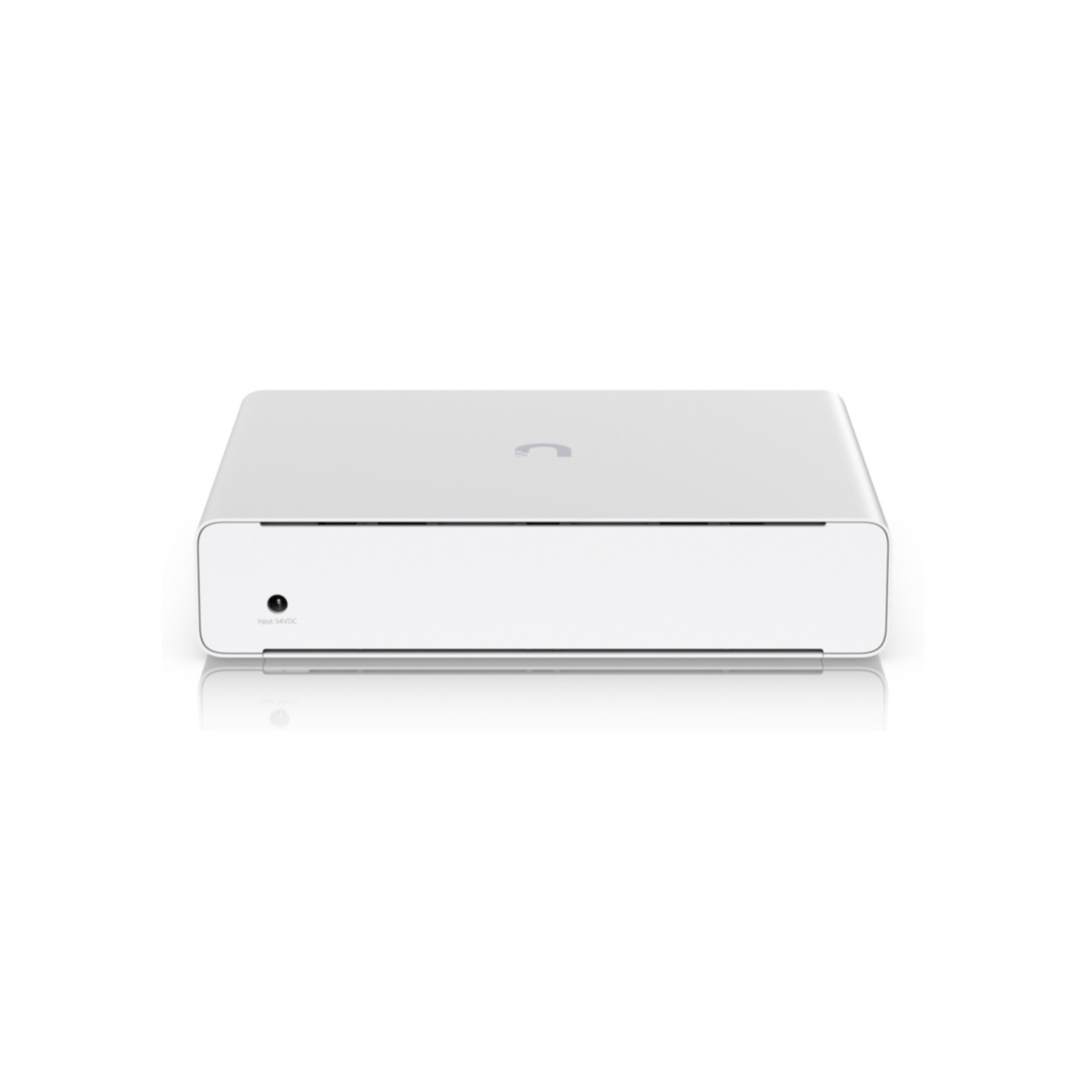

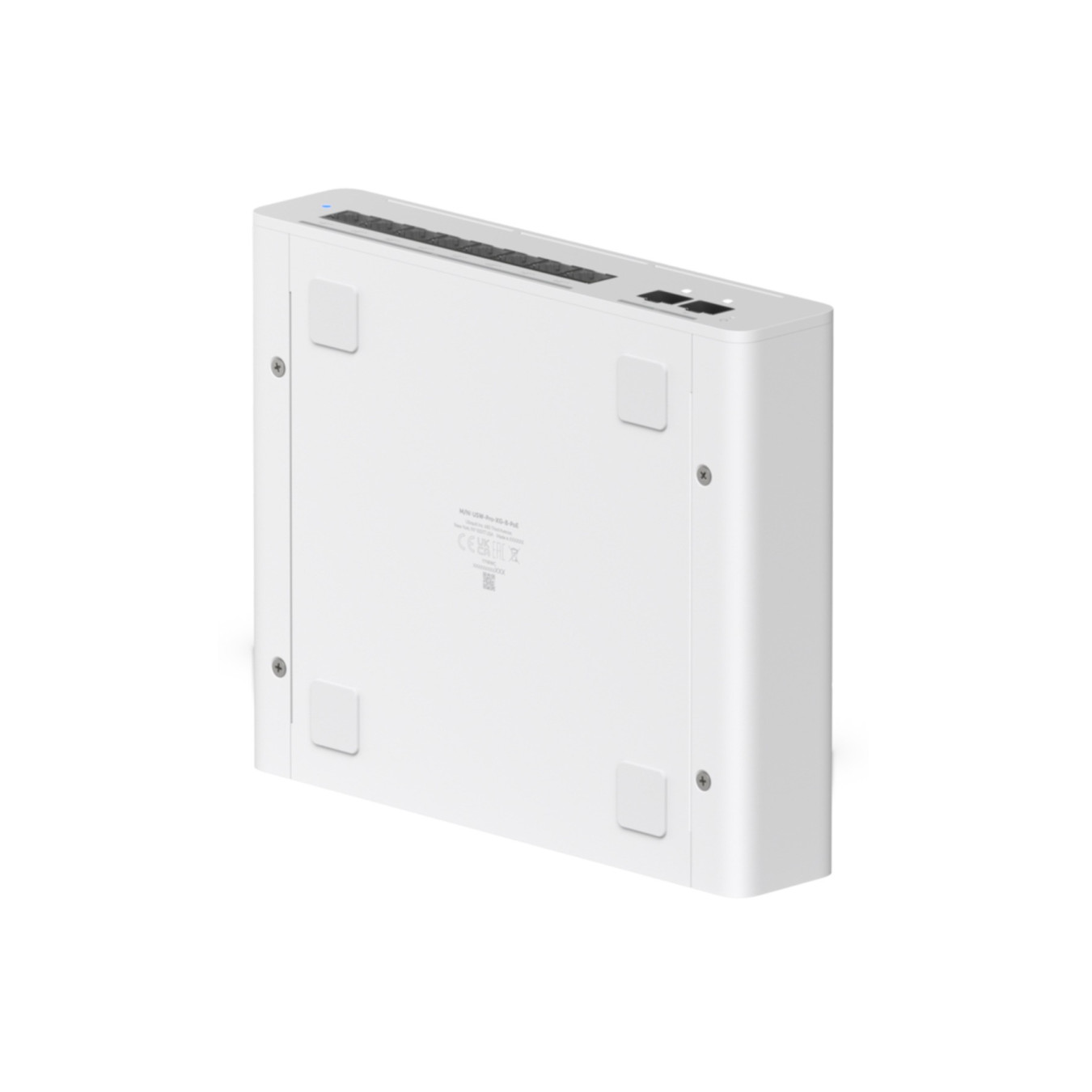

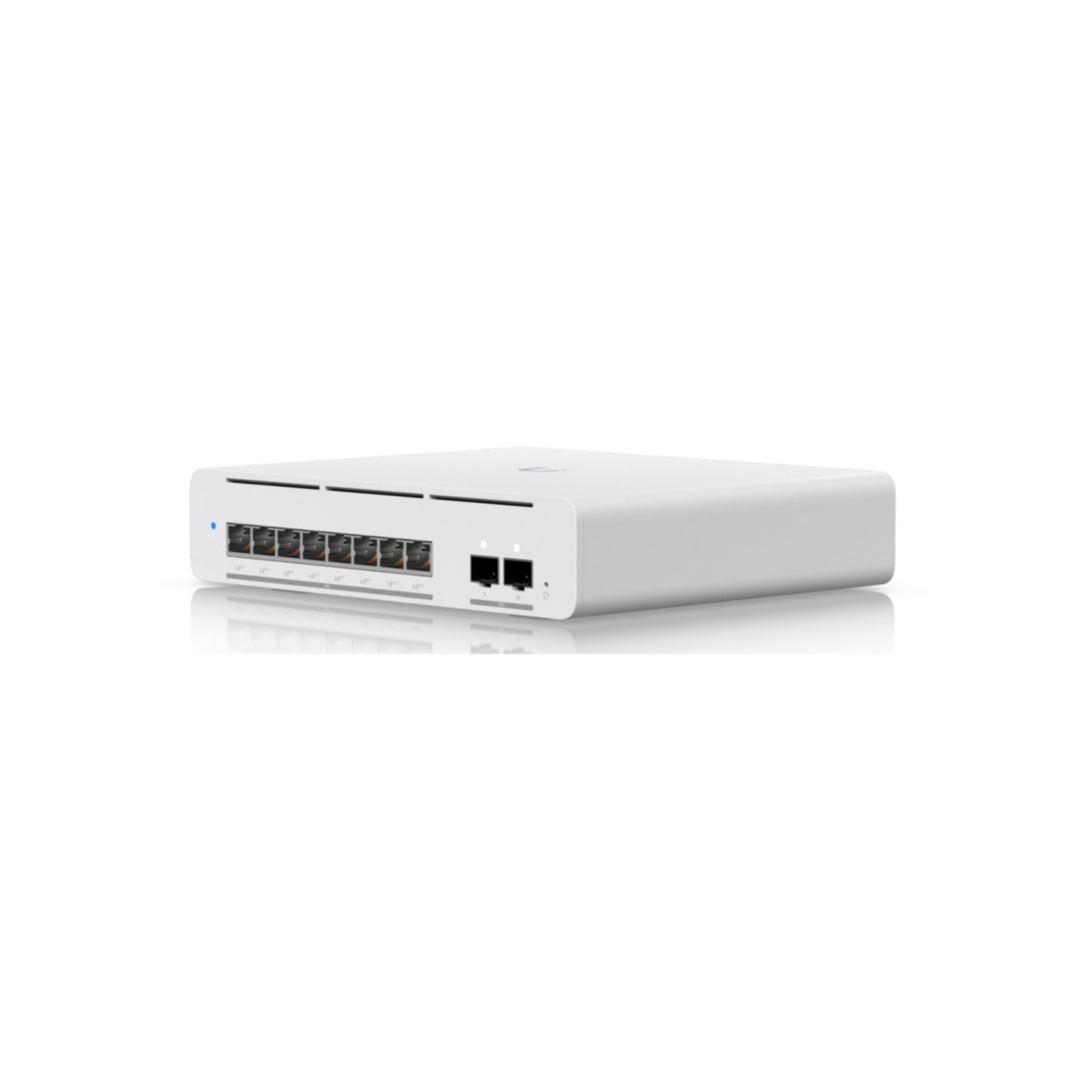

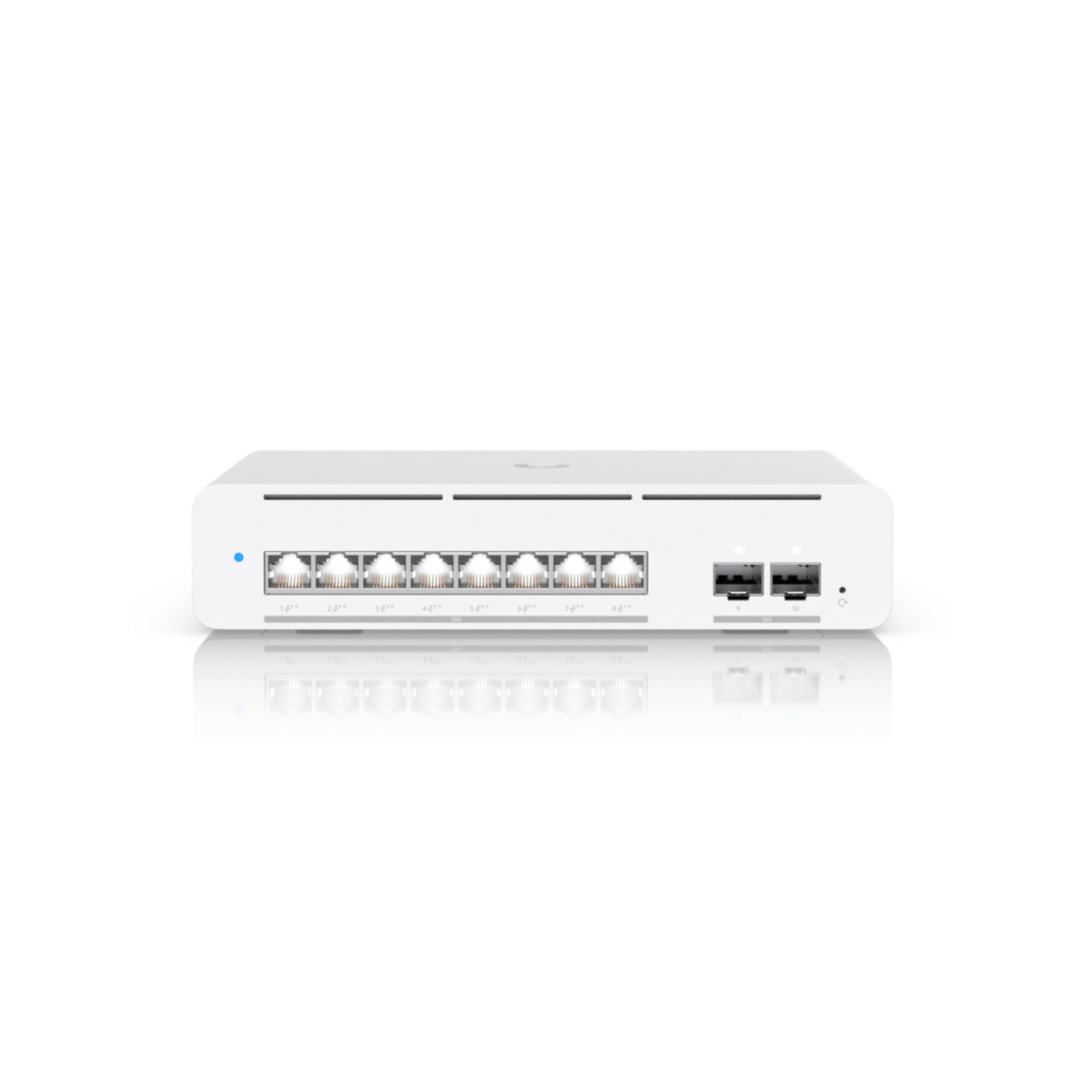

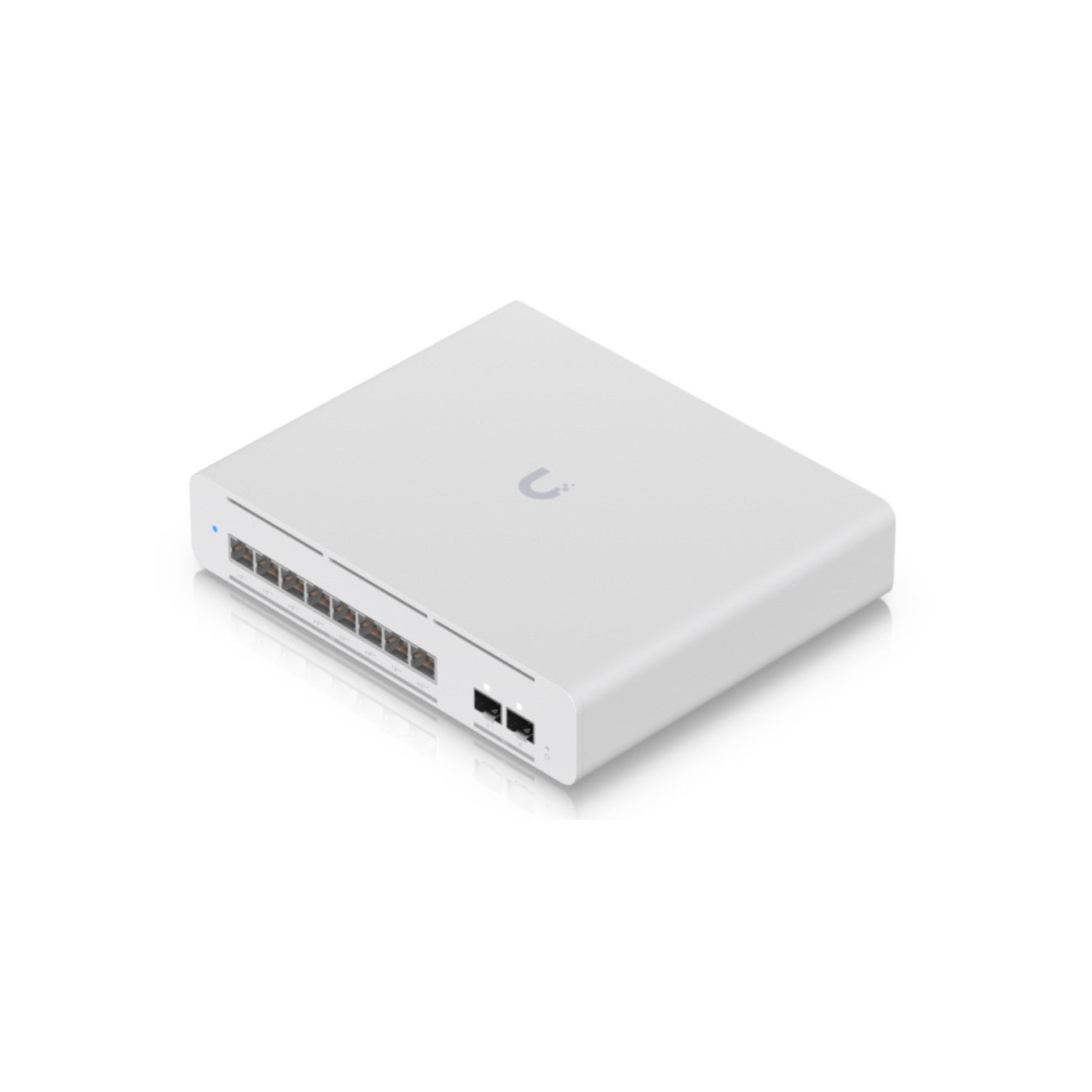

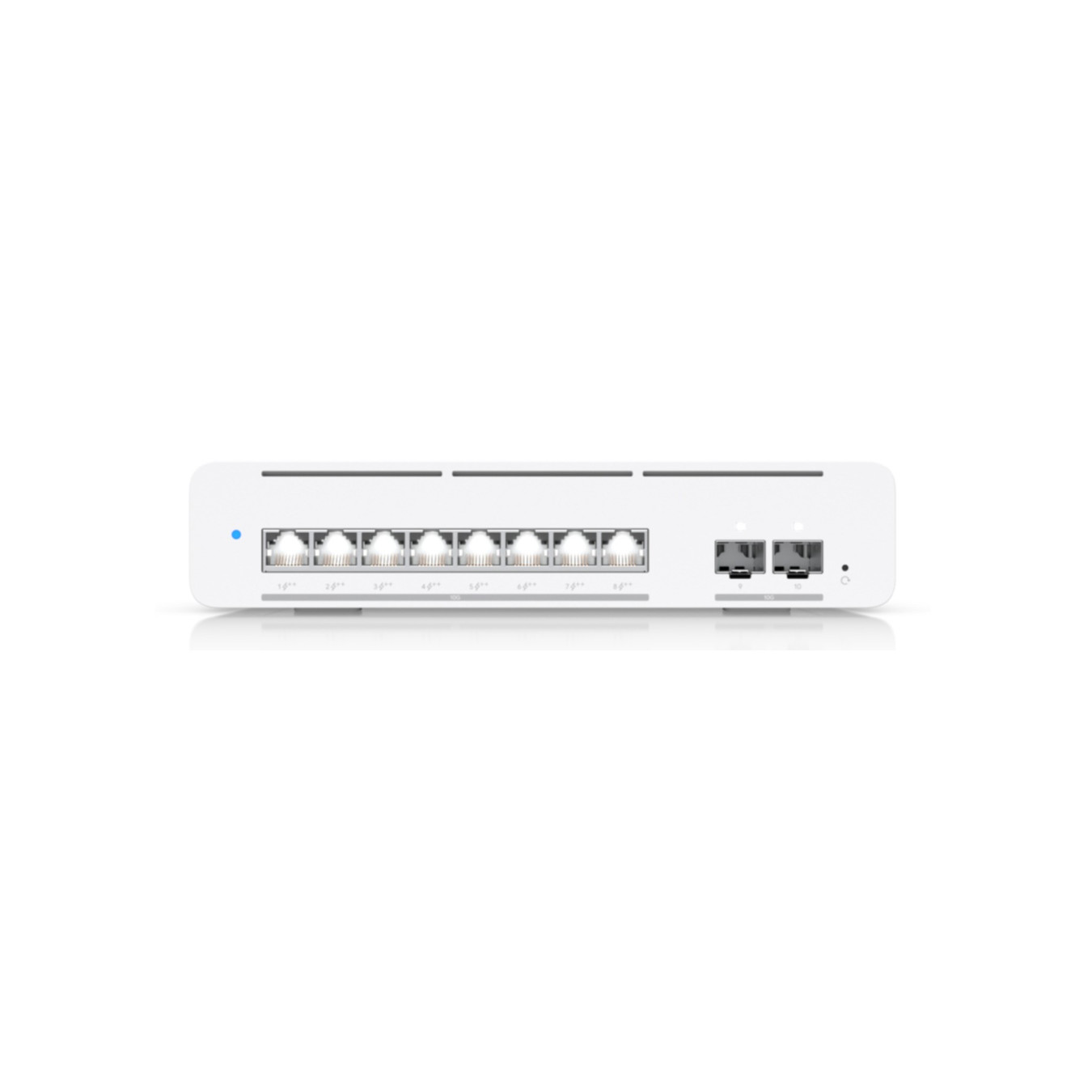

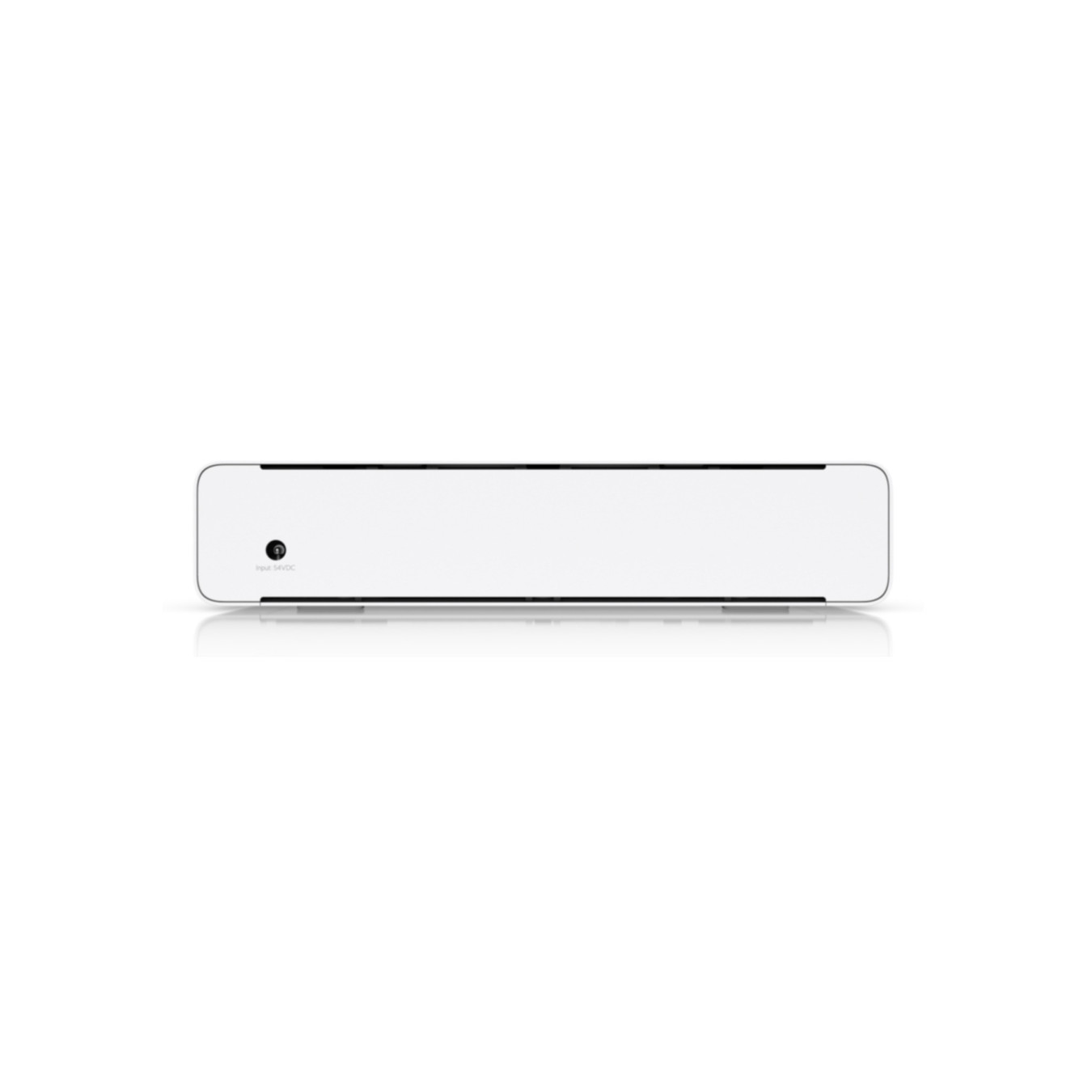

Ubiquiti UniFi Pro XG Switch - USW-PRO-XG-8-POE - 8x 10G RJ45 & 2x SFP+, PoE++ 155W, Managed L2/L3, Grey
Managed L2/L3 switch with 8x 10G RJ45 + 2x SFP+, 8-port PoE++ (4PPoE) with 155W budget, 200 Gbit/s switching capacity, 220W max power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| 10G support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| IPv4 routes | 12000 |
| VLAN support | Yes |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| Number of VLANs | 1000 |
| Switching capacity | 200 Gbit/s |
| Throughput | 100 Gbit/s |
| Forwarding rate | 149 Mpps |
| MAC address table | 32000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Multicast support | Yes |
| Rack mounting | No |
| Product colour | Grey |
| Housing material | SGCC |
| Reset button | Yes |
| LED indicators | System |
| Wall mountable | Yes |
| Power source | AC/DC |
| Power supply included | Yes |
| Power consumption (max) | 220 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 155 W |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 210.4 mm |
| Depth | 173.8 mm |
| Height | 43.7 mm |
| Weight | 1.6 kg |
| Cables included | Power |
| Manual | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
