ASRock Steel Legend Radeon RX 9070 OC 16GB GDDR6 2700MHz PCIe 5.0 (Boxed)
ASRock Radeon RX 9070 Steel Legend OC: 16GB GDDR6, 2700MHz boost (2210MHz game), PCIe 5.0, RDNA 4, 56 CUs. Triple-fan cooling, 2x8-pin, HDMI 2.1b + 3xDP 2.1a. Superior RT, FSR4, 4K gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black White |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 2x8-pin |
| GPU (Graphics Cards) - Card Length | Large (281-300 mm) |

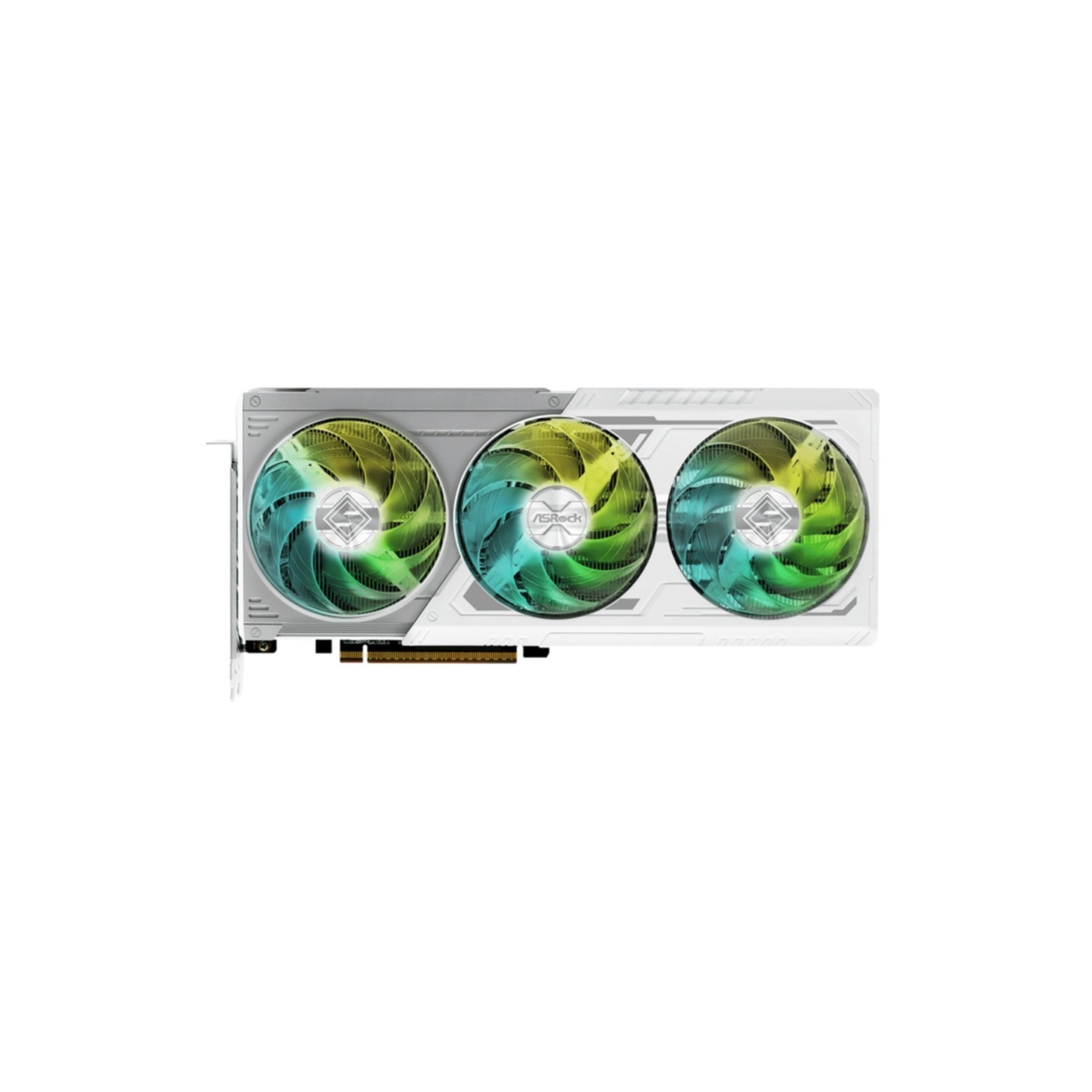

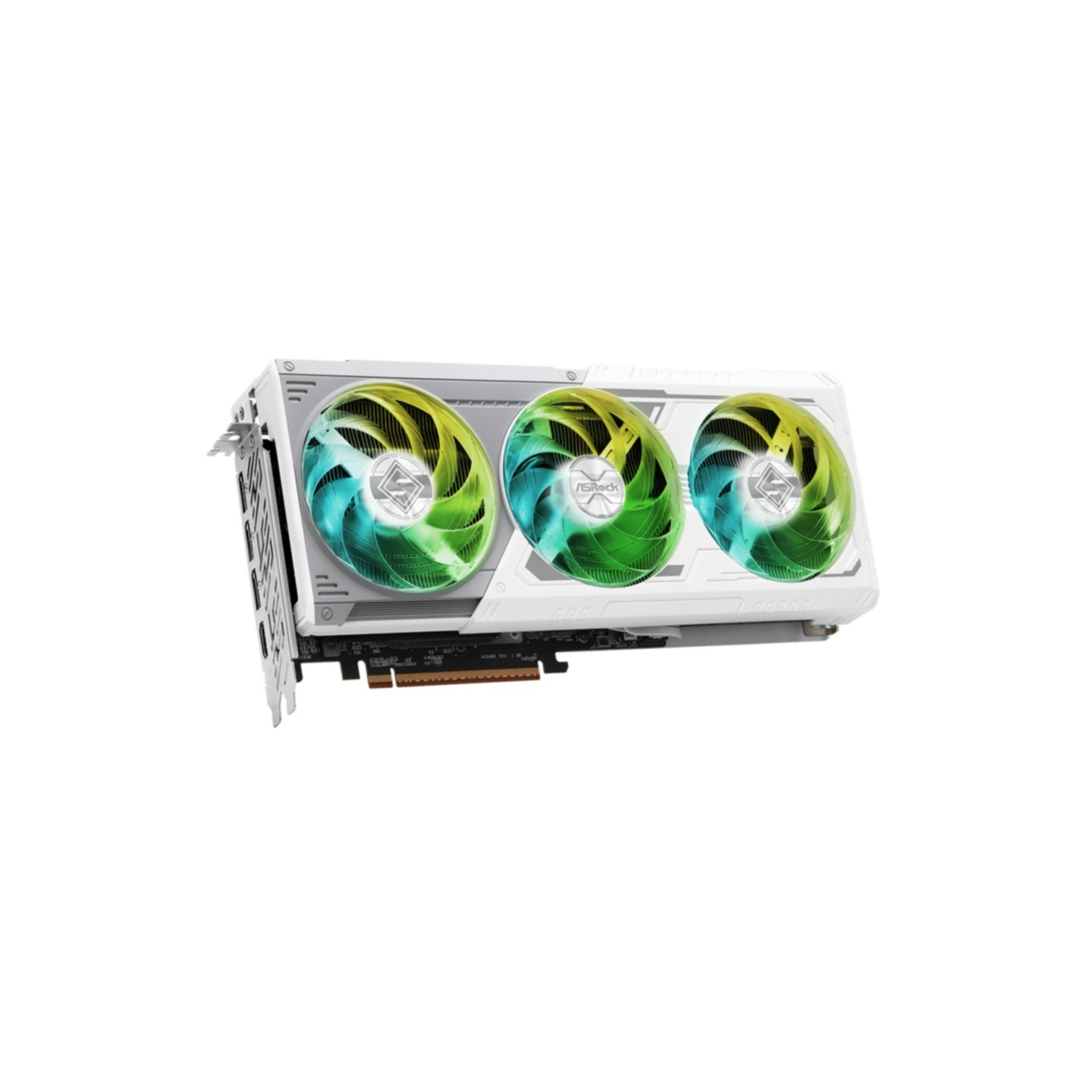

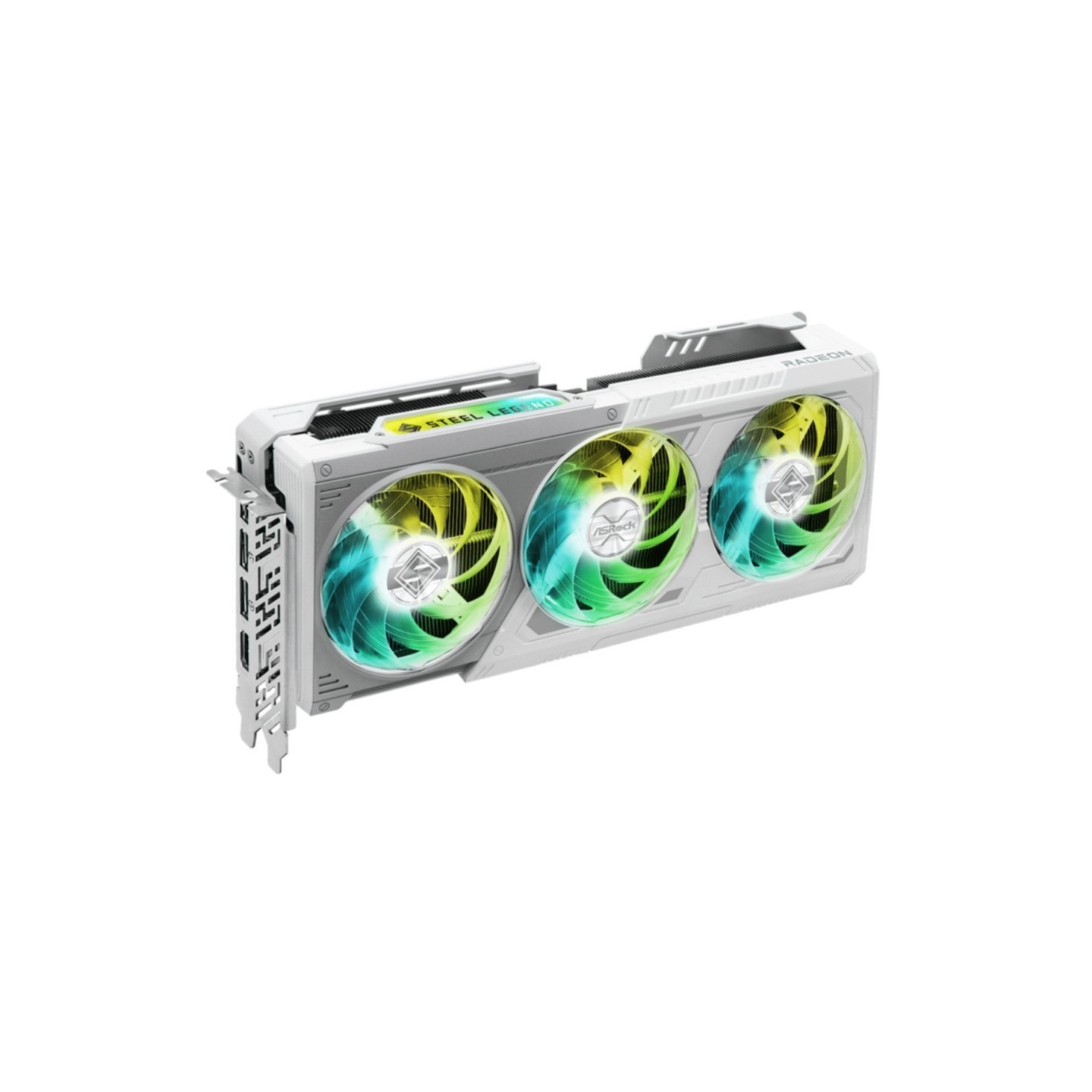

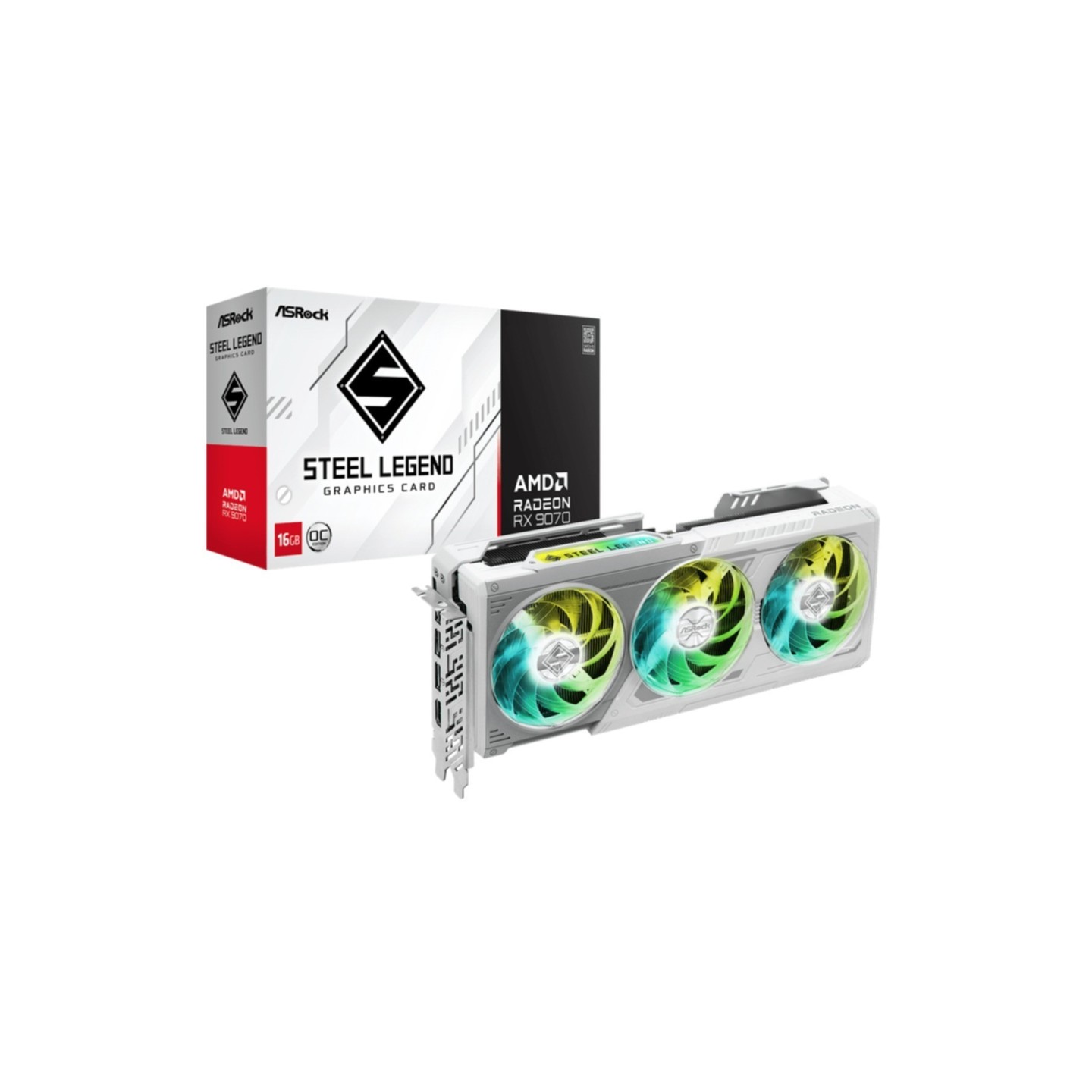

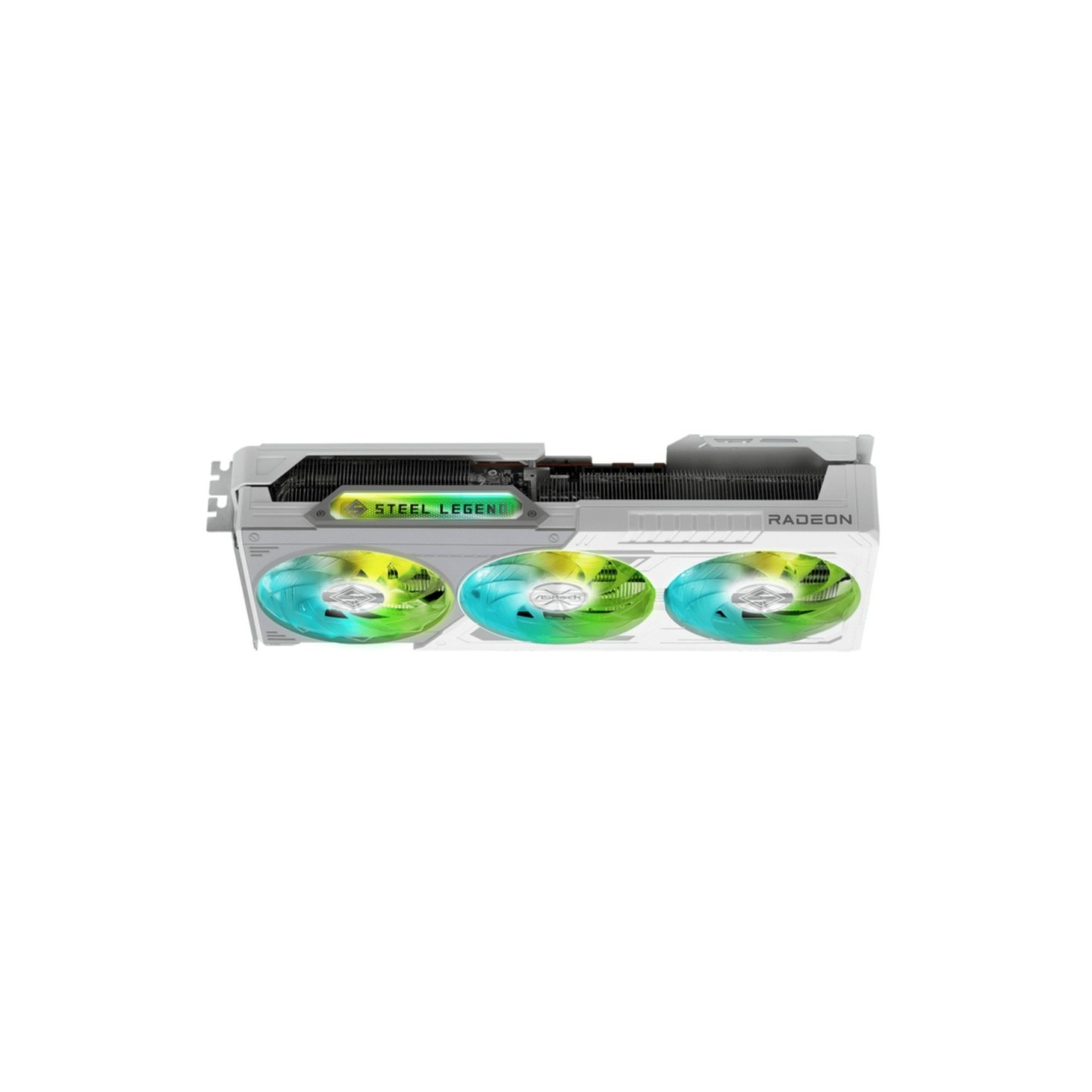

ASRock Radeon RX 9070 Steel Legend OC delivers exceptional gaming performance powered by AMD RDNA™ 4 architecture with 56 Compute Units, enhanced 3rd Gen RT cores, and 2nd Gen AI accelerators. Featuring 16GB GDDR6 on a 256-bit bus at 20 Gbps, it supports up to 2700 MHz boost clock and 2210 MHz game clock for smooth 1440p/4K gaming with ray tracing and AI-upscaling via FSR 4.

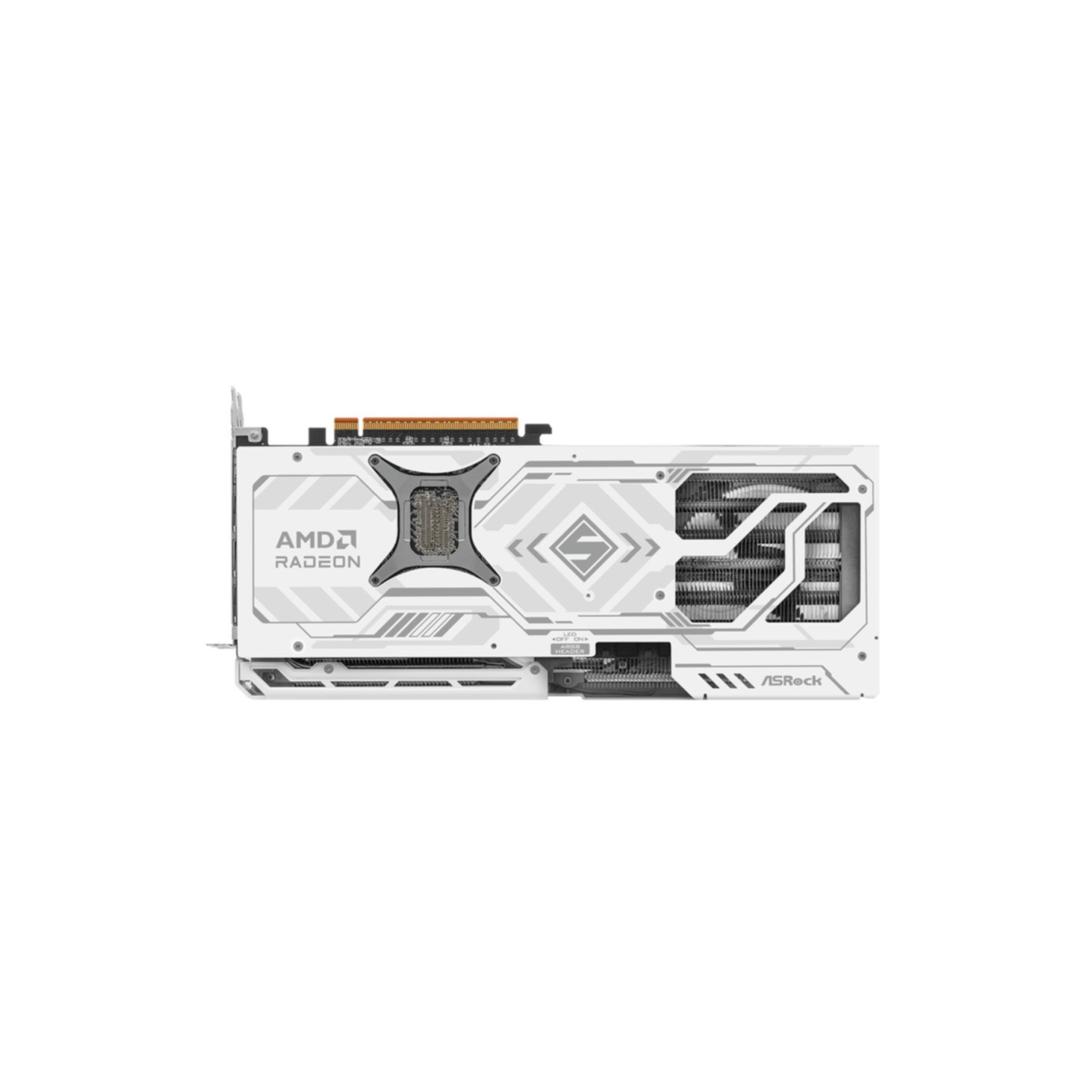

Advanced triple-fan cooling with 0dB silent mode, Striped Ring Fans, Air Deflecting Fins, and Ultra-fit Heatpipes ensures low temps and noise. Premium features include Polychrome SYNC ARGB lighting, reinforced metal frame, stylish metal backplate, Dr.MOS power delivery, 2oz copper PCB, and 2x 8-pin connectors. Compatible with Ryzen 9000 series and PCIe 5.0 for future-proof setups.
- ✅ 16GB GDDR6, 256-bit, 20 Gbps memory
- ✅ HDMI 2.1b + 3x DisplayPort 2.1a (up to 4 displays, 7680x4320)
- ✅ DirectX 12 Ultimate, OpenGL 4.6
- ✅ 700W PSU recommended, 220W TDP
- ✅ Dimensions: 298 x 131 x 58 mm, 1.14 kg (card only)
| CUDA | No |
| Compute units | 56 |
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9070 |
| Architecture | RDNA 4 |
| Process | 5 nm |
| Processor boost clock speed | 2700 MHz |
| Processor boost clock speed (Gaming mode) | 2210 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Stream processors | 3584 |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 20 Gbit/s |
| Memory Clock | 20 Gbps |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1a |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| Overclocked (OC) edition | Yes |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of slots | 2.9 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Grey, White |
| Minimum system power supply | 700 W |
| Supplementary power connectors | 2x 8-pin |
| TDP | 220 W |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight | 1.14 kg |
| Length | 298 mm |
| Depth | 58 mm |
| Height | 131 mm |
| Package type | Box |
| Quick installation guide | Yes |
