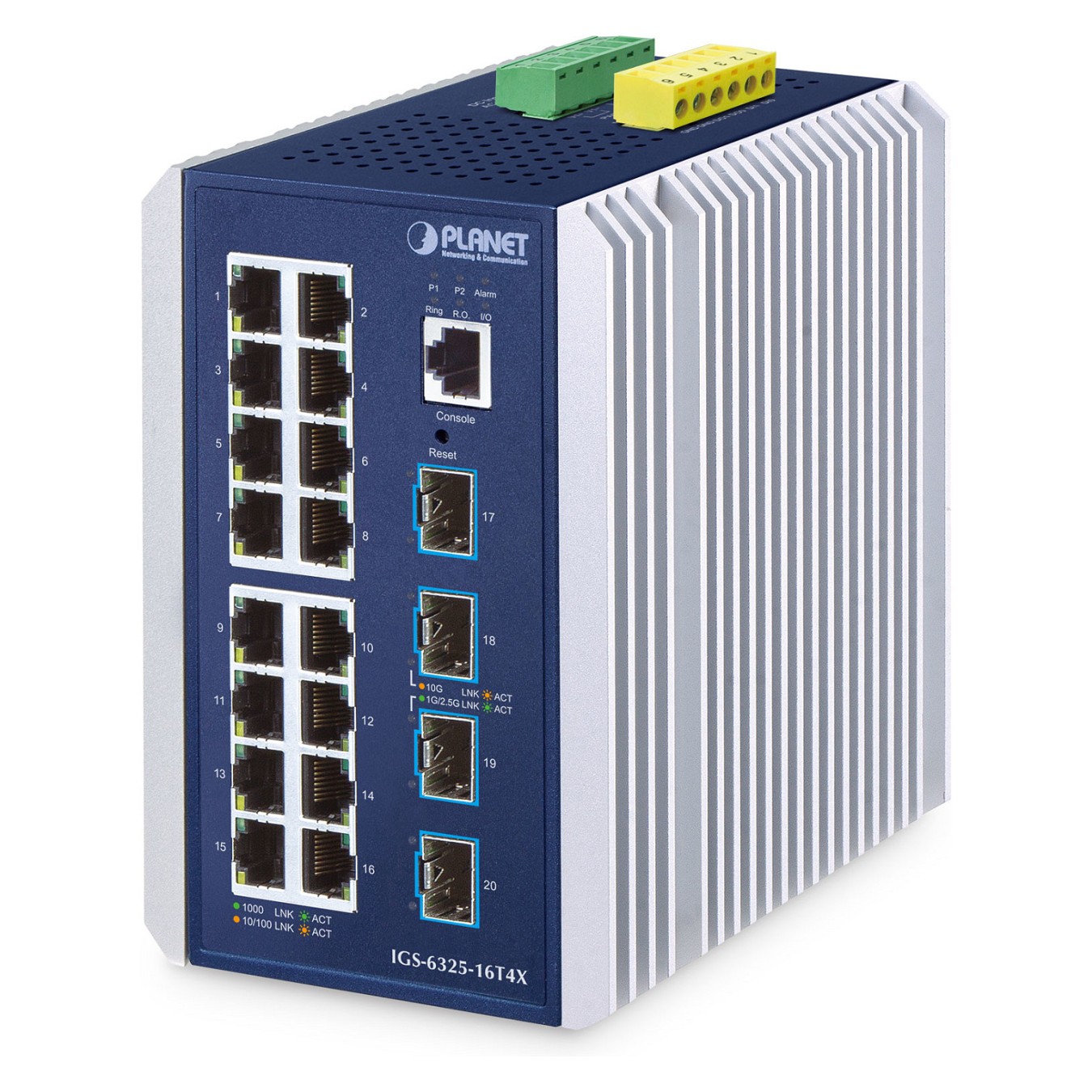

PLANET Industrial 16-Port Managed Switch IGS-6325-16T4X
PLANET IP30 Industrial L3 16-Port. Managed. L3. Gigabit Ethernet (10/100/1000). Vollduplex. Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET IP30 Industrial L3 16-Port. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 16. Anzahl installierte SFP Module: 4. Vollduplex. MAC-Adressentabelle: 32000 Eintragungen. Routing-/Switching-Kapazität: 112 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1ad. IEEE 802.1ag. IEEE 802.1p. IEEE 802.1s. IEEE.... DC input Spannung: 9 - 48 V. Wandmontage
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | DIN-Schienen-Montage |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 16 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl installierte SFP Module | 4 |
| Routing-/Switching-Kapazität | 112 Gbit/s |
| Durchgang | 83.3 Mpps |
| MAC-Adressentabelle | 32000 Eintragungen |
| Jumbo-Frames | 10000 |
| Produktfarbe | Aluminium. Blau |
| Gehäusematerial | Aluminium |
| Internationale Schutzart (IP-Code) | IP30 |
| Energiequelle | AC/DC |
| AC Eingangsspannung | 24 V |
| DC input Spannung | 9 - 48 V |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 96 mm |
| Tiefe | 107 mm |
| Höhe | 152 mm |
| Gewicht | 1.5 kg |
| Zertifizierung | FCC Part 15 Class A. CEIEC60068-2-32 (free fall)IEC60068-2-27 (shock)IEC60068-2-6 (vibration) |
