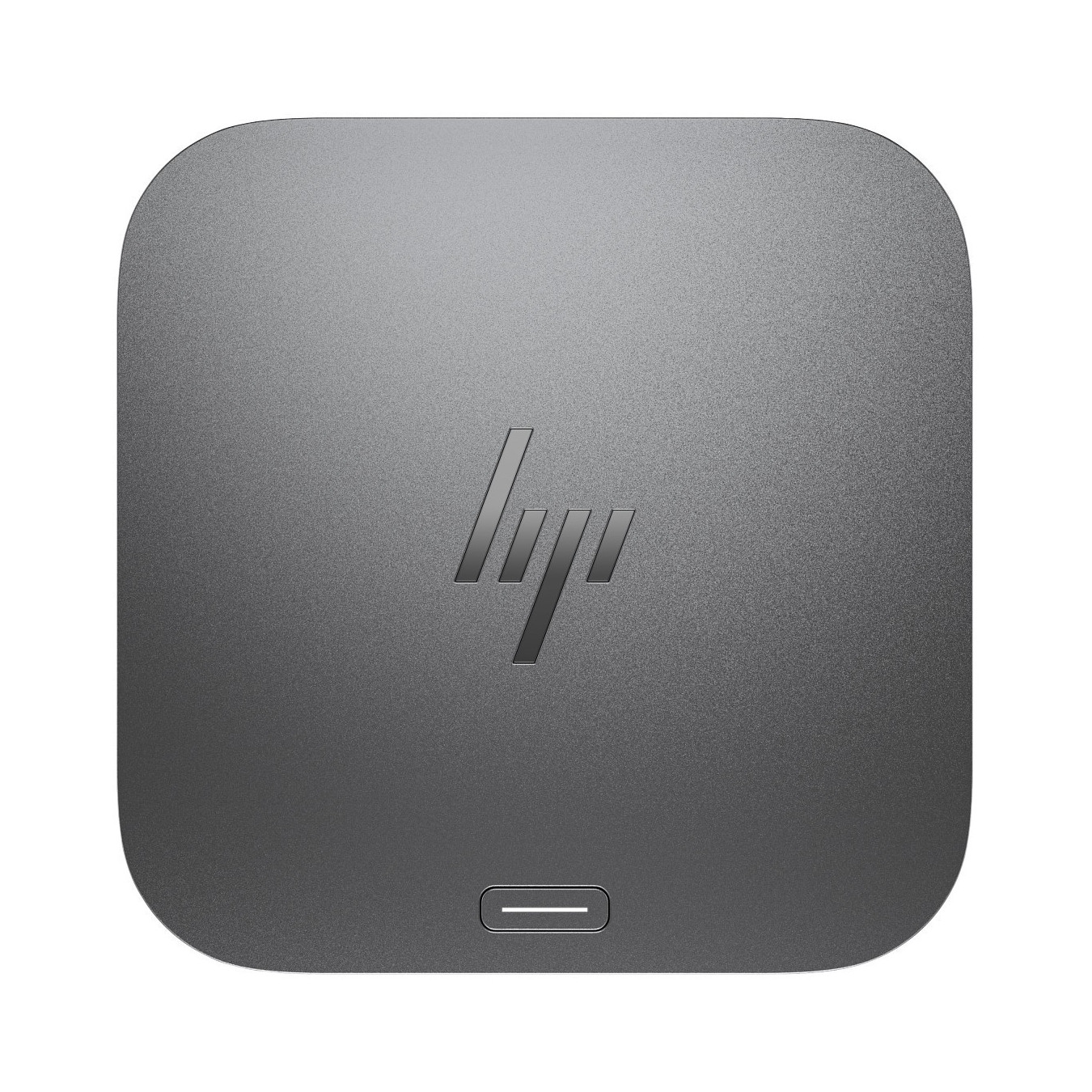

HP Thunderbolt 4 100W G6 Dock - Thunderbolt 4, 120W PSU, Grey (Boxed)
Thunderbolt 4 dock with 100W USB-PD, 120W PSU. Features 1x TB4, 2x DP1.4, 1x HDMI2.1, 3x USB-A, 2x USB-C, 2.5GbE. Supports 4K/5K displays up to 5120x2880.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | Thunderbolt 4 |
|---|---|
| USB Hubs & Docking Stations - Number of Ports | 5 |
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | DisplayPort HDMI |
| USB Hubs & Docking Stations - Power Delivery | 100W |
| USB Hubs & Docking Stations - Ethernet | 2.5 Gbps |
| USB Hubs & Docking Stations - Special Features | External Power Supply Integrated Cable Kensington Lock Slot |

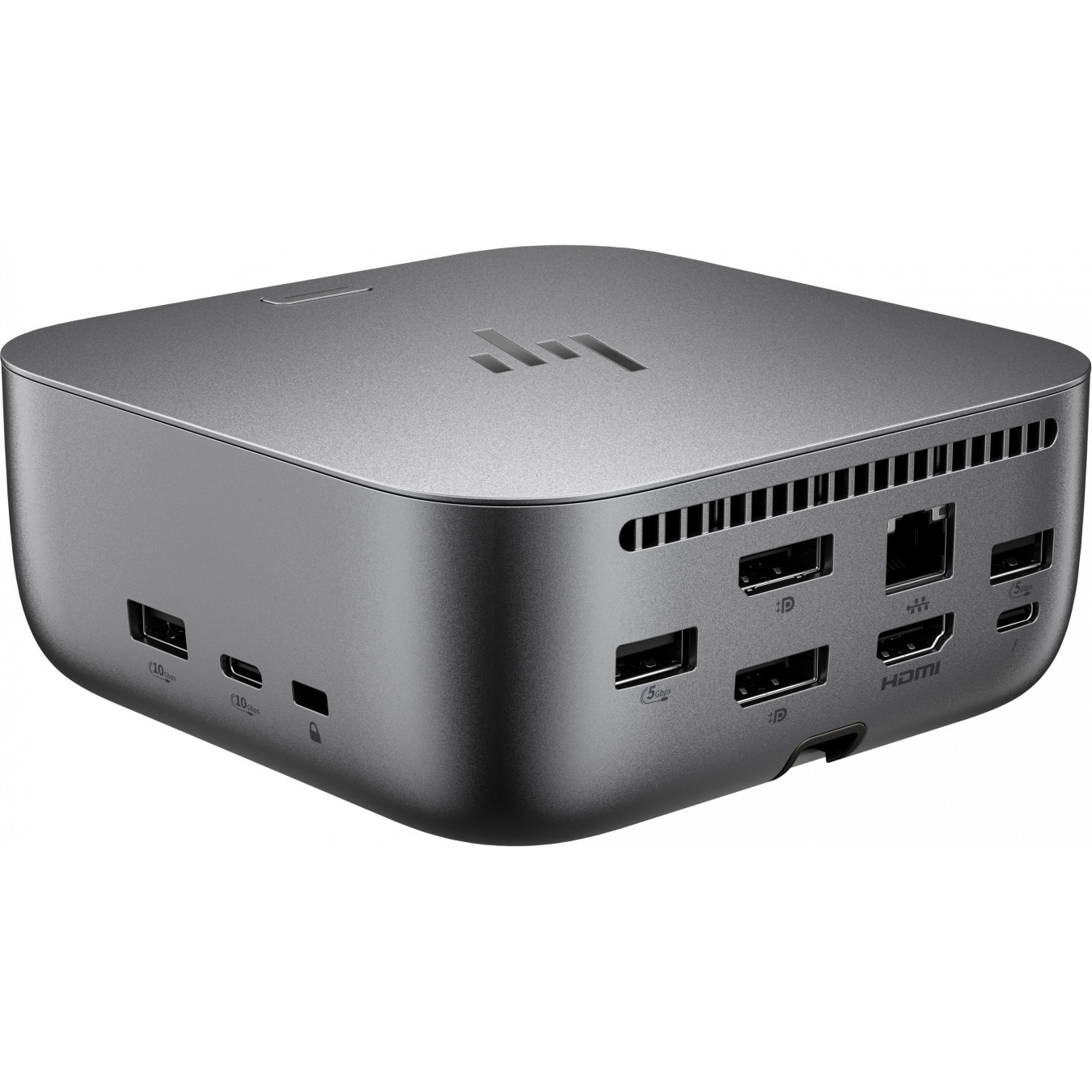

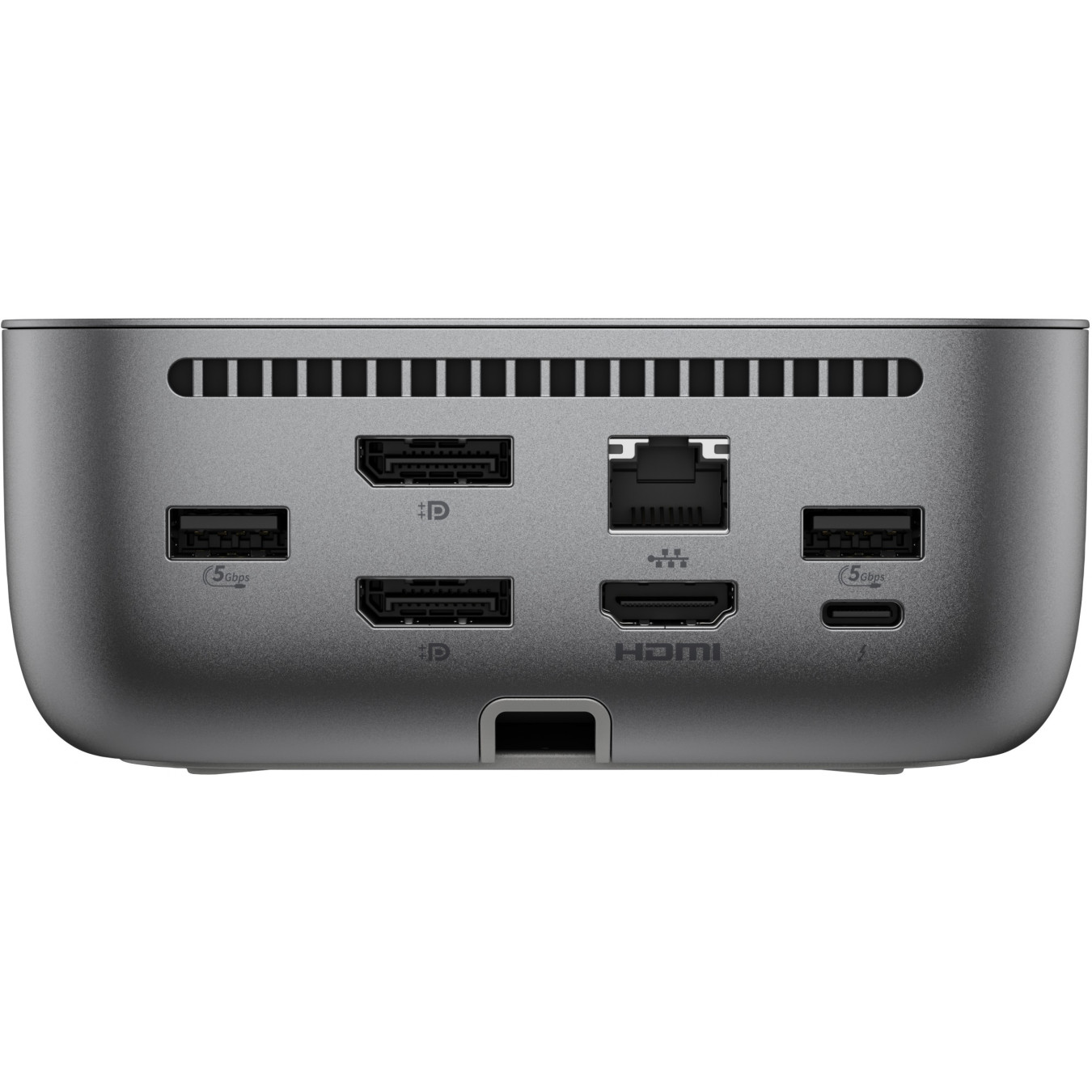

The HP Thunderbolt 4 100W G6 Dock is a professional-grade docking solution designed for modern laptops and desktops requiring high-speed connectivity and multi-display support. This wired dock features a single Thunderbolt 4 host interface with comprehensive downstream connectivity including two DisplayPort 1.4 outputs, one HDMI 2.1 port, three USB-A ports (two 5Gbps and one 10Gbps), two USB-C ports (10Gbps each), and a 2.5 Gbps Ethernet port for reliable network connectivity.
Delivering up to 100W of USB Power Delivery through its Thunderbolt 4 connection, the dock is powered by a 120W external power adapter, making it suitable for charging and operating power-hungry laptops simultaneously. The dock supports up to four displays with resolutions up to 5K (5120x2880 @ 60Hz) and refresh rates up to 360Hz, making it ideal for creative professionals and power users. Compatible with Windows 10, Windows 11, macOS, Linux, ChromeOS, and ThinPro, the dock includes a nano security lock slot for device protection and features HP's advanced management capabilities including Wake on LAN, PXE Boot, and firmware updates.
Key Features:
- 1x Thunderbolt 4 (40Gbps) host interface with 3.2 ft cable
- 2x DisplayPort 1.4 and 1x HDMI 2.1 for multi-display support (up to 4 displays)
- 5 total USB ports: 3x USB-A and 2x USB-C with up to 15W charging per USB-C port
- 2.5 Gbps Ethernet connectivity for wired network access
- 100W USB Power Delivery to host device via Thunderbolt 4
- Supports 5K resolution (5120x2880) at 60Hz and up to 360Hz refresh rates
- Compact design: 121mm x 121mm x 49.5mm (device only)
- Three-year limited warranty and cross-platform OS support
| Connectivity Technology | Wired |
| Host Interface | Thunderbolt 4 |
| Thunderbolt 4 Ports | 1 |
| Thunderbolt 4 Cable Length | 1 m |
| USB Type-C Ports (10Gbps) | 2 |
| USB Type-A Ports (10Gbps) | 1 |
| USB Type-A Ports (5Gbps) | 2 |
| Total USB Ports | 5 |
| DisplayPort Ports | 2 |
| DisplayPort Version | 1.4 |
| HDMI Ports | 1 |
| HDMI Version | 2.1 |
| Ethernet Port | 1x RJ-45 2.5 GbE |
| Ethernet Data Rates | 10, 100, 1000, 2500 Mbit/s |
| USB Power Delivery | Up to 100 W |
| Power Supply | 120 W external power adapter |
| Maximum Displays Supported | 4 |
| Maximum Resolution | 5120 x 2880 pixels (5K) |
| Maximum Refresh Rate | 360 Hz |
| Security Features | Nano security lock slot |
| LED Indicators | Power |
| Device Dimensions (W x D x H) | 121 x 121 x 49.5 mm |
| Device Weight | 740 g |
| Package Dimensions (W x D x H) | 396 x 171 x 95 mm |
| Package Weight | 1.08 kg |
| Product Color | Grey |
| Operating Temperature | 0 - 35 °C |
| Storage Temperature | -20 - 60 °C |
| Operating Humidity | 10 - 90% |
| Storage Humidity | 5 - 95% |
| Windows Operating Systems Supported | Windows 10, Windows 11 |
| macOS Support | Yes |
| Linux Support | Yes |
| ChromeOS Support | Yes |
| ThinPro Support | Yes |
| Warranty | HP three-year limited warranty |

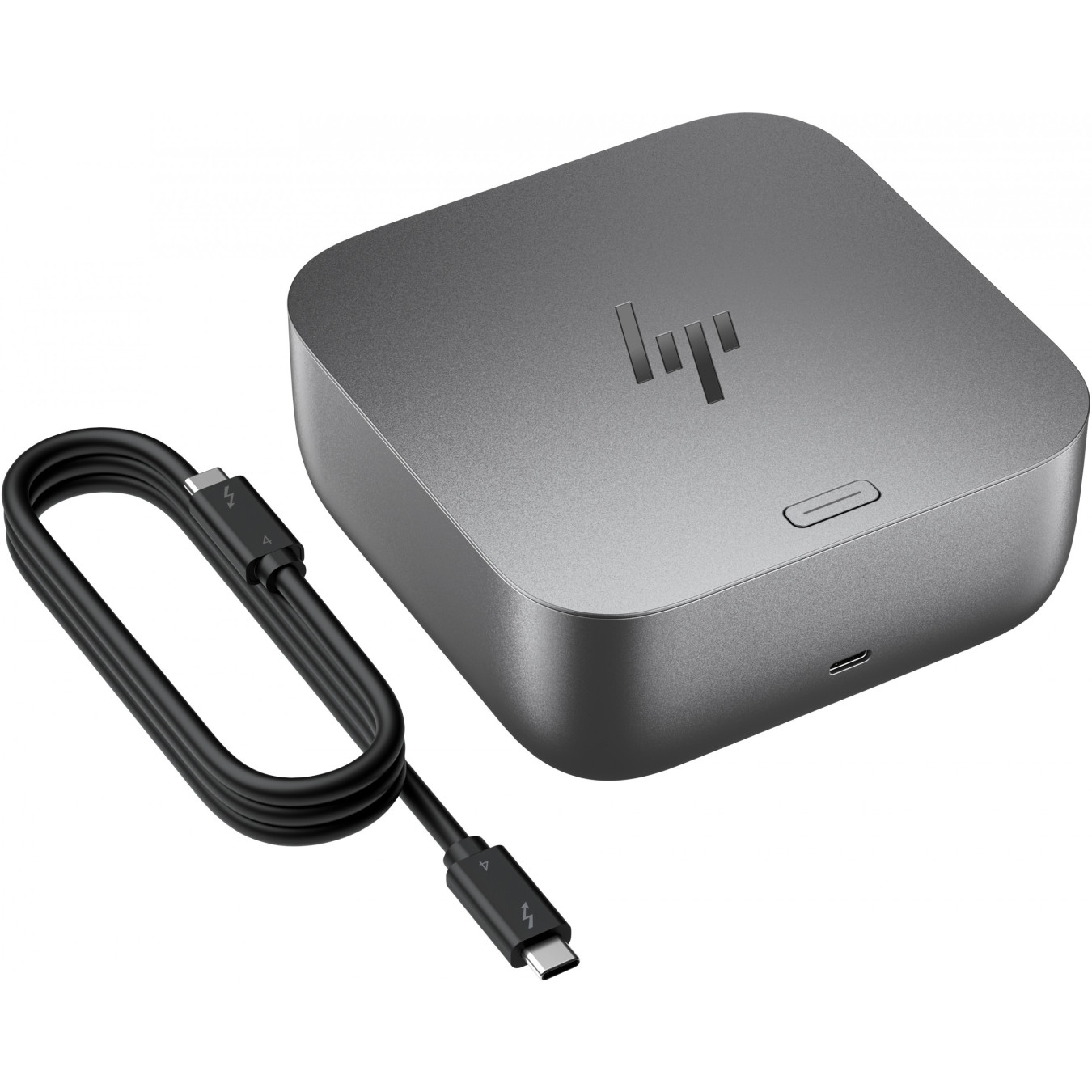

| Cables Included | Thunderbolt 4 cable (1 m) |
| Manageability Features | HP CMSL, Disconnected Firmware updates, eTag, PXE Boot, Wake on LAN, MAC address pass-through, LAN/WLAN switching |
