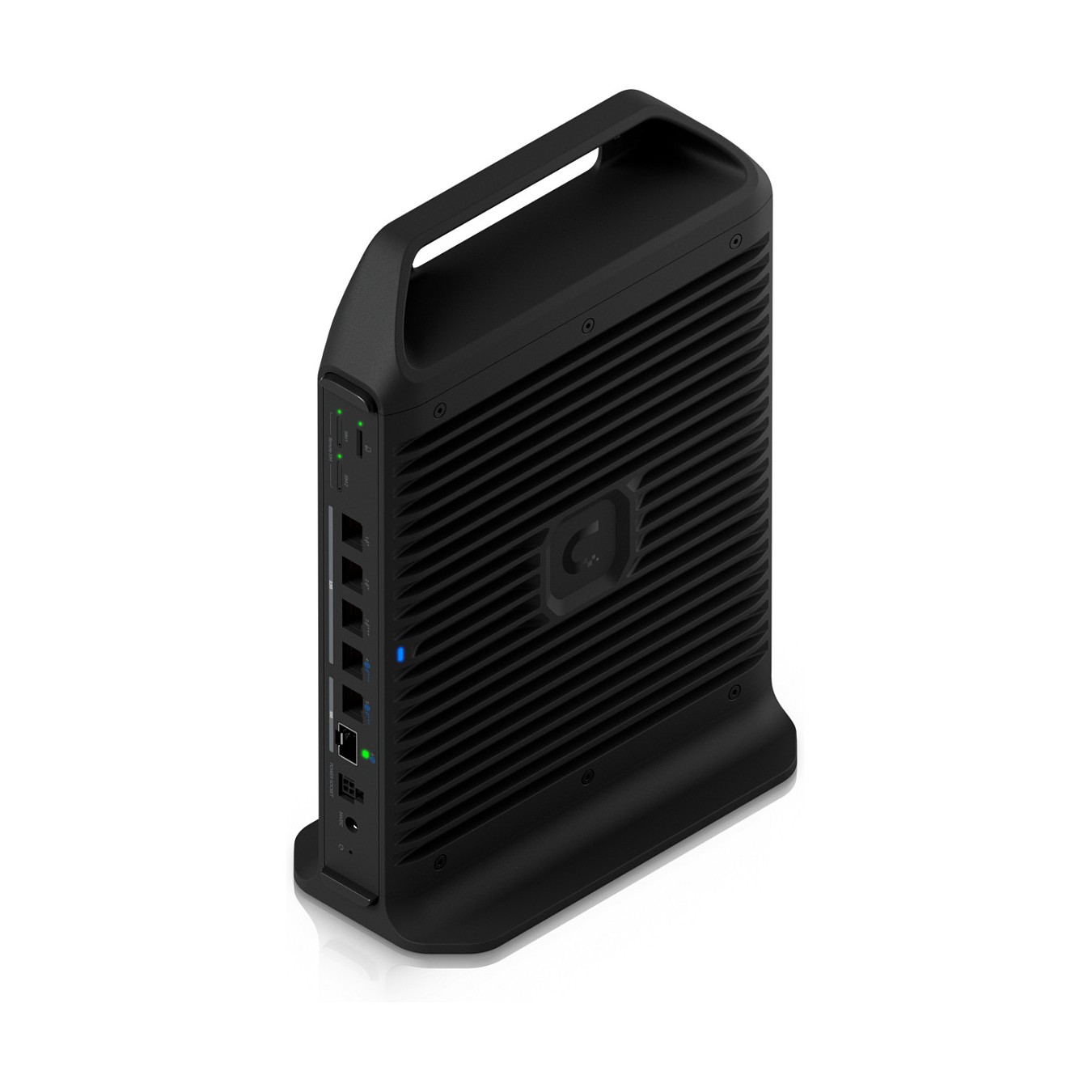

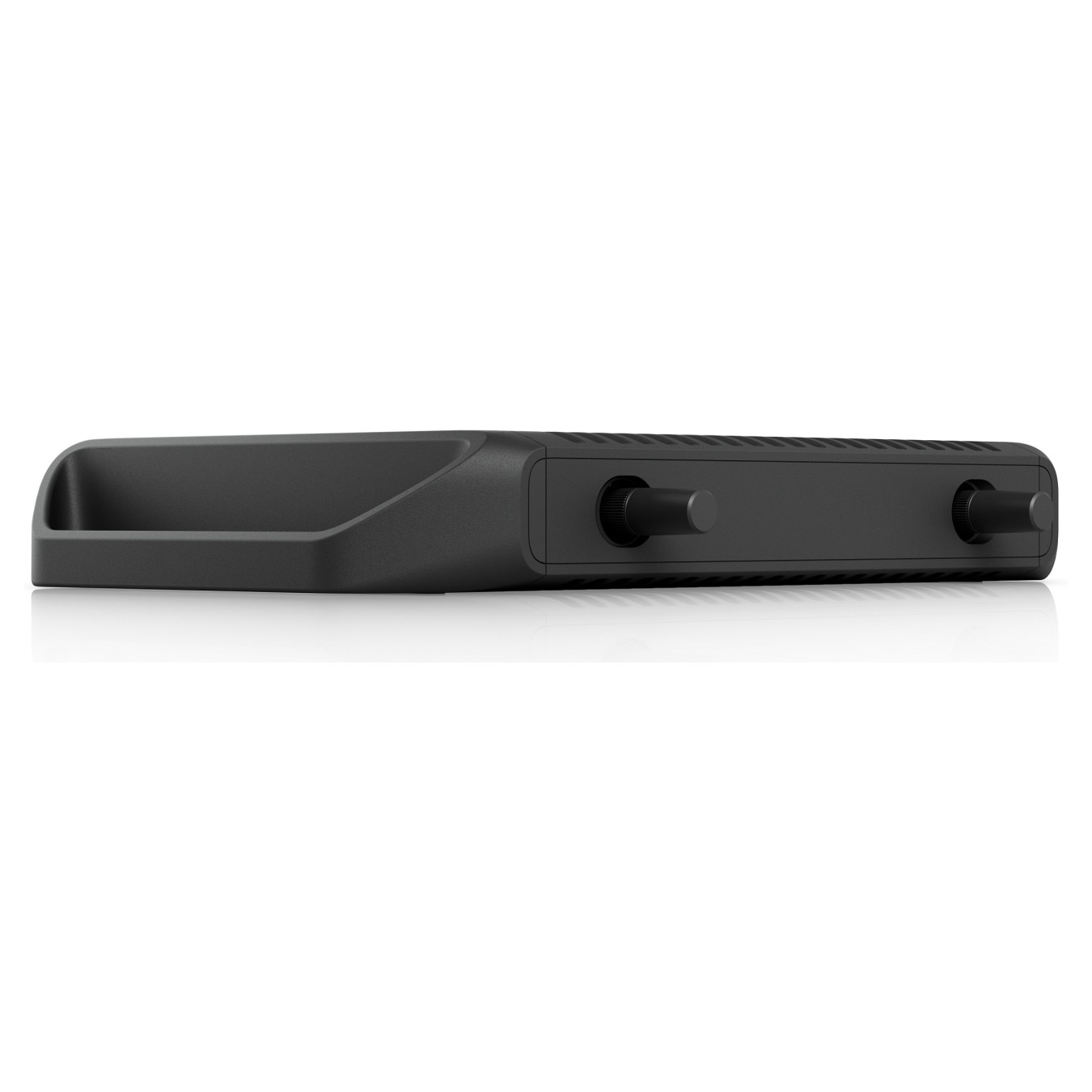

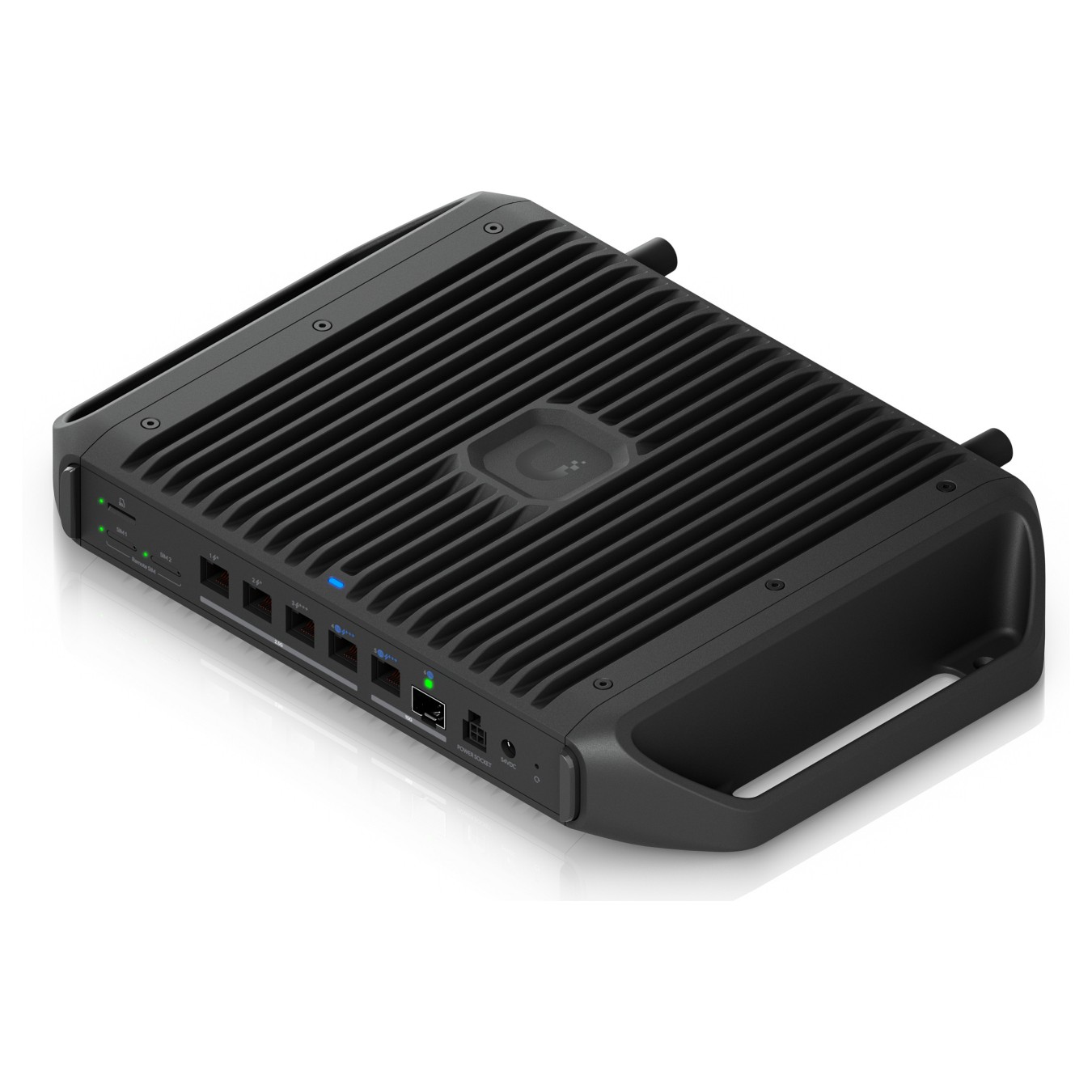

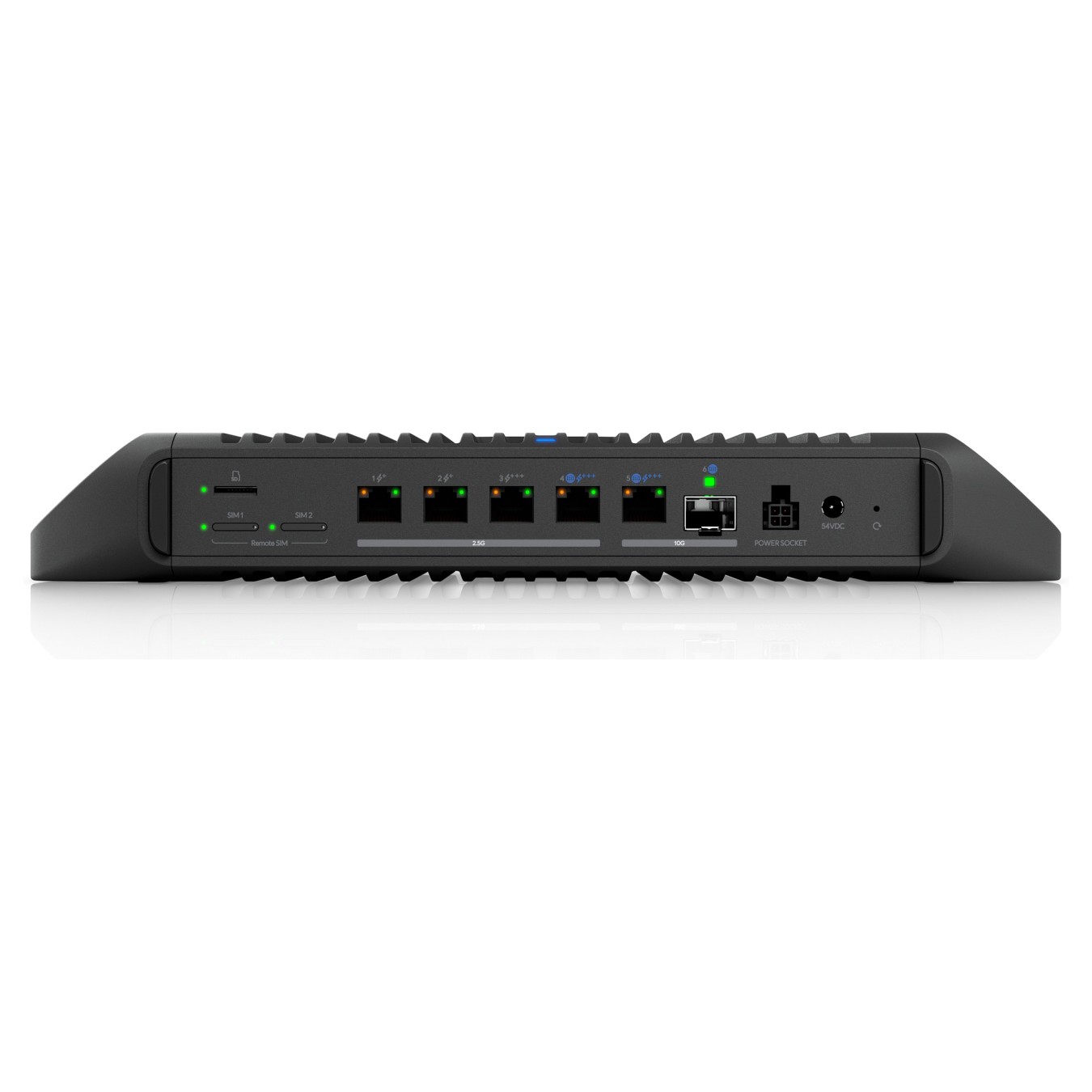

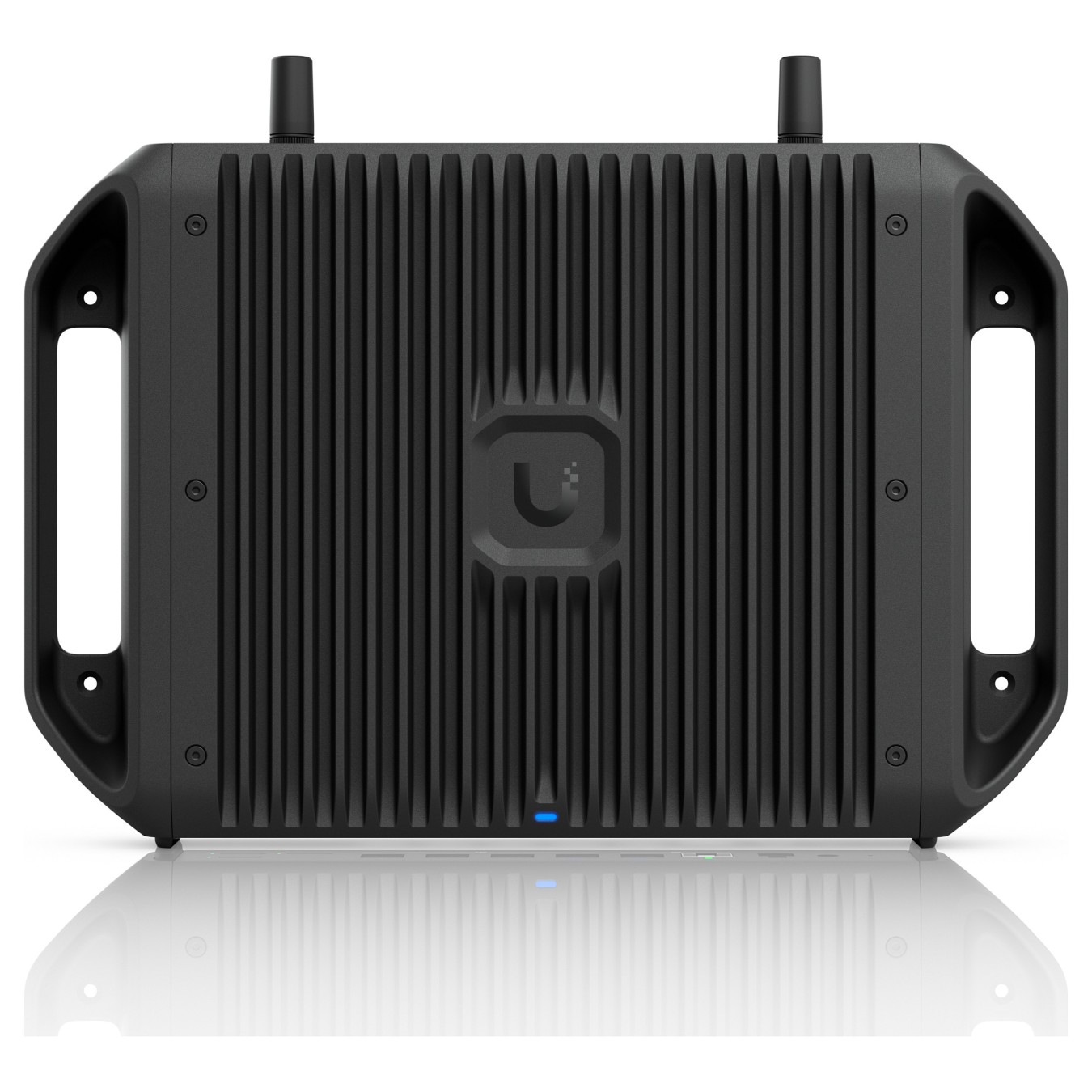

Ubiquiti UCG-Industrial
Ubiquiti UCG-Industrial, Schwarz, Gestell/Tisch/Wand, Status, Intern, RP-SMA, 5 dBi
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Ubiquiti UCG-Industrial. Produktfarbe: Schwarz, Befestigungstyp: Gestell/Tisch/Wand, LED-Anzeigen: Status. Antennentyp: Intern, Antenne Steckertyp: RP-SMA, Antenne Zunahmeniveau (max): 5 dBi. Prozessorhersteller: ARM, Prozessorfamilie: ARM Cortex, Prozessortaktfrequenz: 2200 MHz. Ethernet LAN Datentransferraten: 1000,2500,10000 Mbit/s, Netzstandard: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, Datenübertragungsgeschwindigkeit WLAN: 6,9,12,18,24,36,48,54,5.5,1,2,11,6.5,2402,1732 Mbit/s. WAN Port: Ethernet (RJ-45), SFP+
| Produktfarbe | Schwarz |
| Befestigungstyp | Gestell/Tisch/Wand |
| LED-Anzeigen | Status |
| Antennentyp | Intern |
| Antenne Steckertyp | RP-SMA |
| Antenne Zunahmeniveau (max) | 5 dBi |
| Anzahl der Antennen | 2 |
| Steuerungsanzeigeeinheit | Nein |
| Eingebauter Prozessor | Ja |
| Prozessorhersteller | ARM |
| Prozessorfamilie | ARM Cortex |
| Prozessortaktfrequenz | 2200 MHz |
| Anzahl installierter Prozessoren | 1 |
| Speicherkapazität | 3000 MB |
| Interner Speichertyp | DDR4 |
| Ethernet LAN Datentransferraten | 1000,2500,10000 Mbit/s |
| Netzstandard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be |
| WLAN | Ja |
| Datenübertragungsgeschwindigkeit WLAN | 6,9,12,18,24,36,48,54,5.5,1,2,11,6.5,2402,1732 Mbit/s |
| Lastausgleich | Ja |
| Datenübertragungsrate | 4,3 Gbit/s |
| Firewall | Ja |
| VLAN-Unterstützung | Ja |
| Netzwerkadressenübersetzung (NAT) | Ja |
| SIM-Karten-Slot | Ja |
| Anzahl der gleichzeitigbenutzende SIM-Karten | 2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 5 |
| WAN Port | Ethernet (RJ-45), SFP+ |
| Gleichstrom-Anschluss (DC) | Ja |
| Anzahl der SFP+-Anschlüsse | 1 |
| Quality of Service (QoS) Support | Ja |
| Reset-Knopf | Ja |
| Multicast Unterstützung | Ja |
| Stromverbrauch (max.) | 28 W |
| Eingangsspannung | 100 - 240 V |
| Stromversorgung | 350 W |
| Power over Ethernet (PoE) | Ja |
| Wärmeableitung | 85 BTU/h |
| DC input Spannung | 50 - 57 V |
| Schutz vor elektrostatischer Entladung (ESD) | Ja |
| Schutz gegen elektrostatische Entladung (ESD) (Luft) | 8 kV |
| Elektrostatischer Entladungsschutz (ESD) (Kontakt) | 4 kV |
| Elektromagnetischer Schutz (EMP) | Ja |
| Elektromagnetischer Schutz (EMP) (Luft) | 8 kV |
| Elektromagnetischer Schutz (EMP) (Kontakt) | 4 kV |
| Kompatible Betriebssysteme | Android, iOS |
| Breite | 307,9 mm |
| Tiefe | 203,5 mm |
| Höhe | 43,7 mm |
| Gewicht | 2,4 kg |
| AC-Netzadapter | Ja |
| Betriebsanleitung | Ja |
| Betriebstemperatur | -30 - 50 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Konformitätsbescheinigungen | CE, Eidgenössische Kommunikationskommission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
