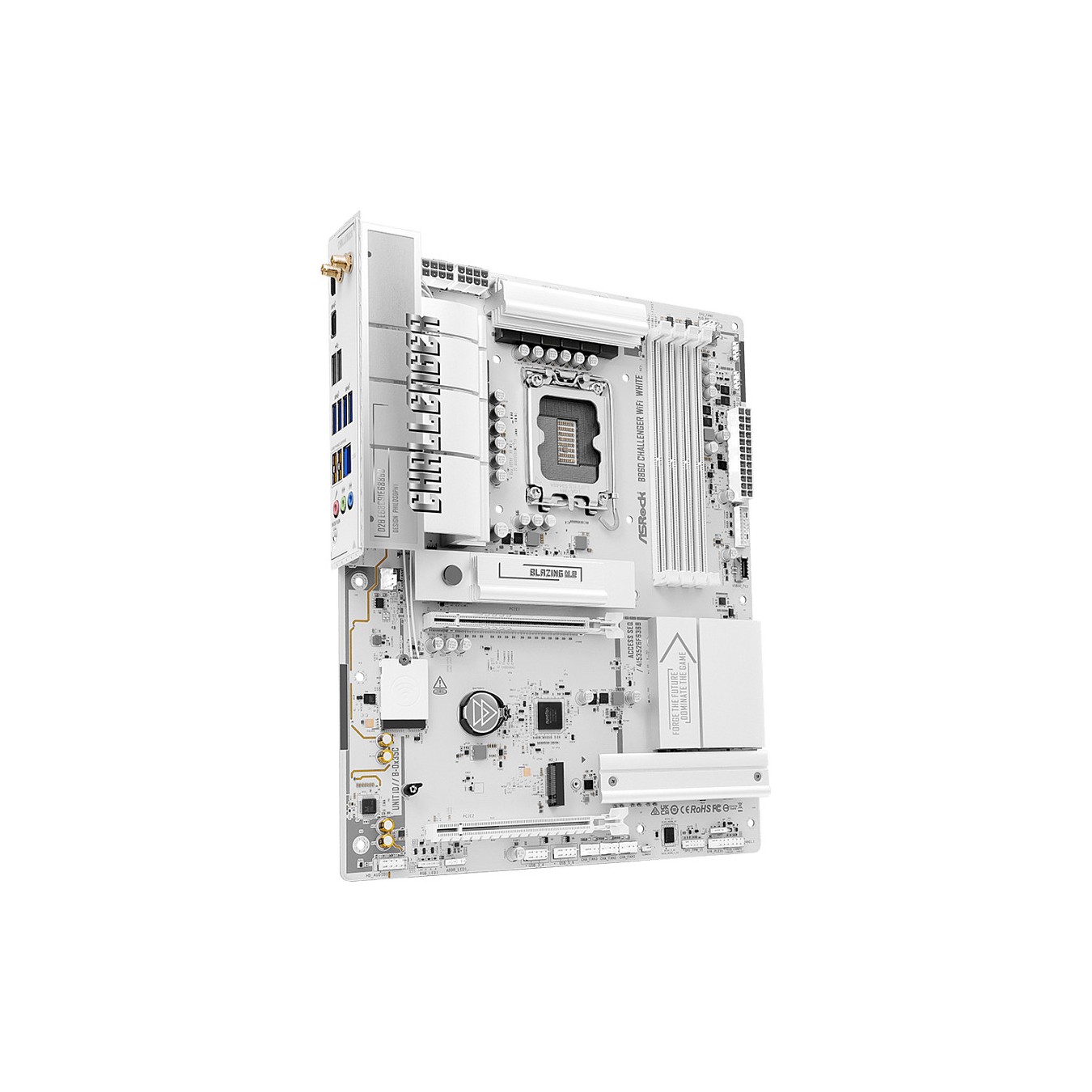

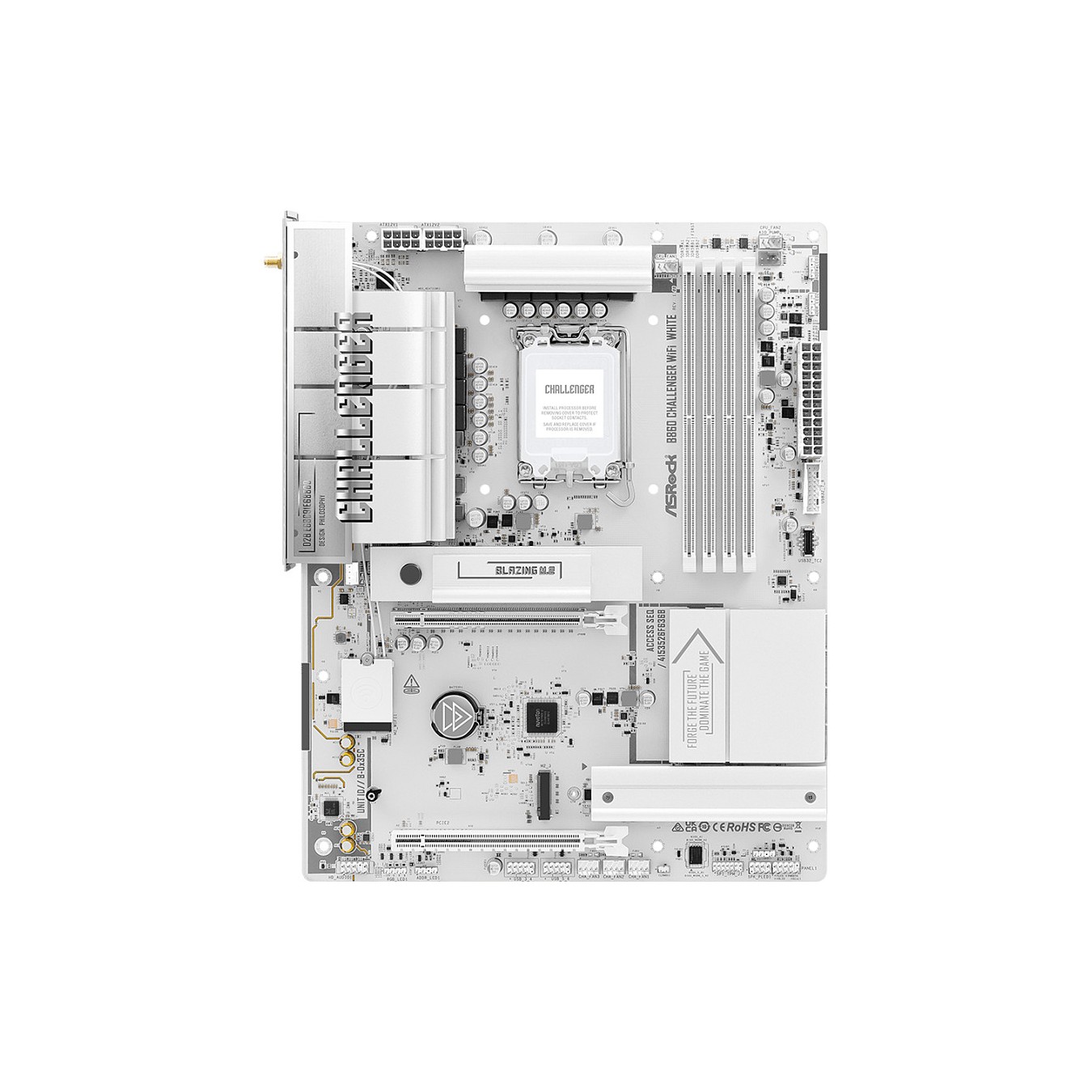

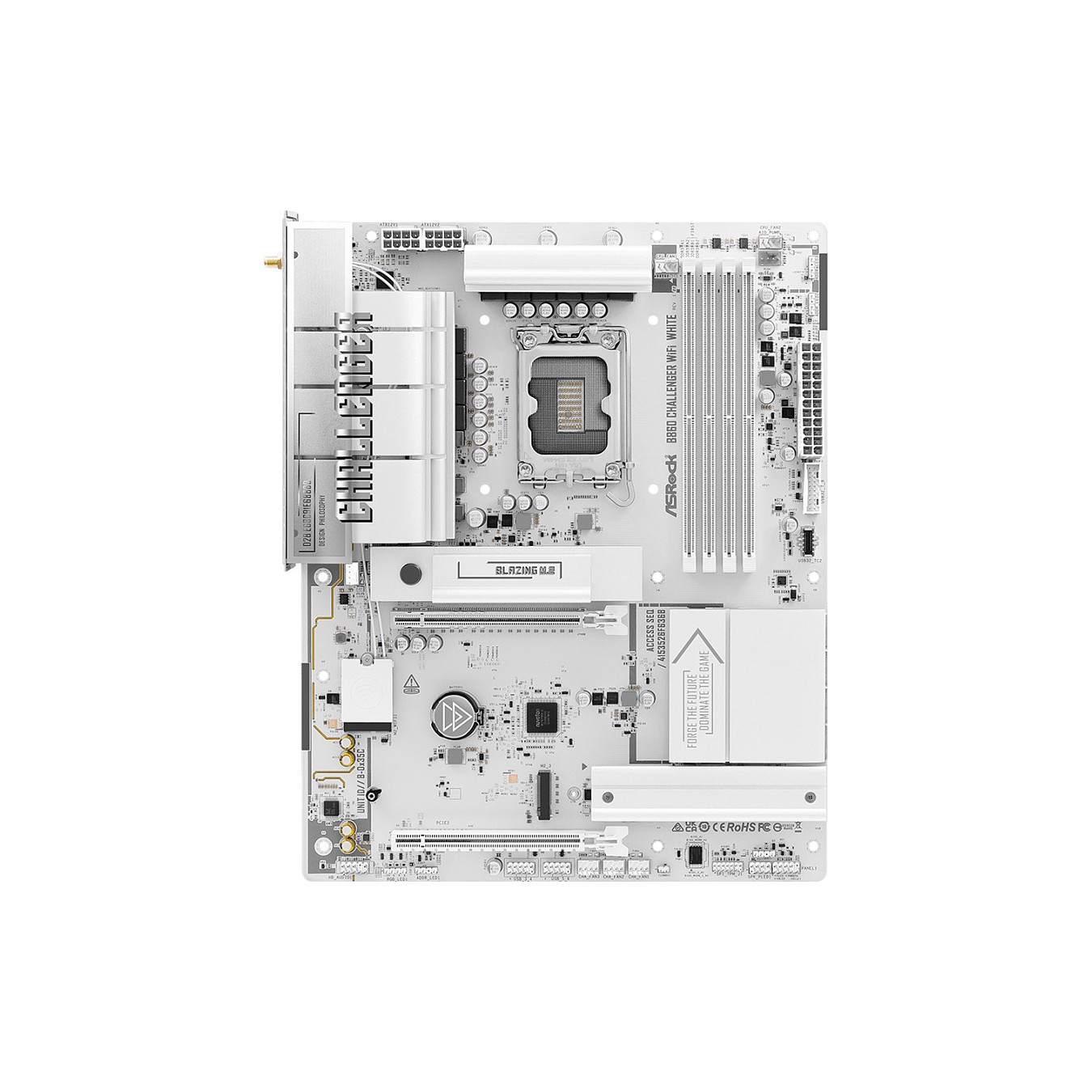

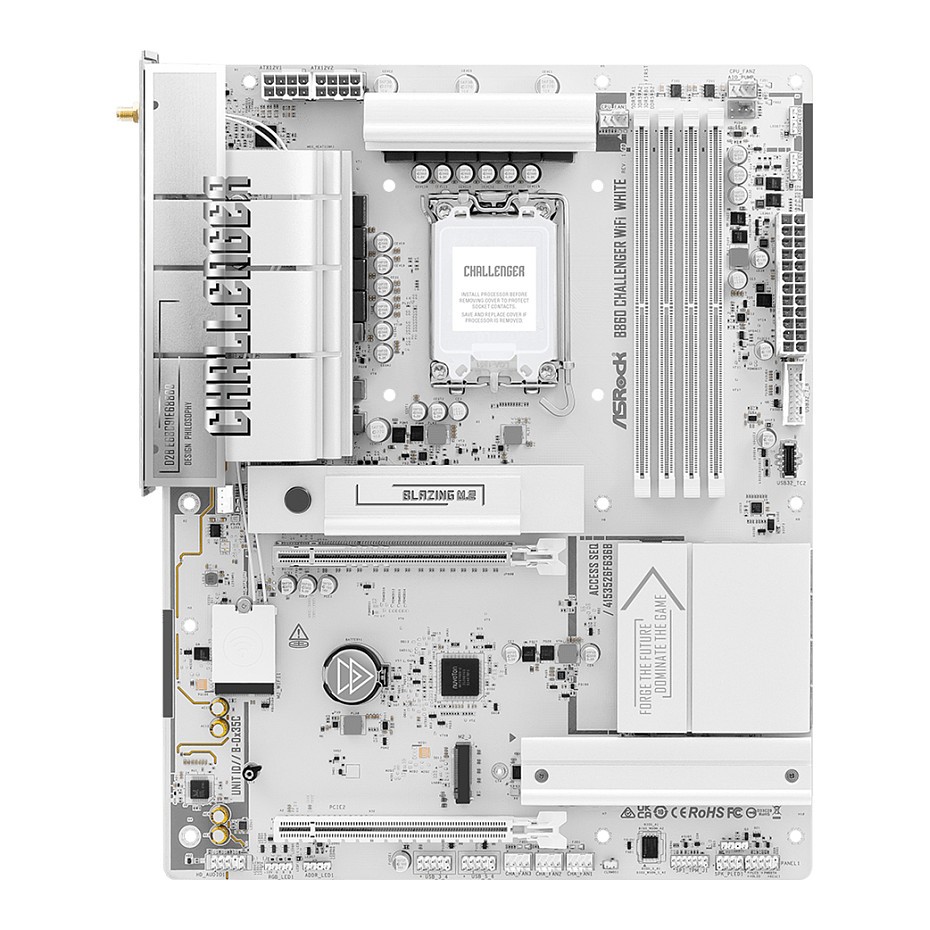

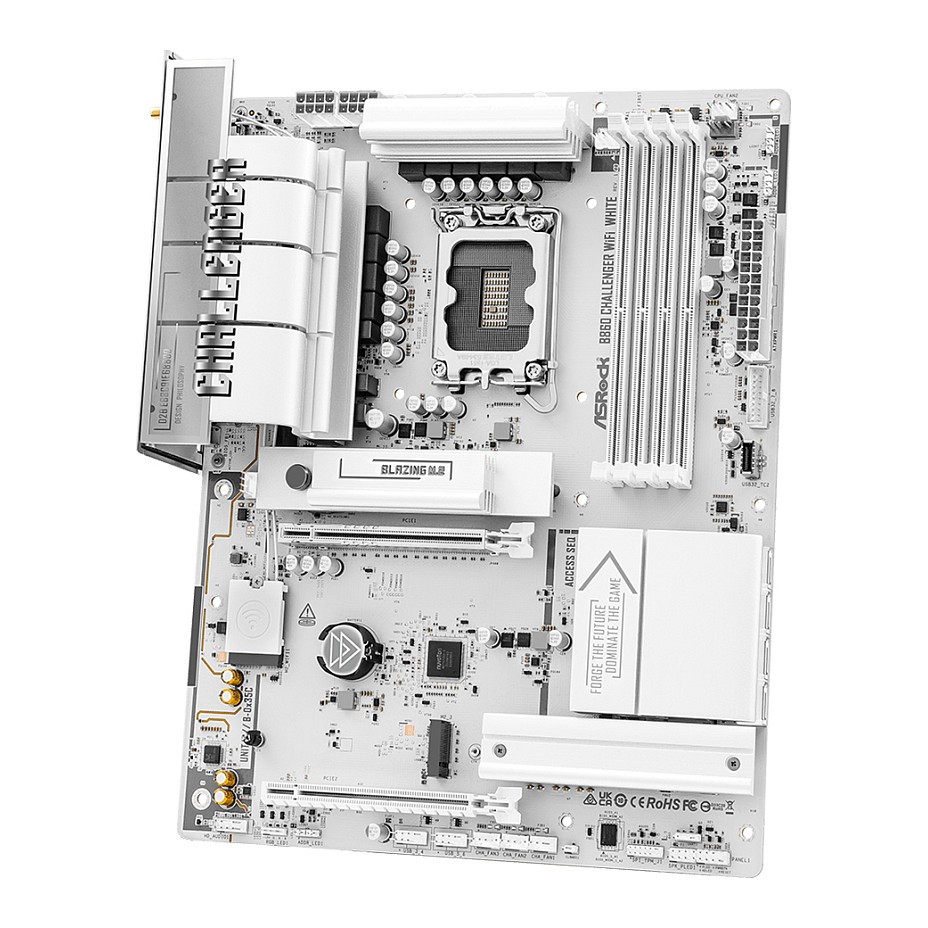

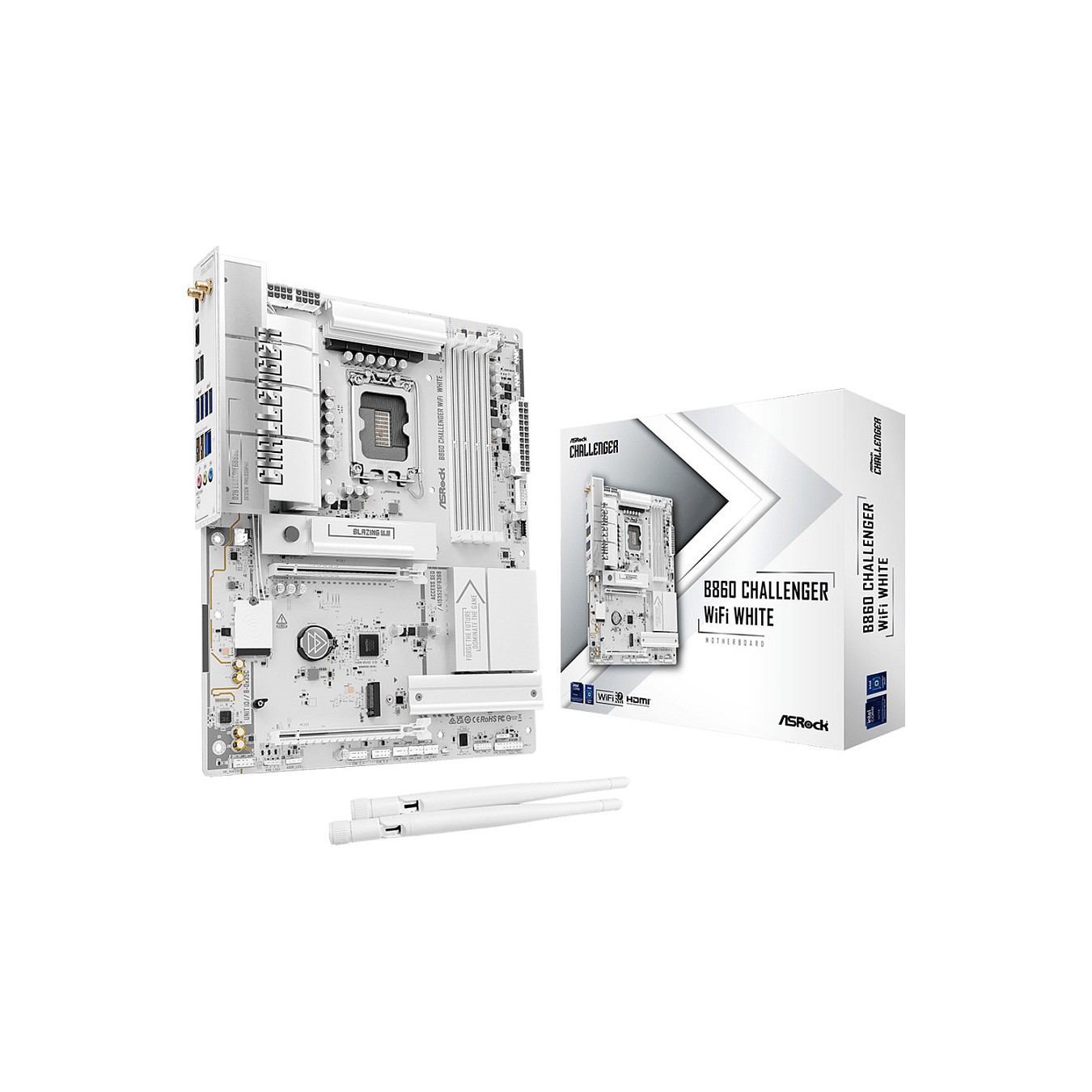

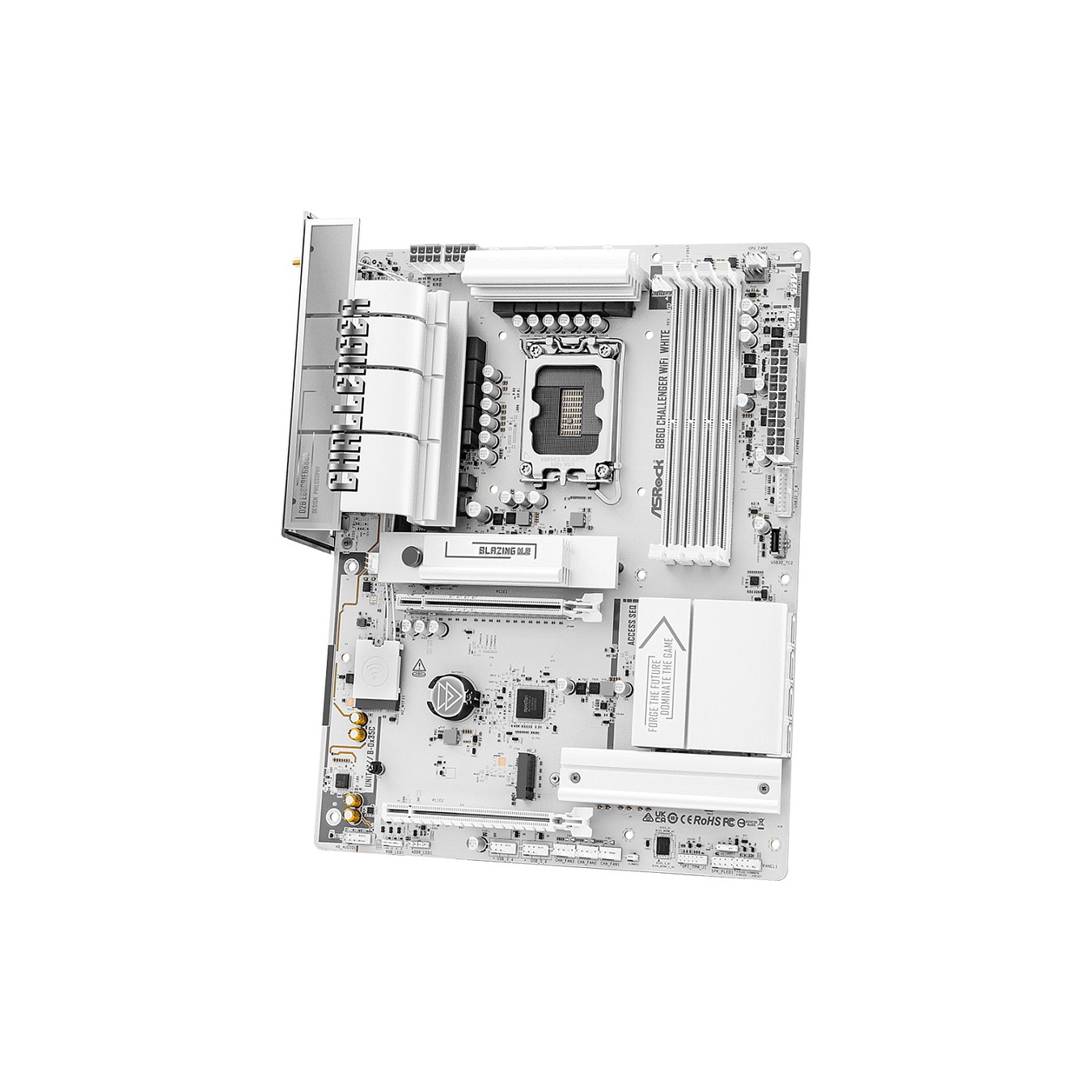

ASROCK B860 Challenger WiFi DDR5 Intel S1851 White retail
Asrock B860 Challenger WiFi White, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Asrock B860 Challenger WiFi White. Prozessorhersteller: Intel, Prozessorsockel: LGA 1851 (Socket V1), Kompatible Prozessoren: Intel Core Ultra (Series 2). Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 256 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: PCI Express 5.0, M.2, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD, RAID Level: 0, 1, 5, 10. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet, Schnelles Ethernet, Gigabit Ethernet, LAN-Controller: Dragon RTL8125BG, Top WLAN-Standard: Wi-Fi 7 (802.11be). Komponente für: PC, Motherboardformfaktor: ATX, Motherboard Chipsatz Familie: Intel
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1851 (Socket V1) |
| Kompatible Prozessoren | Intel Core Ultra (Series 2) |
| Unterstützte Prozessorsteckplätze | LGA 1851 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 5600,6800,4800,4400,6533,8666 MHz |
| Unterstützte Speichertaktrate (max.) | 8666 MHz |
| RAM-Speicher maximal | 256 GB |
| Unbuffered Speicher | Ja |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | PCI Express 5.0, M.2, SATA III |
| Maximale unterstützte Anzahl der HDD | 4 |
| Anzahl der unterstützten Speicherlaufwerke | 7 |
| RAID-Unterstützung | Ja |
| RAID Level | 0, 1, 5, 10 |
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| HDCP | Ja |
| HDCP-Version | 2.3 |
| High Dynamic Range Video (HDR) Unterstützung | Ja |

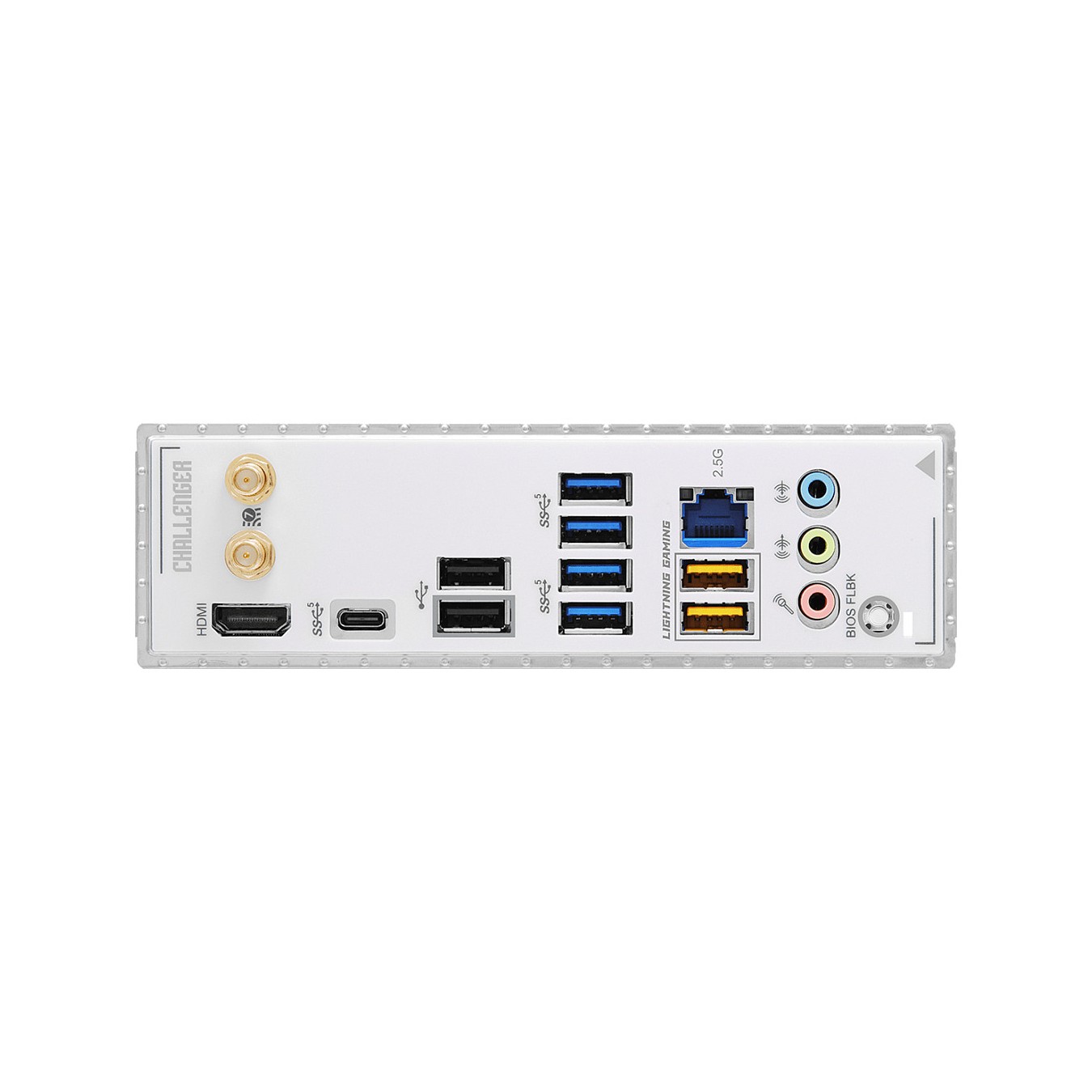

| Anzahl USB 2.0 Schnittstellen | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 9 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 1 |
| SATA III Anschlüsse | 4 |
| Front Panel Audiostecker | Ja |
| Frontpanel-Stecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| Zahl der EATX Energie Stecker | 1 |
| CPU Ventilatorstecker | Ja |
| Anzahl der CPU-Lüfteranschlüsse | 2 |
| Zahl der Chassisventilatorstecker | 4 |
| TPM-Anschluss | Ja |
| 12-V-Stromanschluss | Ja |
| Anzahl der Wasserpumpenanschlüsse | 1 |
| RGB-LED-Stiftleiste | Ja |
| Anzahl USB 2.0 Anschlüsse | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.1 |
| Line-in | Ja |
| Mikrofon-Eingang | Ja |
| WiFi-AP-Antennenbuchse | 2 |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet, Schnelles Ethernet, Gigabit Ethernet |
| LAN-Controller | Dragon RTL8125BG |
| WLAN | Ja |
| Top WLAN-Standard | Wi-Fi 7 (802.11be) |
| WLAN-Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Ja |
| Bluetooth-Version | 5.4 |
| Motherboard Chipsatz | Intel B860 |
| Audio-Chip | Realtek ALC897 |
| Audio Kanäle | 7.1 Kanäle |
| Produktfarbe | Weiß |
| Komponente für | PC |
| Motherboardformfaktor | ATX |
| Motherboard Chipsatz Familie | Intel |
| Unterstützt Windows-Betriebssysteme | Windows 11 x64 |
| PCI Express x16-Steckplätze (Gen 4.x) | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 1 |
| 1. M.2 größte Schlüsselgröße | 2280 |
| 1. M.2 höchste PCI Express-Generation | 5.0 |
| 2. M.2 größte Schlüsselgröße | 2280 |
| 2. M.2 höchste PCI Express-Generation | 4.0 |
| 3. M.2 größte Schlüsselgröße | 2280 |
| 3. M.2 höchste PCI Express-Generation | 4.0 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
| BIOS-Flashback-Taste | Ja |
| Intel® Extreme Memory Profile (XMP) | Ja |
| Breite | 244 mm |
| Tiefe | 305 mm |
| Mitgelieferte Kabel | SATA |
| Antenne enthalten | Ja |
| Schrauben enthalten | Ja |
| M.2-Abstandshalter enthalten | Ja |
| Nachhaltigkeitszertifikate | ErP |
| Konformitätsbescheinigungen | Eidgenössische Kommunikationskommission (FCC), CE |
