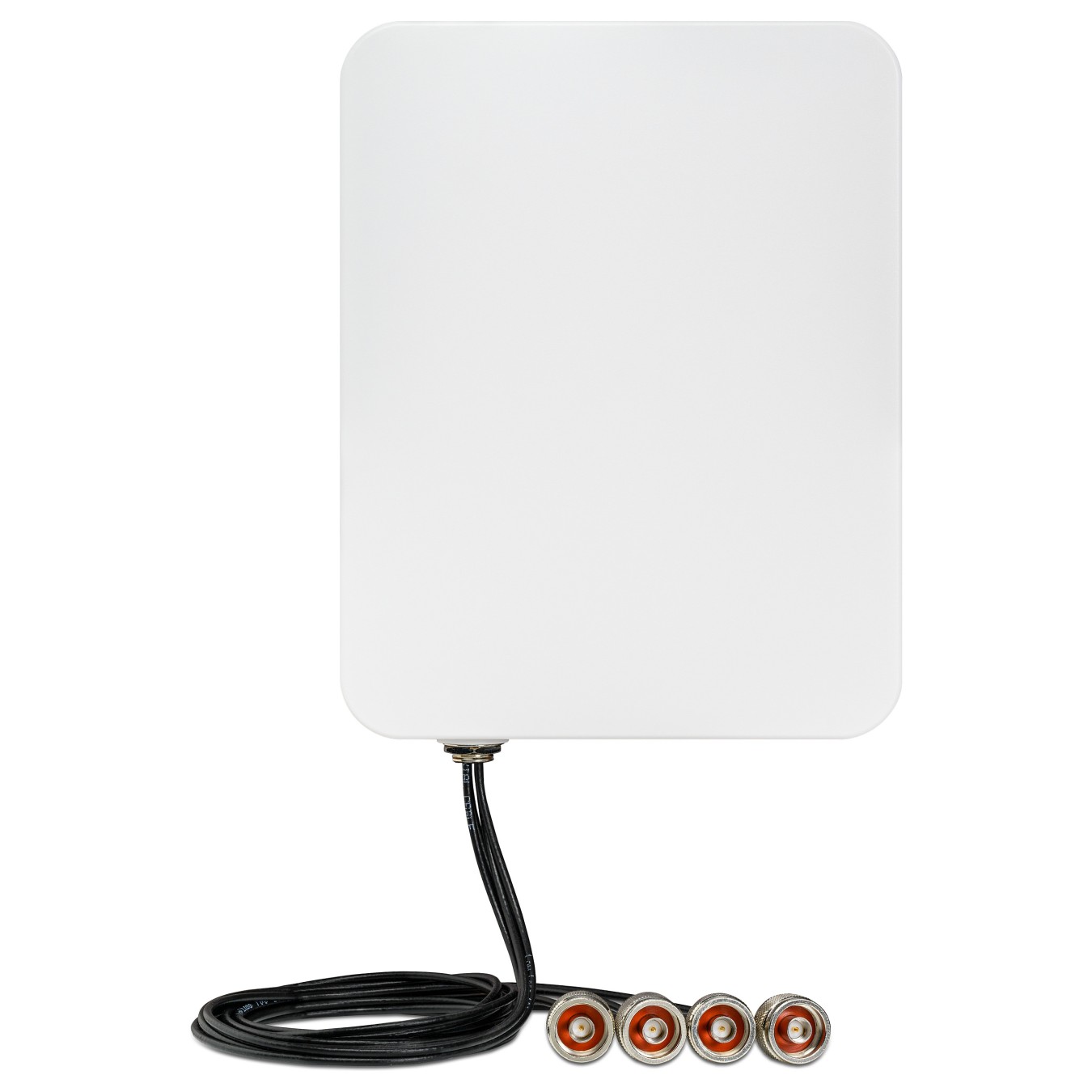

AirLancer ON-QT90
AirLancer ON-QT90, 6 dBi, 2.4 - 7.125 GHz, 6 dBi, 6 dBi, 6 dBi, 50 Ohm
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
AirLancer ON-QT90. Antenne Zunahmeniveau (max): 6 dBi, Frequenzband: 2.4 - 7.125 GHz, Verstärkung dBi (bei Antennenkabel): 6 dBi. Antennentyp: Richtantenne, Antenne Steckertyp: N-Typ, Polarisation: Doppelte lineare Polarisation. Breite: 183,7 mm, Tiefe: 40 mm, Höhe: 233,7 mm. Menge pro Packung: 1 Stück(e). Ursprungsland: Taiwan
| Frequenzband | 2.4 - 7.125 GHz |
| Verstärkung dBi (bei Antennenkabel) | 6 dBi |
| Antenna Zuwachs (2.4 GHz) | 6 dBi |
| Antenna Zuwachs (5 GHz) | 6 dBi |
| Impedanz | 50 Ohm |
| Horizontale beam Weite (2.4 GHz) | 95° |
| Vertikale beam Weite (2.4 GHz) | 97° |
| Horizontale beam Weite (5 GHz) | 99° |
| Vertikale beam Weite (5 GHz) | 60° |
| Antenne Zunahmeniveau (max) | 6 dBi |
| Antennentyp | Richtantenne |
| Antenne Steckertyp | N-Typ |
| Polarisation | Doppelte lineare Polarisation |
| Spannung Stellung-Welle Verhältnis (VSWR) | 1,5:1 - 2,0:1 |
| Produktfarbe | Hellgrau |
| Ultraviolett (UV) beständig | Ja |
| Montage | Wand- / Mast |
| Kompatible Produkte | AirLancer SurgeProtect, AirLancer AN-RPSMA-NJ, AirLancer NJ-NP, LANCOM OAP Series 32x, 82x, 170x, OW-602, OX-6402 |
| Betriebstemperatur | -40 - 85 °C |
| Breite | 183,7 mm |
| Tiefe | 40 mm |
| Höhe | 233,7 mm |
| Gewicht | 900 g |
| Menge pro Packung | 1 Stück(e) |
| Montageset | Ja |
| Zolltarifnummer (TARIC) | 85177000 |
| Ursprungsland | Taiwan |
