INTELLINET 8-Port PoE+ Gb Switch PoE-Passthrough 1xPD PoE 95W Eingangsstrom 7x PSE PoE Strombudget bis 120W DIN-Hutsc...
Intellinet 8-Port PoE+ Gigabit Switch mit PoE-Passthrough. Ein PD PoE-Port mit 95 W Eingangsstrom. sieben PSE PoE-Ports. PoE-Strombudget bis zu 120 W. IEEE 802.3at/af-konform. DIN-Hutschienenmontage. Gigabit Ethernet (10/100/1000). Vollduplex. Power over Ethernet (PoE)
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Intellinet 8-Port PoE+ Gigabit Switch mit PoE-Passthrough. Ein PD PoE-Port mit 95 W Eingangsstrom. sieben PSE PoE-Ports. PoE-Strombudget bis zu 120 W. IEEE 802.3at/af-konform. DIN-Hutschienenmontage. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Vollduplex. MAC-Adressentabelle: 4000 Eintragungen. Routing-/Switching-Kapazität: 16 Gbit/s. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x. DC input Spannung: 48 - 57 V. Power over Ethernet (PoE)
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x |
| unterstütze Kabeltypen | Cat5e |
| Feature | Benutzerhandbuch |
| Routing-/Switching-Kapazität | 16 Gbit/s |
| MAC-Adressentabelle | 4000 Eintragungen |
| Jumbo-Frames | 9200 |
| Paketweiterleitungsrate (1 Gbit/s) | 1488000 pps |
| Paketweiterleitungsrate (100 Mbit/s) | 148800 pps |
| Paketweiterleitungsrate (10 Mbit/s) | 14880 pps |
| Produktfarbe | Schwarz |
| LED-Anzeigen | Aktivität. Link. PoE. Leistung |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| DC input Spannung | 48 - 57 V |
| Power over Ethernet (PoE) Leistung pro Anschluss | 30 W |
| Gesamtleistung Power over Ethernet (PoE) | 120 W |
| Betriebstemperatur | -20 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |

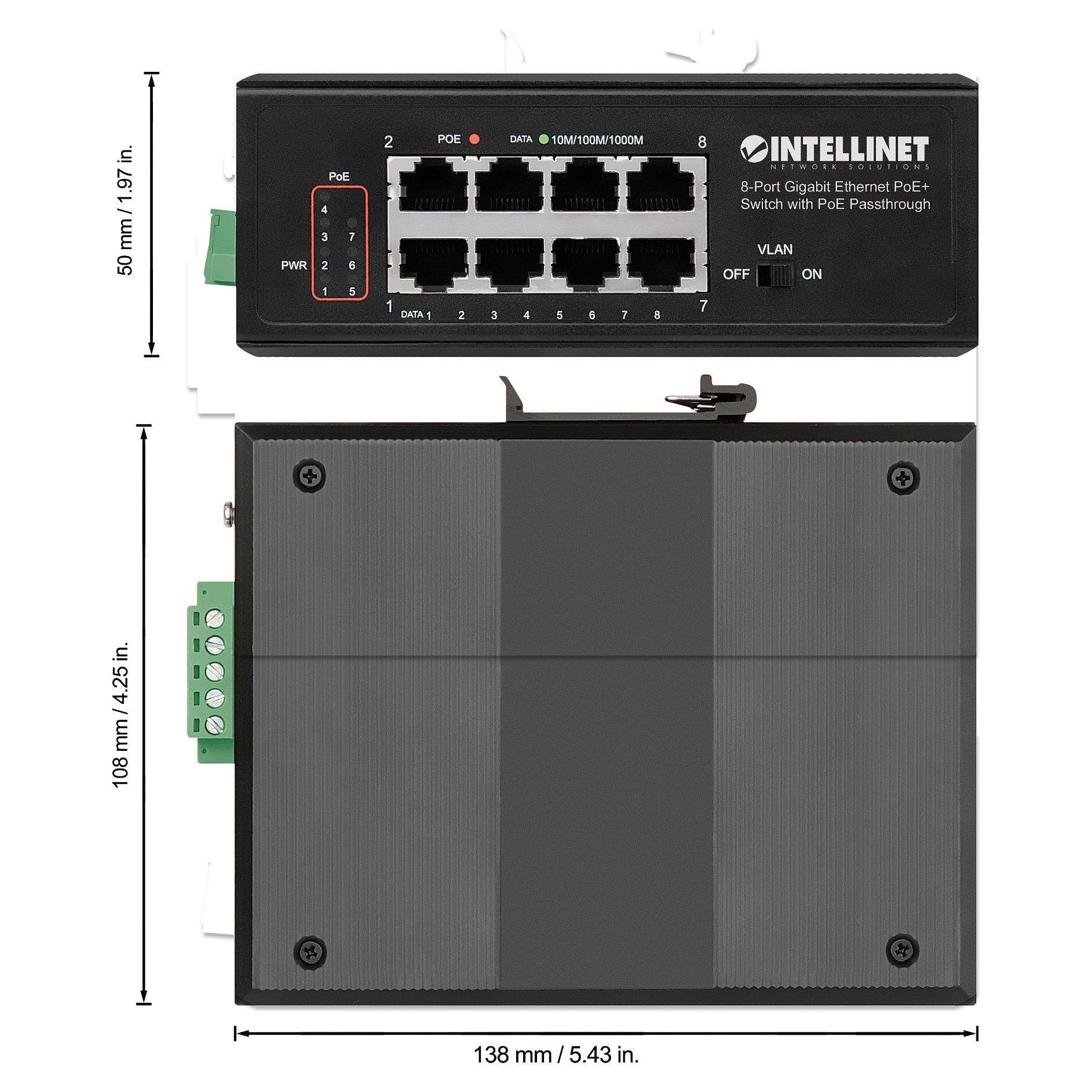

| Breite | 138 mm |
| Tiefe | 108 mm |
| Höhe | 50 mm |
| Gewicht | 673 g |
| Konformitätsbescheinigungen | CE. RoHS. Eidgenössische Kommunikationskommission (FCC). UL |
| Zertifizierung | FCC B. CE. RoHS |
| Warentarifnummer (HS) | 85176990 |
