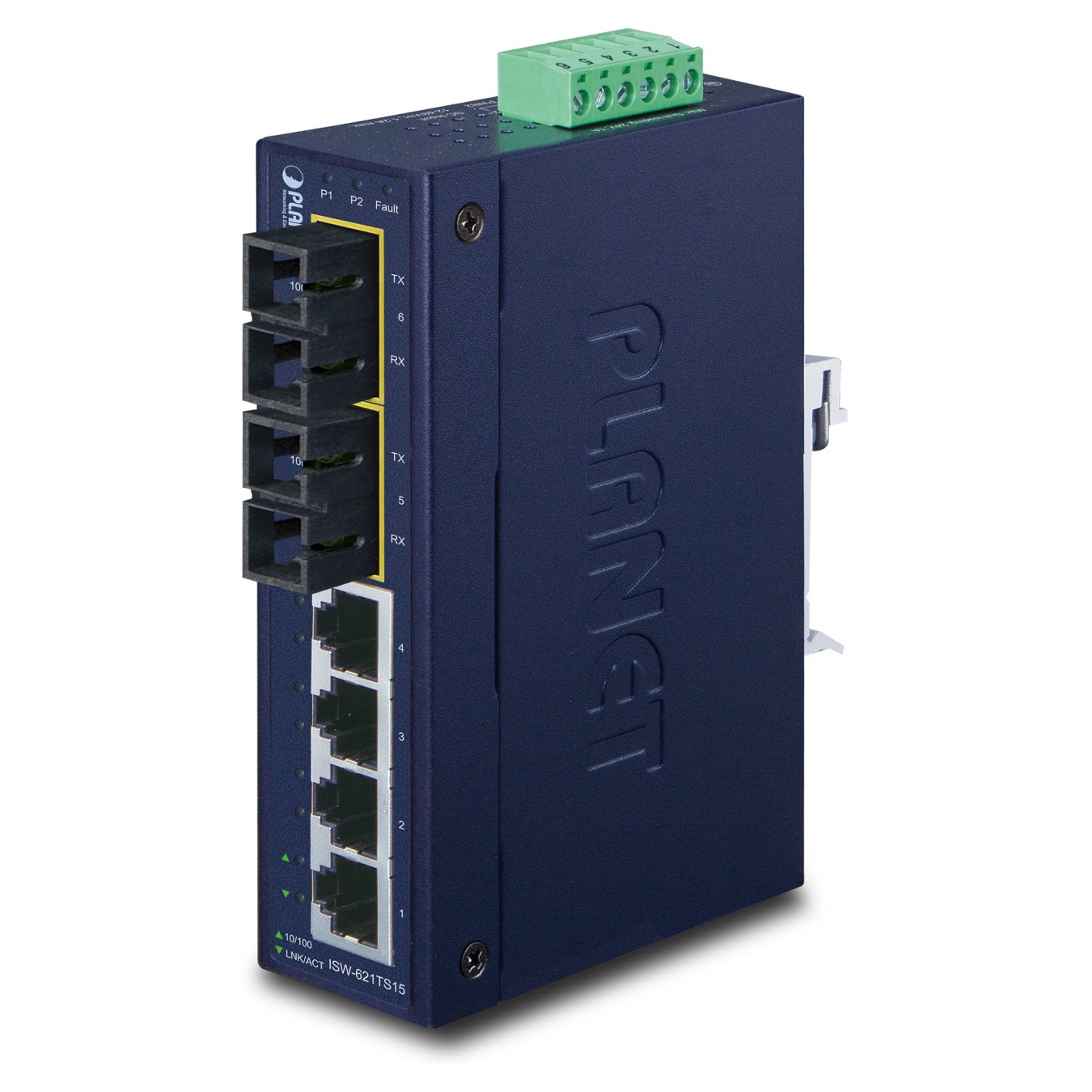

PLANET 4+2 100FX Port Single mode Industrial Ethernet
PLANET Industrial Fast Ethernet Switch 4-Port 10/100 Mbps RJ45 + 2-Port 100Base-FX SC IP30, Up to 15km, Unmanaged, L2, Fast Ethernet (10/100), Vollduplex, Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET Industrial Fast Ethernet Switch 4-Port 10/100 Mbps RJ45 + 2-Port 100Base-FX SC IP30, Up to 15km. Switch-Typ: Unmanaged, Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Fast Ethernet (10/100), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 4. Vollduplex. MAC-Adressentabelle: 2048 Eintragungen, Routing-/Switching-Kapazität: 1,2 Gbit/s. Netzstandard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Wandmontage
| Switch-Typ | Unmanaged |
| Switch-Ebene | L2 |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 4 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Fast Ethernet (10/100) |
| Fast Ethernet (Kupfer)-Anschlüsse | 4 |
| Anzahl Faseranschlüsse | 2 |
| Netzstandard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G-Unterstützung | Nein |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T, 100BASE-TX |
| Vollduplex | Ja |
| Unterstützung Datenflusssteuerung | Ja |
| Auto MDI/MDI-X | Ja |
| Auto-Negotiation-Funktion | Ja |
| Selbstlernen von MAC-Adressen unterstützt | Ja |
| Auto-Alterung von MAC-Adressen unterstützt | Ja |
| Ethernet-Kabel Verkablungstechnologie | 100BASE-FX |
| Fibertyp | Einzelmodus |
| Transmissionsentfernung (max) | 15 km |
| Wellenlänge | 1310 nm |
| RX Sensitivität | -32 dB |
| Routing-/Switching-Kapazität | 1,2 Gbit/s |
| Durchgang | 0,89 Mpps |
| MAC-Adressentabelle | 2048 Eintragungen |
| Store-and-Forward | Ja |
| Rack-Einbau | Nein |
| Produktfarbe | Blau |
| Gehäusematerial | Metall |
| LED-Anzeigen | Ja |
| Internationale Schutzart (IP-Code) | IP30 |
| Wandmontage | Ja |
| DIN-Schienen-Montage | Ja |
| Unterstützung für redundantes Netzteil | Ja |
| Stromverbrauch (max.) | 16 W |
| Power over Ethernet (PoE) | Nein |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Wärmeableitung | 54 BTU/h |
| Breite | 135 mm |
| Tiefe | 97 mm |
| Höhe | 32 mm |
| Gewicht | 442 g |
| Zertifizierung | FCC, CE |
| Warentarifnummer (HS) | 85176990 |
