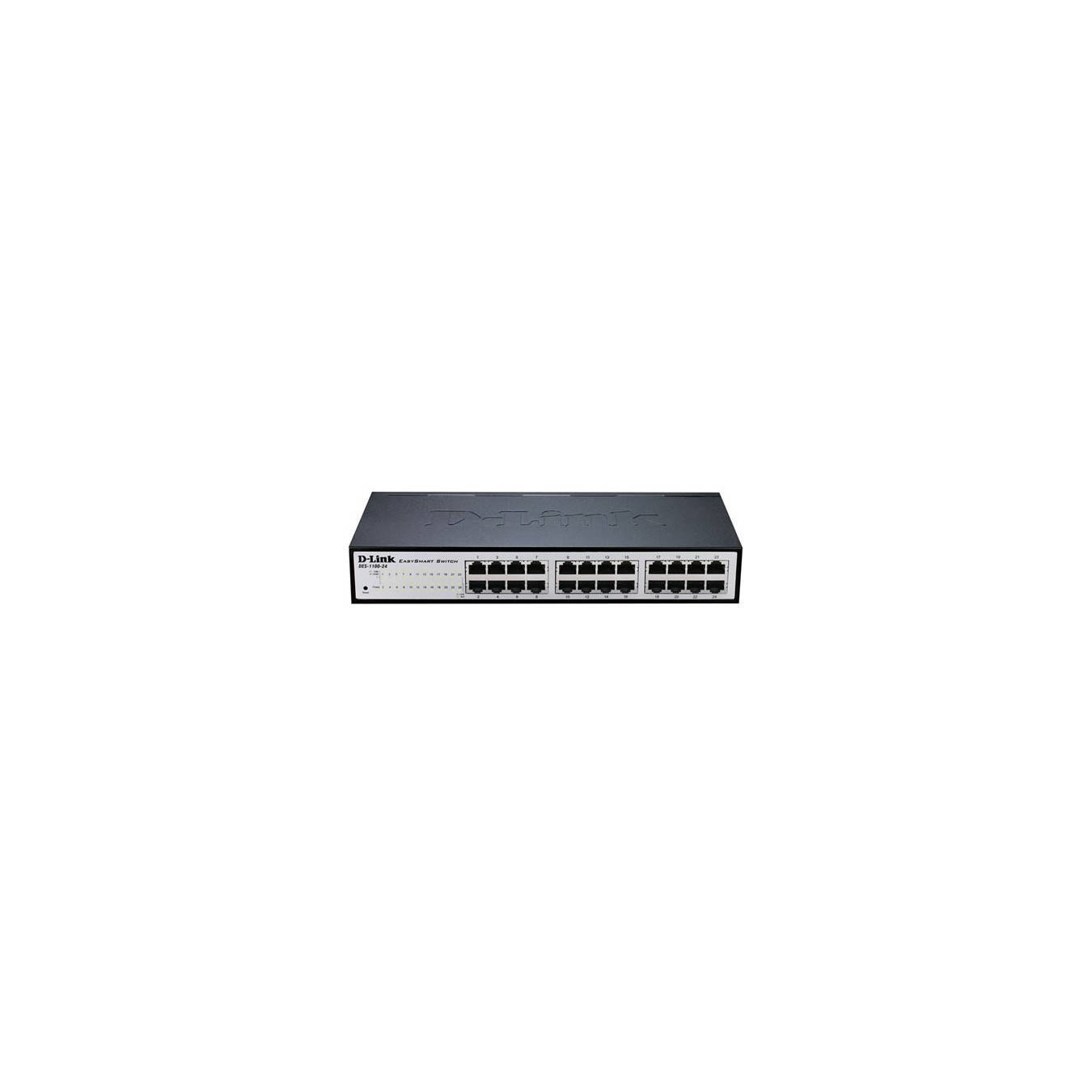

D-Link DGS-1100-24V2 - 24-Port Gigabit Managed L2 Switch, 1U Rackmount, Black/Grey
Managed L2 24-port Gigabit (10/100/1000) switch, 1U rackmount, 128 VLANs, 9,216-byte jumbo frames, 4.1MB buffer, low 15.9W power, AC 100–240V.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
D-Link DGS-1100-24V2. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries. Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3ad. IEEE 802.3az. IEEE 802.3x. Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3ad. IEEE 802.3az. IEEE 802.3x |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 128 |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.71 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| Form factor | 1U |
| Product colour | Black. Grey |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 424762 h |
| Power source | AC |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 15.9 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 54.3 BTU/h |
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.32 kg |
| Compliance certificates | BSMI. CB. CCC. cUL |
| Certification | FCC. CE. VCCI. C-Tick. BSMI. CCC |
