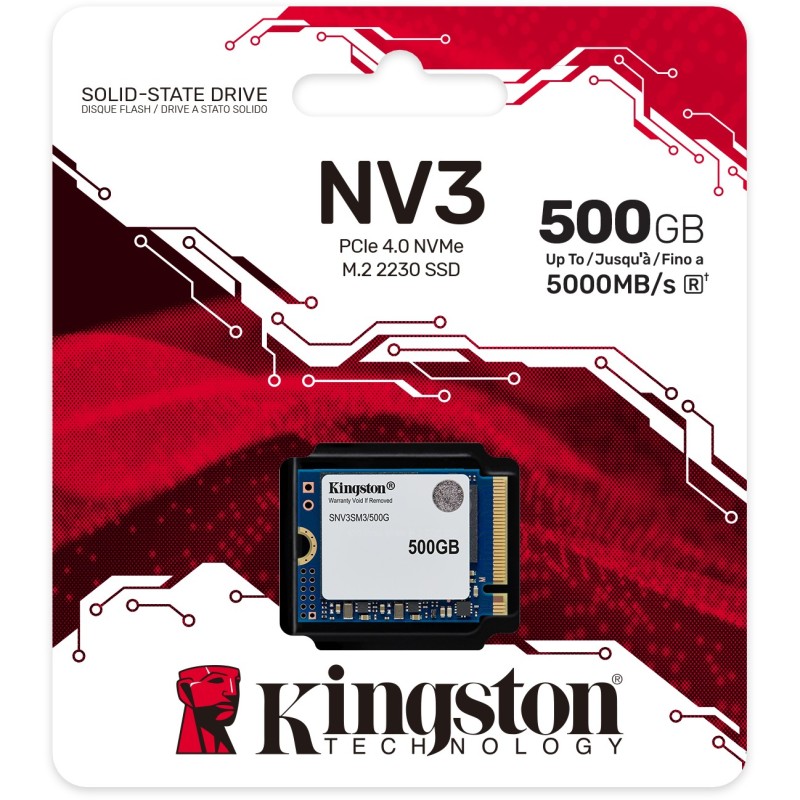

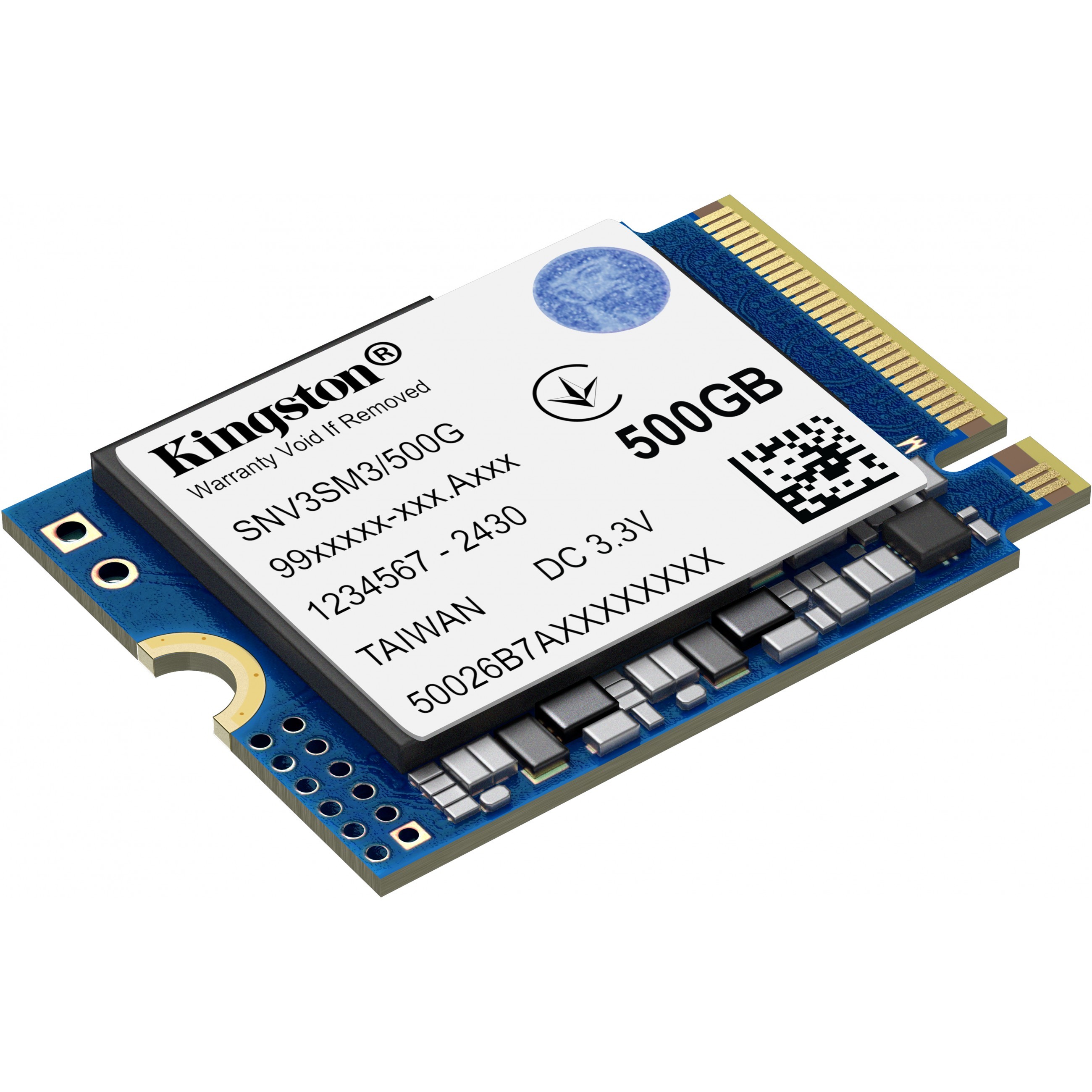

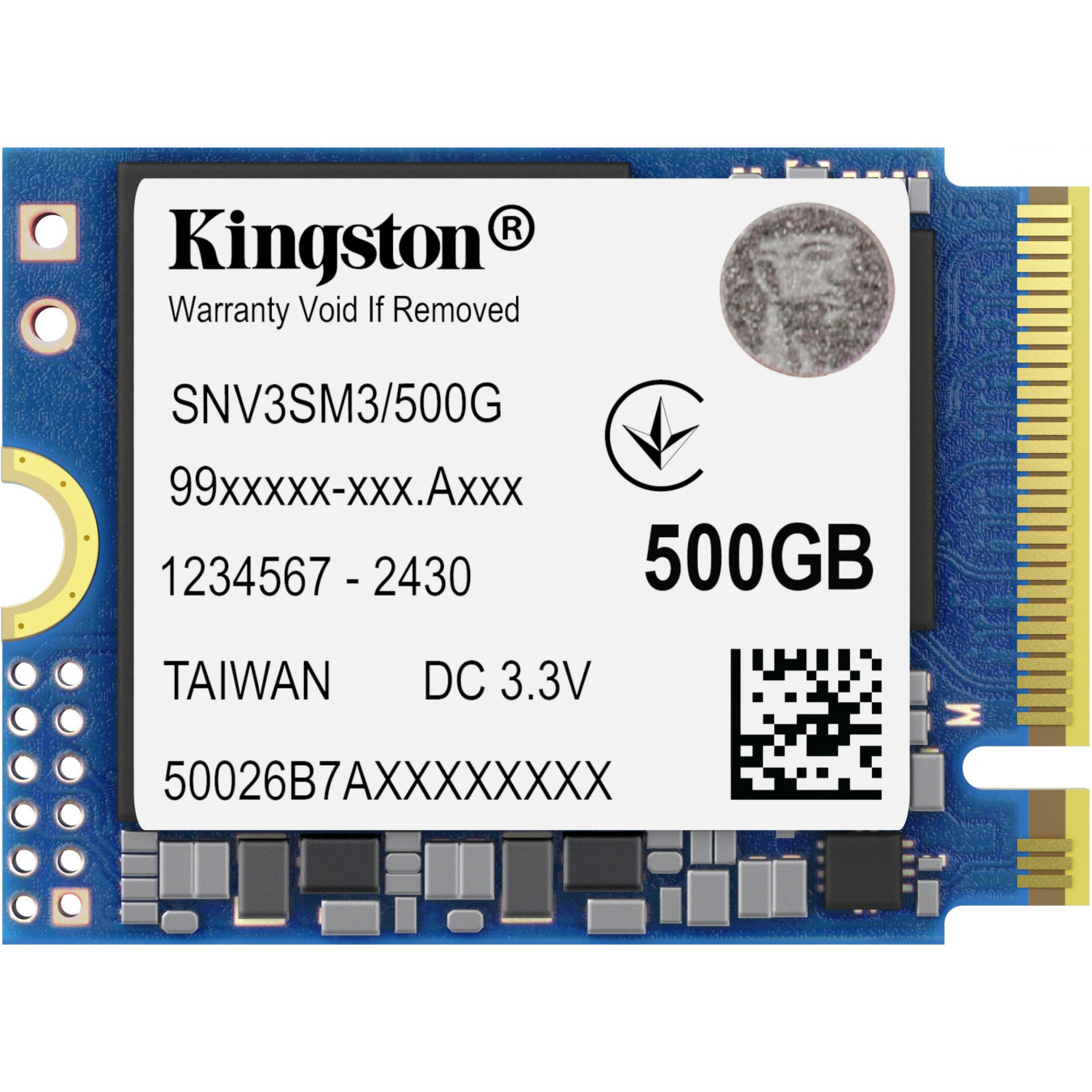

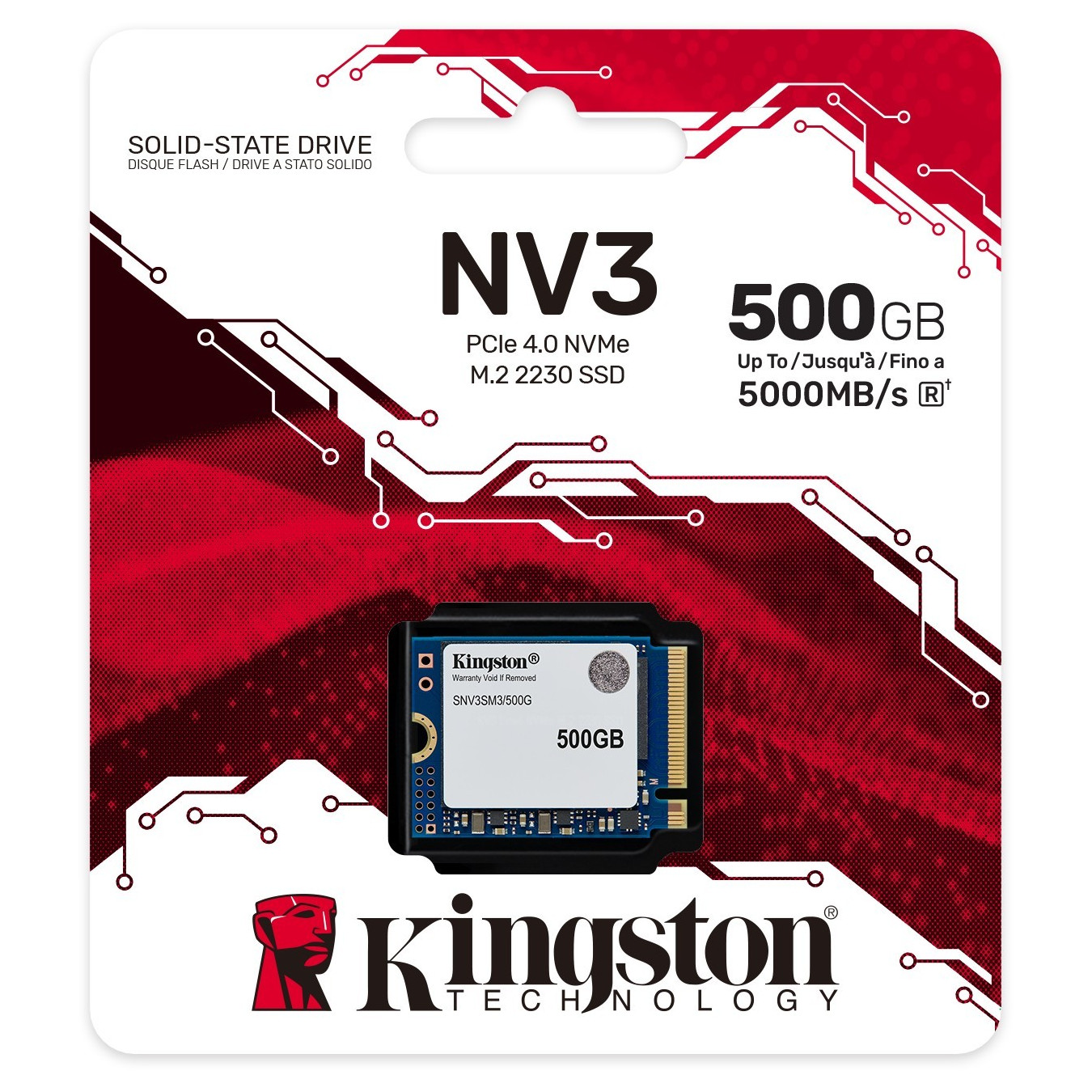

Kingston NV3 M.2 2230 - 500GB NVMe PCIe Gen4 x4 SSD, Up to 5000/3000 MB/s
Kingston NV3 500GB M.2 2230 NVMe PCIe Gen4 x4 SSD — up to 5000 MB/s read and 3000 MB/s write, 3D NAND, optimized for notebooks and game consoles.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Type | SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 500GB |
| Storage (SSD & HDD) - Interface | NVMe PCIe Gen4 x4 |
| Storage (SSD & HDD) - Form Factor | M.2 2230 |
| Storage (SSD & HDD) - PCIe Version (SSD) | Gen4 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
| Storage (SSD & HDD) - Sequential Read (Up to) | 5000 MB/s |
| Storage (SSD & HDD) - Sequential Write (Up to) | 3000 MB/s |
| Storage (SSD & HDD) - Intended Use | Laptop |
Kingston Technology 500G NV3 M.2 2230 NVMe SSD. SSD capacity: 500 GB. SSD form factor: M.2. Read speed: 5000 MB/s. Write speed: 3000 MB/s. Component for: Notebook/Game console
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| Feature | NVMe |
| Memory type | 3D NAND |
| Component for | Notebook/Game console |
| M.2 SSD size | 2230 (22 x 30 mm) |
| Read speed | 5000 MB/s |
| Write speed | 3000 MB/s |
| PCI Express interface data lanes | x4 |
| Mean time between failures (MTBF) | 200000 h |
| TBW rating | 160 |
| Width | 30 mm |
| Depth | 22 mm |
| Height | 2.3 mm |
| Weight | 2.6 g |
| Package width | 101.6 mm |
| Package depth | 8.13 mm |
| Package height | 114.3 mm |
| Package weight | 11.94 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Non-operating vibration | 20 G |
| Country of origin | China. Taiwan |
| Master (outer) case width | 120.7 mm |
| Master (outer) case length | 171.4 mm |
| Master (outer) case height | 114.3 mm |
| Master (outer) case gross weight | 384.15 g |
| Products per master (outer) case | 25 pc(s) |
