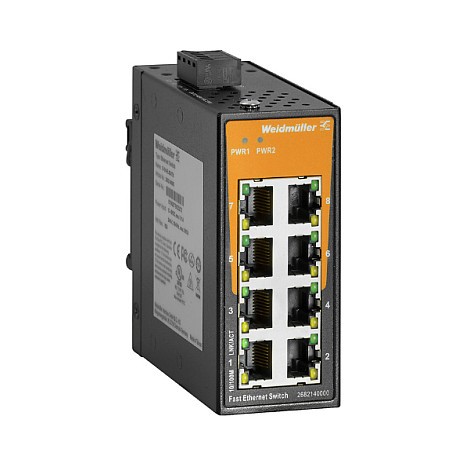

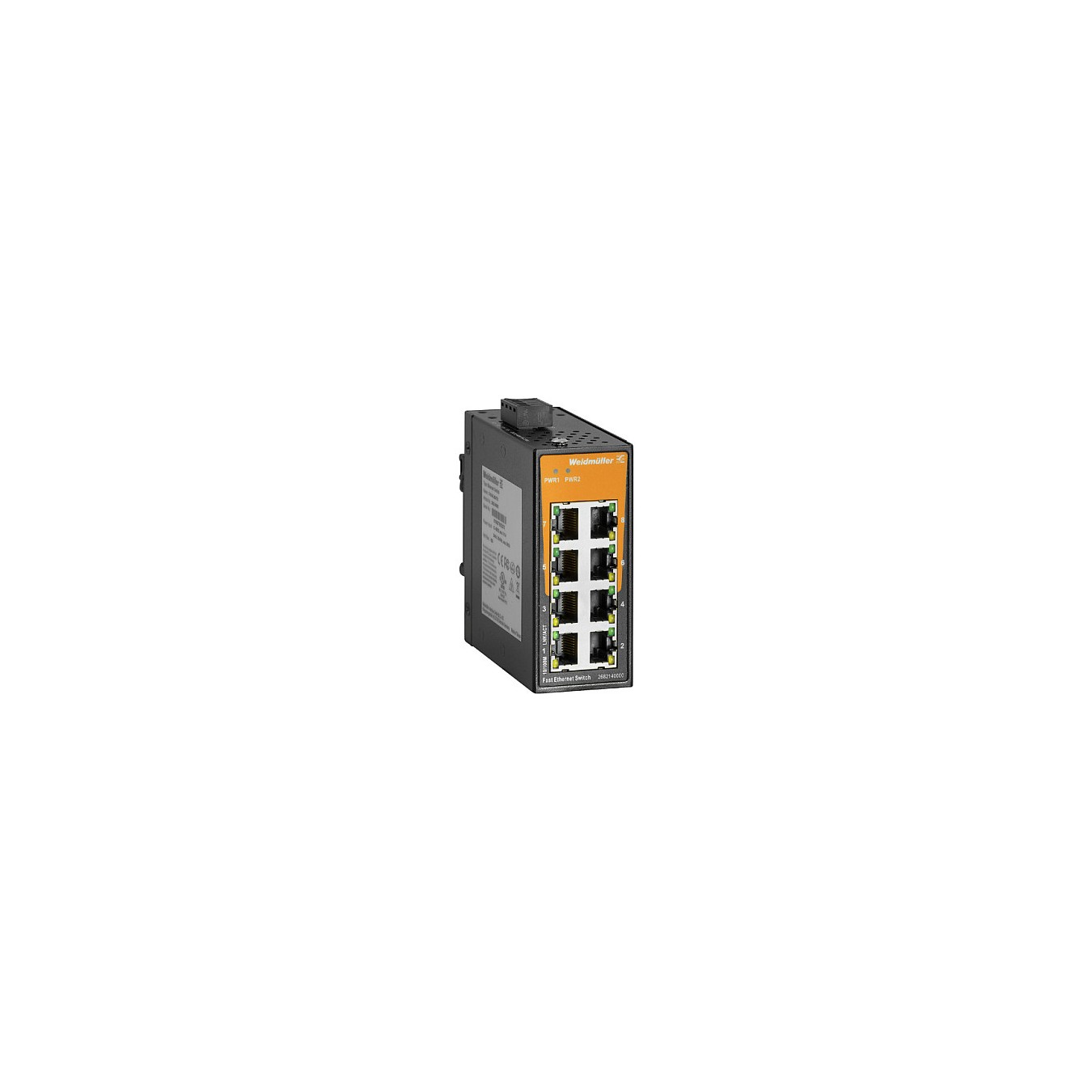

WEI IE-SW-EL08-8TX Netzwerk Switch. unmanaged Fast Ethernet Anzahl Ports: 8x RJ4
Weidmüller IE-SW-EL08-8TX. Managed. Fast Ethernet (10/100). Vollduplex
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Weidmüller IE-SW-EL08-8TX. Switch-Typ: Managed. Basic Switching RJ-45 Ethernet Ports-Typ: Fast Ethernet (10/100). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Vollduplex. Routing-/Switching-Kapazität: 1 Gbit/s. Netzstandard: IEEE 802.3. IEEE 802.3u. IEEE 802.3x. DC input Spannung: 12 - 48 V
| Switch-Typ | Managed |
| Feature | Nachhaltigkeitskonformität |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Fast Ethernet (10/100) |
| Netzstandard | IEEE 802.3. IEEE 802.3u. IEEE 802.3x |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-TX. 100BASE-TX |
| Ethernet LAN Datentransferraten | 10.100 Mbit/s |
| Routing-/Switching-Kapazität | 1 Gbit/s |
| Produktfarbe | Schwarz. Orange |
| Gehäusematerial | Metall |
| Internationale Schutzart (IP-Code) | IP30 |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 1390019 h |
| Energiequelle | Gleichstrom |
| DC input Spannung | 12 - 48 V |
| Eingangsstrom | 0.14 A |
| Garantiezeit | 5 Jahr(e) |
| Betriebstemperatur | -40 - 85 °C |
| Temperaturbereich bei Lagerung | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Höhe bei Betrieb | 2000 - 6000 m |
| Breite | 41 mm |
| Tiefe | 90 mm |
| Höhe | 95 mm |
| Gewicht | 350 g |
| Konformitätsbescheinigungen | CE. REACH. RoHS |
