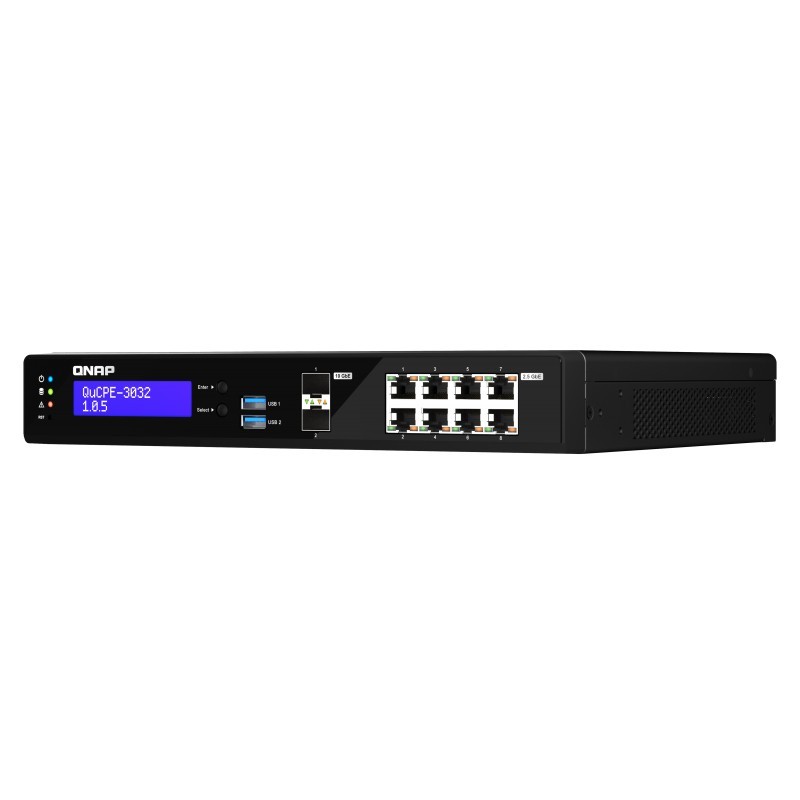

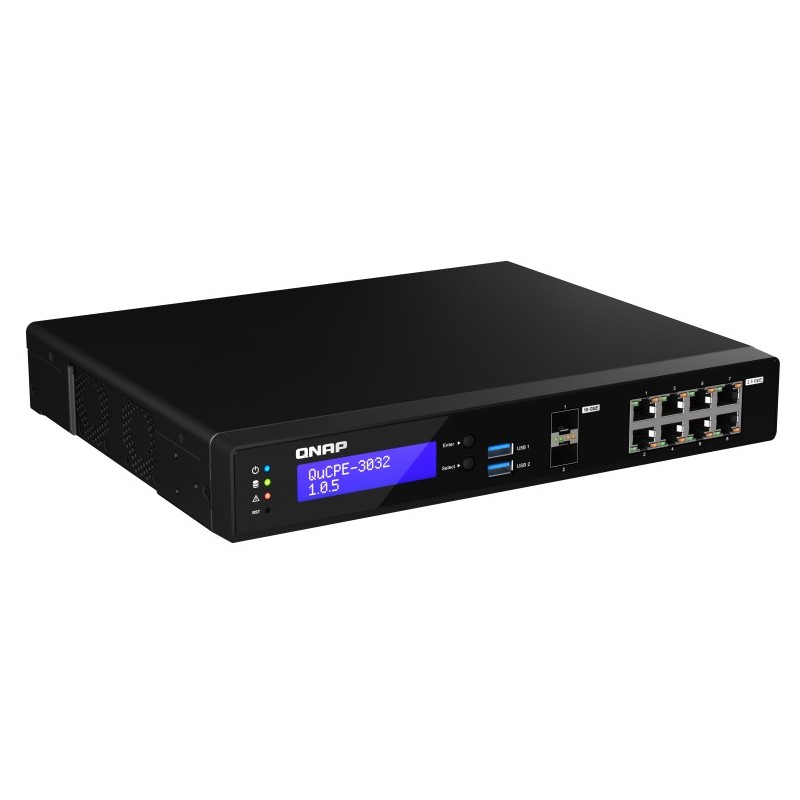

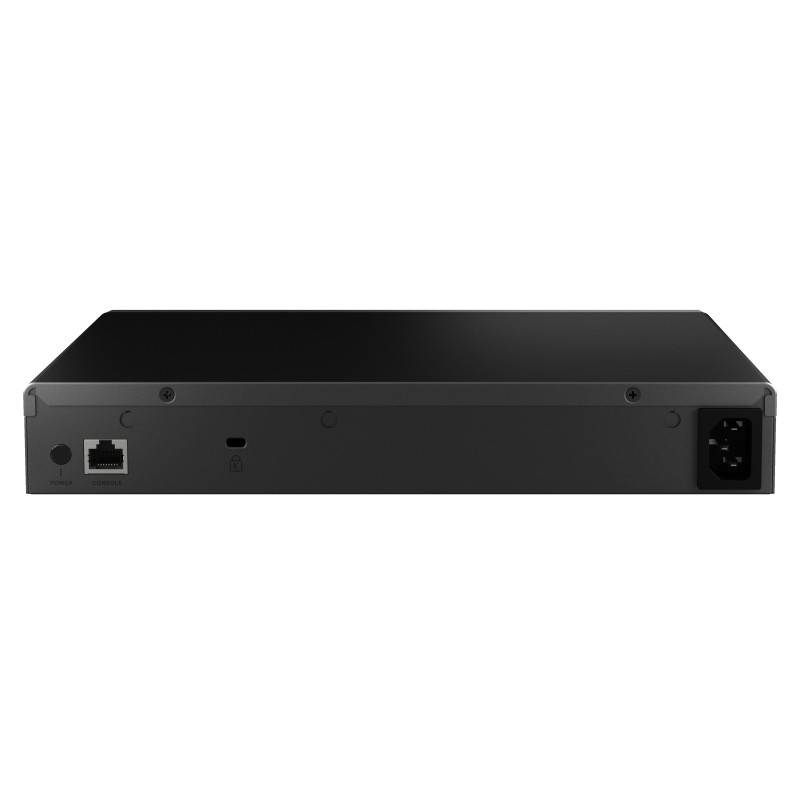

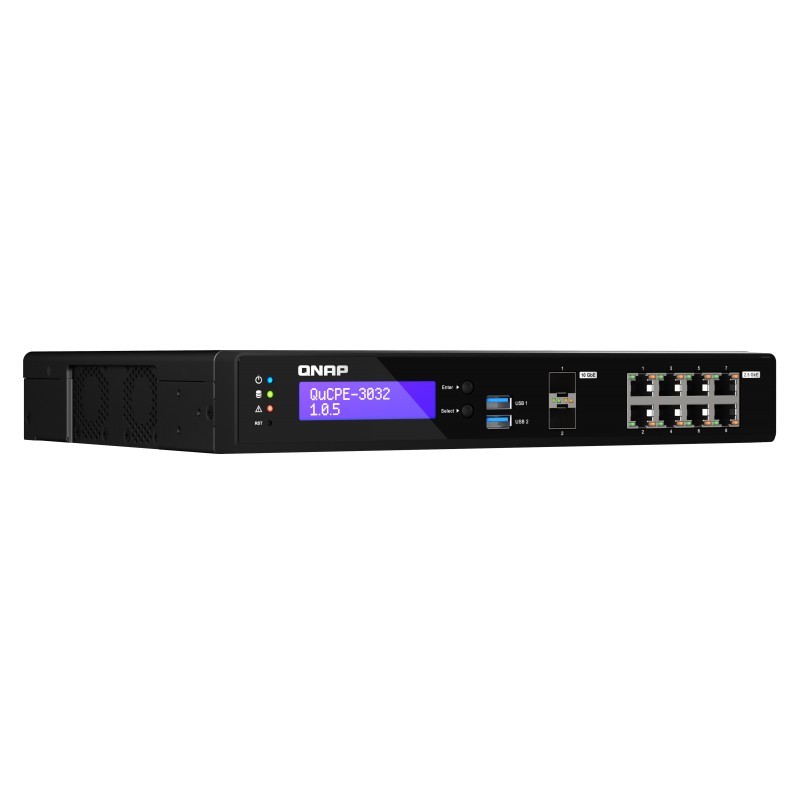

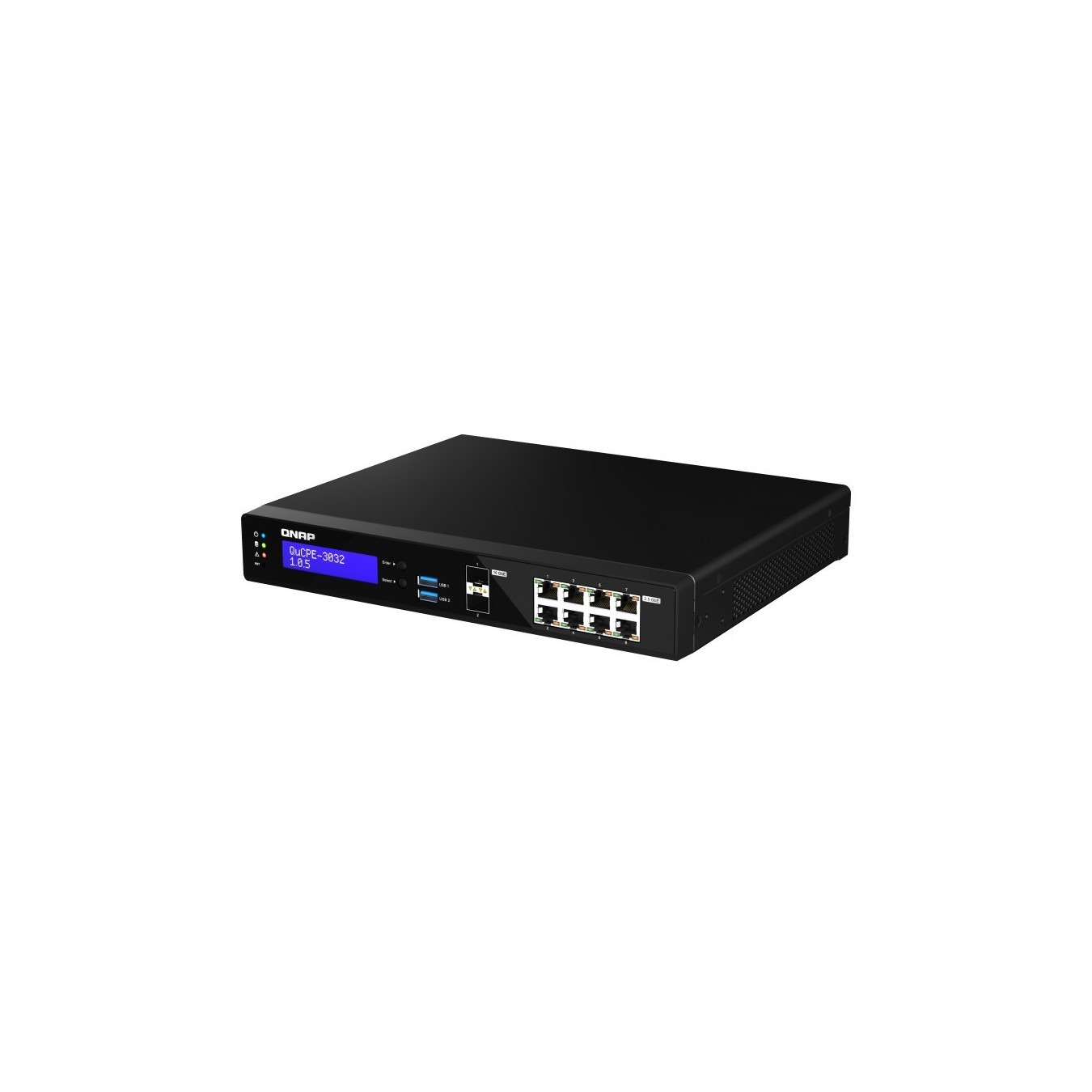

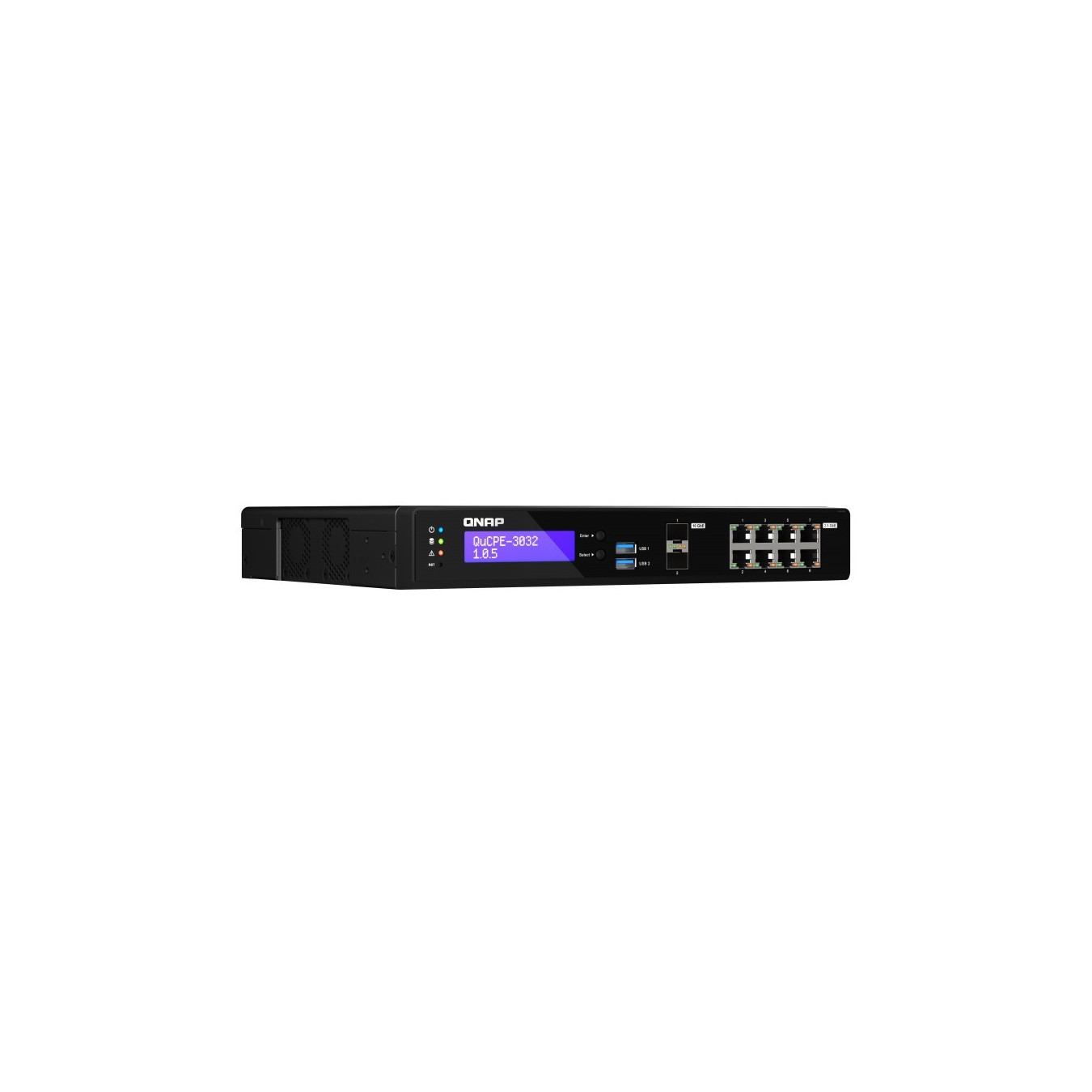

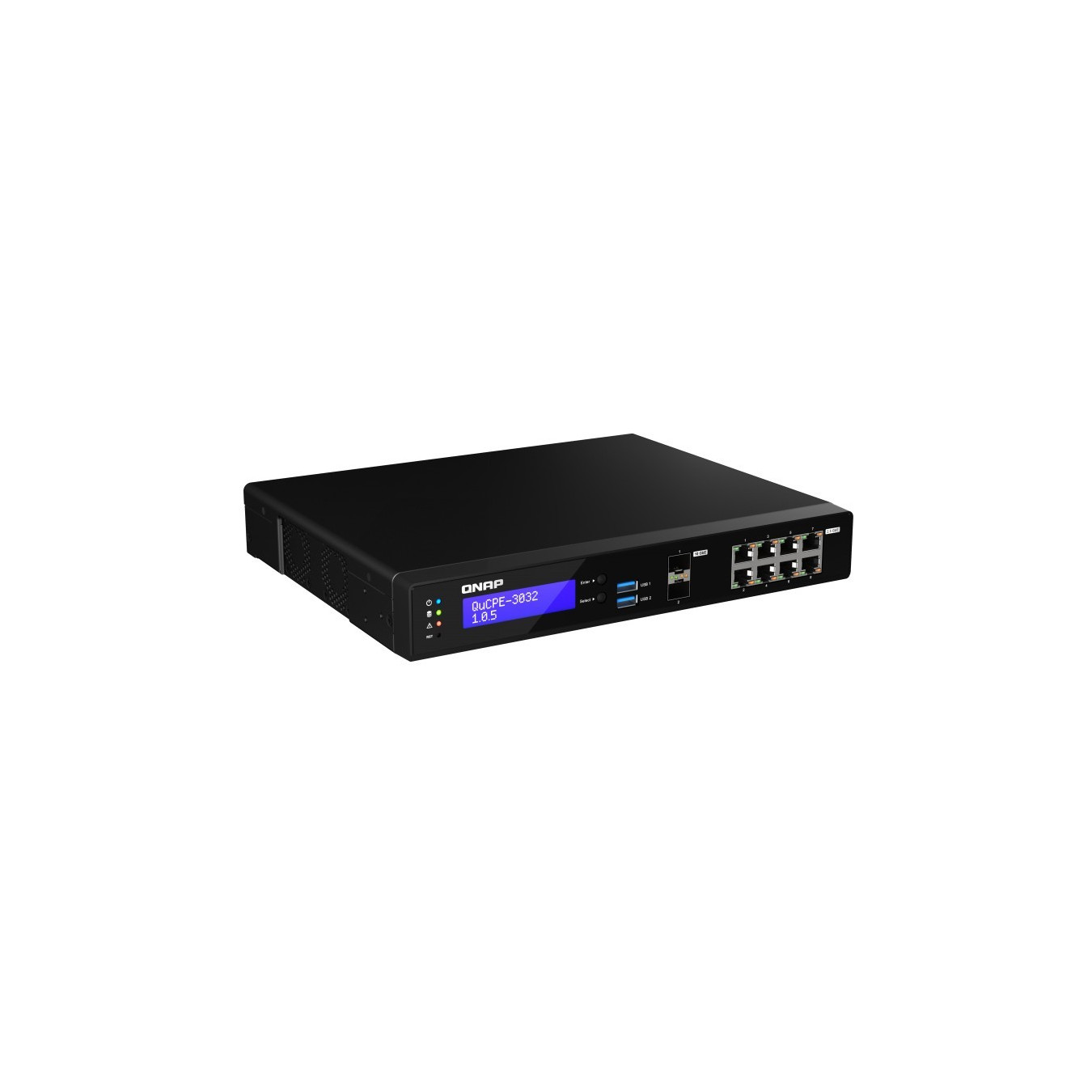

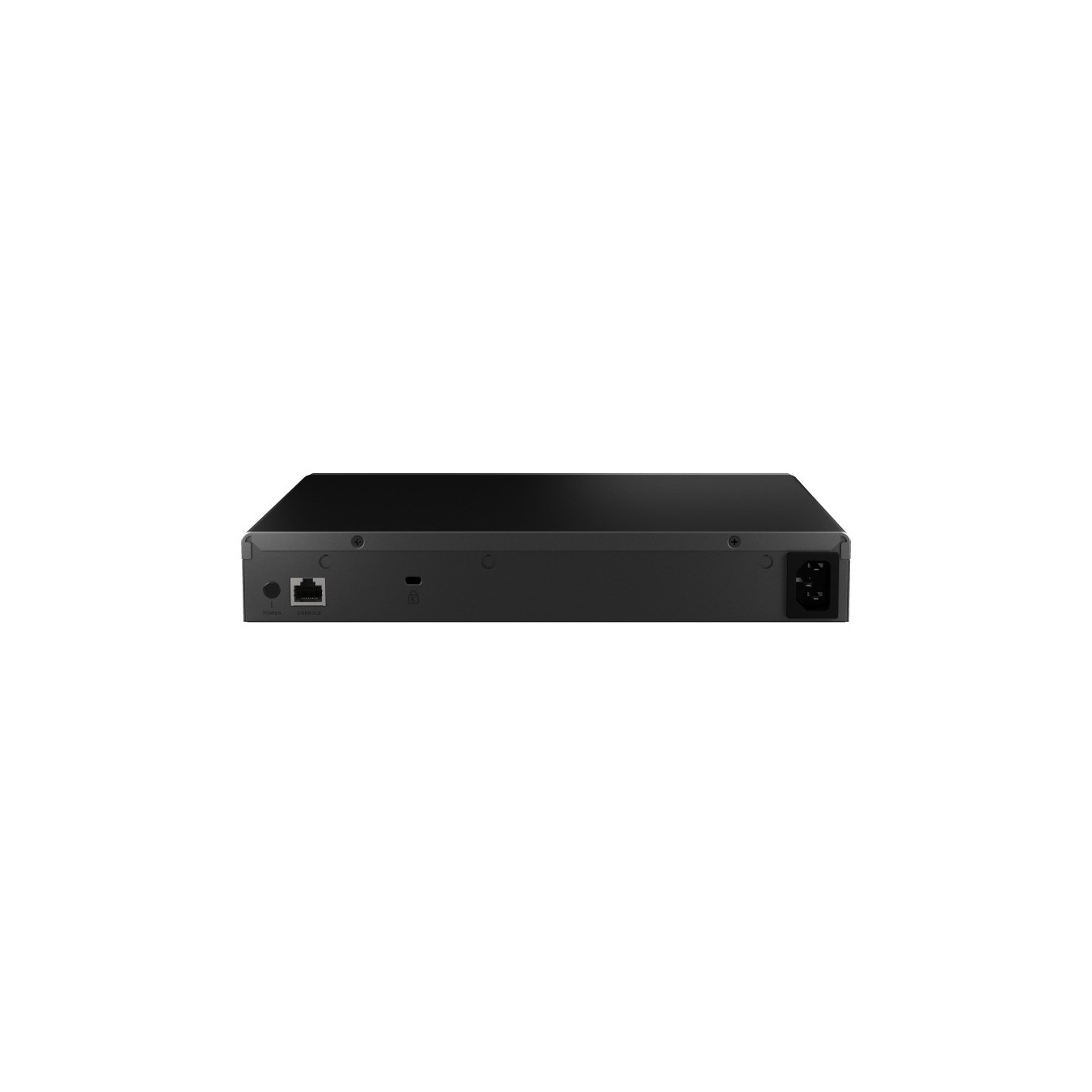

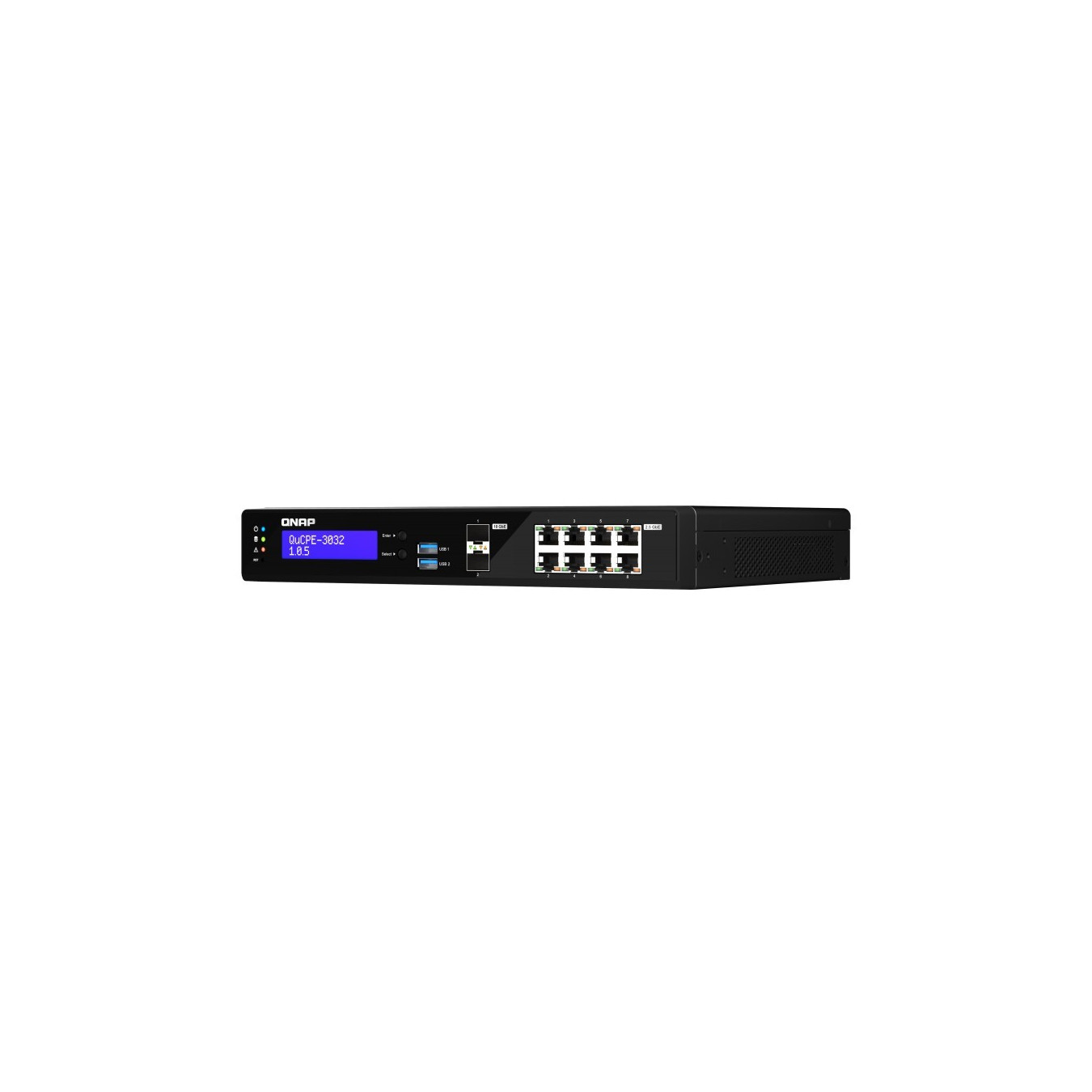

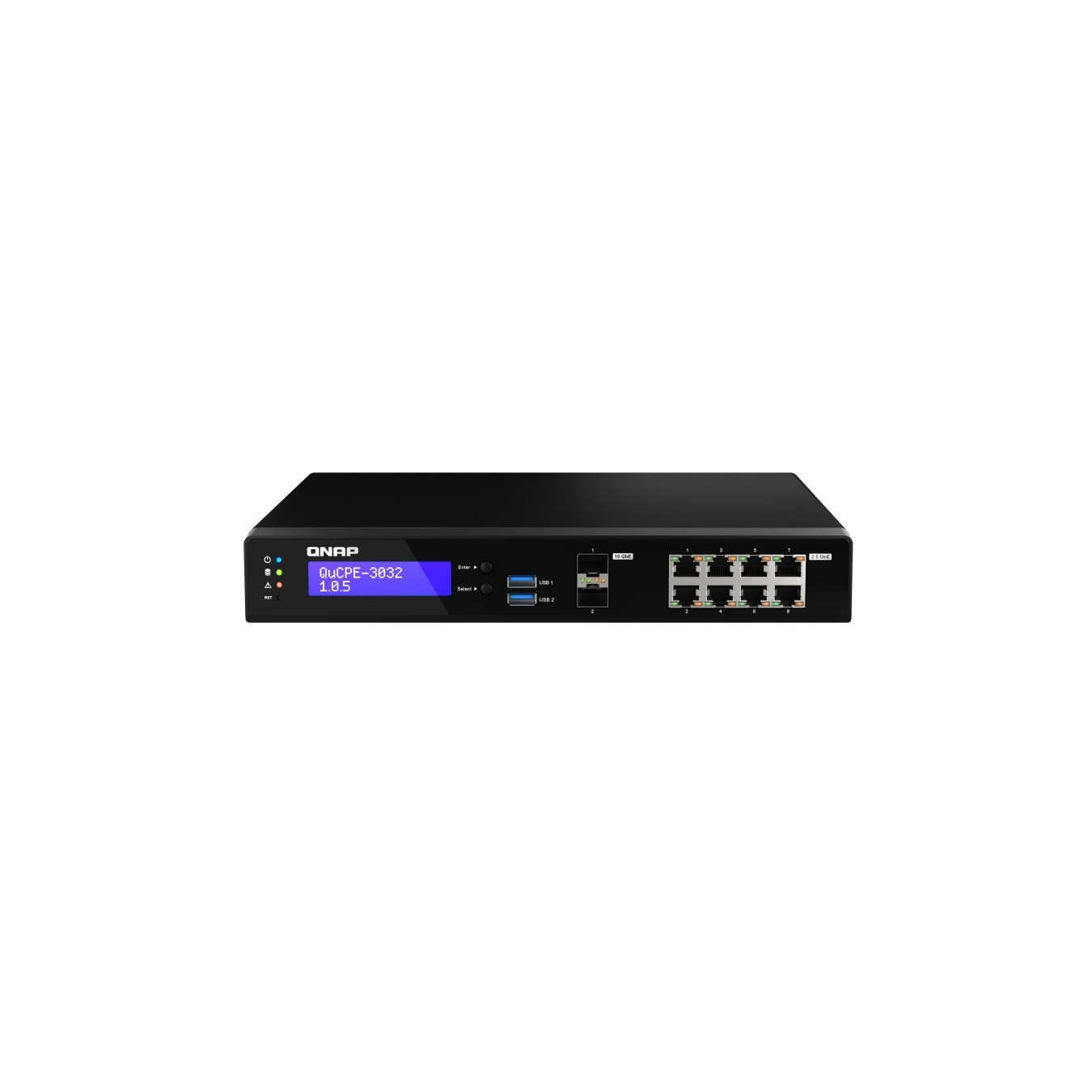

QNAP QuCPE-3032 - Intel Atom C3558R 2.4GHz, 8GB DDR4, 8x2.5GbE RJ45 + 2x10GbE SFP+, 2x M.2 NVMe, Black
Compact QNAP QuCPE-3032: Intel Atom C3558R 2.4GHz, 4 cores, 8GB DDR4 (up to 128GB), 8x2.5GbE RJ45, 2x10GbE SFP+, 2x M.2 NVMe, 60W PSU.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Routers - LAN Ports | 8 |
|---|---|
| Routers - USB Ports | USB 3.0 (Type-A) |
| Routers - 3G/4G/5G Failover | No |
QNAP QuCPE-3032. Processor manufacturer: Intel. Processor family: Intel Atom®. Processor model: C3558R. Internal memory type: DDR4. Internal memory: 8 GB. Memory clock speed: 2400 MHz. Supported storage drive types: SSD. Supported storage drive interfaces: M.2. Ethernet LAN data rates: 10.100.1000.2500 Mbit/s. Fiber optic connector: SFP+. Console port: RJ-45
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | C3558R |
| Processor frequency | 2.4 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 8 MB |
| Number of processors supported | 1 |
| Internal memory type | DDR4 |
| Internal memory | 8 GB |
| Memory clock speed | 2400 MHz |
| Maximum RAM supported | 128 GB |
| Memory slots | 2 x 288pin |
| Memory form factor | UDIMM |
| Number of storage drives supported | 2 |
| Supported storage drive types | SSD |
| Supported storage drive interfaces | M.2 |
| Feature | Intel® AES New Instructions (Intel® AES-NI) |
| Ethernet LAN data rates | 10.100.1000.2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 8 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45 |
| Chassis type | Compact |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Display type | LCD |
| Power consumption (typical) | 60 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 285 mm |
| Depth | 237 mm |
| Height | 46 mm |
| Weight | 2.17 kg |
| Cables included | AC. LAN (RJ-45) |
| Power cables quantity | 1 |
