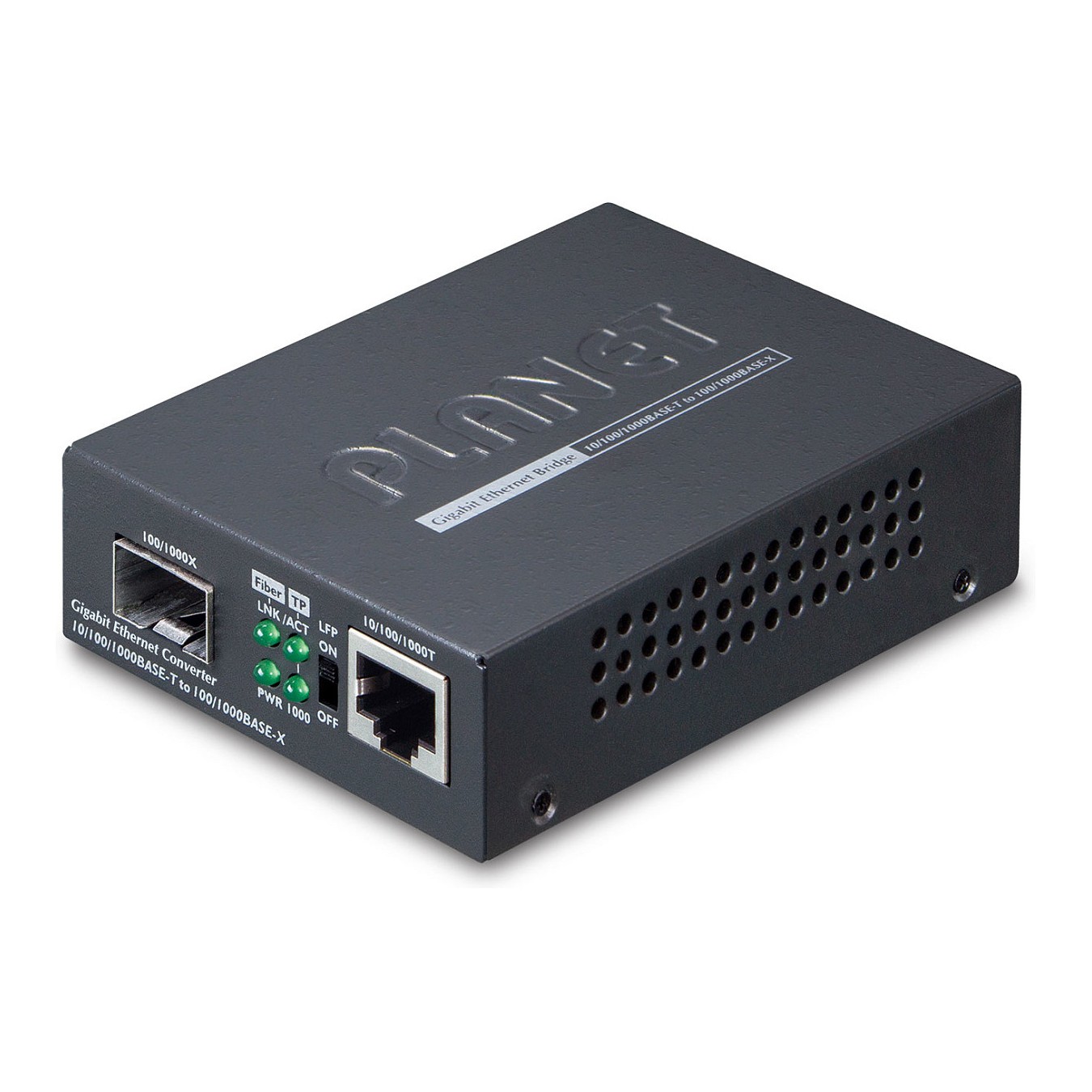

Planet GT-805A
PLANET Medienkonverter, SFP 10/100/1000Base-T zu SFP, Inkl. Netzteil Ohne SFP Modul, 1000 Mbit/s, 10Base-T, 100Base-T, 1000Base-T, 1000Base-LX, 1000Base-SX, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET Medienkonverter, SFP 10/100/1000Base-T zu SFP, Inkl. Netzteil Ohne SFP Modul. Maximale Datenübertragungsrate: 1000 Mbit/s, Converter Eingangsschnittstelle: 10Base-T, 100Base-T, 1000Base-T, Converter output Oberfläche: 1000Base-LX, 1000Base-SX. Maximal mögliche Übertragungsstrecke: 100 m, Kabel mode struktur: Multi-Modus, Unterstützte Faserkabeldurchmesser (Kern/Mantel): 9/125,50/125,62.5/125 µm. Produktfarbe: Schwarz. Optischer Kabelverbinder: SFP, Übertragungstechnik: Kabelgebunden. Eingangsspannung: 5 V, Eingangsstrom: 2 A, Stromverbrauch (Standardbetrieb): 5,6 W
| Maximale Datenübertragungsrate | 1000 Mbit/s |
| Converter Eingangsschnittstelle | 10Base-T, 100Base-T, 1000Base-T |
| Converter output Oberfläche | 1000Base-LX, 1000Base-SX |
| Netzstandard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Ja |
| Duplex-System | Voll, Halb |
| Maximal mögliche Übertragungsstrecke | 100 m |
| Wellenlänge | 0 nm |
| Kabel mode struktur | Multi-Modus |
| Unterstützte Faserkabeldurchmesser (Kern/Mantel) | 9/125,50/125,62.5/125 µm |
| Eingebaut | Nein |
| LED-Anzeigen | Ja |
| Produktfarbe | Schwarz |
| DIN-Schienen-Montage | Ja |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Optischer Kabelverbinder | SFP |
| Eingangsspannung | 5 V |
| Eingangsstrom | 2 A |
| Stromverbrauch (Standardbetrieb) | 5,6 W |
| Breite | 94 mm |
| Tiefe | 70 mm |
| Höhe | 26 mm |
| Gewicht | 200 g |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -10 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Zertifizierung | FCC Class A, CE Class A |
| Warentarifnummer (HS) | 85176990 |
