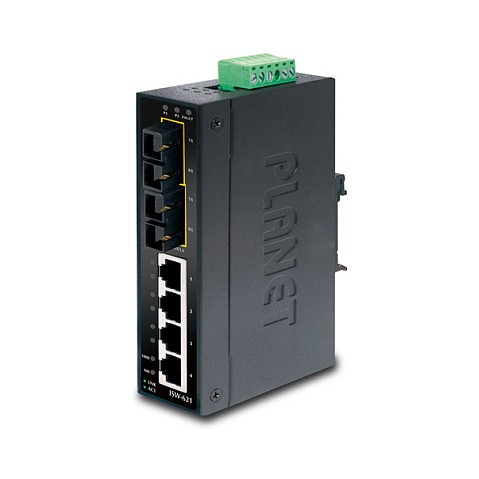

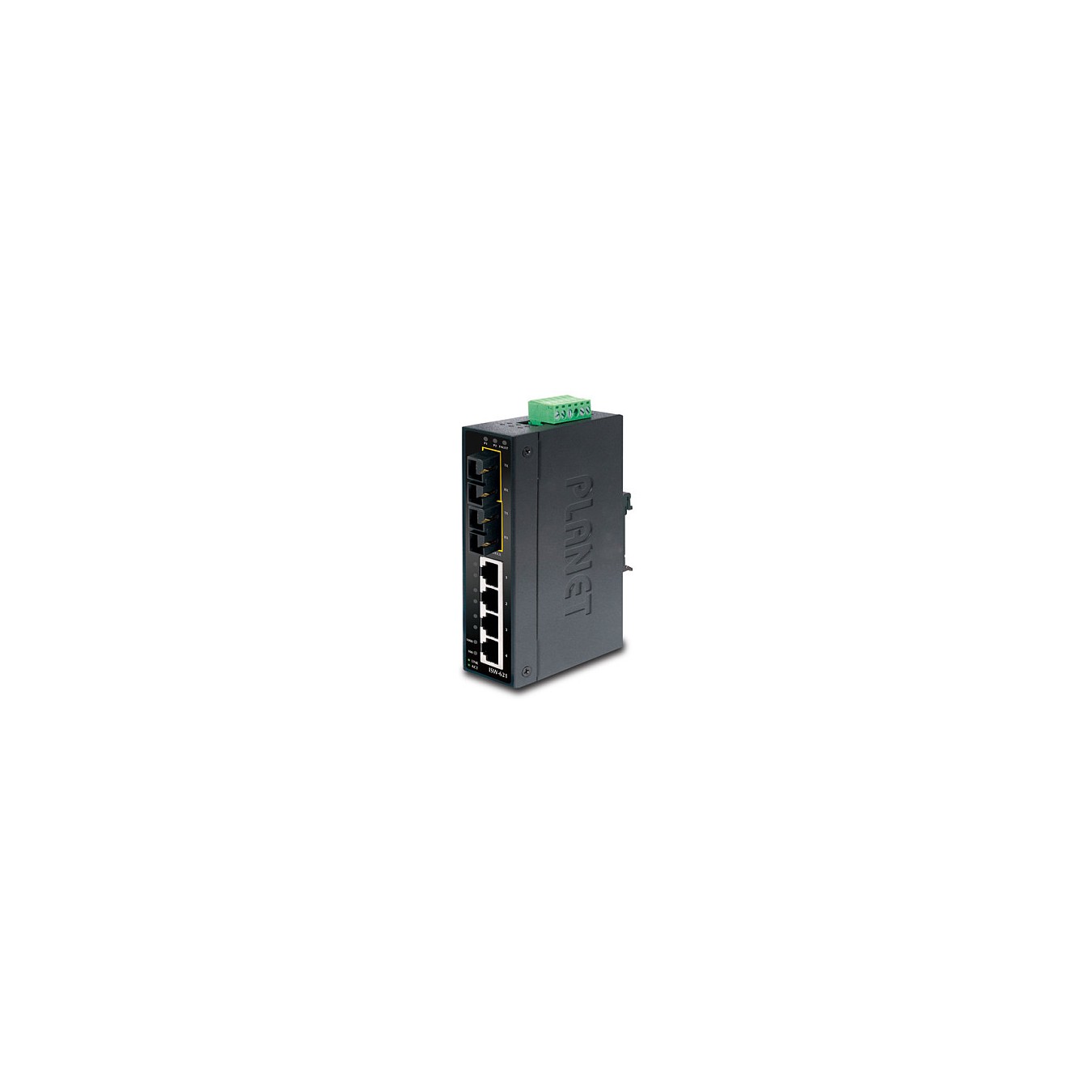

PLANET 4+2 100FX Port Multi-mode Industrial Ethernet Switch
PLANET ISW-621, Unmanaged, L2, Fast Ethernet (10/100), Vollduplex, Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET ISW-621. Switch-Typ: Unmanaged, Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Fast Ethernet (10/100), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 4. Vollduplex. MAC-Adressentabelle: 2048 Eintragungen, Routing-/Switching-Kapazität: 1,2 Gbit/s. Netzstandard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Wandmontage
| Switch-Typ | Unmanaged |
| Switch-Ebene | L2 |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 4 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Fast Ethernet (10/100) |
| Fast Ethernet (Kupfer)-Anschlüsse | 4 |
| Anzahl Faseranschlüsse | 2 |
| Netzstandard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G-Unterstützung | Nein |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T, 100BASE-TX |
| Vollduplex | Ja |
| Unterstützung Datenflusssteuerung | Ja |
| Auto MDI/MDI-X | Ja |
| Auto-Negotiation-Funktion | Ja |
| Selbstlernen von MAC-Adressen unterstützt | Ja |
| Auto-Alterung von MAC-Adressen unterstützt | Ja |
| Ethernet-Kabel Verkablungstechnologie | 100BASE-FX |
| Fibertyp | Multi-Modus |
| Transmissionsentfernung (max) | 2 km |
| Wellenlänge | 1300 nm |
| RX Sensitivität | -34,5 dB |
| Routing-/Switching-Kapazität | 1,2 Gbit/s |
| Durchgang | 0,89 Mpps |
| MAC-Adressentabelle | 2048 Eintragungen |
| Store-and-Forward | Ja |
| Rack-Einbau | Nein |
| Stapelbar | Ja |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| LED-Anzeigen | Ja |
| Internationale Schutzart (IP-Code) | IP30 |
| Wandmontage | Ja |
| DIN-Schienen-Montage | Ja |
| Netzteil enthalten | Nein |
| Unterstützung für redundantes Netzteil | Ja |
| Stromverbrauch (max.) | 11,6 W |
| Power over Ethernet (PoE) | Nein |
| Betriebstemperatur | -10 - 60 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Wärmeableitung | 40 BTU/h |
| Breite | 135 mm |
| Tiefe | 97 mm |
| Höhe | 32 mm |
| Gewicht | 442 g |
| Zertifizierung | FCC, CEUL, cUL |
| Warentarifnummer (HS) | 85176990 |
