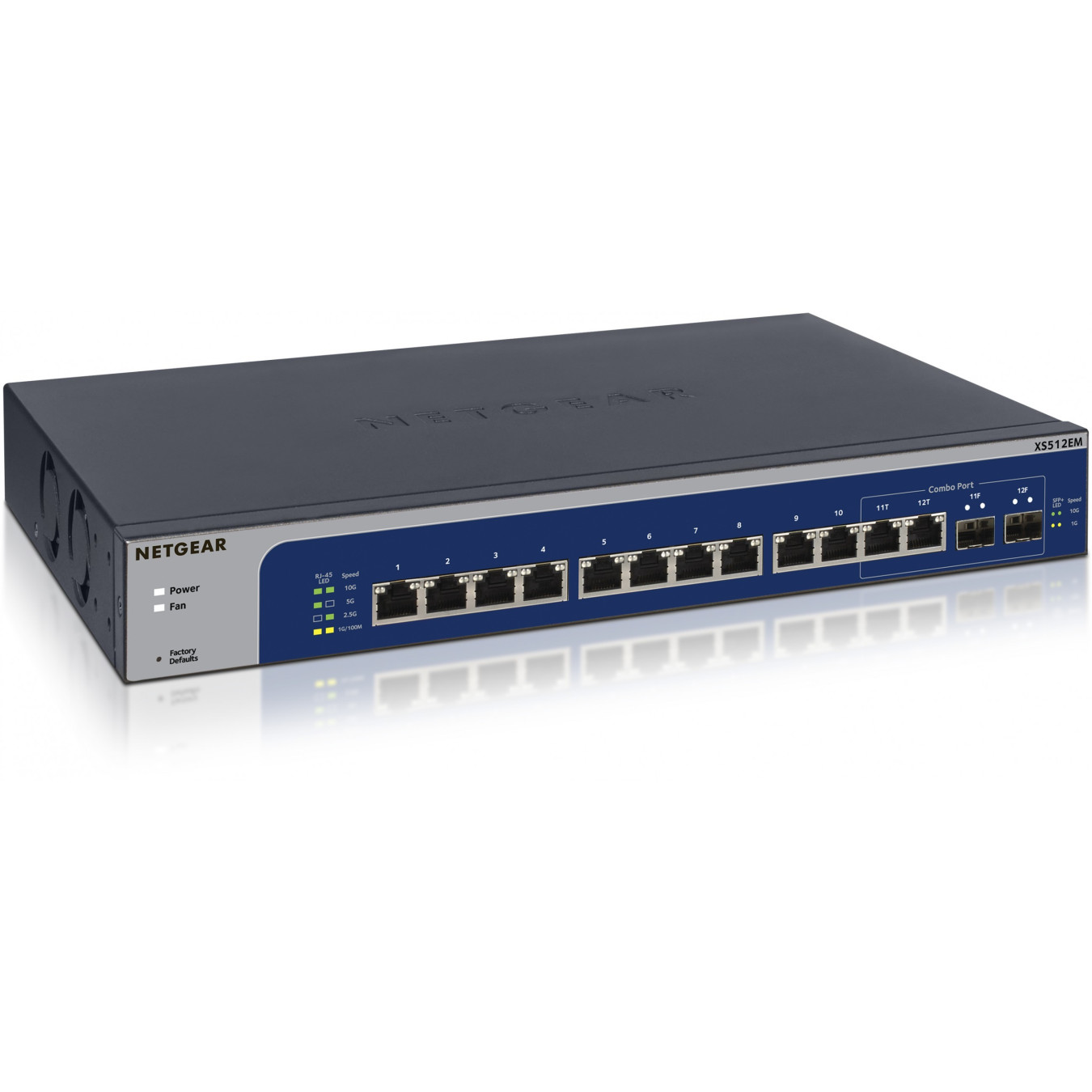

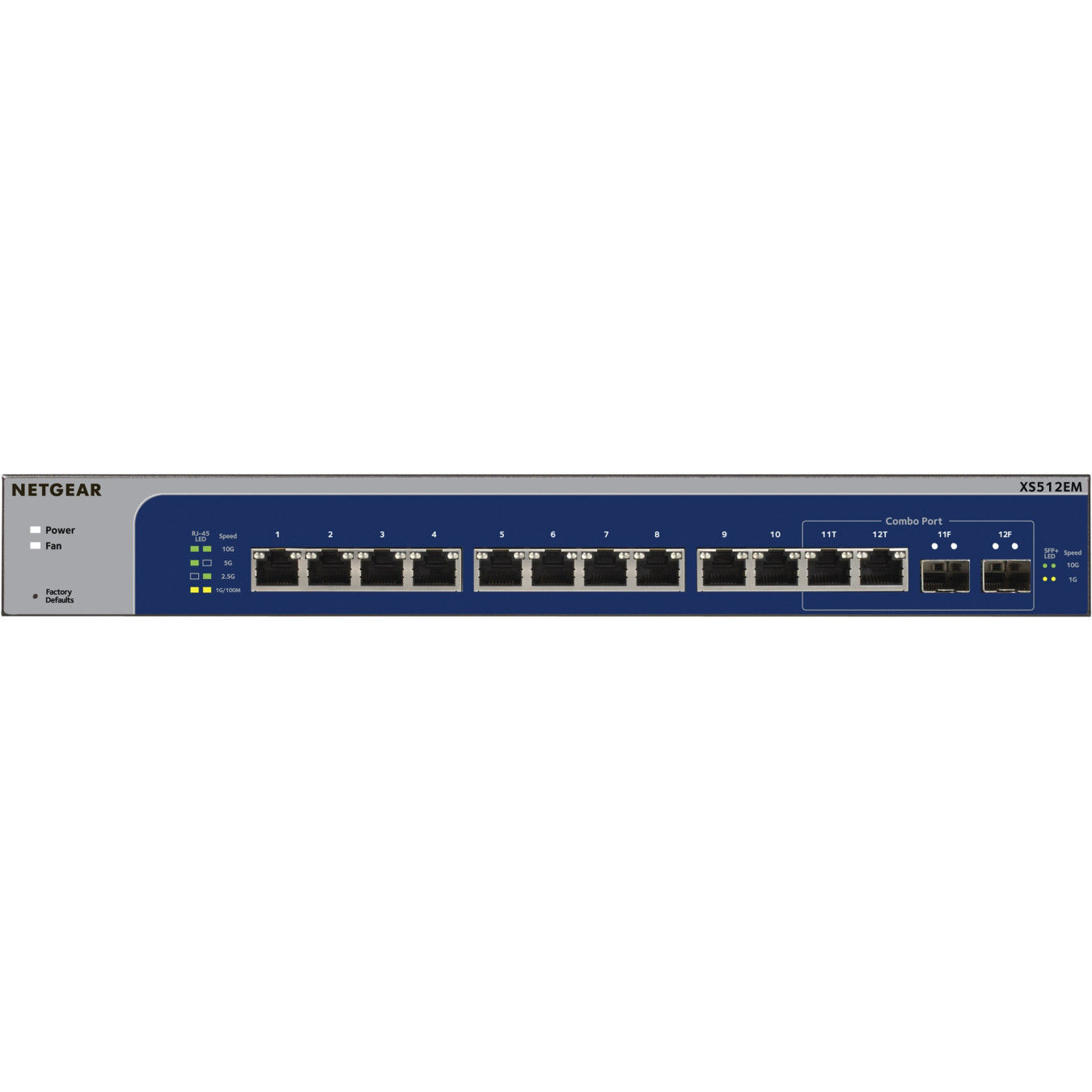

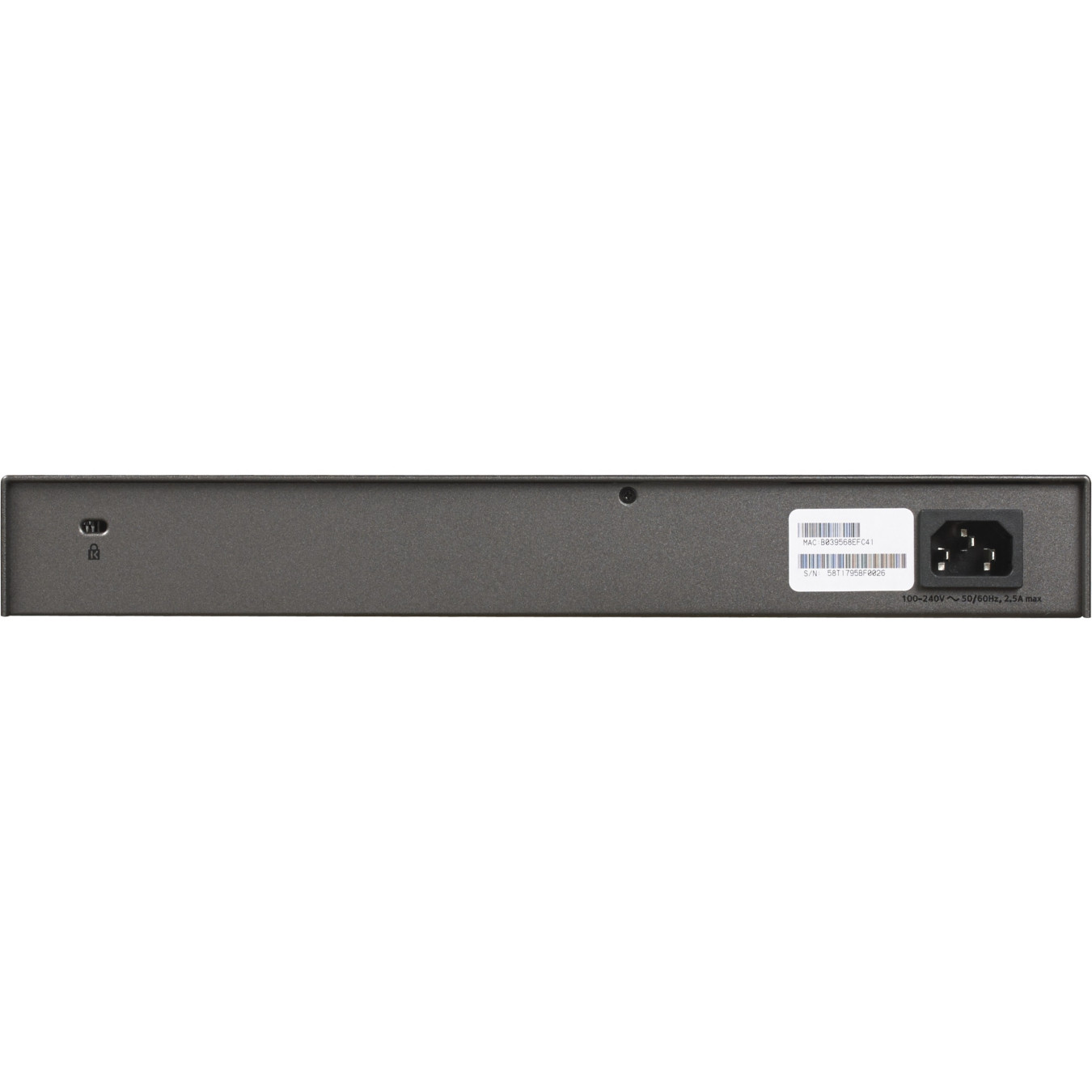

NETGEAR XS512EM-100NUS - 12-Port 10G RJ45 + 2x SFP+ Managed L2 Switch, 1U Rackmount, Blue/Grey
Managed L2 10G switch: 12x 10G RJ45, 2x SFP+, 1U rackmount, DC-in power, 2 fans, 240 Gbps switching, 32K MAC table, jumbo frames 9K, ENERGY STAR
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | No |
|---|
NETGEAR XS512EM. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 12. MAC address table: 32000 entries. Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3an. IEEE 802.3az. IEEE.... Power connector: DC-in jack. Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2 |
| Feature | LED indicators |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3an. IEEE 802.3az. IEEE 802.3bz. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 64 |
| Switching capacity | 240 Gbit/s |
| MAC address table | 32000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| DHCP features | DHCP client |
| Form factor | 1U |
| Product colour | Blue. Grey |
| Number of fans | 2 fan(s) |
| Mean time between failures (MTBF) | 1113477 h |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2 A |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 261.38 BTU/h |
| Width | 328 mm |
| Depth | 204 mm |
| Height | 43 mm |
| Weight | 2.51 kg |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85176990 |
