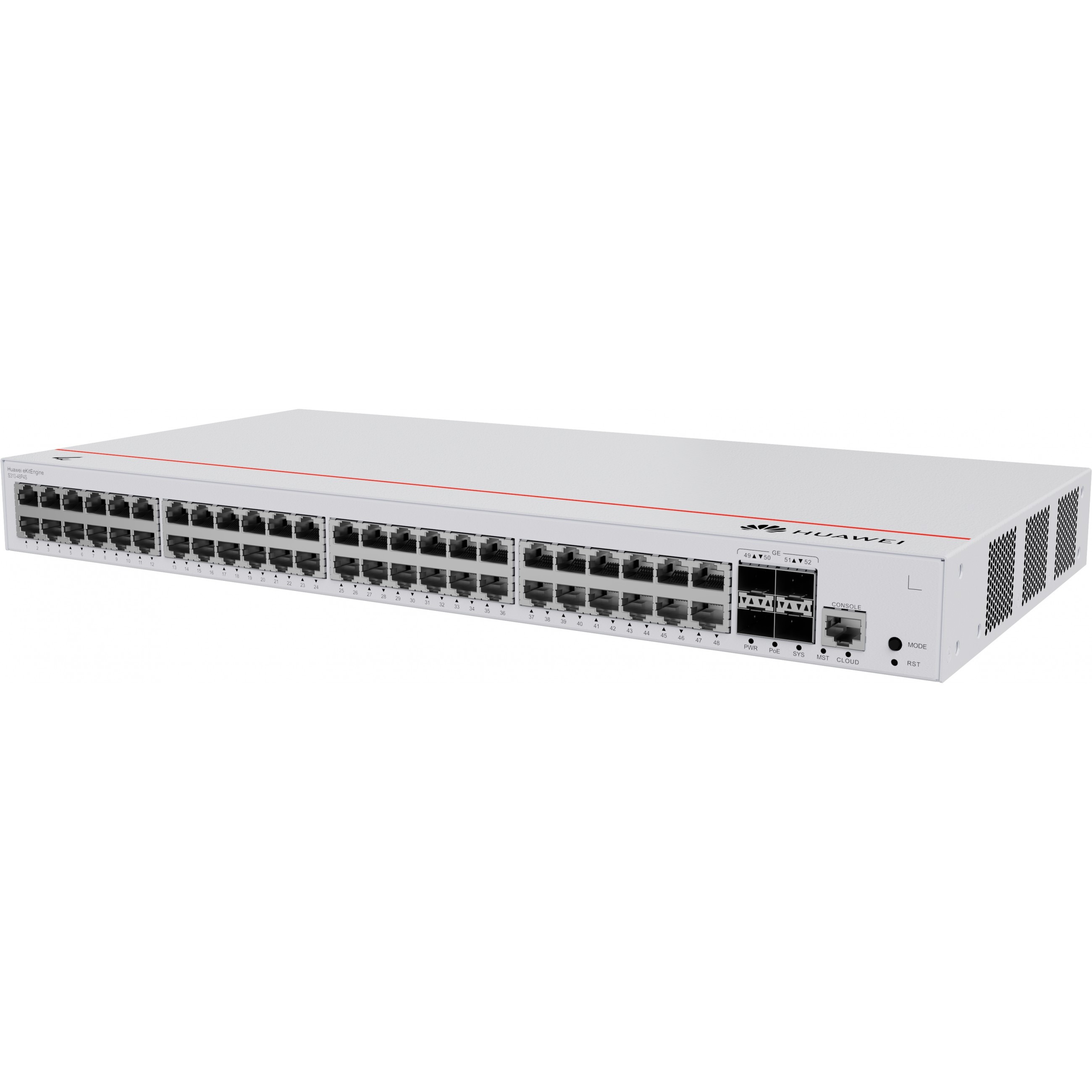

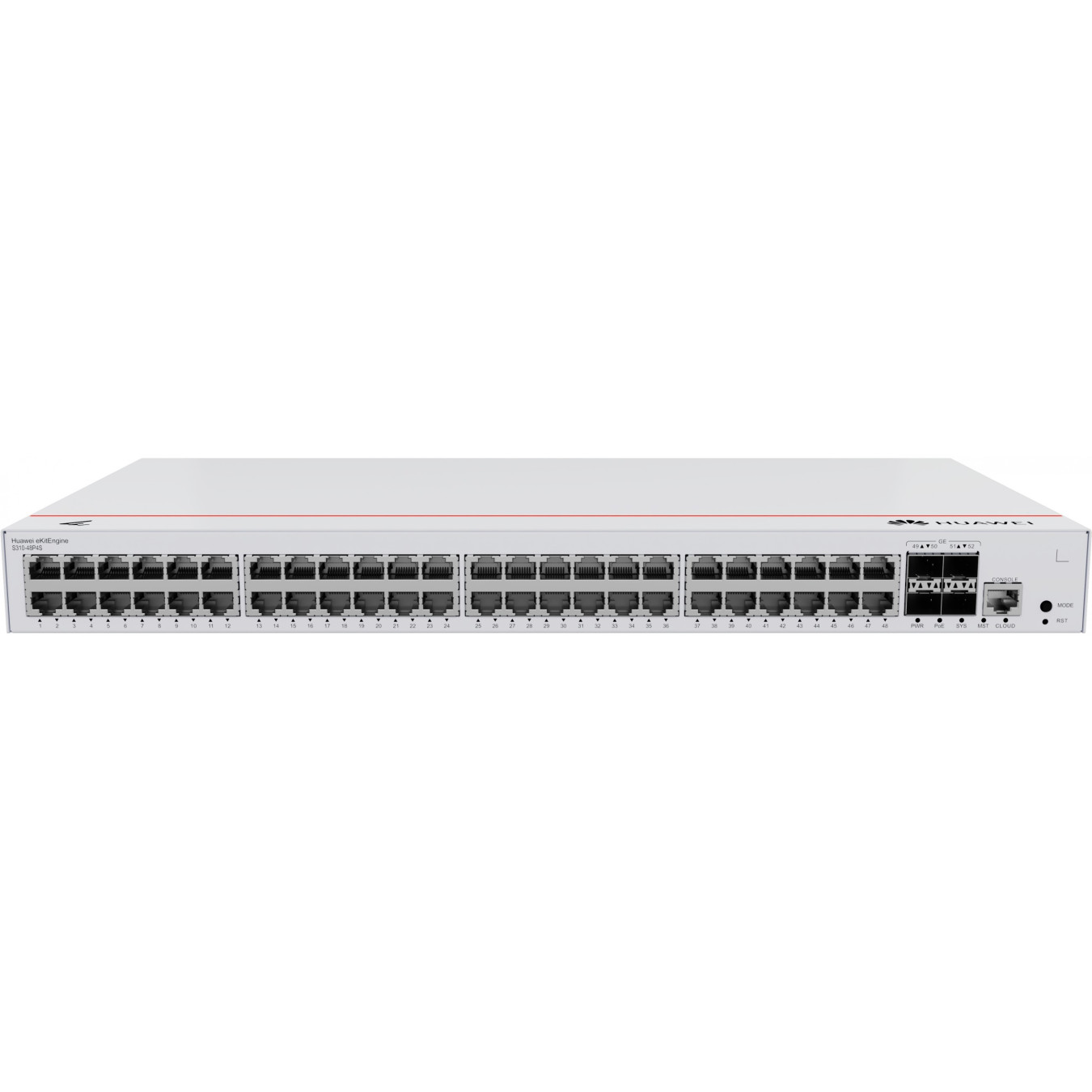

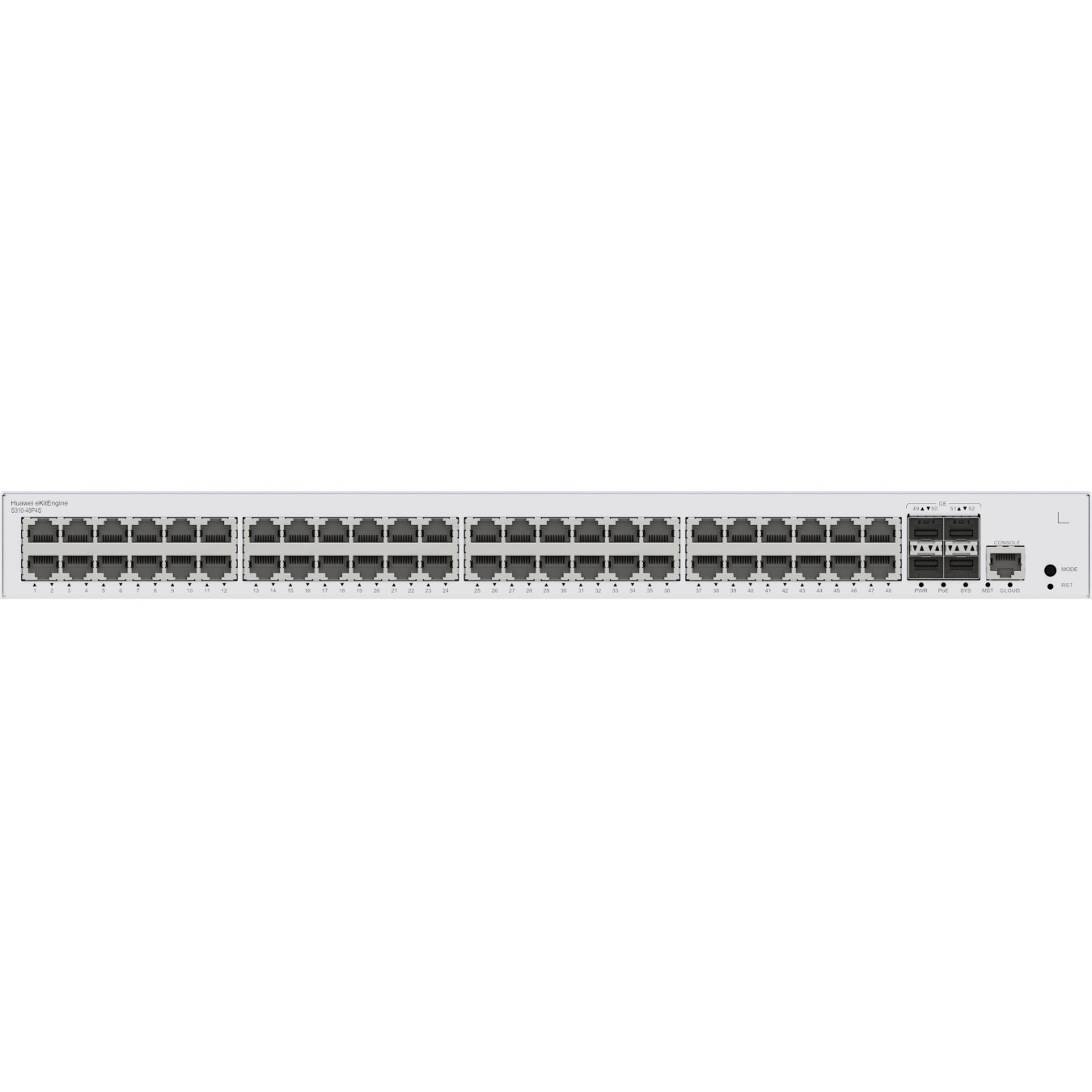

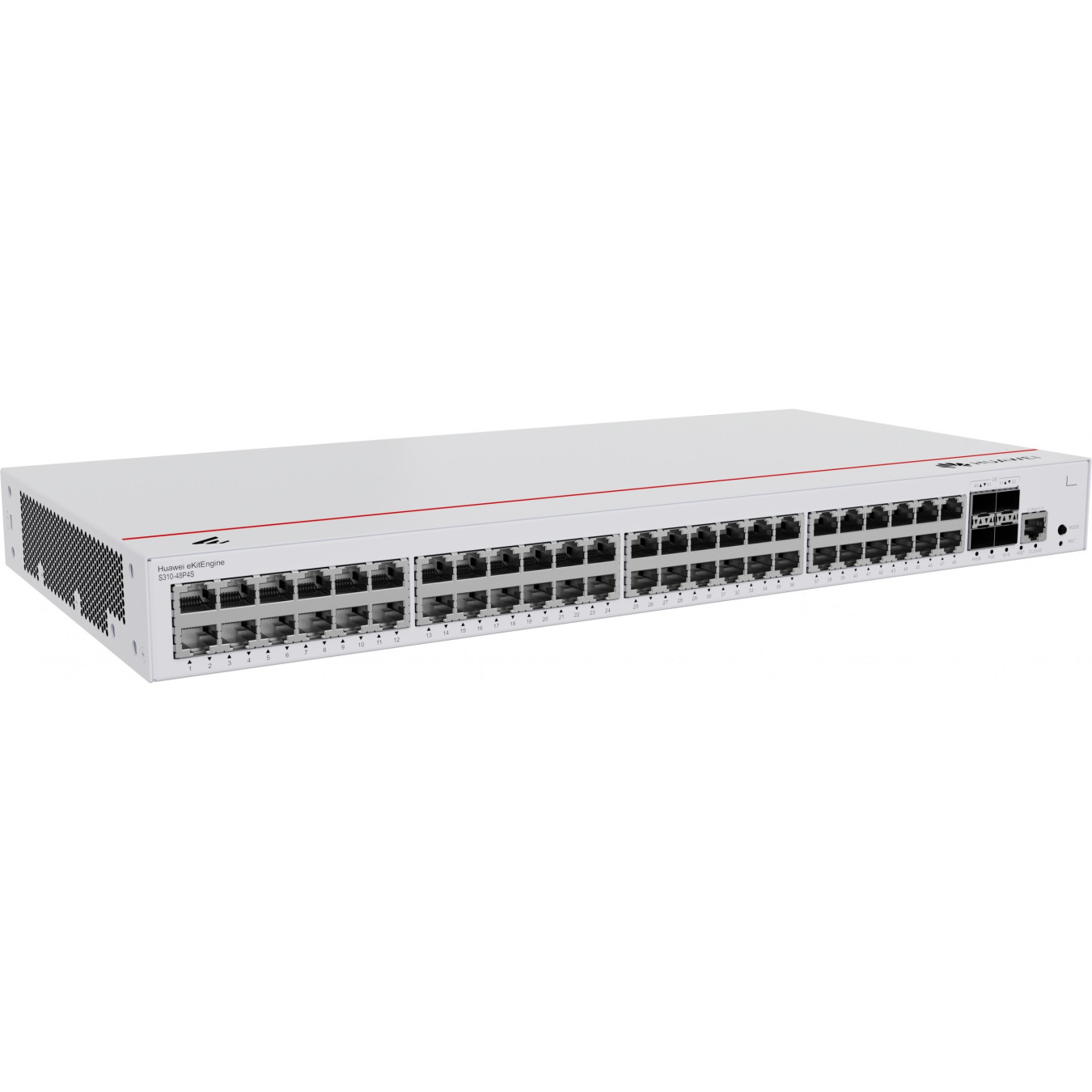

Huawei eKit S310-48P4S - Managed L3 48-Port Gigabit PoE Switch, 380W PoE Budget, Grey, 1U Rackmount
Managed L3 switch with 48x Gigabit RJ-45 + 4 SFP, 380W PoE budget, 104 Gbps switching capacity, 77 Mpps, 1U rackmount, AC 100–240V, operating -5–50°C
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 48 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
HUAWEI eKit S310 Series S310-48P4S Managed L3 Switch. Switch type: Managed. Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. Installed SFP modules quantity: 4. Console port: RJ-45. MAC address table: 16000 entries. Switching capacity: 104 Gbit/s. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2+ |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Console port | RJ-45 |
| Number of VLANs | 4094 |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77 Mpps |
| MAC address table | 16000 entries |
| DHCP features | DHCP client. DHCP server. DHCP snooping. DHCPv6 snooping |
| Security algorithms | SNMP. SNMPv2. SNMPv3 |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | Metal |
| International Protection (IP) code | IP20 |
| Noise level | 63 dB |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 462.8 W |
| Total Power over Ethernet (PoE) budget | 380 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 5000 m |
| Non-operating altitude | 0 - 5000 m |
| Width | 442 mm |
| Depth | 220 mm |
| Height | 43.6 mm |
| Package weight | 4.29 kg |
