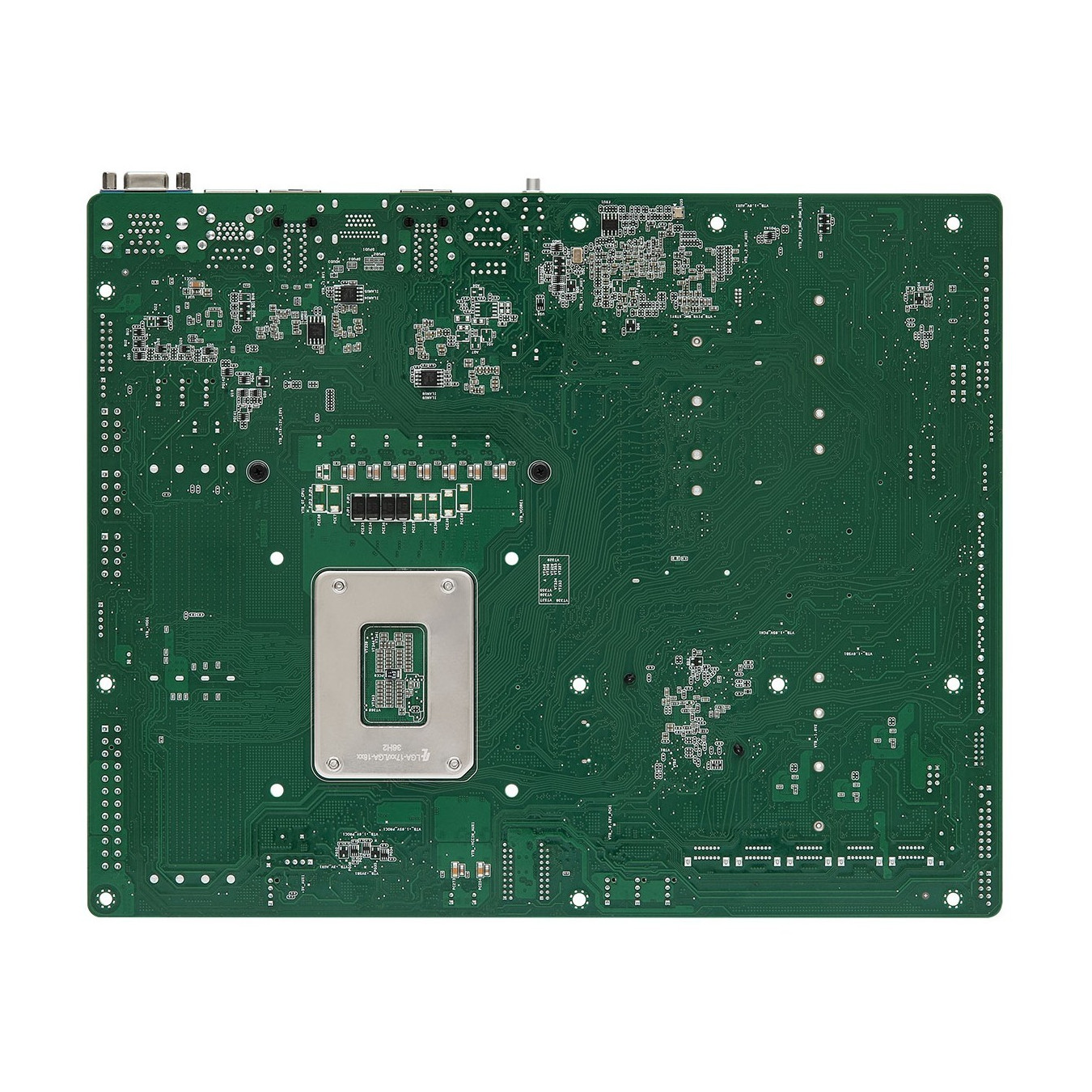

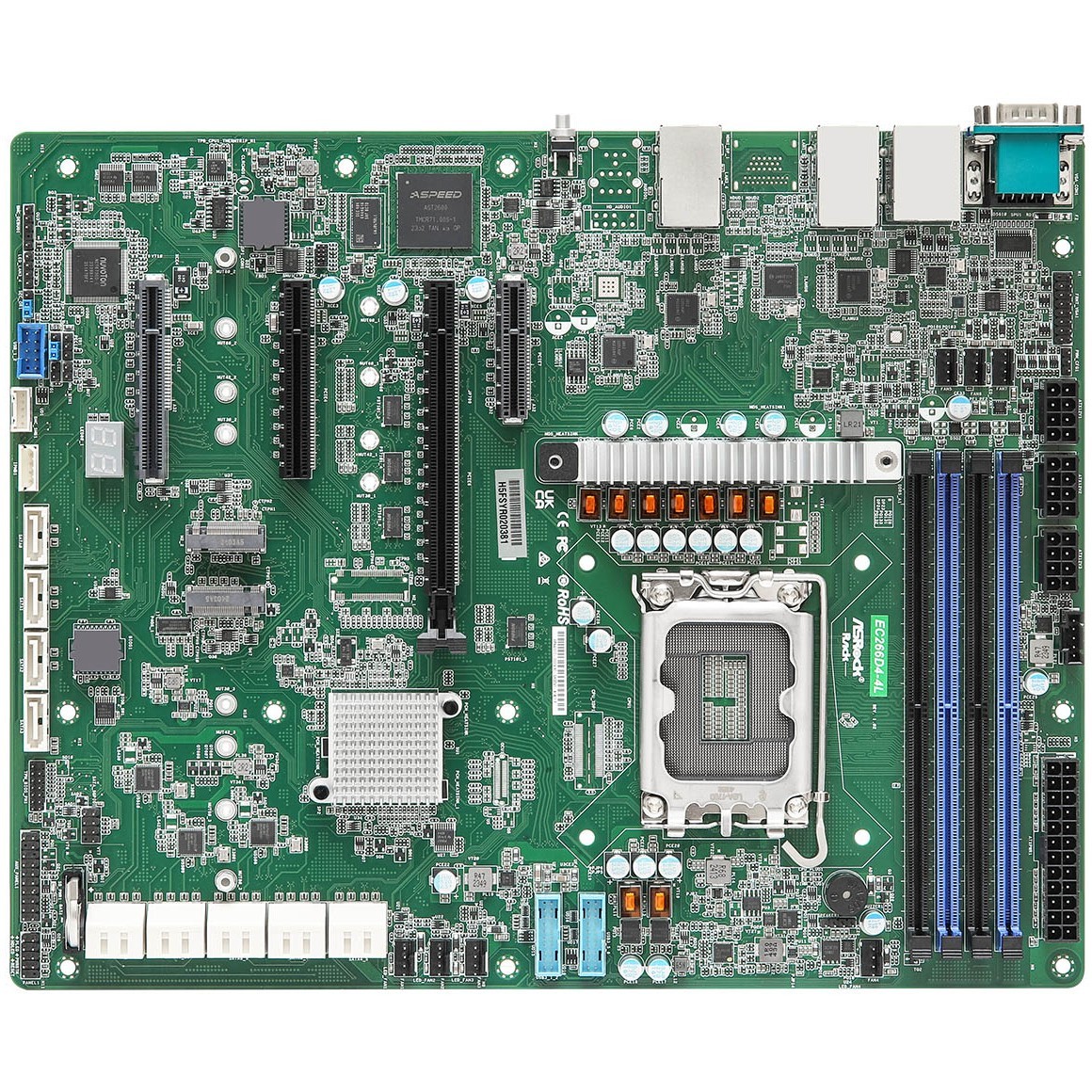

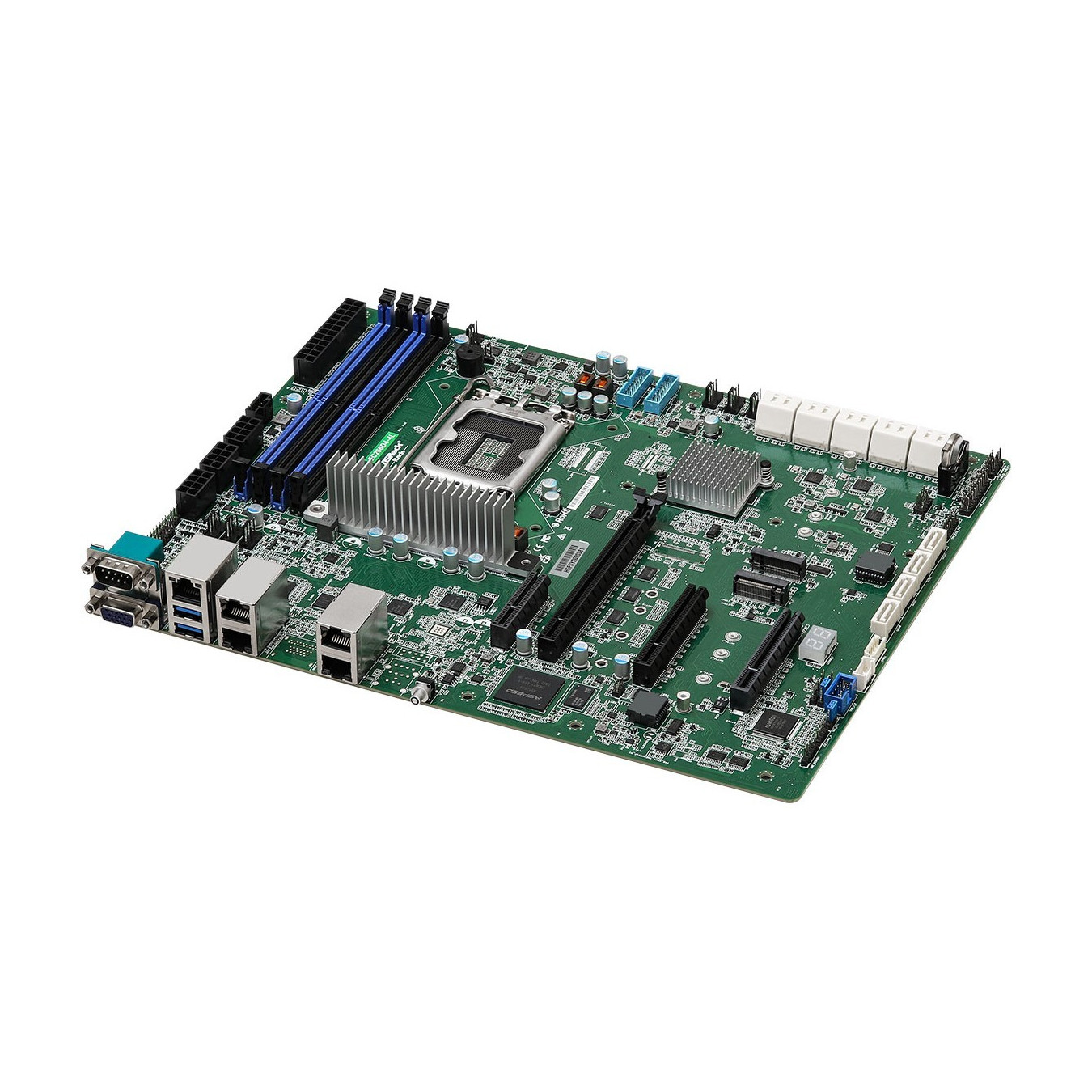

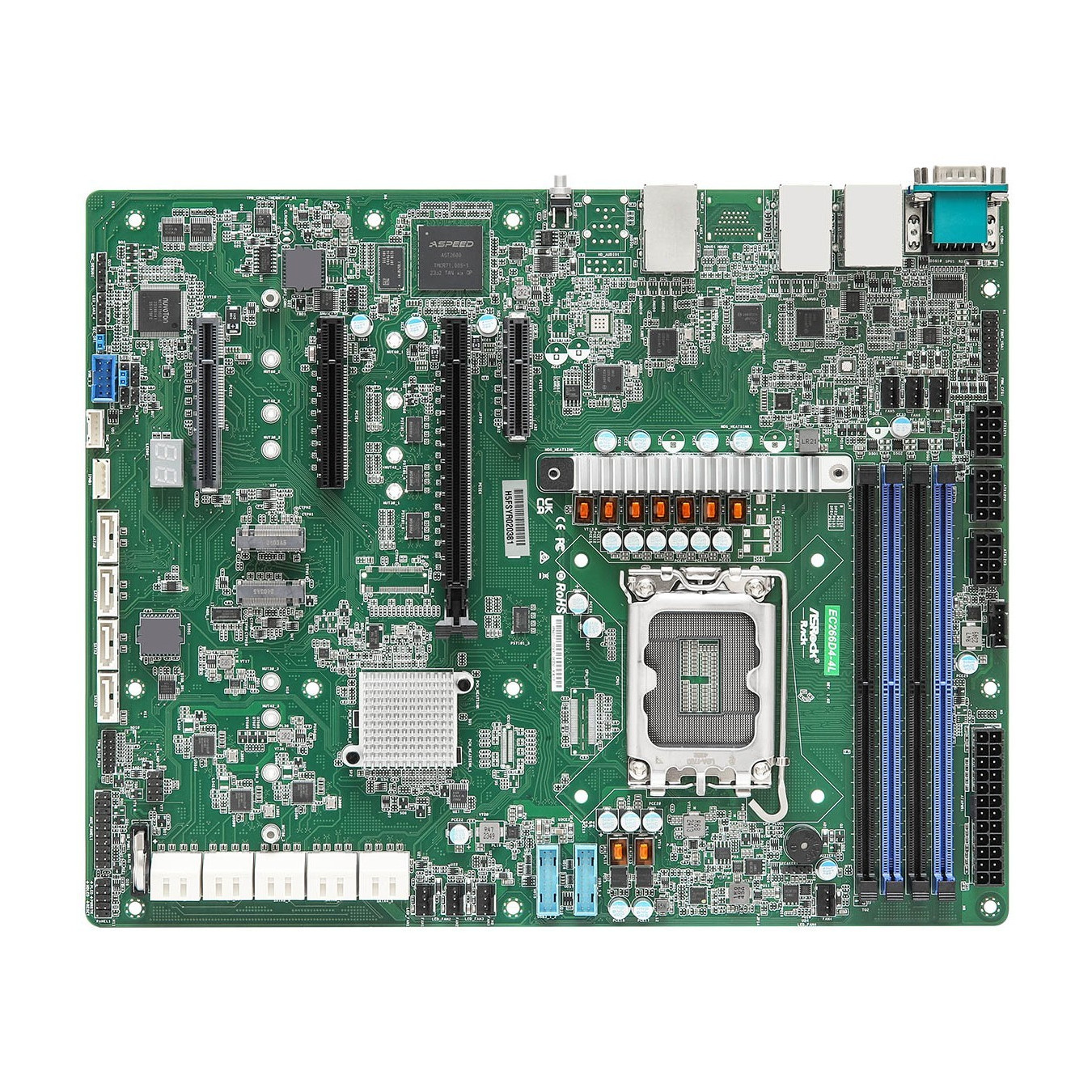

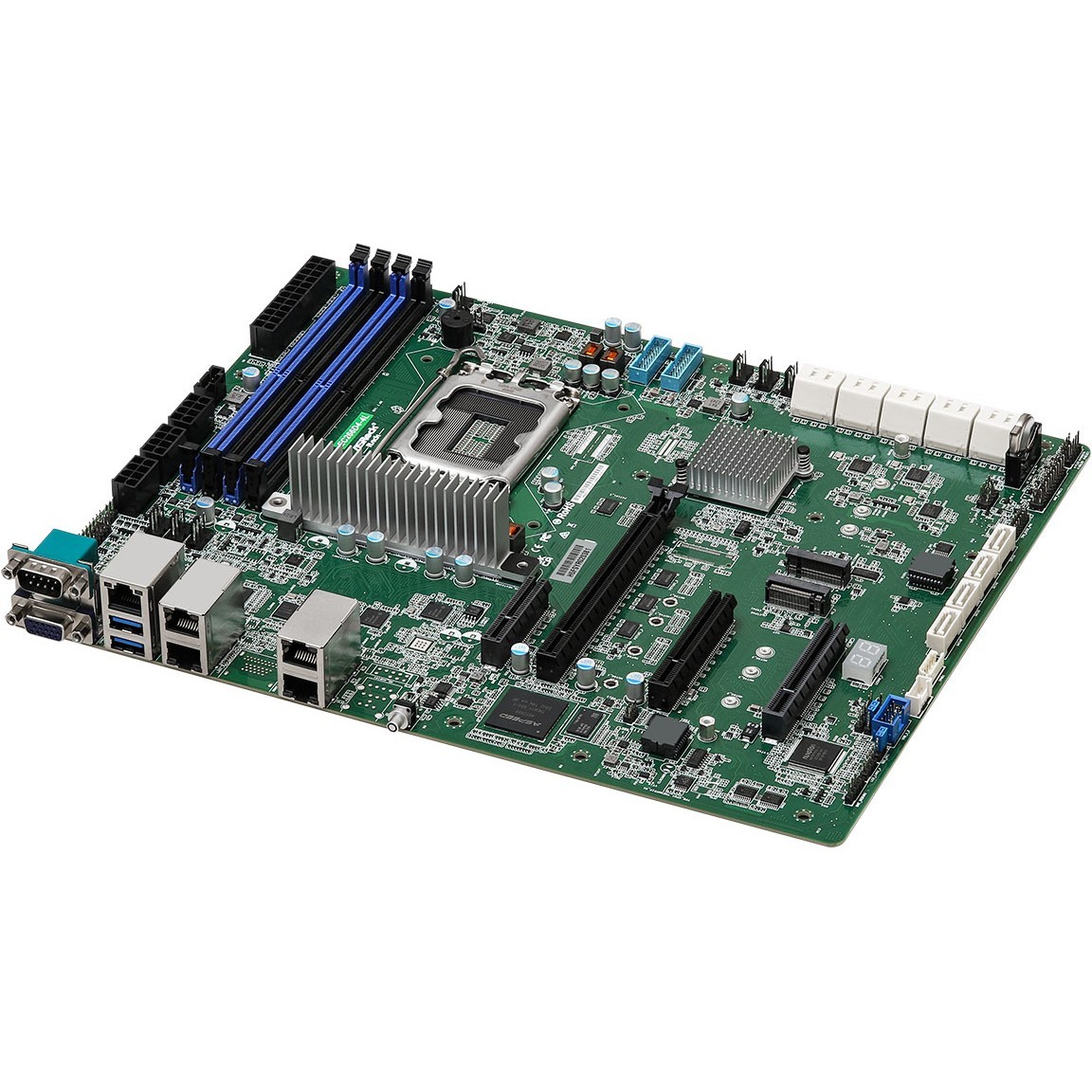

ASRock EC266D4-4L ATX Motherboard - LGA1700, DDR5, 4x DIMM, ECC, Dual M.2, 4x LAN
ASRock EC266D4-4L ATX LGA1700 motherboard; DDR5 up to 4400 MHz, 4 DIMM (up to 32GB), ECC support, dual M.2, 14x SATA III, 4x RJ45 LAN, AMI BIOS.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 10+ |
Asrock EC266D4-4L. Prozessorhersteller: Intel. Prozessorsockel: LGA 1700. Kompatible Prozessoren: Intel® Pentium® Gold. Intel® Xeon®. Intel Xeon E. Unterstützte Arbeitsspeicher: DDR5-SDRAM. RAM-Speicher maximal: 32 GB. Speicherspannung: 1.1 V. Unterstützte Speicherlaufwerk-Schnittstellen: M.2. SATA III. RAID Level: 0. 1. 5. 10. Eingebautes Grafikkartenmodell: Aspeed AST2600. Motherboardformfaktor: ATX. Motherboard Chipsatz Familie: Intel. Motherboard Chipsatz: Intel C266
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Kompatible Prozessoren | Intel® Pentium® Gold. Intel® Xeon®. Intel Xeon E |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Speicherspannung | 1.1 V |
| ECC-Kompatibilität | ECC |
| Unterstützte Speichertaktrate (max.) | 4400 MHz |
| RAM-Speicher maximal | 32 GB |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2. SATA III |
| Eigenschaft | Ethernet/LAN |
| RAID Level | 0. 1. 5. 10 |
| Eingebautes Grafikkartenmodell | Aspeed AST2600 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 4 |
| SATA III Anschlüsse | 14 |
| Anzahl Molex Anschlüsse 4pin | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 4 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl serielle Anschlüsse | 1 |
| Motherboard Chipsatz | Intel C266 |
| PC Gesundheitsüberwachung | CPU. Ventilator |
| Motherboardformfaktor | ATX |
| Motherboard Chipsatz Familie | Intel |
| PCI Express x4-Steckplätze (Gen 4.x) | 2 |
| PCI Express x8-Steckplätze (Gen 5.x) | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
| BIOS-Typ | AMI |
| BIOS-Speichergröße | 256 Mbit |
| ACPI-Version | 6.4 |
| Systemverwaltung BIOS (SMBIOS) Version | 2.8 |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Betriebstemperatur | 10 - 35 °C |
| Luftfeuchtigkeit bei Lagerung | 20 - 90% |
| Breite | 305 mm |
| Tiefe | 244 mm |
