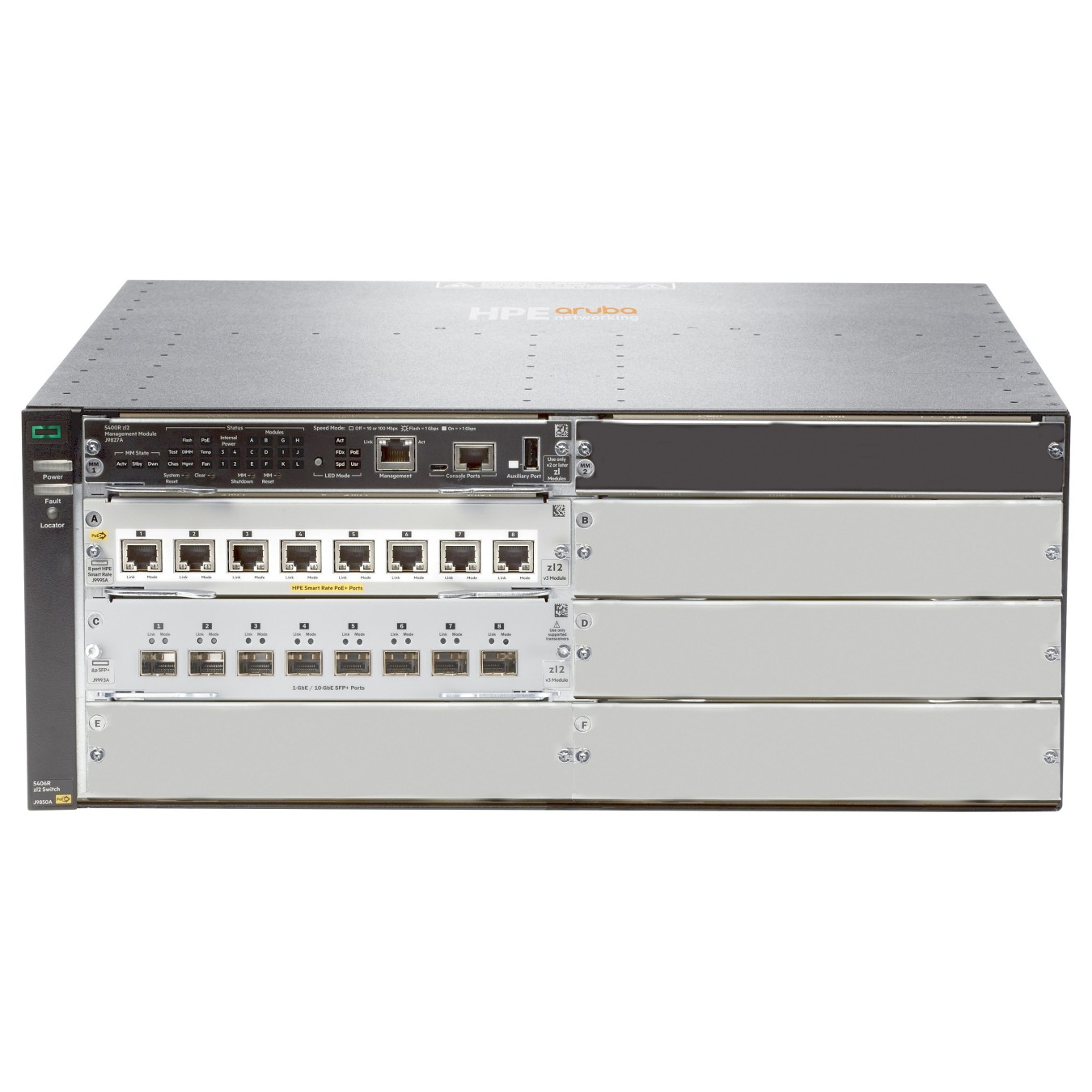

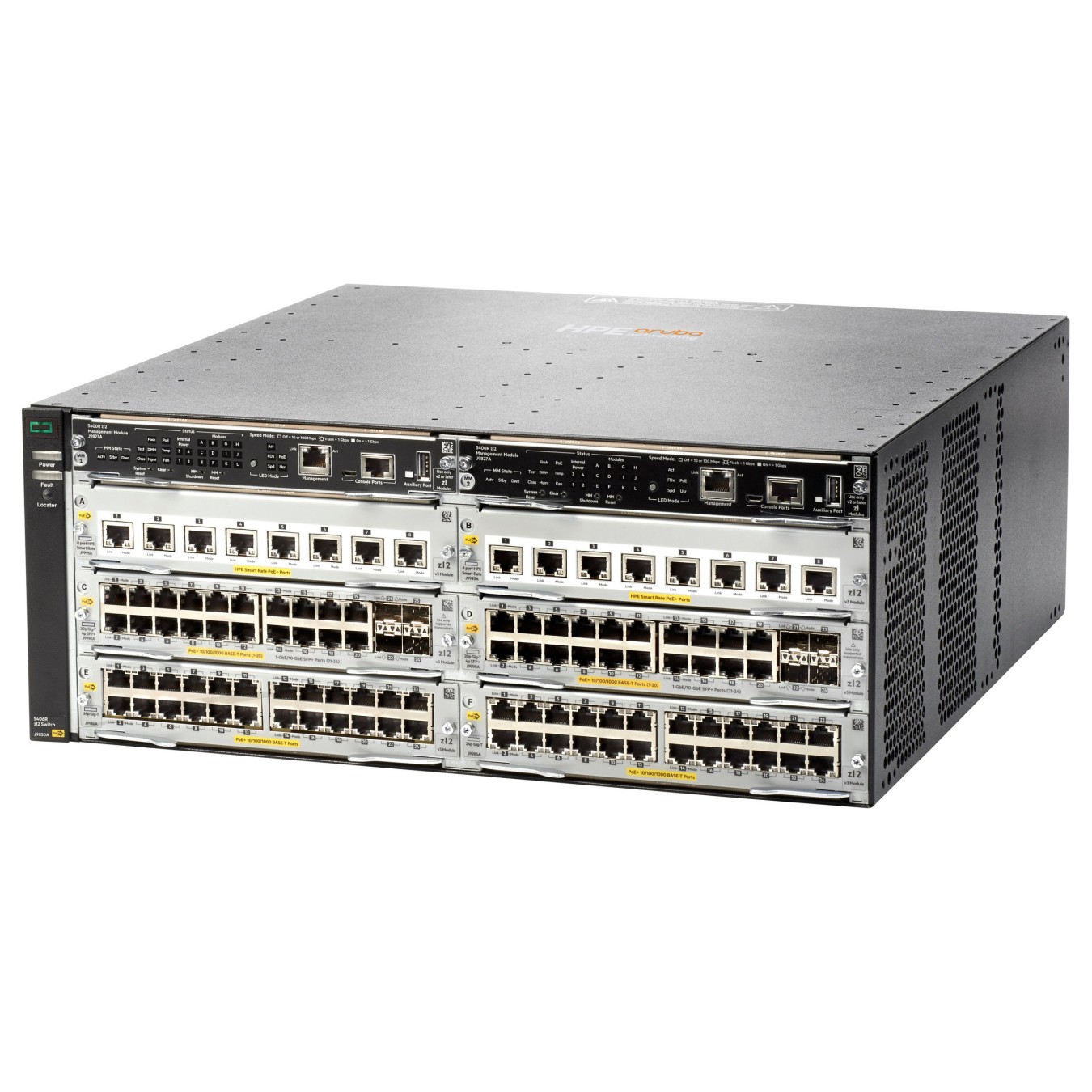

HP Switch 5406R 8x10GBase 8SFP+ nPSU v3
HPE Aruba Networking 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8 port SFP+ (No PSU) v3 zl2 Switch, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
HPE Aruba Networking 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8 port SFP+ (No PSU) v3 zl2 Switch. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Routing-/Switching-Kapazität: 960 Gbit/s. Power over Ethernet (PoE)
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Kompatible Speicherkarten | SD |
| Routing-/Switching-Kapazität | 960 Gbit/s |
| Durchgang | 571,4 Mpps |
| Wartezeit (1 Gbps) | 2,8 µs |
| Wartezeit (10 Gbps) | 1,8 µs |
| Produktfarbe | Silber |
| Eingebauter Prozessor | Ja |
| Prozessortaktfrequenz | 1200 MHz |
| Speichertyp | DDR3-SDRAM |
| Speicherkapazität | 4096 MB |
| Flash-Speicher | 16 MB |
| Netzteil enthalten | Nein |
| AC Eingangsspannung | 200 - 240 V |
| Stromversorgung | 2 power supply slots 1 minimum power supply required (ordered separately) |
| Power over Ethernet (PoE) | Ja |
| Latenz | 1000 Mb Latency: < 2.8 µs; 10 Gbps Latency: < 1.8 µs; 40 Gbps Latency: < 1.5 µs |
| Speicher und Prozessor | Depend on the model: Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Arm 11 at 450 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1; Packet buffer size: 13.5 MB internal Arm 11 at 550 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM. |
| Weitere Anschlüsse | 8 RJ‑45 HPE Smart Rate Multi‑Gigabit ports (100M, 1/2.5/5 GBaseT and 10 GBaseT) 8 open 10 GbE SFP+ transceiver slots 4 open module slots Supports a maximum of 144 auto‑sensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi‑Gigabit or 12 40 GbE ports, or a combination. |
| Leistungsmanagementfunktionen - Beschreibung | HPE Aruba Networking Management Software HPE Aruba Networking Central HPE Intelligent Management Center Basic Software Platform (IMC) Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) Out-of-band management (serial RS-232C or micro USB) SNMP manager |
| Gewicht (imperial) | 12,8 kg (28.1 Pfund) |
| Abmessungen (B x T x H) (in Zoll) | 444,5 x 450,9 x 175,3 mm (17.5 x 17.8 x 6.9") |
| Wärmeableitung | 2450 BTU/h |
| Breite | 444,5 mm |
| Tiefe | 450,9 mm |
| Höhe | 175,3 mm |
| Gewicht | 12,8 kg |
| Warentarifnummer (HS) | 85176990 |
