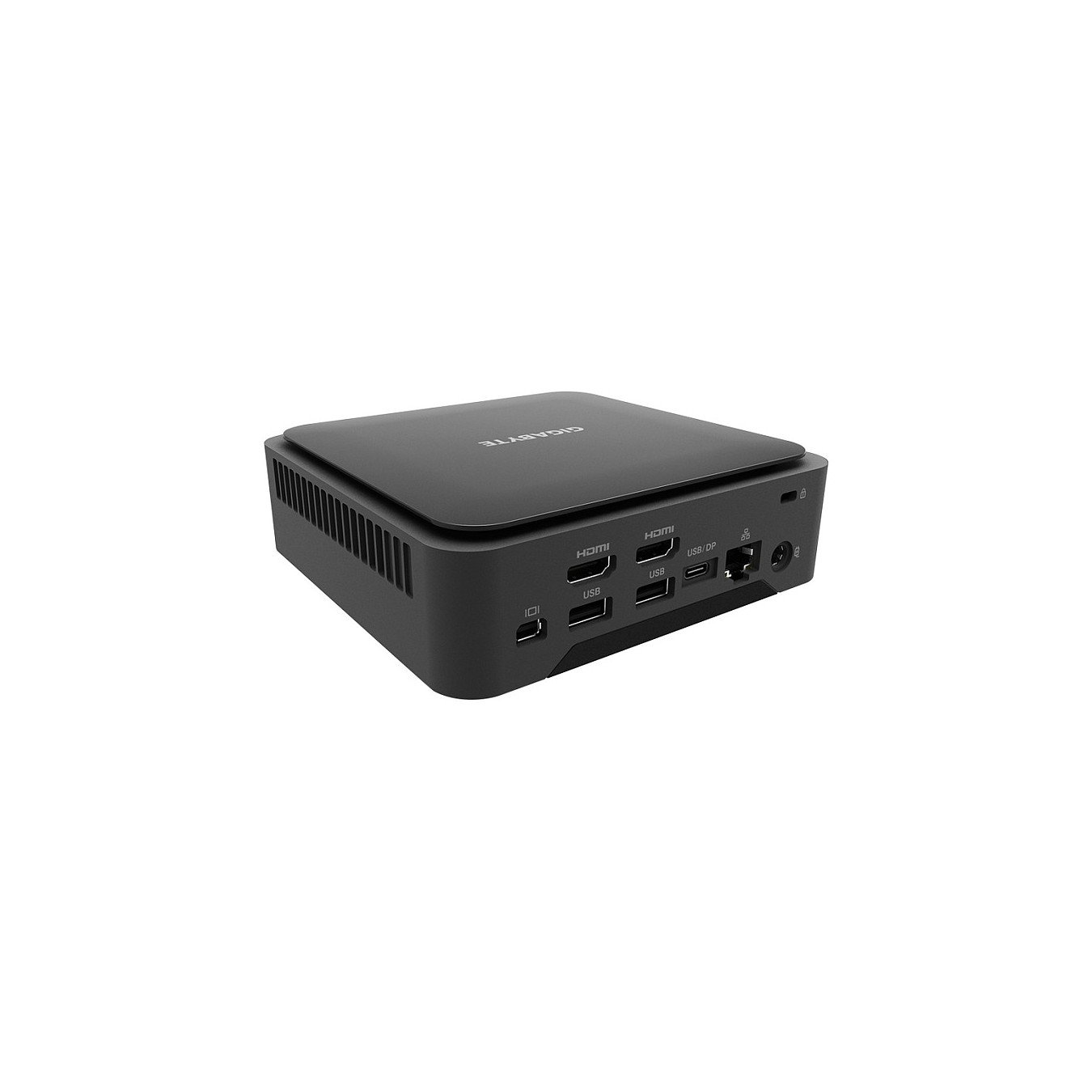

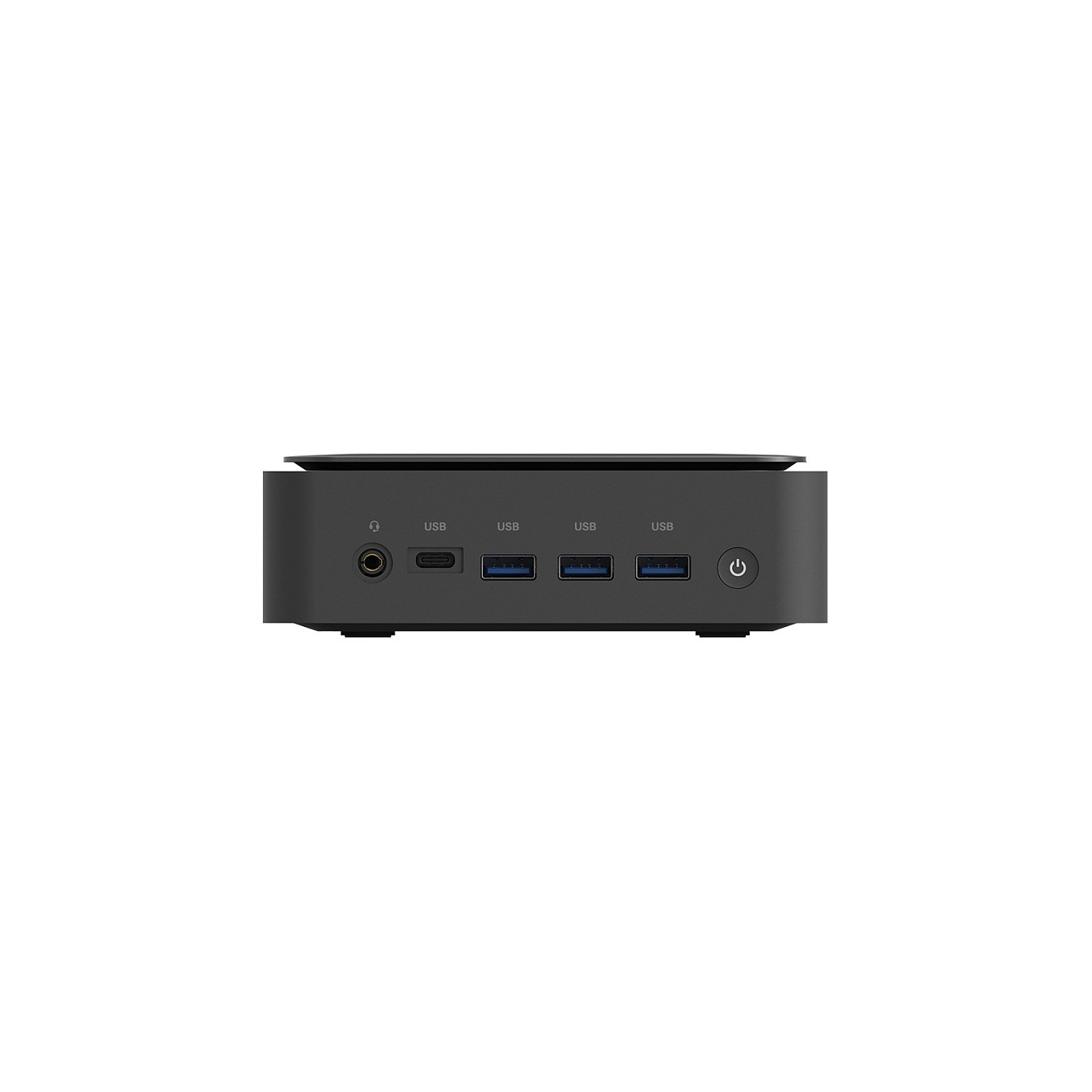

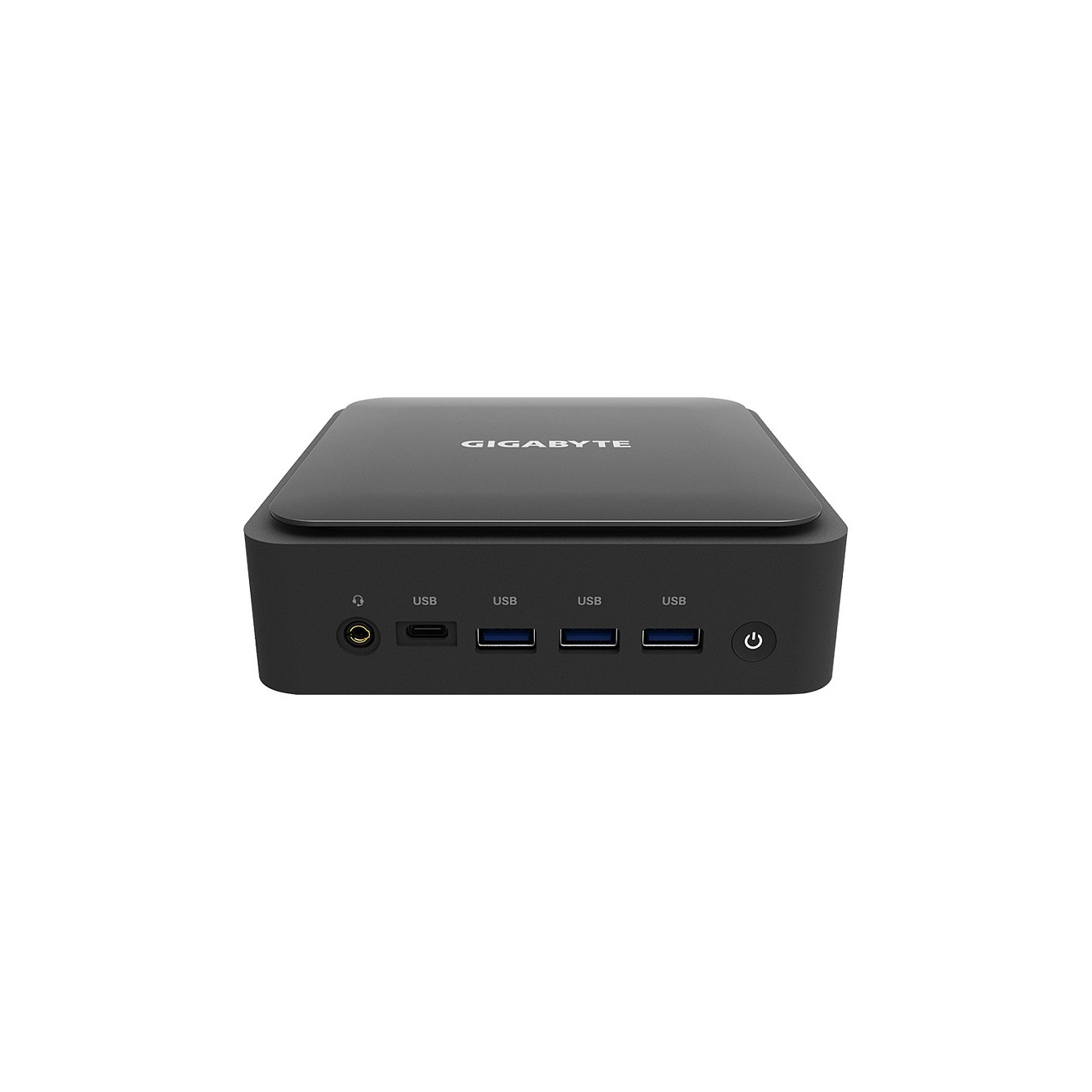

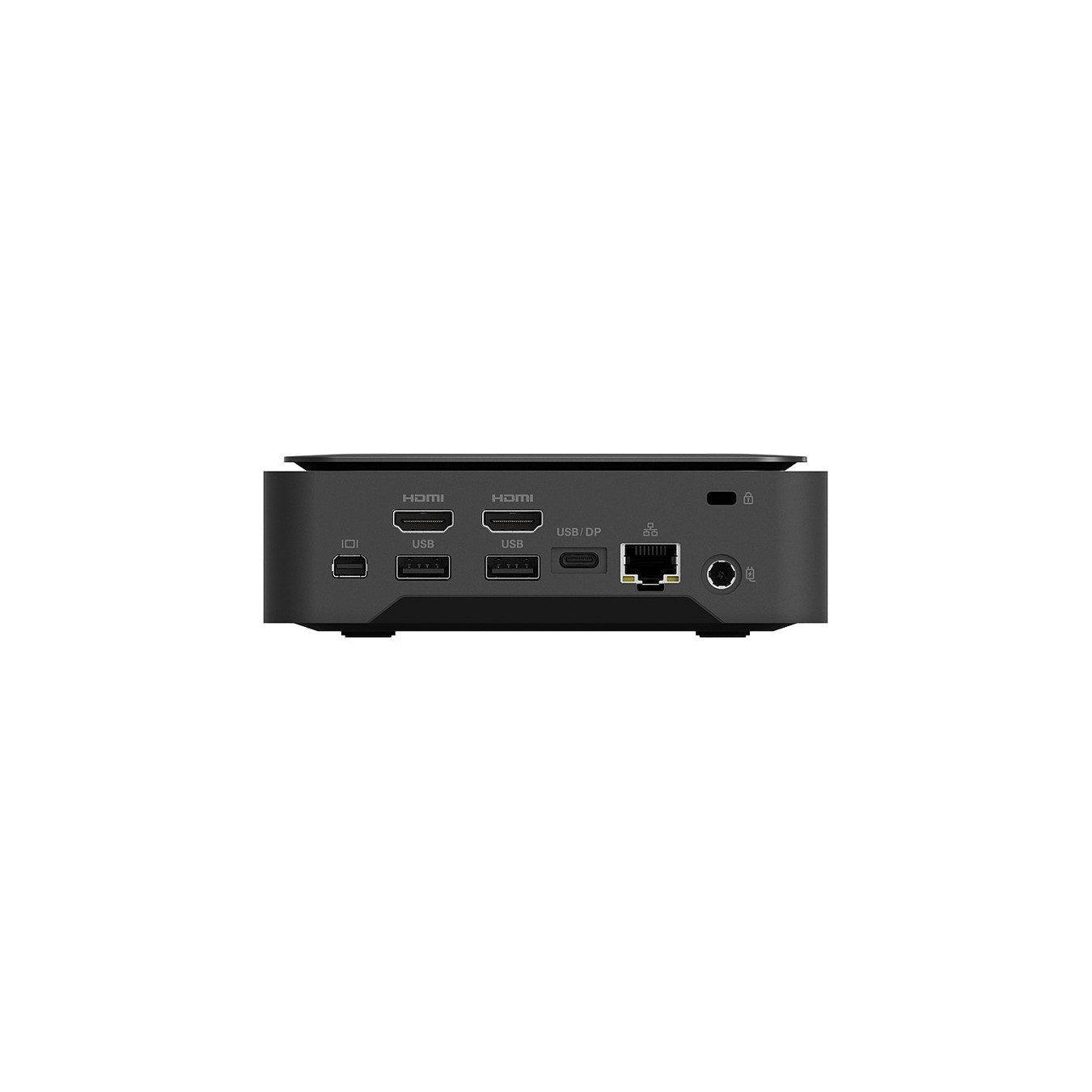

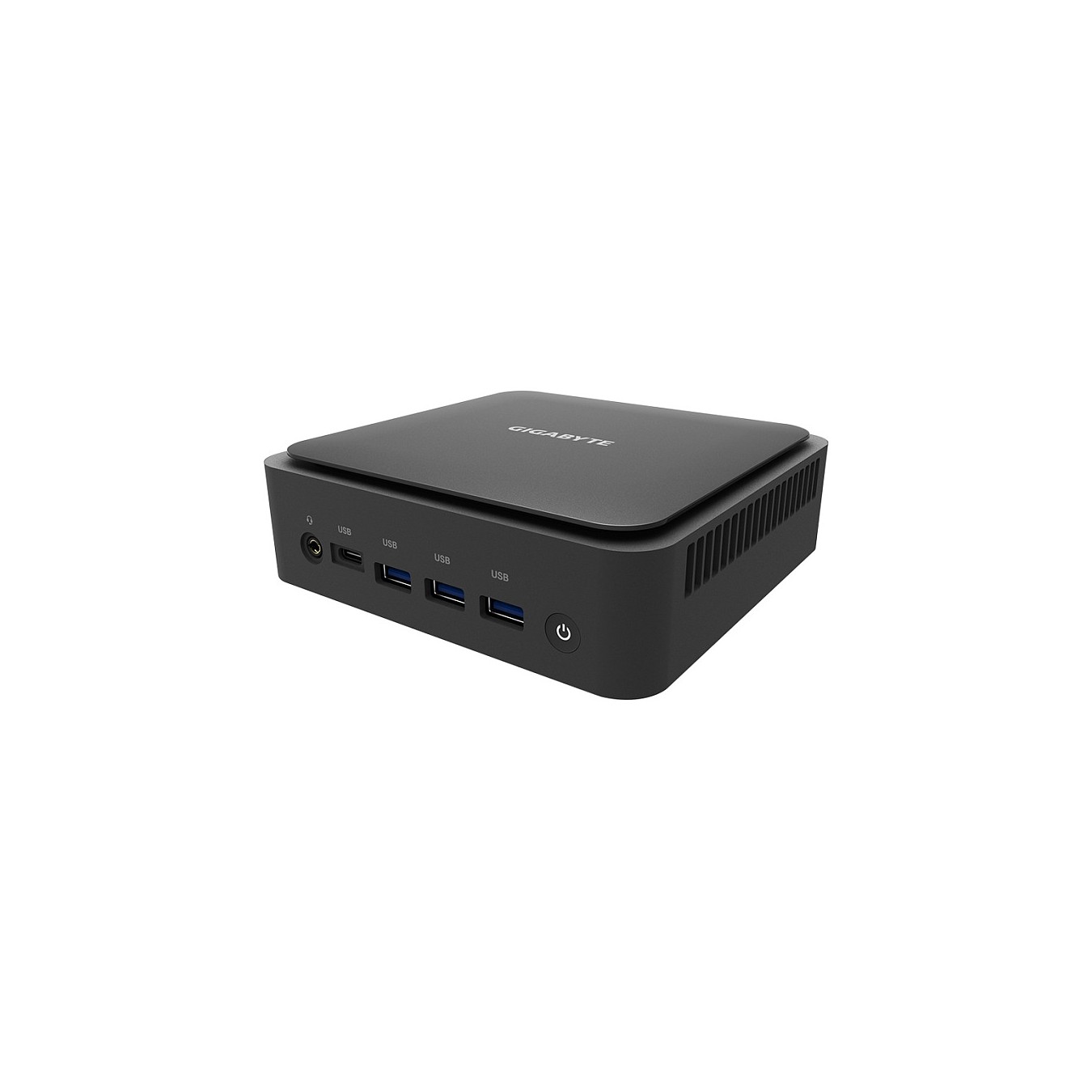

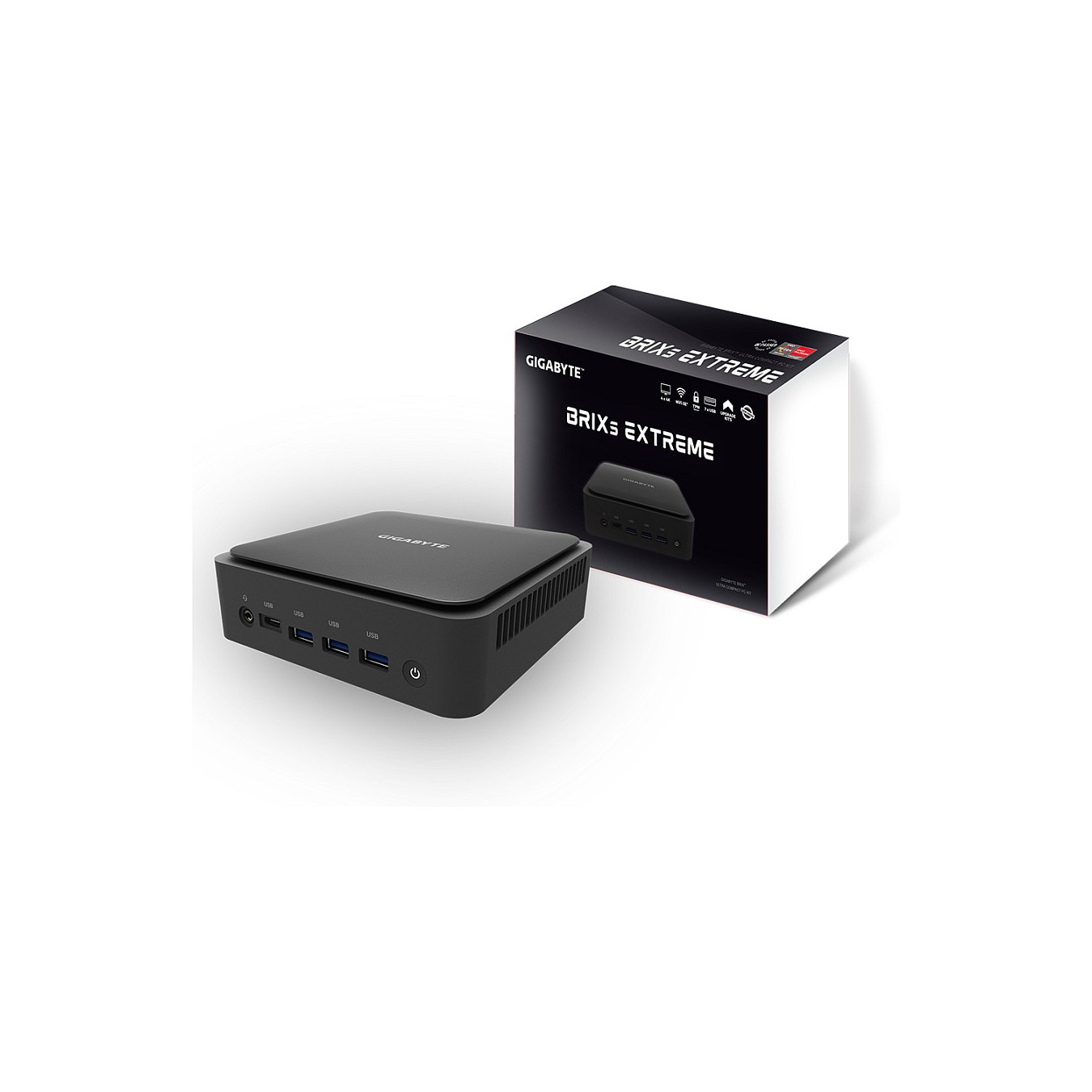

Gigabyte BRIX Barebone GB-BER7-8840 (D) AMD
GIGABYTE GB-BER7-8840, Mini-PC Barebone, DDR4-SDRAM, PCI Express, SATA, Ethernet/LAN, 135 W
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
GIGABYTE GB-BER7-8840. Produkttyp: Mini-PC Barebone. Unterstützte Arbeitsspeicher: DDR4-SDRAM, Anzahl der Speichersteckplätze: 2, RAM-Speicher maximal: 64 GB. Unterstützte Speicherlaufwerke: SSD, Speicherlaufwerk Schnittstelle: PCI Express, SATA. Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1. Bluetooth-Version: 5.2. Stromversorgung: 135 W
| Prozessorhersteller | AMD |
| Prozessorfamilie | AMD Ryzen™ 7 PRO |
| Prozessorgeneration | AMD Ryzen PRO 8000 Series |
| Prozessor | PRO 8840U |
| Anzahl Prozessorkerne | 8 |
| Prozessor-Threads | 16 |
| Prozessor Boost-Frequenz | 5,1 GHz |
| Prozessor-Taktfrequenz | 3,3 GHz |
| Eingebauter Prozessor | Ja |
| Prozessor Lithografie | 7 nm |
| Prozessor Cache Typ | L2 & L3 |
| Pufferspeicher L2 | 4 MB |
| Pufferspeicher L3 | 8 MB |
| Thermal Design Power (TDP) | 15 W |
| Arbeitsspeicher Typ | SO-DIMM |
| Anzahl der Speichersteckplätze | 2 |
| RAM-Speicher maximal | 64 GB |
| Unterstützte Arbeitsspeichergeschwindigkeit | 3200 MHz |
| Unterstützte Arbeitsspeicher | DDR4-SDRAM |
| Unterstützte Speicherlaufwerke | SSD |
| unterstützte Speicherlaufwerksgrößen | M.2 |
| Speicherlaufwerk Schnittstelle | PCI Express, SATA |
| Anzahl der unterstützten Speicherlaufwerke | 1 |
| Eingebaute Grafikadapter | Ja |
| Grafikkarte-Familie | AMD |
| Eingebautes Grafikkartenmodell | AMD Radeon 780M |
| Separates Grafikkartenmodell | Nicht verfügbar |
| Trusted Platform Module (TPM) | Ja |
| Audio-Chip | Realtek ALC897 |
| Eingebaute Lautsprecher | Nein |
| Top WLAN-Standard | Wi-Fi 6 (802.11ax) |
| WLAN-Controllermodell | RZ608 |
| Ethernet/LAN | Ja |
| WLAN | Ja |
| LAN-Controller | Realtek RTL8125 |
| Bluetooth | Ja |
| Bluetooth-Version | 5.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 2 |
| Anzahl HDMI-Anschlüsse | 2 |
| HDMI-Version | 2.0b |
| Anzahl Mini DisplayPorts | 1 |
| DisplayPorts-Version | 1.4 |
| Kopfhörerausgänge | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Gleichstrom-Anschluss (DC) | Ja |
| Anzahl der M.2 (M)-Steckplätze | 1 |
| Produktfarbe | Schwarz |
| Ein-/Ausschalter | Ja |
| Kabelsperre-Slot | Ja |
| Slot-Typ Kabelsperre | Kensington |
| VESA-Halterung | Ja |
| Produkttyp | Mini-PC Barebone |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64, Windows 11 x64 |
| Stromversorgung | 135 W |
| AC Eingangsspannung | 100 - 240 V |
| Netzteil Ausgangsspannung | 19.5 V |
| AC-Adapter Ausgangssstrom | 6,92 A |
| Betriebstemperatur | 0 - 35 °C |
| Temperaturbereich bei Lagerung | -20 - 60 °C |
| Breite | 139,1 mm |
| Tiefe | 134,2 mm |
| Höhe | 48,3 mm |
