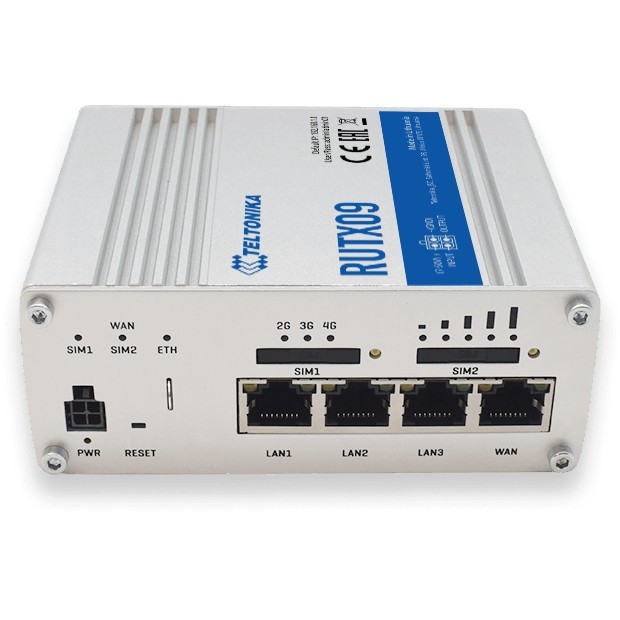

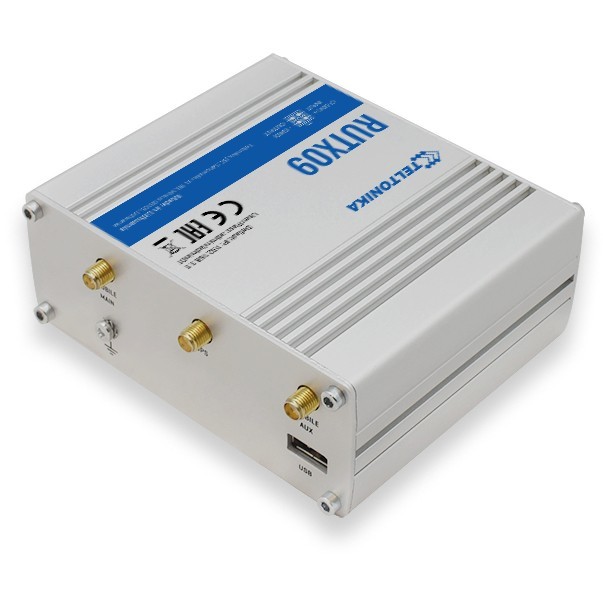

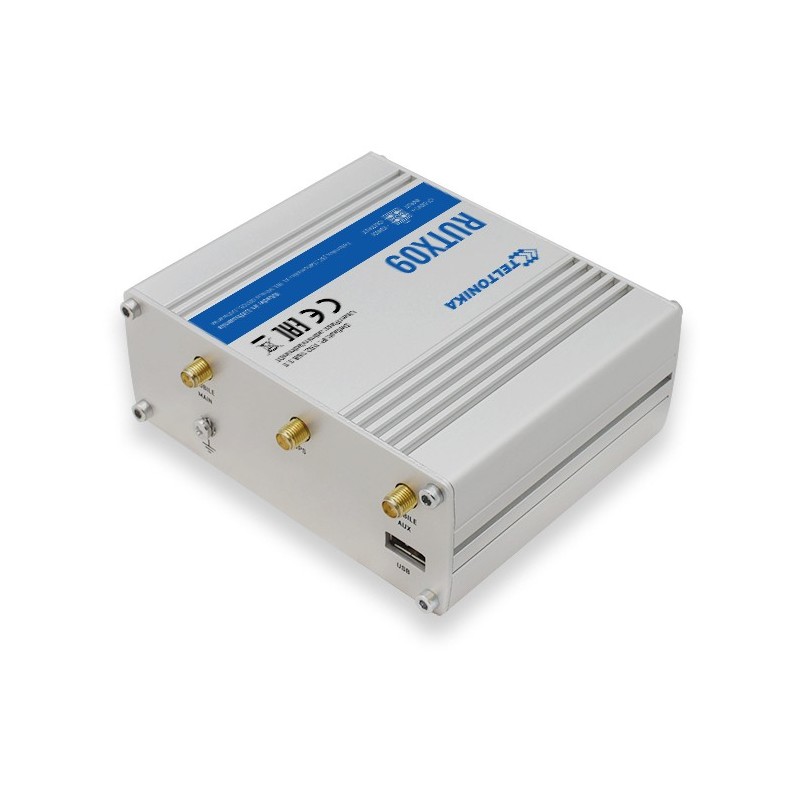

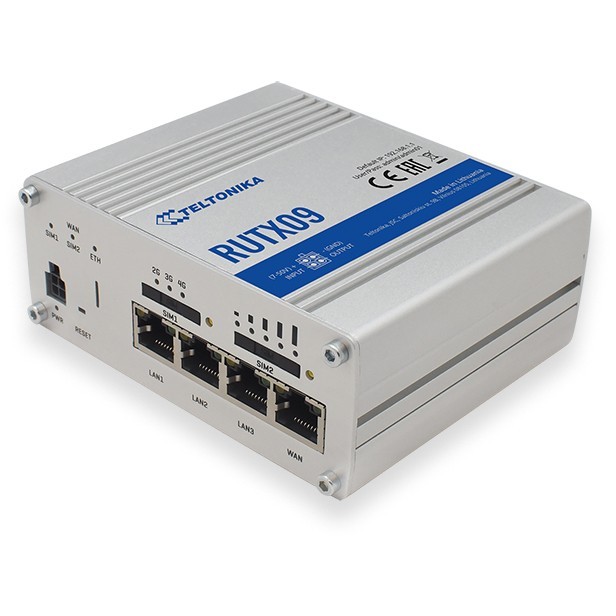

Teltonika RUTX09 - LTE Cat6 Industrial Router - Aluminium, 256MB RAM/Flash, 717MHz 4-core, 4x Gigabit LAN, USB2.0
Industrial LTE Cat6 router with Ethernet WAN, Nano‑SIM slot, SMA antenna connectors, RutOS, 717 MHz quad-core CPU, 256MB RAM/Flash, 4x Gigabit LAN, 1x USB 2.0
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Routers - LAN Ports | 4 |
|---|---|
| Routers - USB Ports | USB 2.0 |
| Routers - 3G/4G/5G Failover | Nano-SIM (built-in) |
Teltonika RUTX09. Networking standards: IEEE 802.11e. IEEE 802.3. IEEE 802.3az. IEEE 802.3u. Ethernet LAN data rates: 10.100.1000 Mbit/s. Mobile network generation: 4G. 4G standard: LTE. Routing protocols: OSPFv2. BGP. RIP-1. RIP-2. VoIP protocols: H.323. SIP-alg. Supported network protocols: TCP. UDP. IPv4. IPv6. ICMP. UDP. NTP. DNS. HTTP. FTP. SMTP. TLS. ARP. VRRP. PPP. PPPoE. UPNP. SSH..... Security algorithms: SNMP. SNMPv3. SSH. Processor frequency: 717 MHz. Flash memory: 256 MB. Internal memory: 256 MB
| Feature | LED indicators |
| Networking standards | IEEE 802.11e. IEEE 802.3. IEEE 802.3az. IEEE 802.3u |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Mobile network generation | 4G |
| 4G standard | LTE |
| Ethernet LAN (RJ-45) ports | 4 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Routing protocols | OSPFv2. BGP. RIP-1. RIP-2 |
| VoIP protocols | H.323. SIP-alg |
| Supported network protocols | TCP. UDP. IPv4. IPv6. ICMP. UDP. NTP. DNS. HTTP. FTP. SMTP. TLS. ARP. VRRP. PPP. PPPoE. UPNP. SSH. DHCP. Telnet. SMPP |
| Security algorithms | SNMP. SNMPv3. SSH |
| Processor frequency | 717 MHz |
| Processor cores | 4 |
| Flash memory | 256 MB |
| Internal memory | 256 MB |
| Internal memory type | DDR2 |
| Operating system installed | RutOS |
| Product colour | Aluminium |
| Housing material | Aluminium |
| Antenna connector type | SMA |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 95 mm |
| Depth | 44 mm |
| Height | 115 mm |
| Weight | 456 g |
