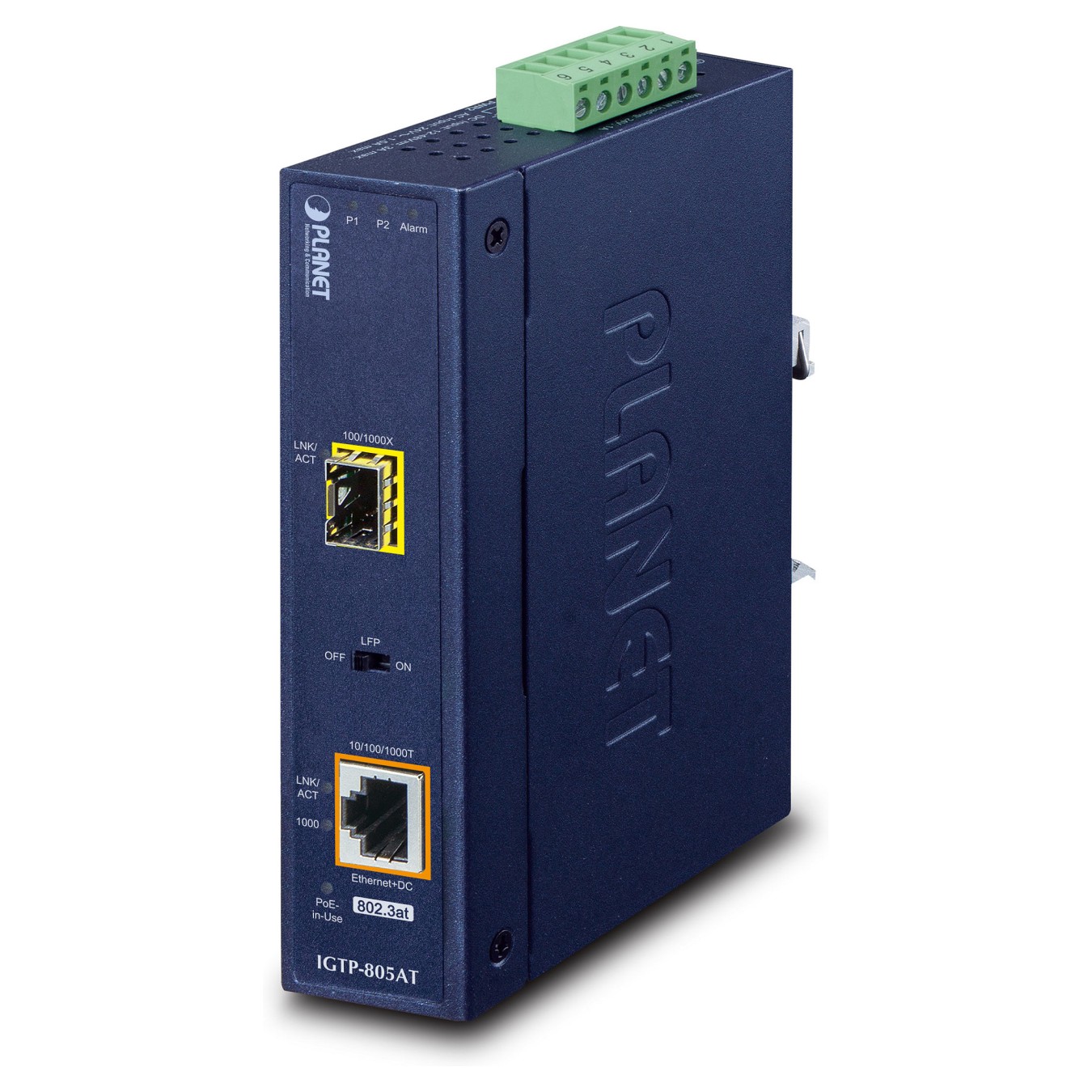

Planet IGTP-805AT Industrial Media Converter mini-GBIC, SFP
PLANET Industrial PoE Gigabit Media Converter, SFP 10/100/1000Base-T to SFP Open Slot PoE 802.3at, 2000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE..., Gigabit Ethernet, 10,100,1000 Mbit/s, 1000BASE-SX, 1000BASE‑LX
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET Industrial PoE Gigabit Media Converter, SFP 10/100/1000Base-T to SFP Open Slot PoE 802.3at. Maximale Datenübertragungsrate: 2000 Mbit/s, Netzstandard: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE..., Ethernet Schnittstellen Typ: Gigabit Ethernet. Wellenlänge: 1310 nm. Produktfarbe: Blau, Gehäusematerial: Metall, Internationale Schutzart (IP-Code): IP30. Optischer Kabelverbinder: SFP, Übertragungstechnik: Kabelgebunden. Eingangsspannung: 48 V, Gesamtleistung Power over Ethernet (PoE): 30 W
| Maximale Datenübertragungsrate | 2000 Mbit/s |
| Netzstandard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10,100,1000 Mbit/s |
| Kupfer Ethernet Verkabelungstechnologie | 1000BASE-SX |
| Ethernet-Kabel Verkablungstechnologie | 1000BASE‑LX |
| Datenübertragungsrate | 1000 Mbit/s |
| Auto MDI/MDI-X | Ja |
| Auto-Negotiation-Funktion | Ja |
| Wellenlänge | 1310 nm |
| LED-Anzeigen | Ja |
| Produktfarbe | Blau |
| Gehäusematerial | Metall |
| Internationale Schutzart (IP-Code) | IP30 |
| DIN-Schienen-Montage | Ja |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Optischer Kabelverbinder | SFP |
| Gleichstrom-Anschluss (DC) | Ja |
| Eingangsspannung | 48 V |
| Power over Ethernet (PoE) | Ja |
| Gesamtleistung Power over Ethernet (PoE) | 30 W |
| Breite | 135 mm |
| Tiefe | 87 mm |
| Höhe | 32 mm |
| Gewicht | 420 g |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Zertifizierung | FCC Part 15 Class A, CE |
| Warentarifnummer (HS) | 85176990 |
