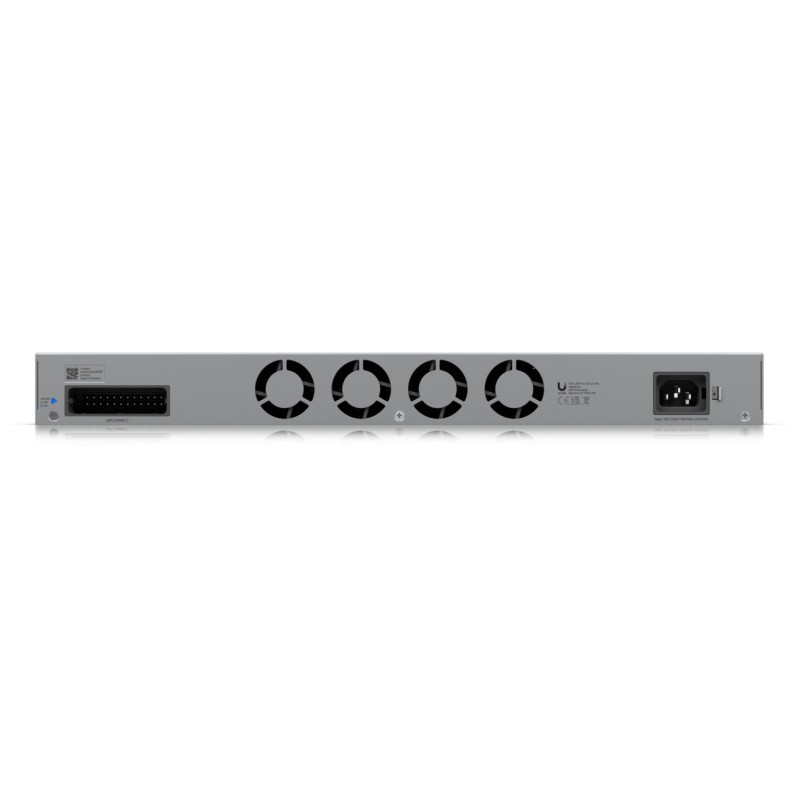

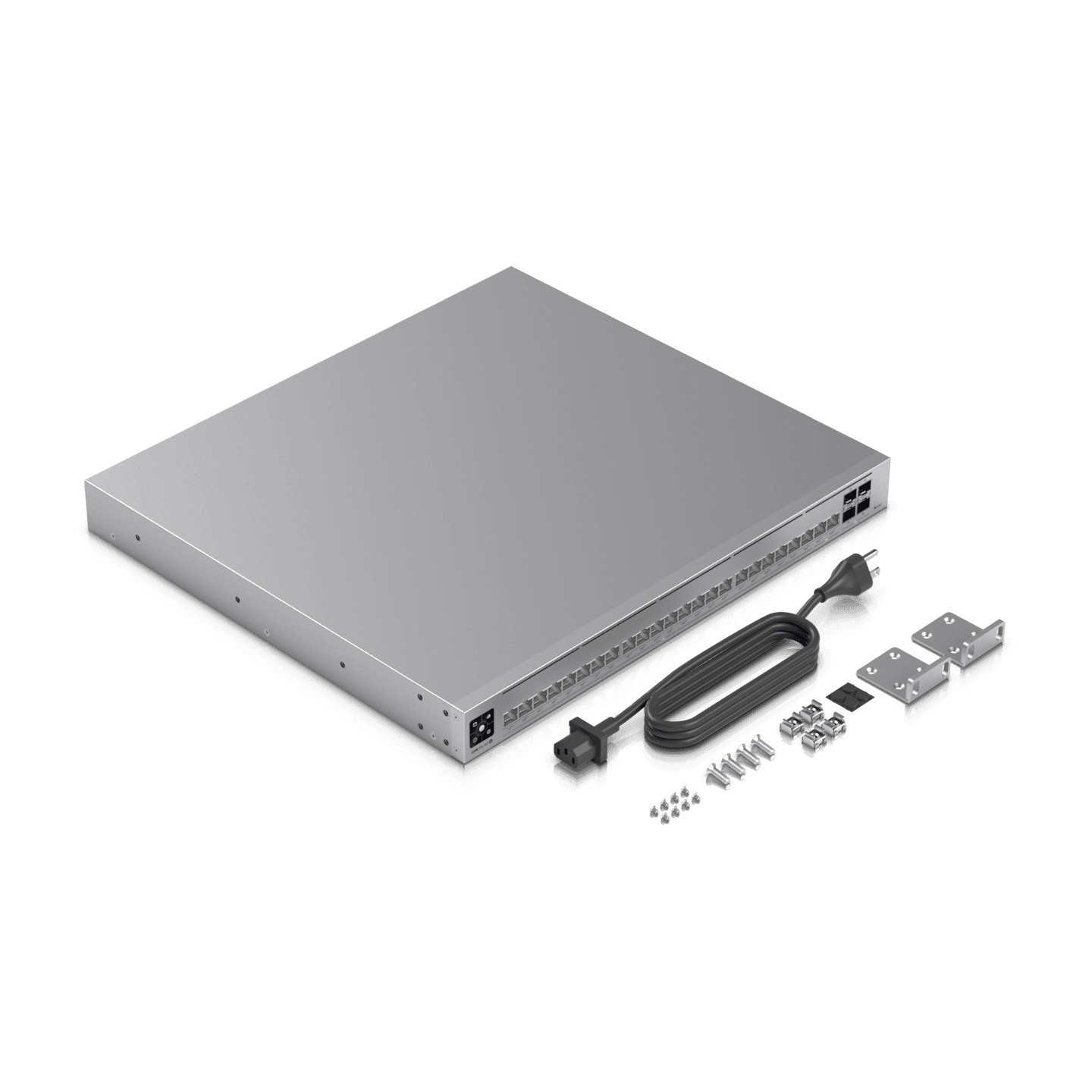

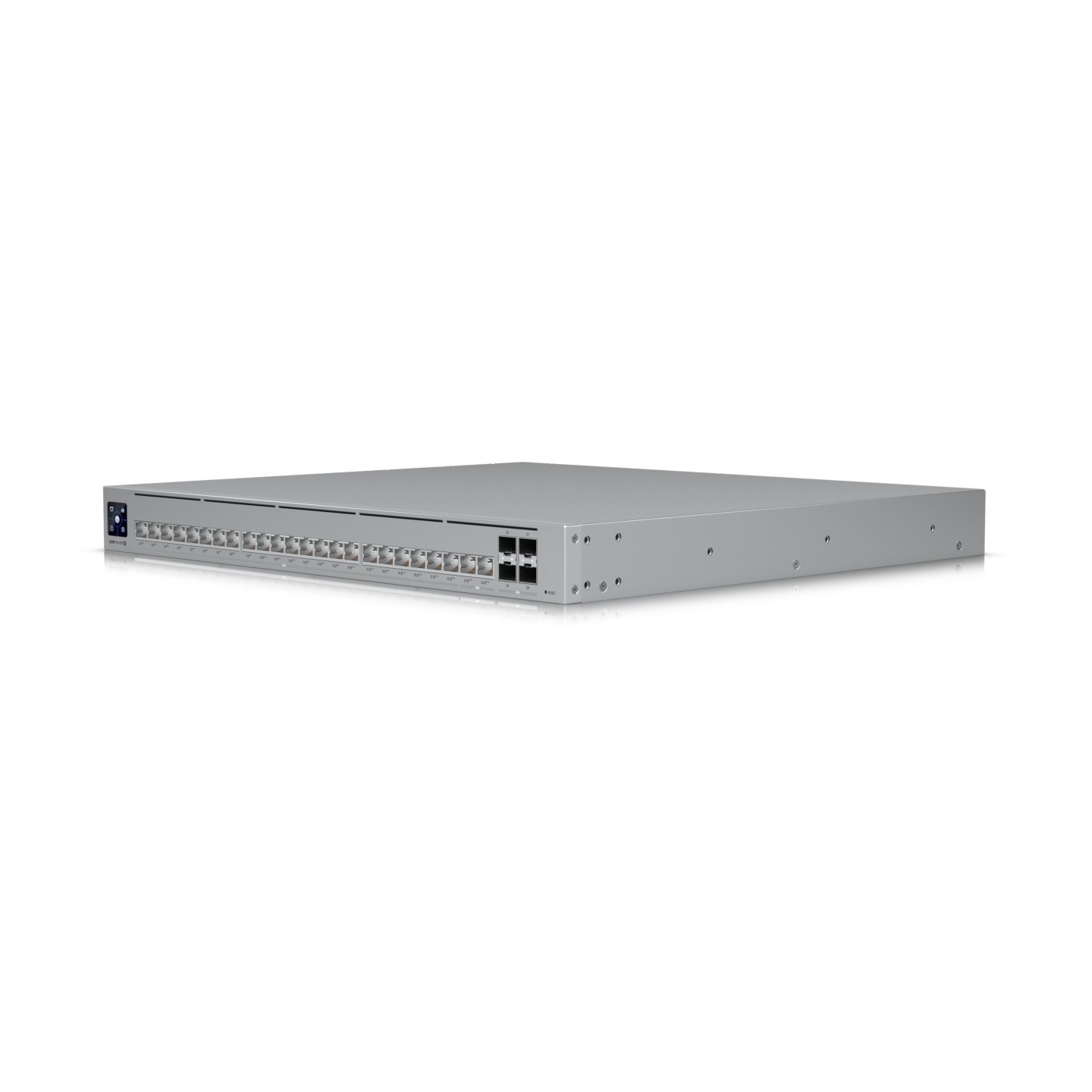

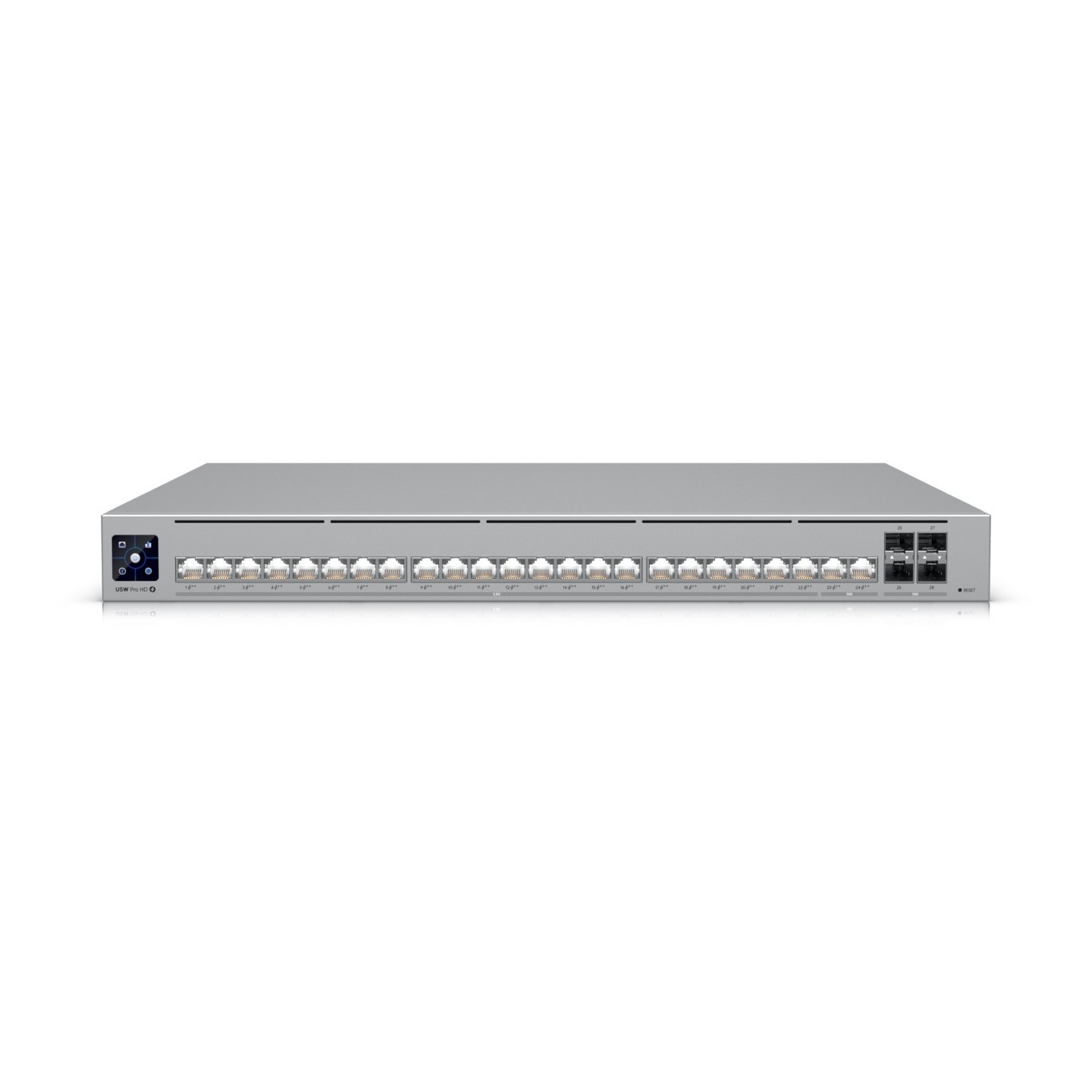

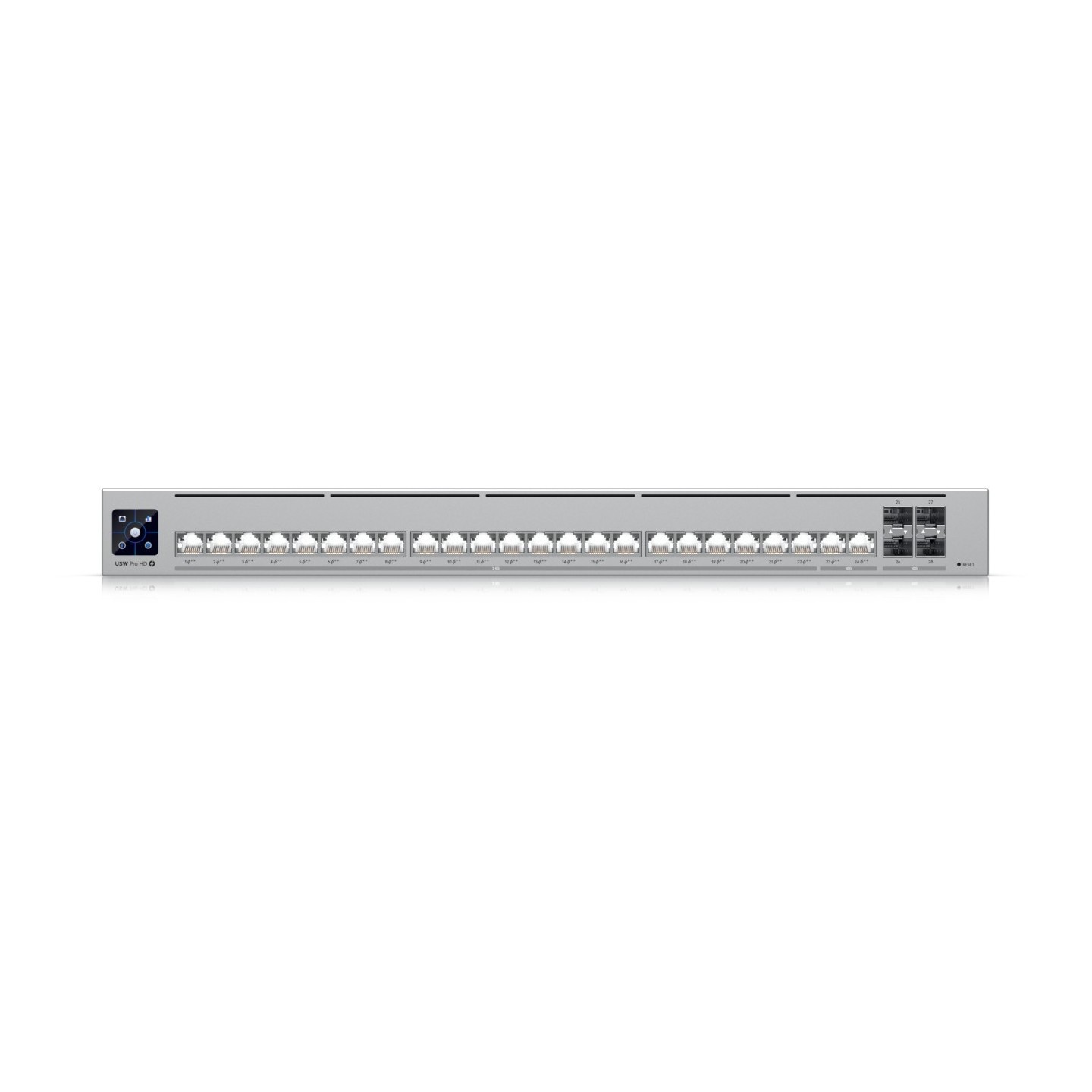

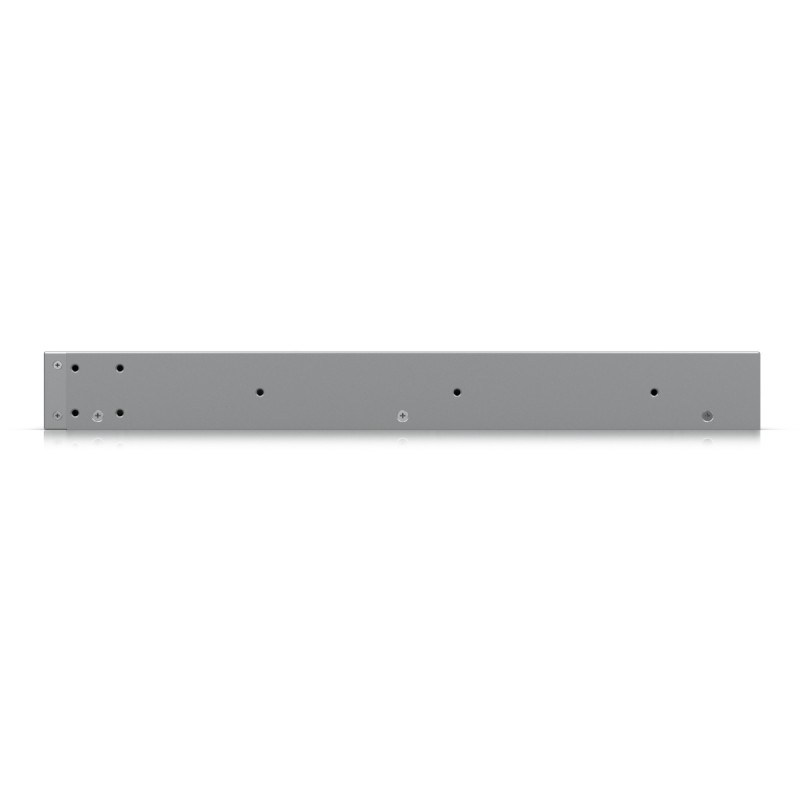

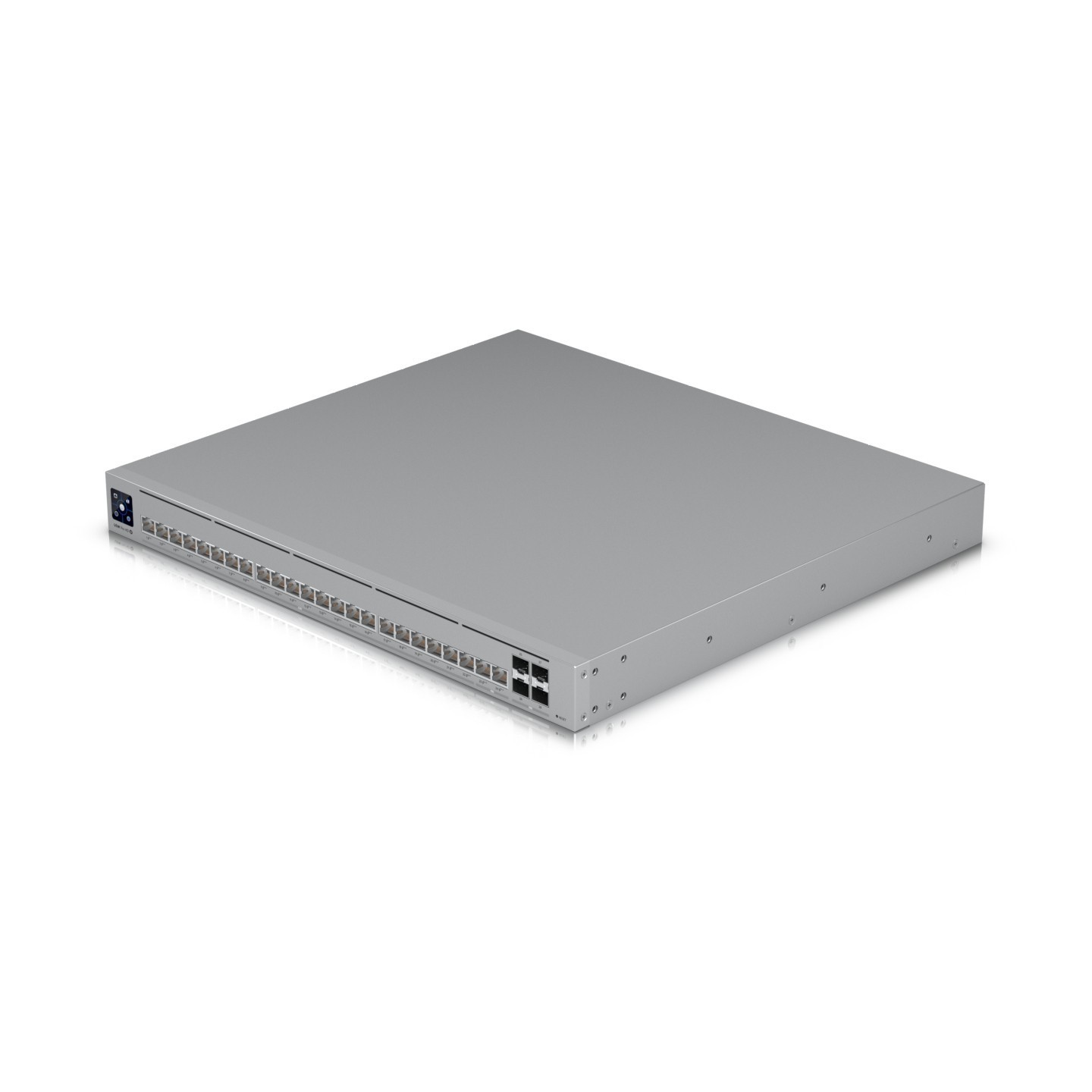

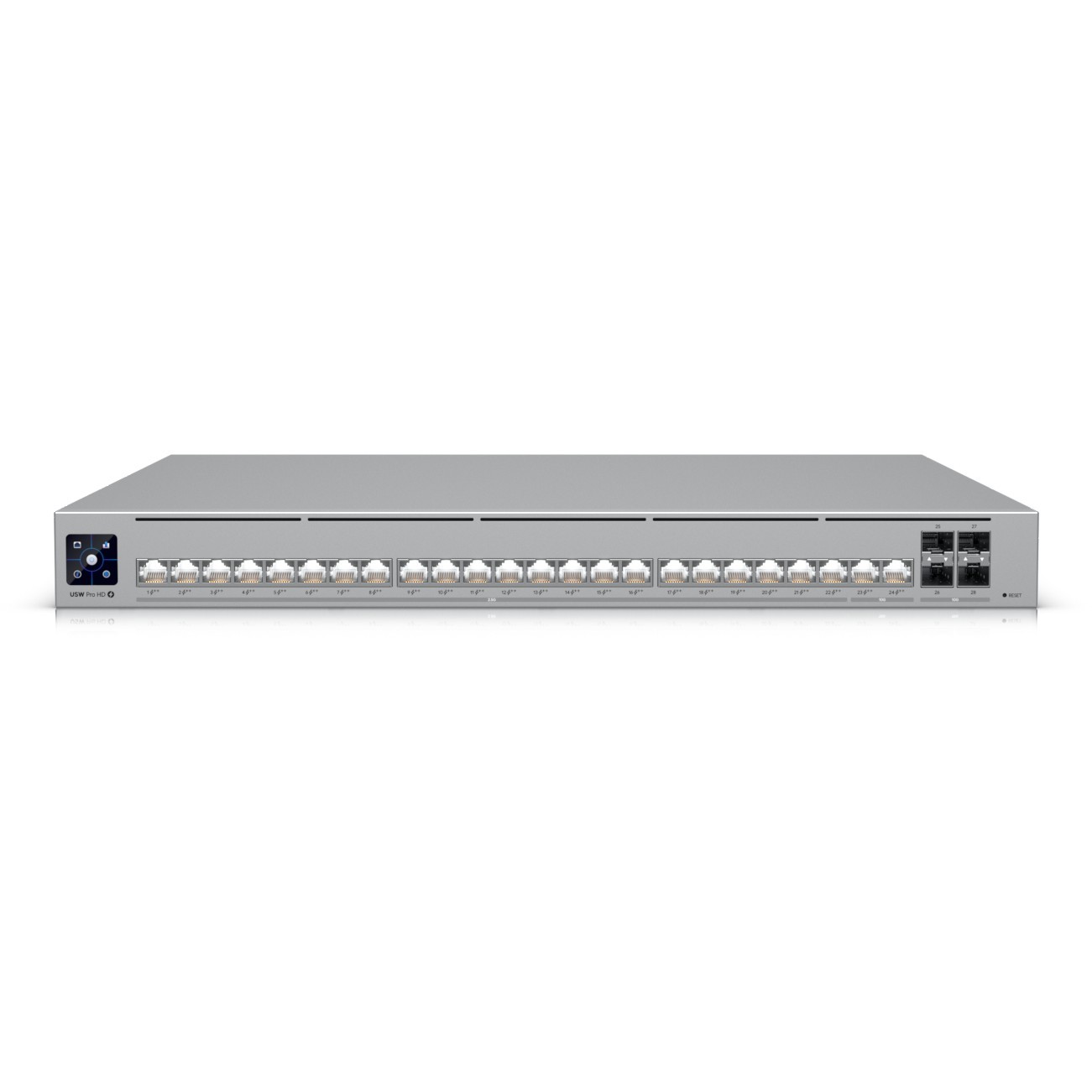

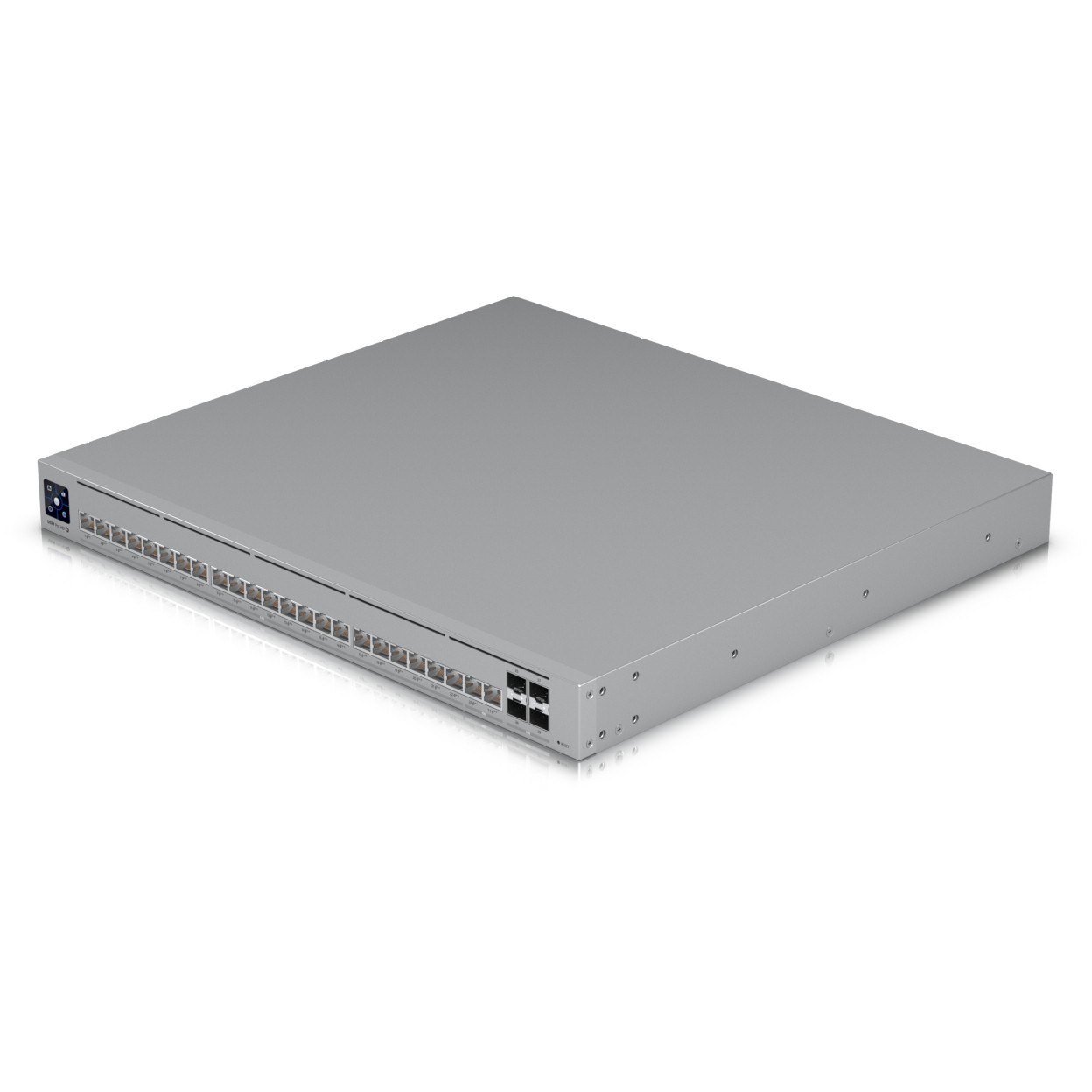

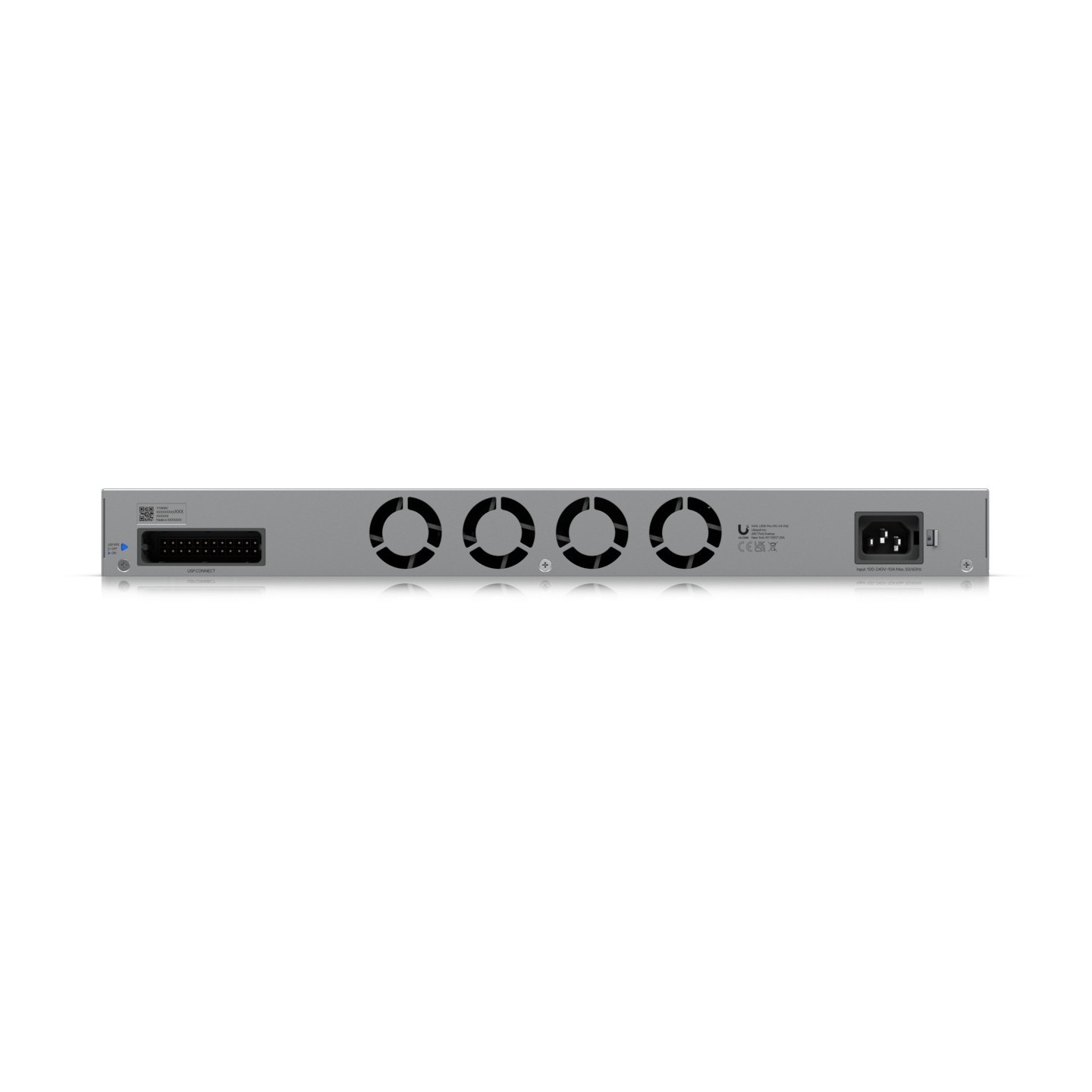

Ubiquiti UniFi Switch Pro HD - USW-Pro-HD-24-PoE - 24-Port Multi‑Gig 2.5G/10G PoE++ Rackmount, Grey
Managed L2/L3 24‑port UniFi Pro HD: 22×2.5G + 2×10G copper, 4×SFP+, 600W PoE budget, 1U rackmount, AC/DC/PoE power, LCM display, IEEE 802.1x
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Multi-Gig (2.5G) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
Ubiquiti UniFi Pro HD 24 PoE. Switch type: Managed. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500). Basic switching RJ-45 Ethernet ports quantity: 22. MAC address table: 32000 entries. Switching capacity: 230 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Rack mount kit |
| Basic switching RJ-45 Ethernet ports quantity | 22 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 22 |
| 10G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 4 |
| Power connector | AC/DC |
| Networking standards | IEEE 802.1x |
| IPv4 routes | 12000 |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 1000 |
| Switching capacity | 230 Gbit/s |
| Throughput | 115 Gbit/s |
| Forwarding rate | 171 Mpps |
| MAC address table | 32000 entries |
| Packet buffer memory | 2 MB |
| DHCP features | DHCP guarding. DHCP relay. DHCP server. DHCP snooping |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| LED indicators | Link. Speed. Status |
| Display type | LCM |
| Power source | AC/DC/PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 60 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 600 W |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 6.2 kg |
| Cables included | Power |
| Compliance certificates | CE. Federal Communications Commission (FCC). Industry Canada (IC) |
