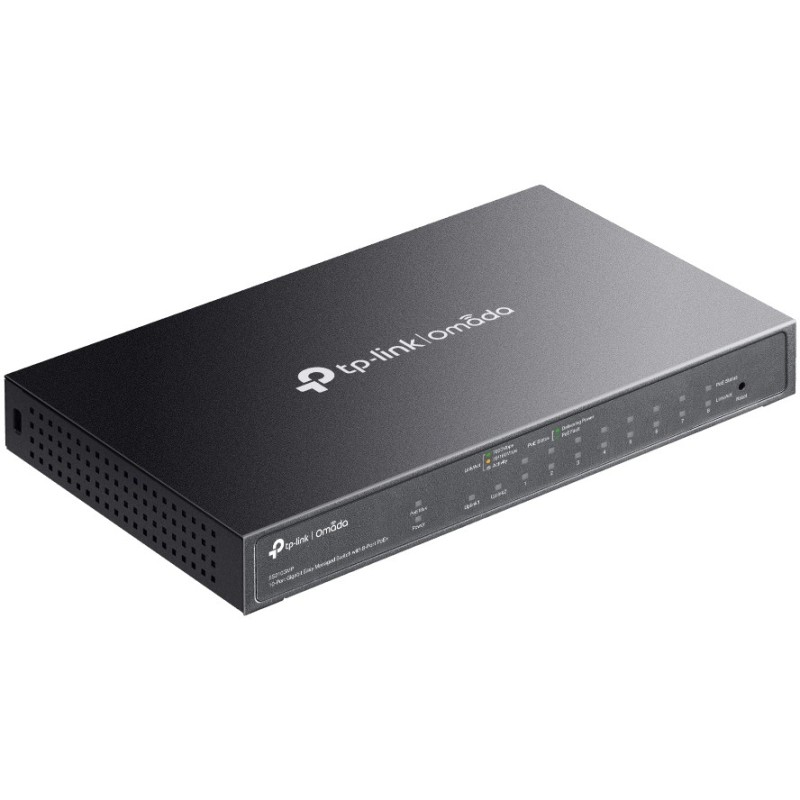

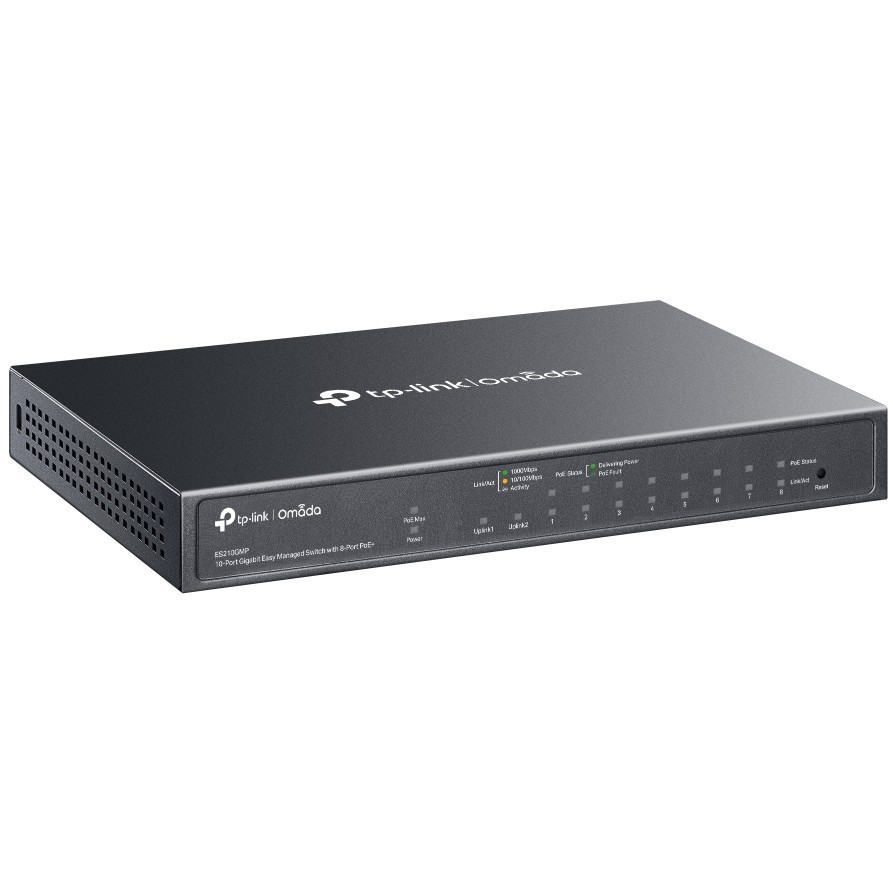

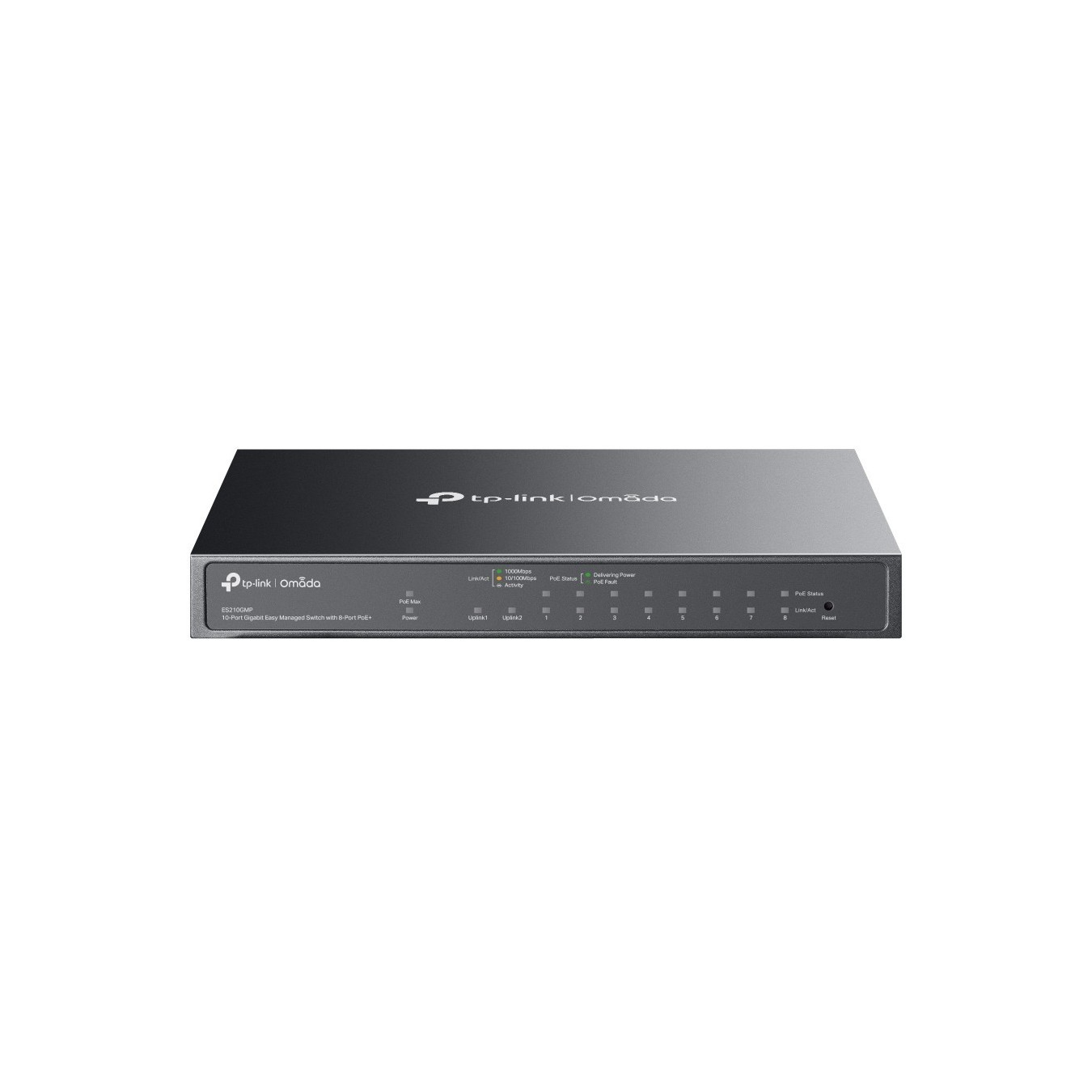

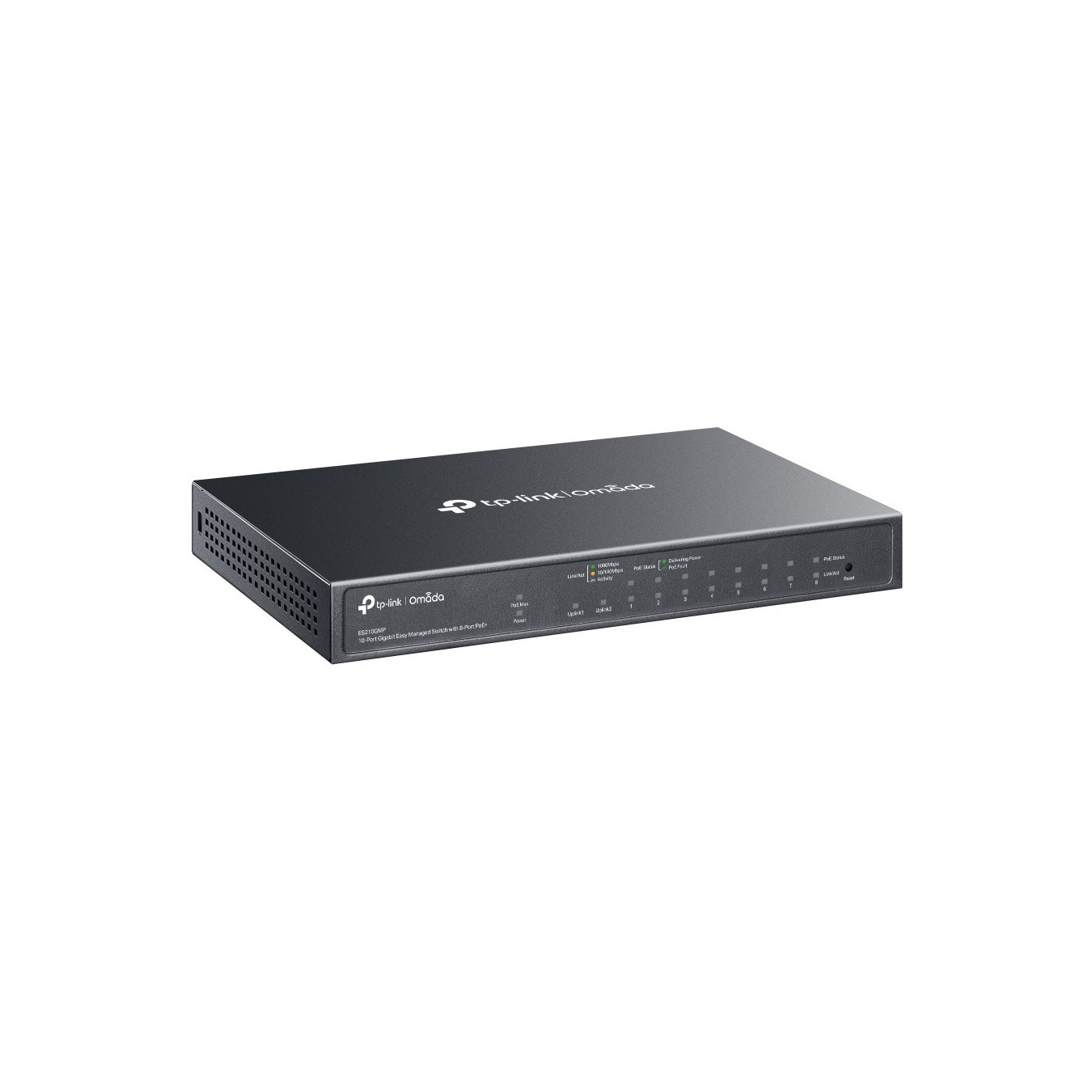

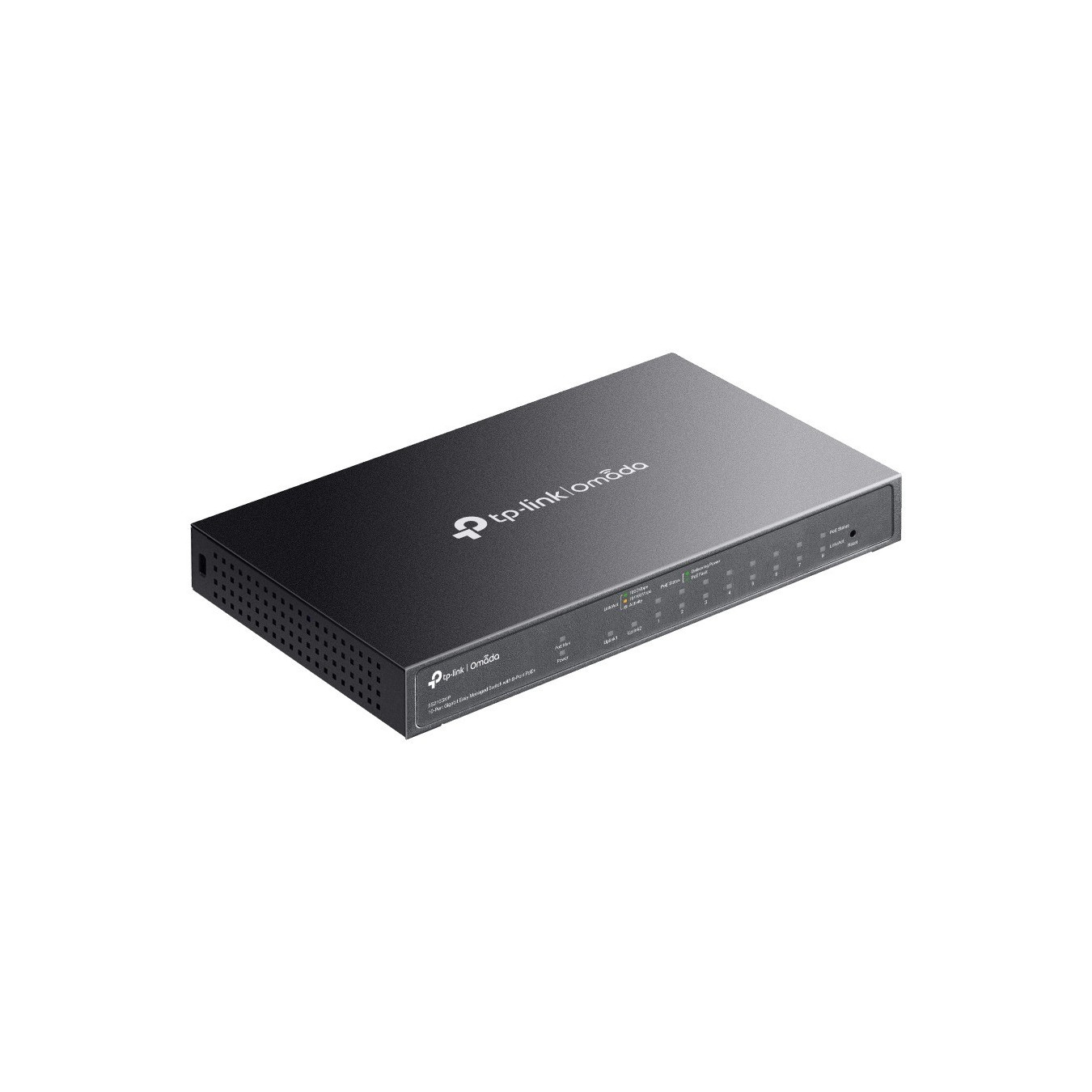

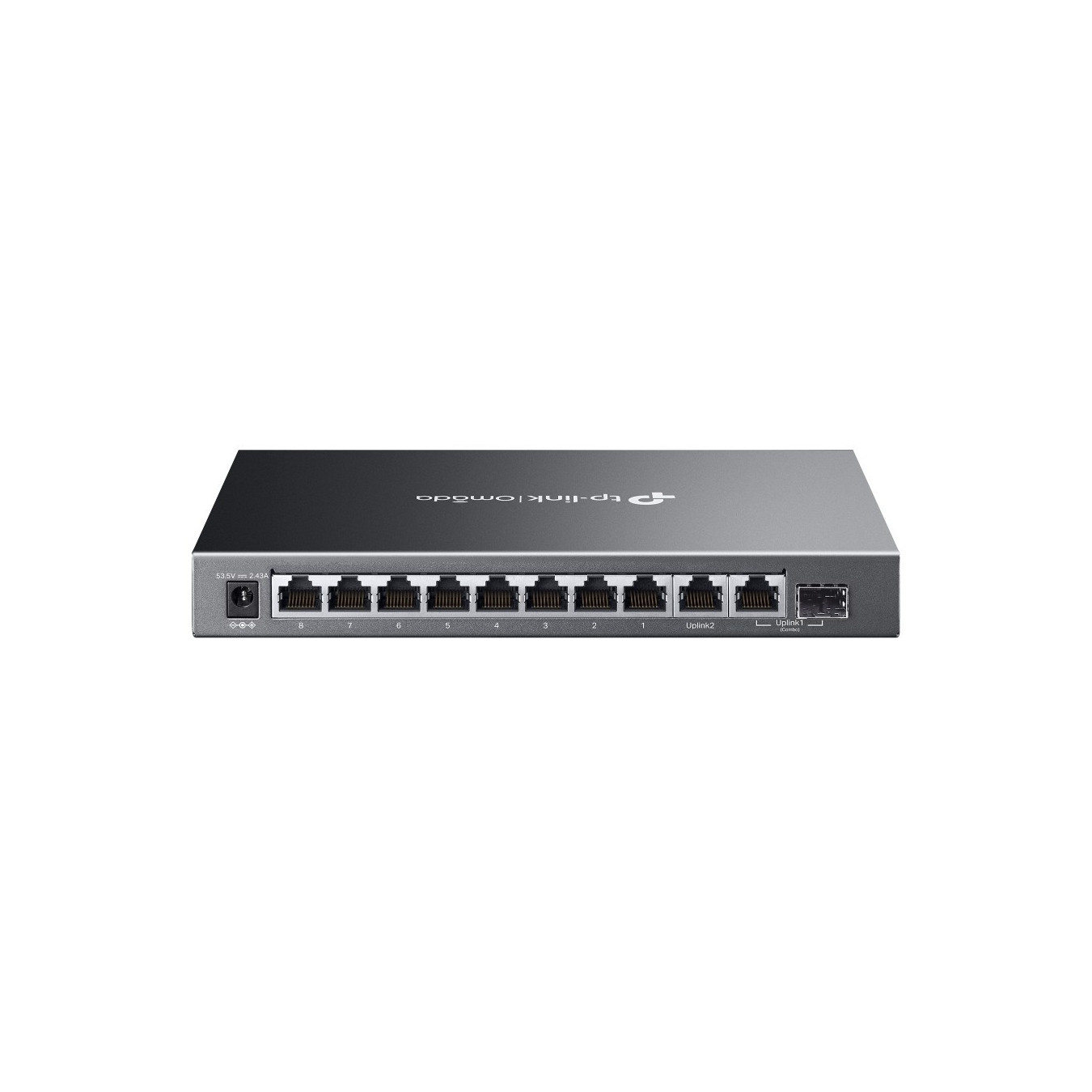

TP-Link Omada ES210GMP - 10-Port Gigabit Easy-Managed Switch, 8x PoE+ (123W), Black
10-port Gigabit Easy-Managed switch with 8 PoE+ ports (30W per port, 123W total), 1 combo SFP, managed features, wall-mountable, DC 53.5V input.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Smart (Web-managed) |
|---|---|
| Network Switches - Ports | 10 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 61-130 W |
| Network Switches - Rackmount | No |
TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries. Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.3af. IEEE 802.3at. IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
| Switch type | Managed |
| Feature | User guide |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| Networking standards | IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.3af. IEEE 802.3at. IEEE 802.3x |
| Virtual LAN features | MTU VLAN. Port-based VLAN. Tagged VLAN |
| Transmission distance (max) | 0.25 km |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 15 |
| Packet buffer memory | 4 MB |
| DHCP features | DHCP client |
| Product colour | Black |
| Power source | DC |
| DC input voltage | 53.5 V |
| Input current | 2.43 A |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 123 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
| Cables included | AC |
| Package type | Box |
| Compliance certificates | CE. Federal Communications Commission (FCC). RoHS |
