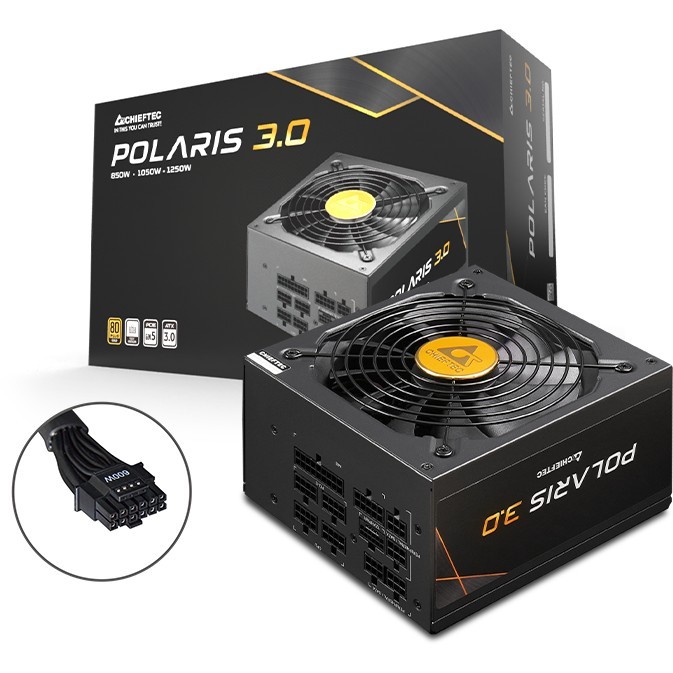

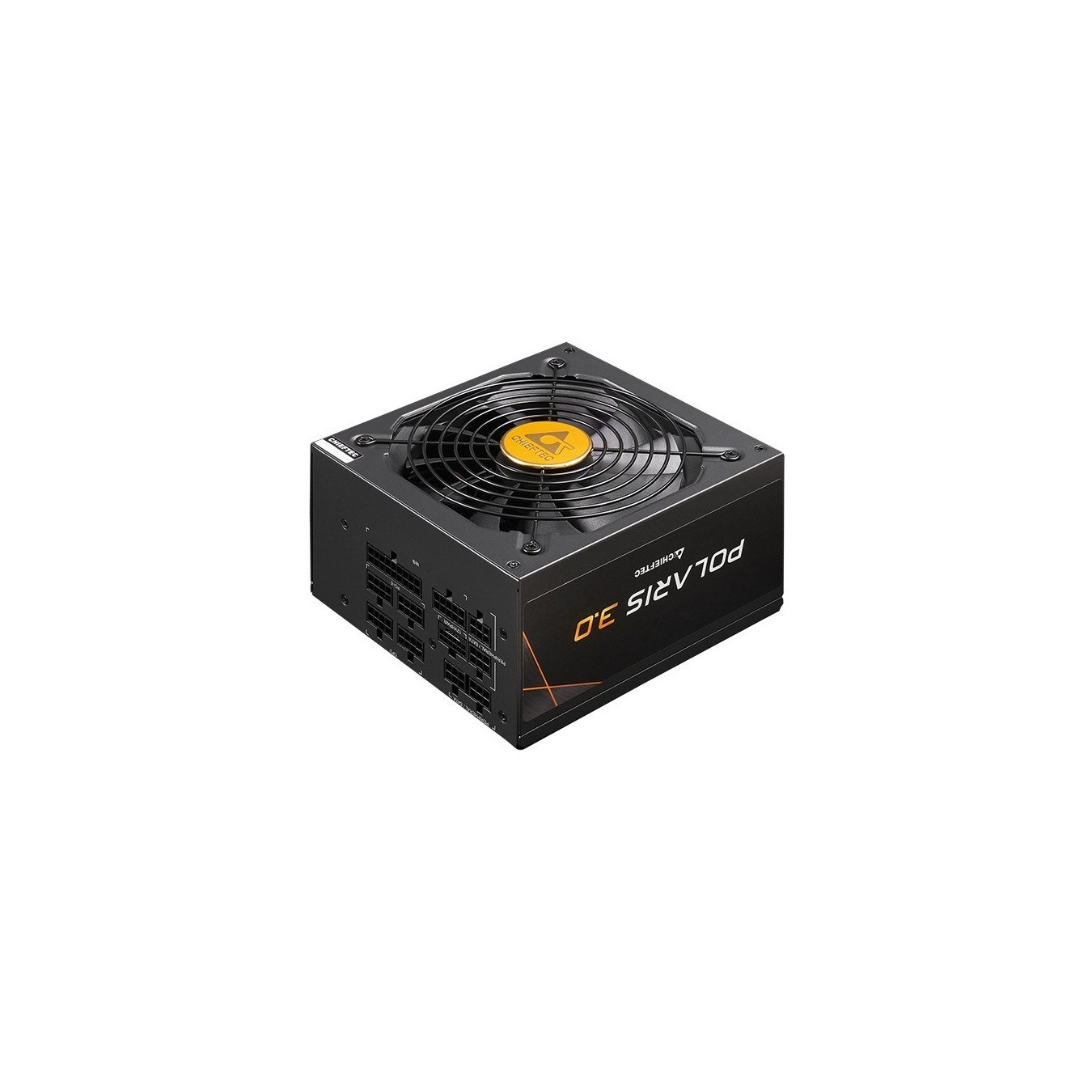

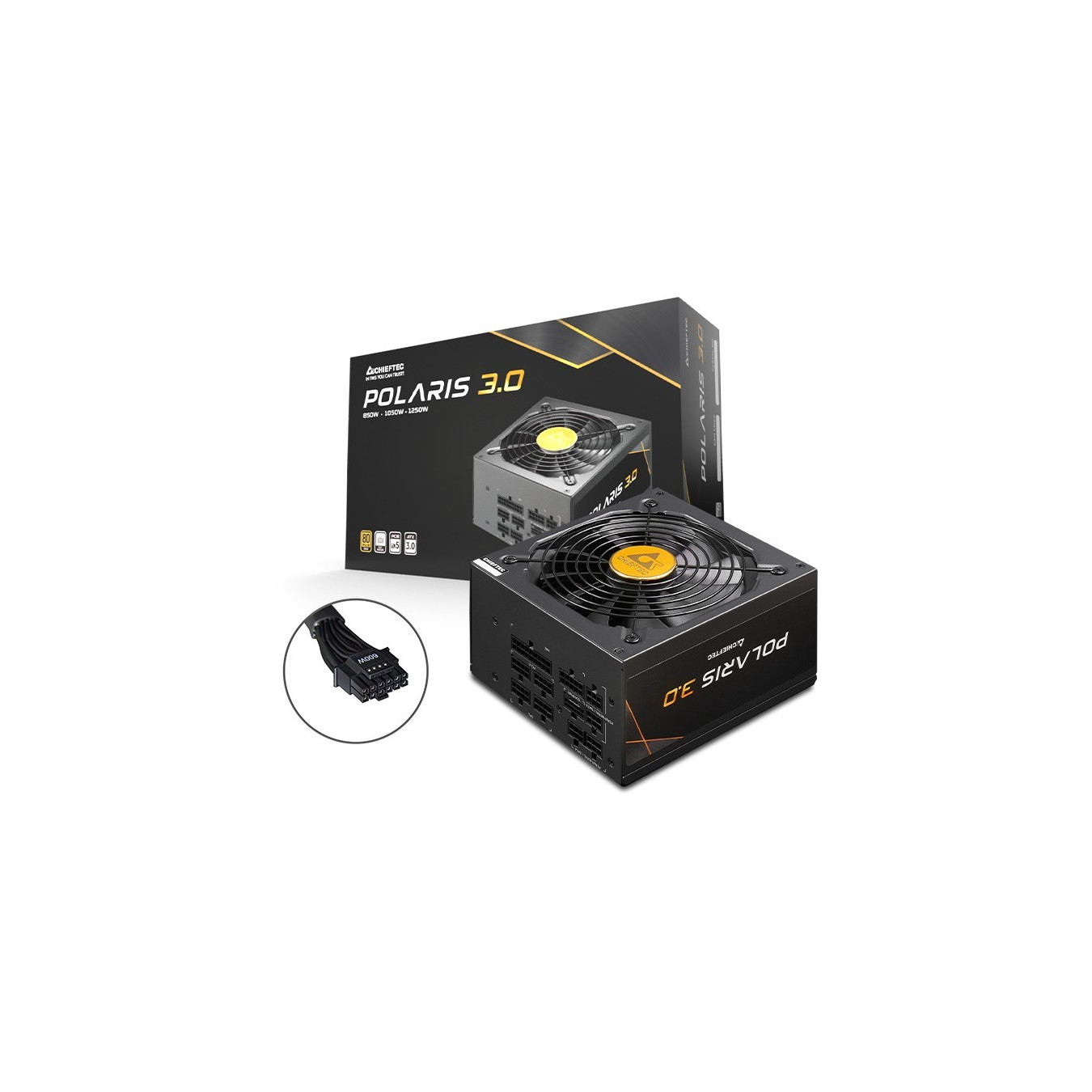

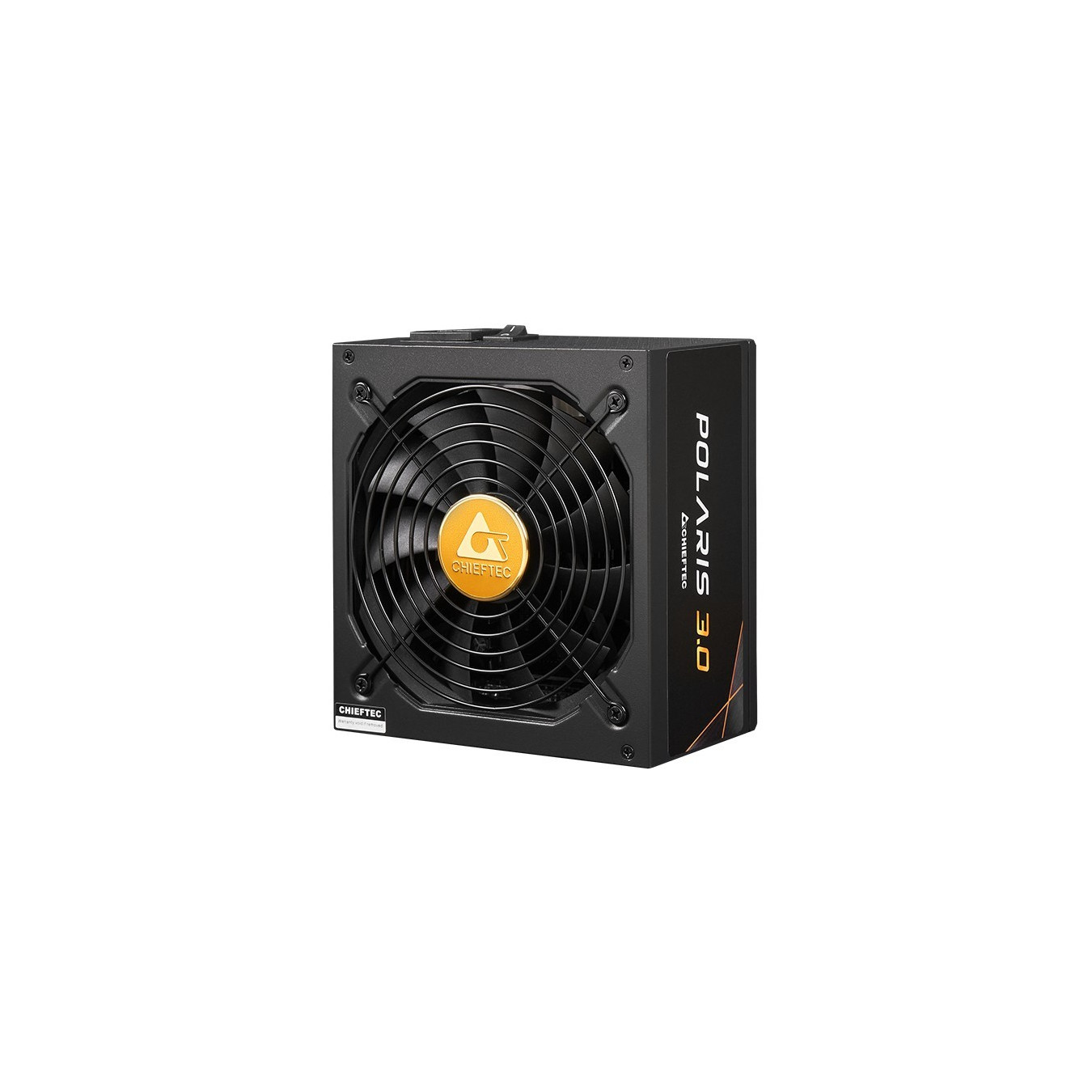

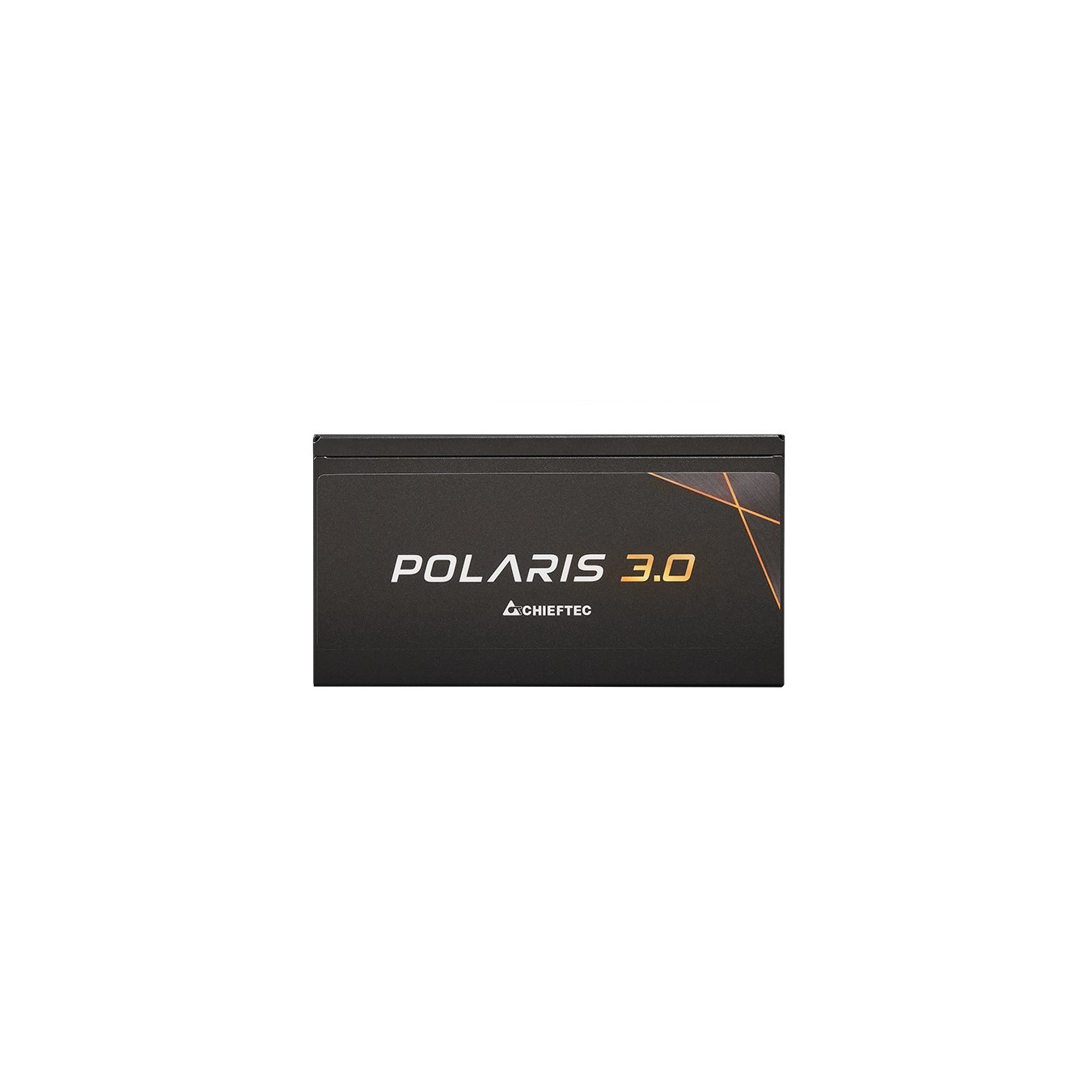

Chieftec POLARIS 3.0 - 1050W ATX 3.0 PSU, 80 PLUS Gold, Fully-Modular, Black
1050W Chieftec POLARIS 3.0 ATX 3.0 PSU — 80 PLUS Gold, fully-modular, 4×6+2 PCIe, 1×16-pin 12VHPWR, 12 SATA, 135mm FDB fan, multi-protection, 5-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Fully modular |
|---|---|
| PSU (Power Supplies) - Length | 141-160 mm |
Chieftec Polaris 3.0 1050W. Total power: 1050 W. AC input voltage: 100 - 240 V. AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 65 cm. SATA power cable length: 100.550 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 13.5 cm. Compliance certificates: RoHS. Federal Communications Commission (FCC). EAC. CB. CE
| Total power | 1050 W |

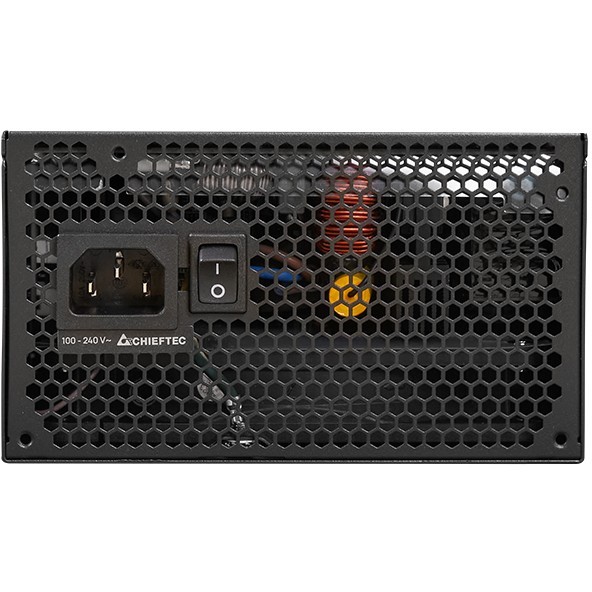

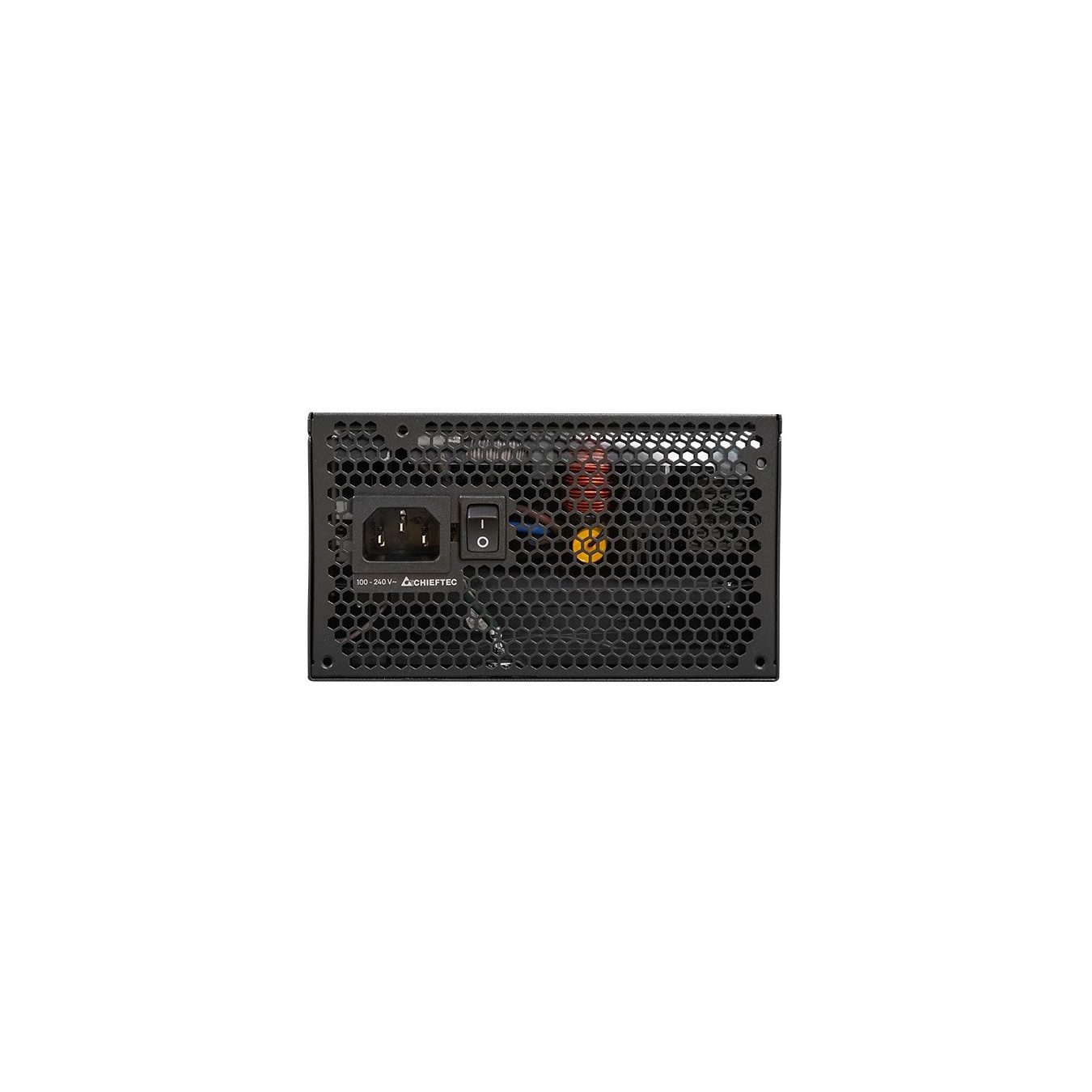

| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15-8 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 87.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current. Over power. Over voltage. Overload. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 100.550 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 100.550 mm |
| Feature | Sustainability compliance |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |

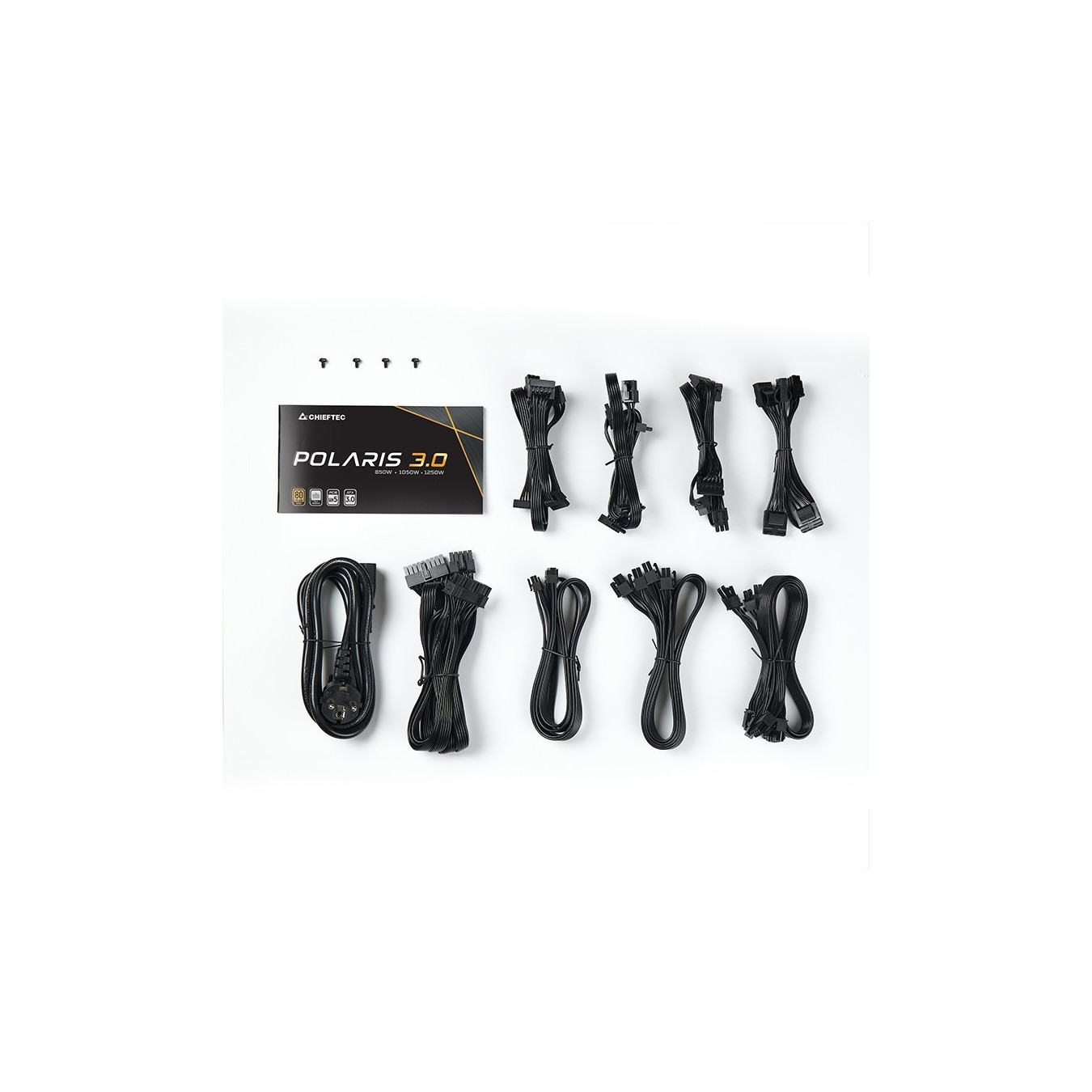

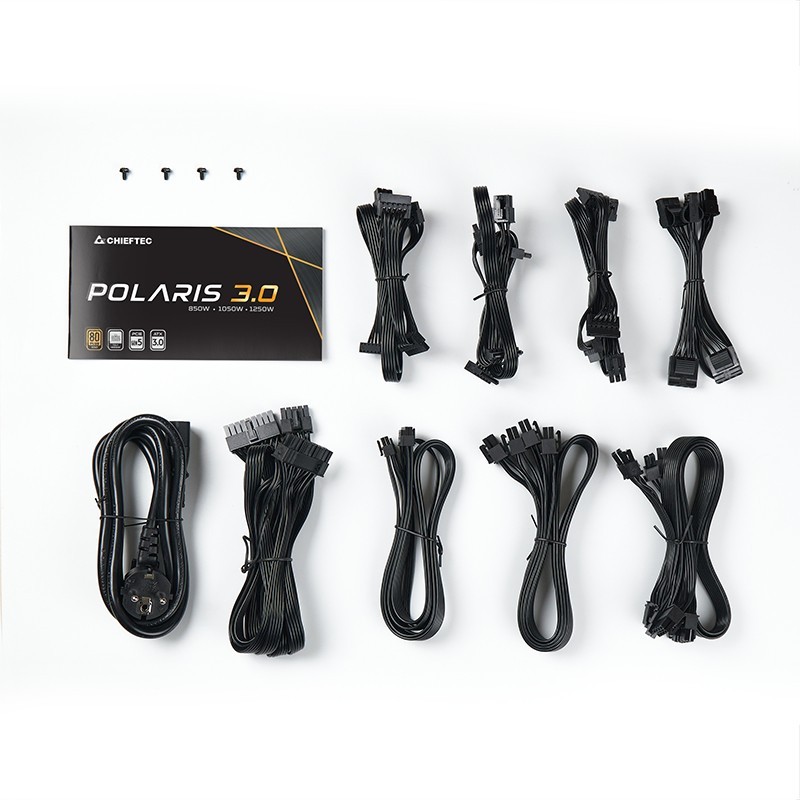

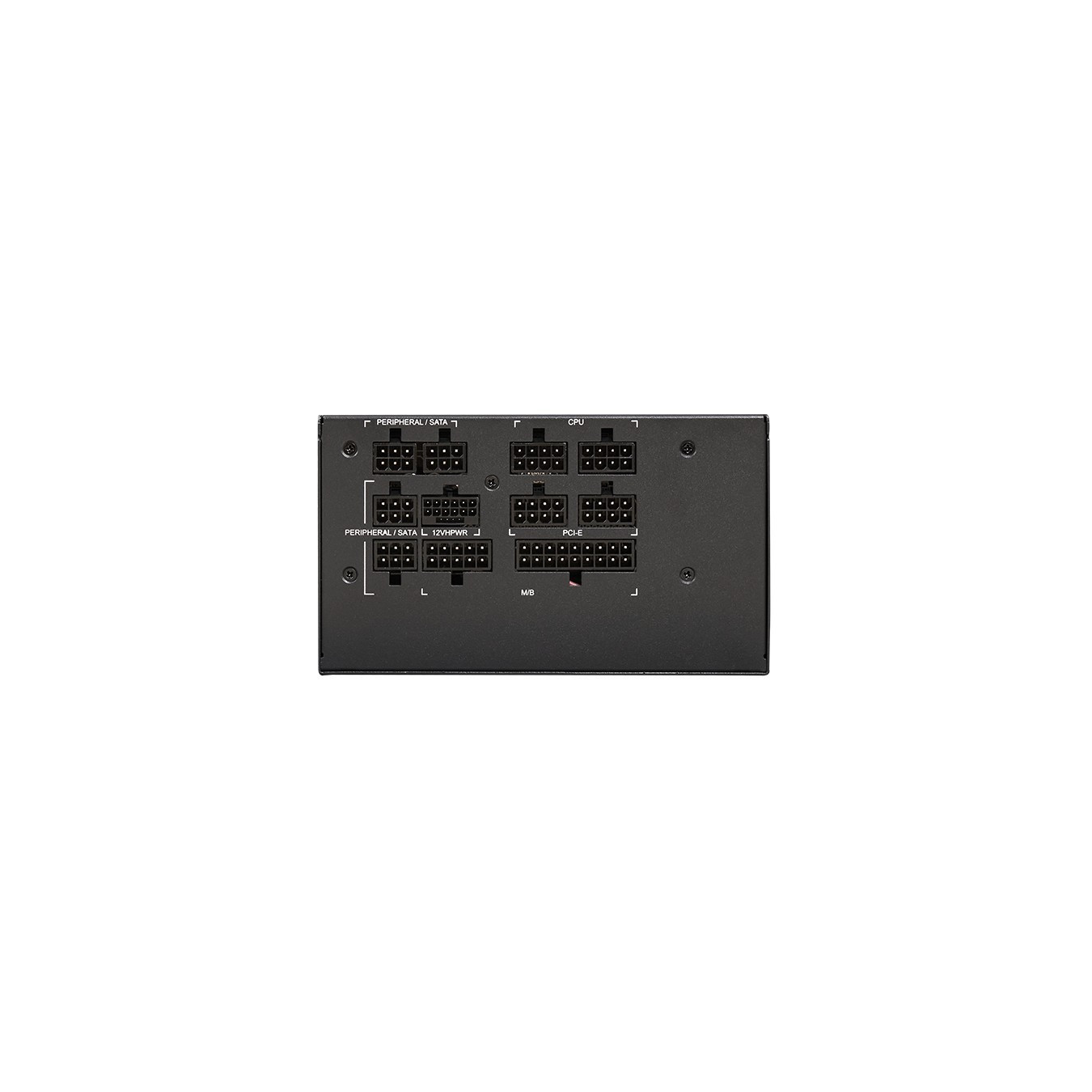

| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Bearing technology | FDB |
| Product colour | Black |
| Cooling type | Active |

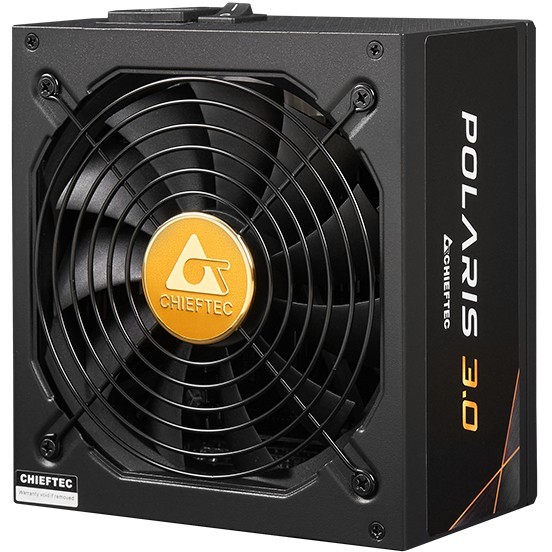

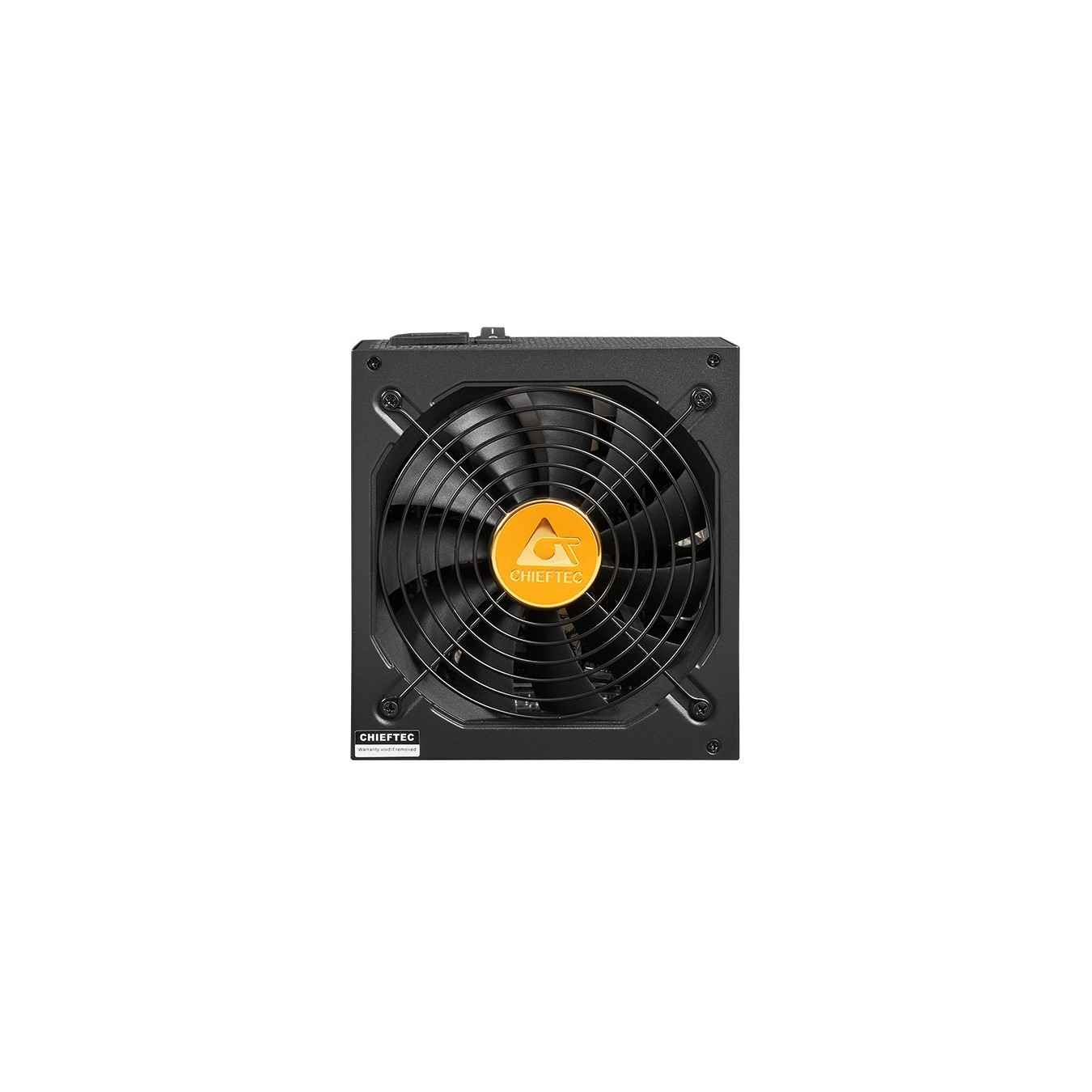

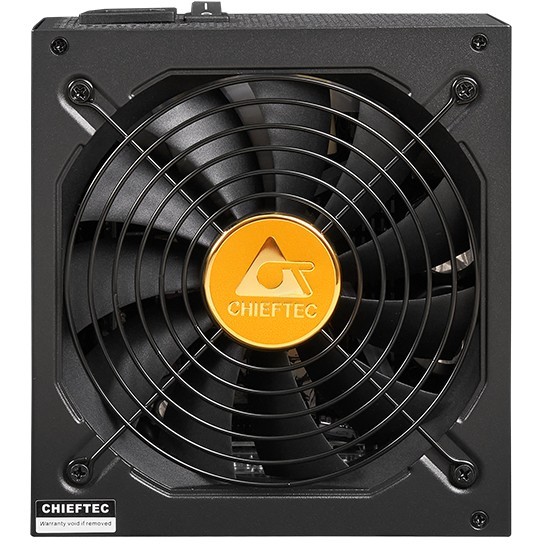

| Fan diameter | 13.5 cm |
| Compliance certificates | RoHS. Federal Communications Commission (FCC). EAC. CB. CE |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 3 kg |
| Package weight | 3.34 kg |
| Package type | Box |
| Warranty period | 5 year(s) |
