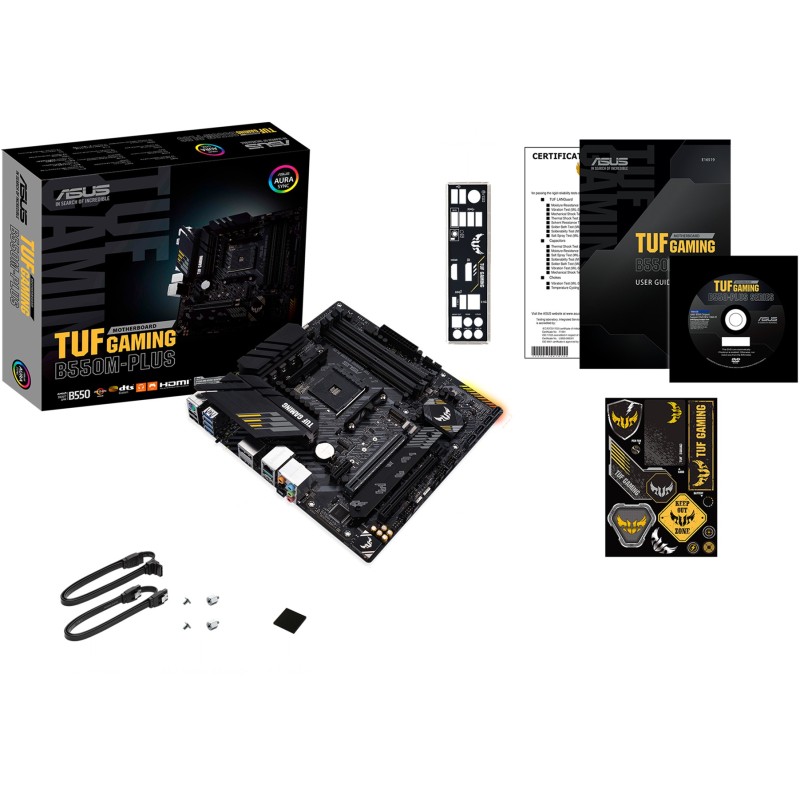

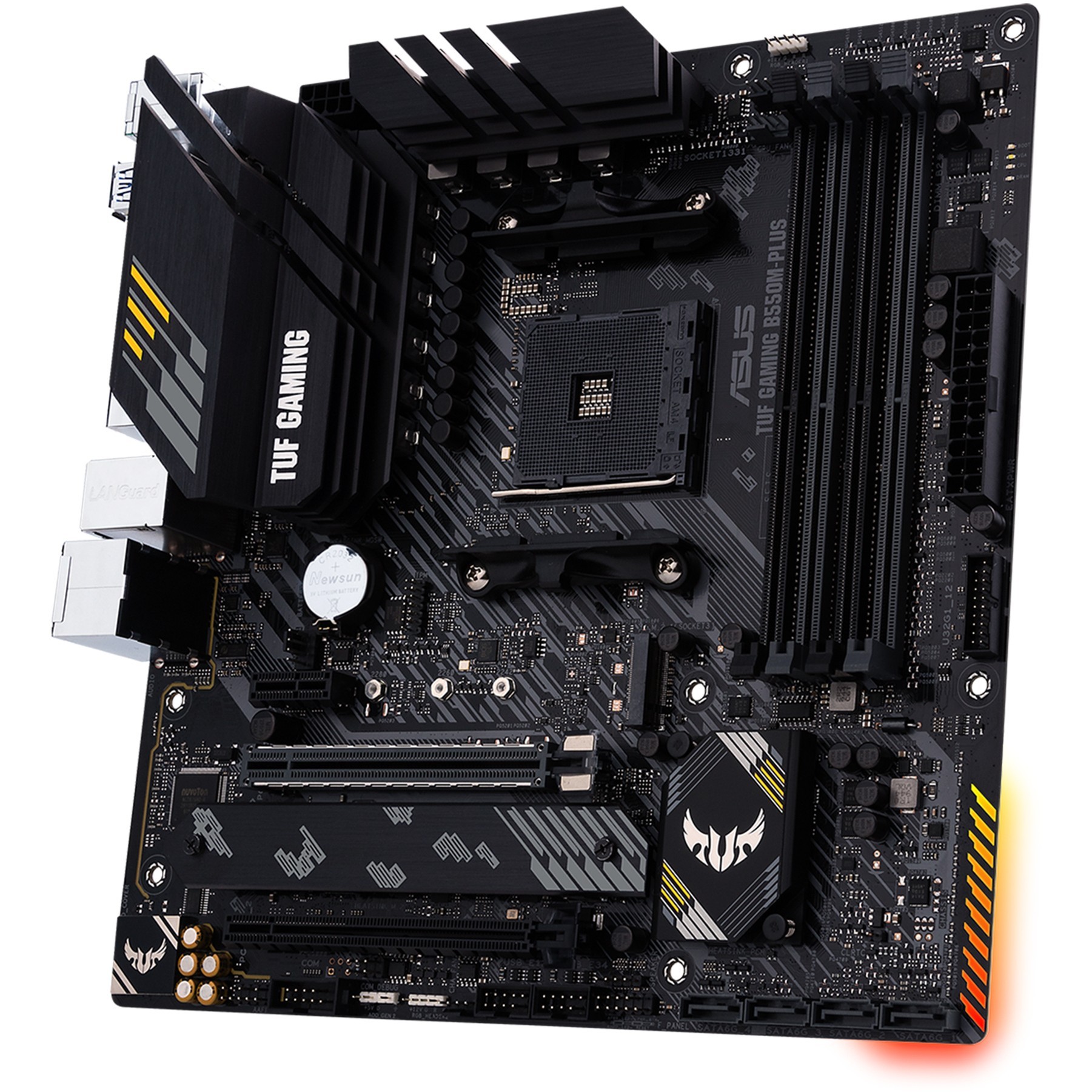

ASUS TUF Gaming B550M-PLUS - micro-ATX AM4 Motherboard, DDR4 (128GB), PCIe 4.0, M.2 & SATA
ASUS TUF Gaming B550M-PLUS micro-ATX AM4 motherboard for AMD Ryzen 3000; B550 chipset, 4x DIMM DDR4 up to 128GB, PCIe 4.0, M.2 + 4x SATA, rear USB-C (2), HDMI, DP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Socket | AM4 |
|---|---|
| Motherboards - Chipset | AMD B550 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - SATA Ports | 4 |

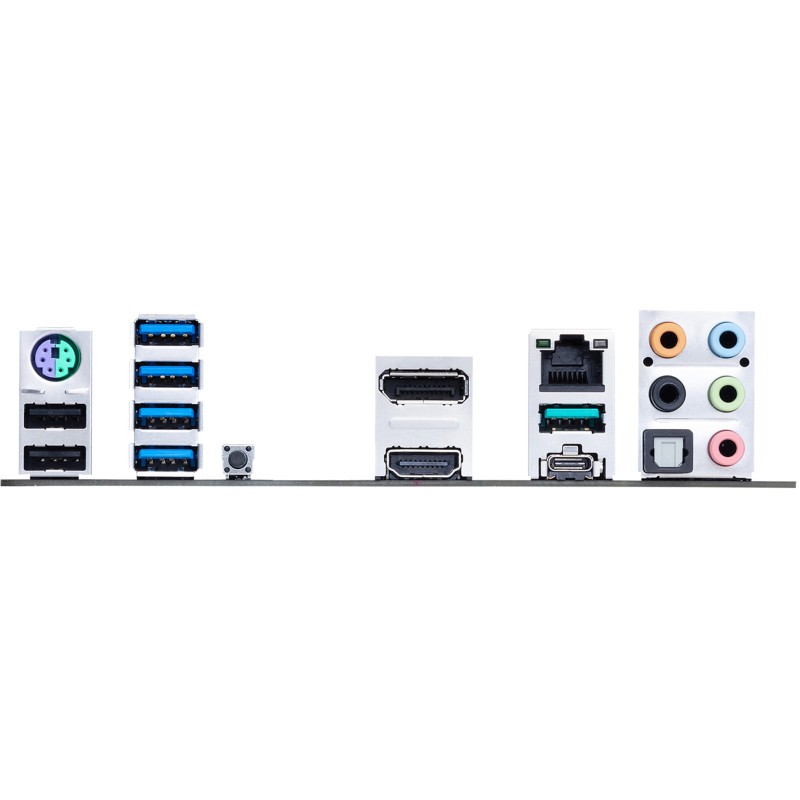

| Motherboards - USB-C | Rear Type-C |
ASUS TUF GAMING B550M PLUS. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA. Parallel processing technology support: 2-Way CrossFireX. Component for: PC. Motherboard form factor: micro ATX. Motherboard chipset family: AMD
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 2133.2400.2666.2800.3000.3200.3333.3466.3600.3733.3866.4000.4133.4266.4400.4600 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive interfaces | M.2. SATA |
| Parallel processing technology support | 2-Way CrossFireX |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA connectors | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 5 |
| Feature | Ethernet LAN |
| Motherboard chipset | AMD B550 |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| BIOS type | UEFI |
| Harmonized System (HS) code | 84733020 |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 67 mm |
| Weight | 845 g |
