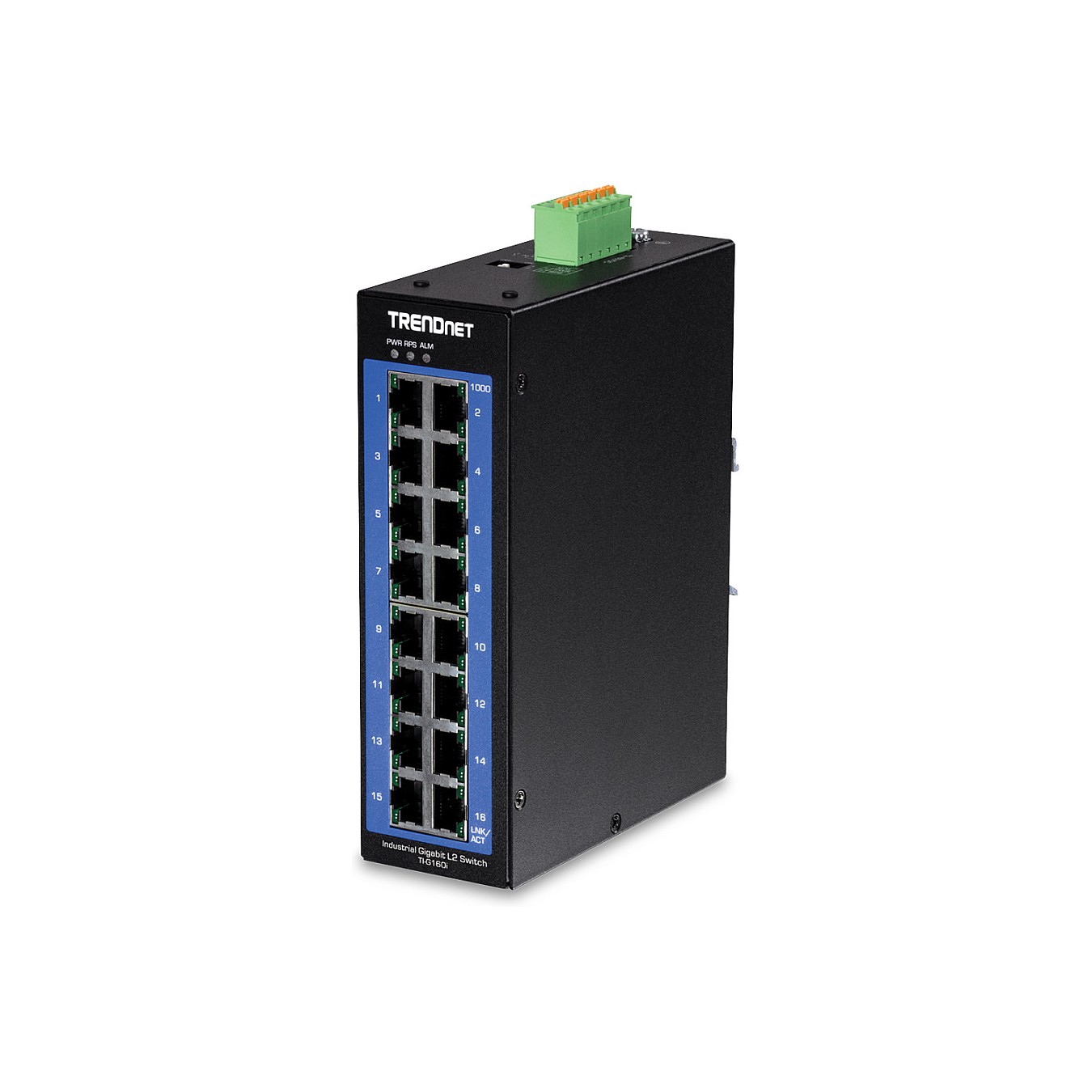

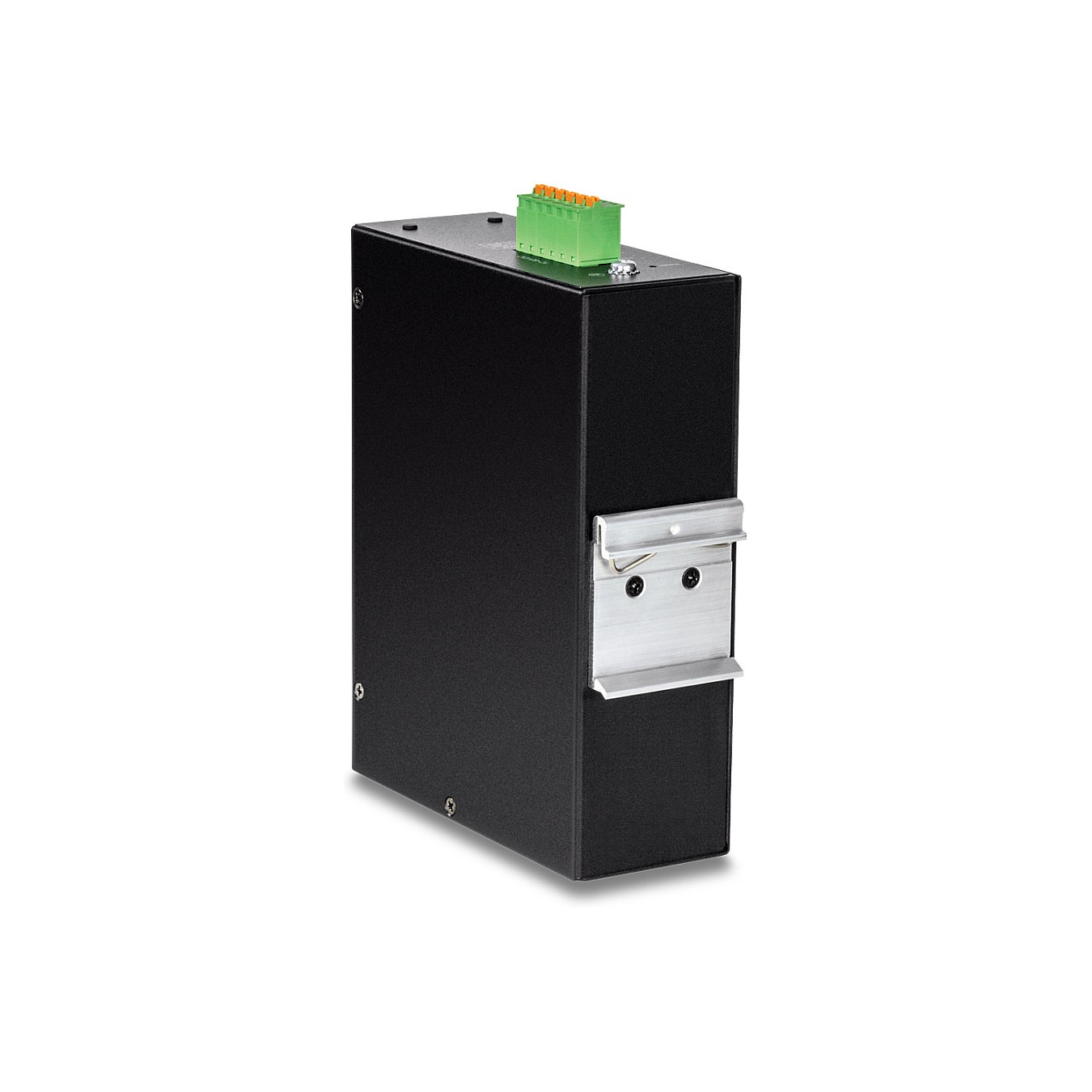

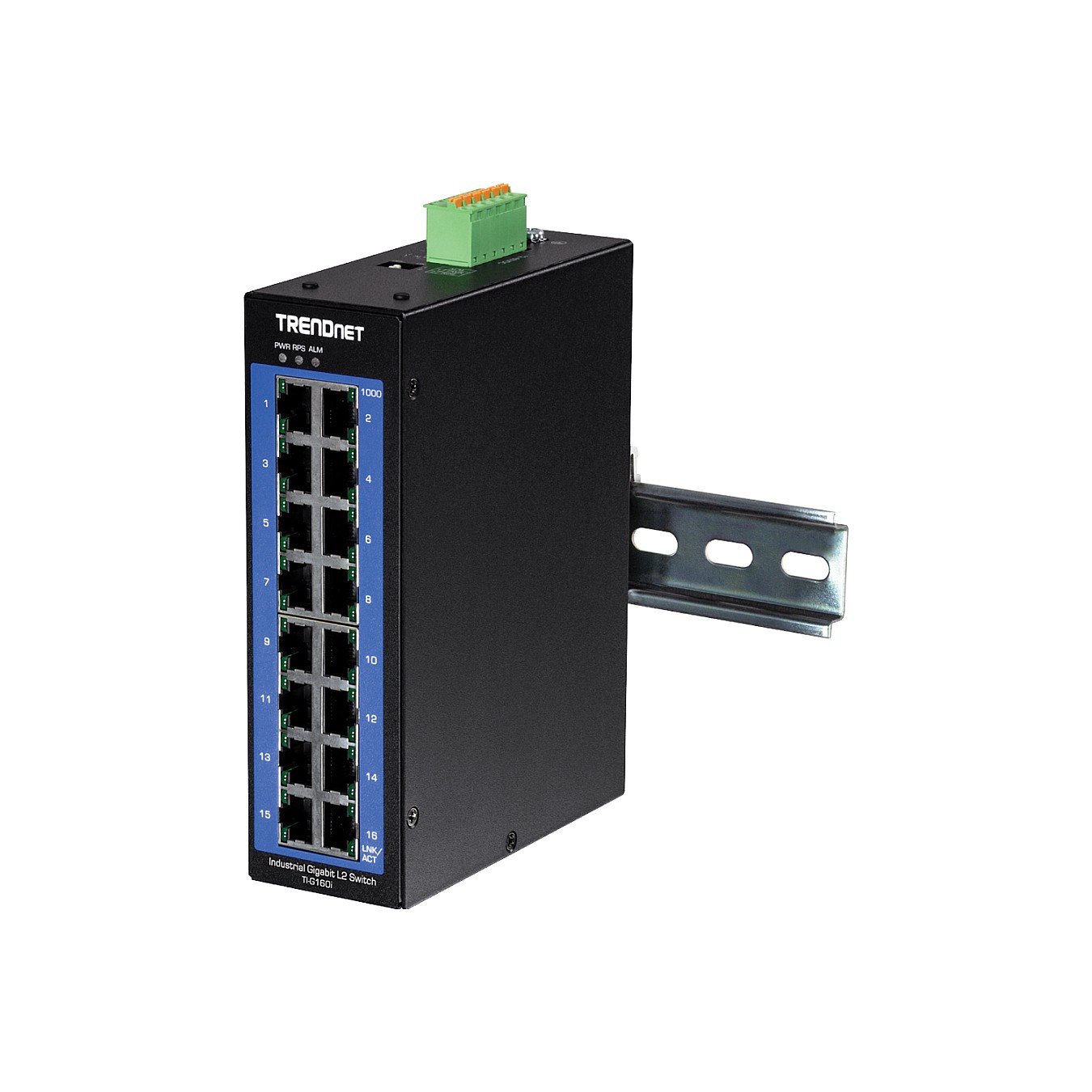

TRENDnet TI-G160i 16Port DIN-Rail Switch Industrial Gigabit L2 Managed
Trendnet TI-G160i, Managed, L2, Gigabit Ethernet (10/100/1000), Vollduplex
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Trendnet TI-G160i. Switch-Typ: Managed, Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 16. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen, Routing-/Switching-Kapazität: 32 Gbit/s. Netzstandard: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input Spannung: 12 - 60 V
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Quality of Service (QoS) Support | Ja |
| Web-basiertes Management | Ja |
| Systemereignisprotokoll | Ja |
| MIB Unterstützung | II RFC 1213, RFC 1493 |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 16 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Netzstandard | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G-Unterstützung | Nein |
| Port-Spiegelung | Ja |
| Vollduplex | Ja |
| Link Aggregation | Ja |
| Broadcast-Sturmkontrolle | Ja |
| Spannbaum-Protokoll | Ja |
| VLAN-Unterstützung | Ja |
| Virtuelle LAN-Funktionen | MAC address-based VLAN, Tagged VLAN |
| Anzahl der VLANs | 4094 |
| Routing-/Switching-Kapazität | 32 Gbit/s |
| Transferrate | 23,8 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Store-and-Forward | Ja |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 10000 |
| Datenpaket-Pufferspeicher | 128 MB |
| DHCP-Funktionen | DHCP relay, DHCP server, DHCP snooping |
| Zugriffkontrollliste | Ja |
| IGMP-Snooping | Ja |
| Unterstützte Sicherheitsalgorithmen | SNMP, SNMPv3, SSH-2 |
| BPDU-Filterung/Schutz | Ja |
| Warteschleifenplanungs-Algorithmen | SP, WFQ, Weighted Round Robin (WRR) |
| Multicast Unterstützung | Ja |
| Multicast MAC-Adresstabelle | 256 Eintragungen |
| Rack-Einbau | Nein |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| LED-Anzeigen | Ja |
| Internationale Schutzart (IP-Code) | IP30 |
| DIN-Schienen-Montage | Ja |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 1072674 h |

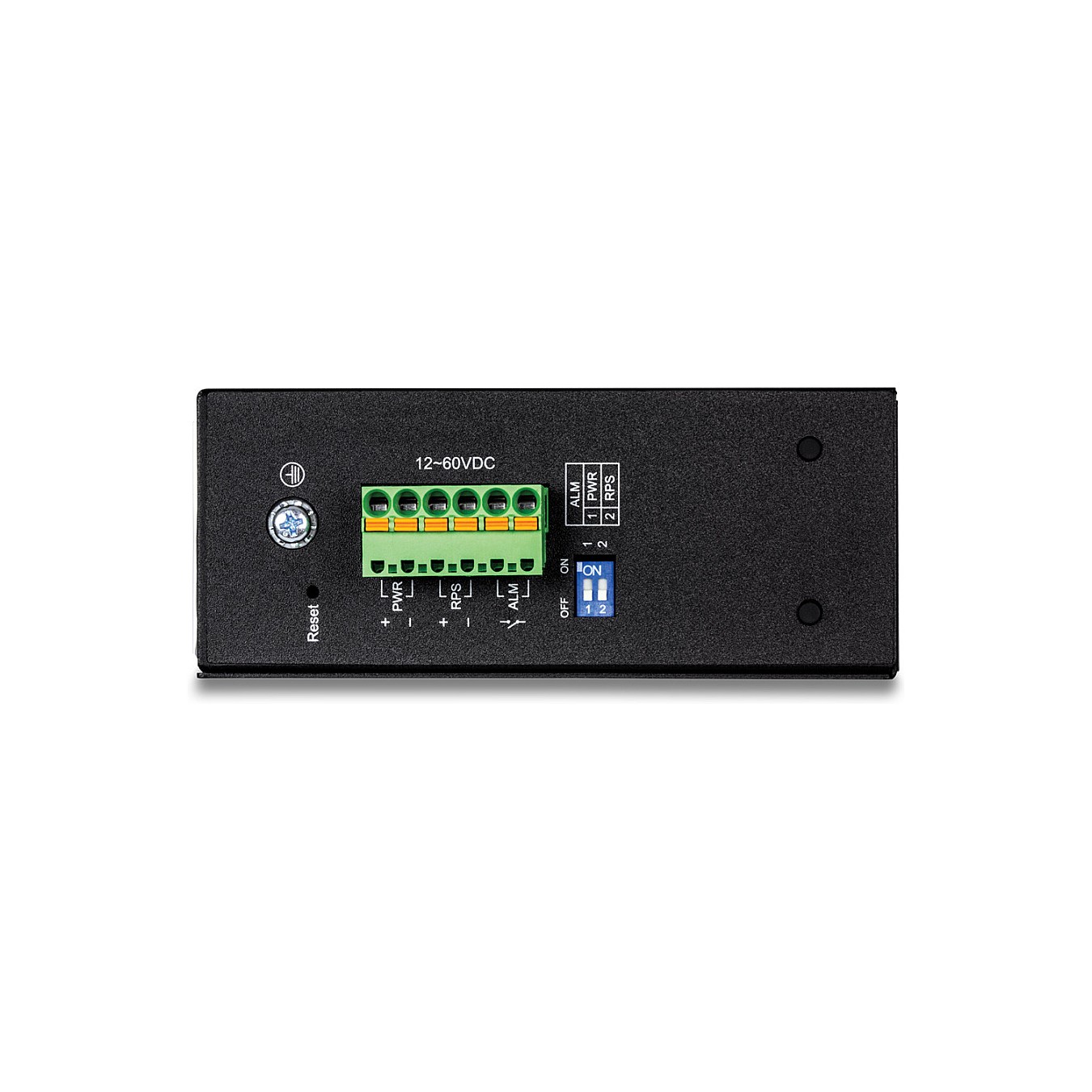

| DC input Spannung | 12 - 60 V |
| Stromverbrauch (max.) | 12 W |
| Power over Ethernet (PoE) | Nein |
| Betriebstemperatur | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Breite | 160 mm |
| Tiefe | 120 mm |
| Höhe | 50 mm |
| Gewicht | 884 g |
| Schnellstartübersicht | Ja |
| Zertifizierung | CE, FCCIEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| Warentarifnummer (HS) | 85176990 |
