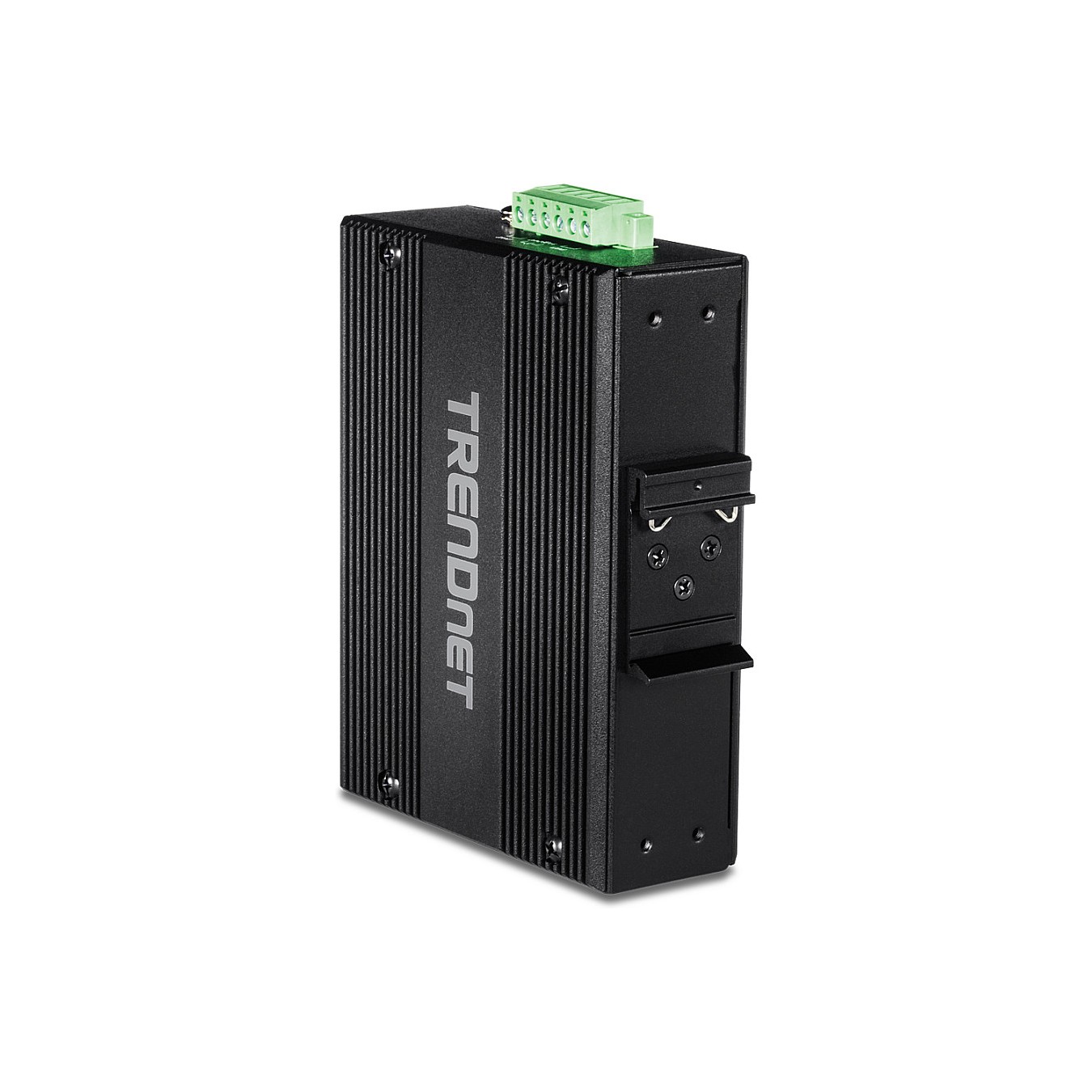

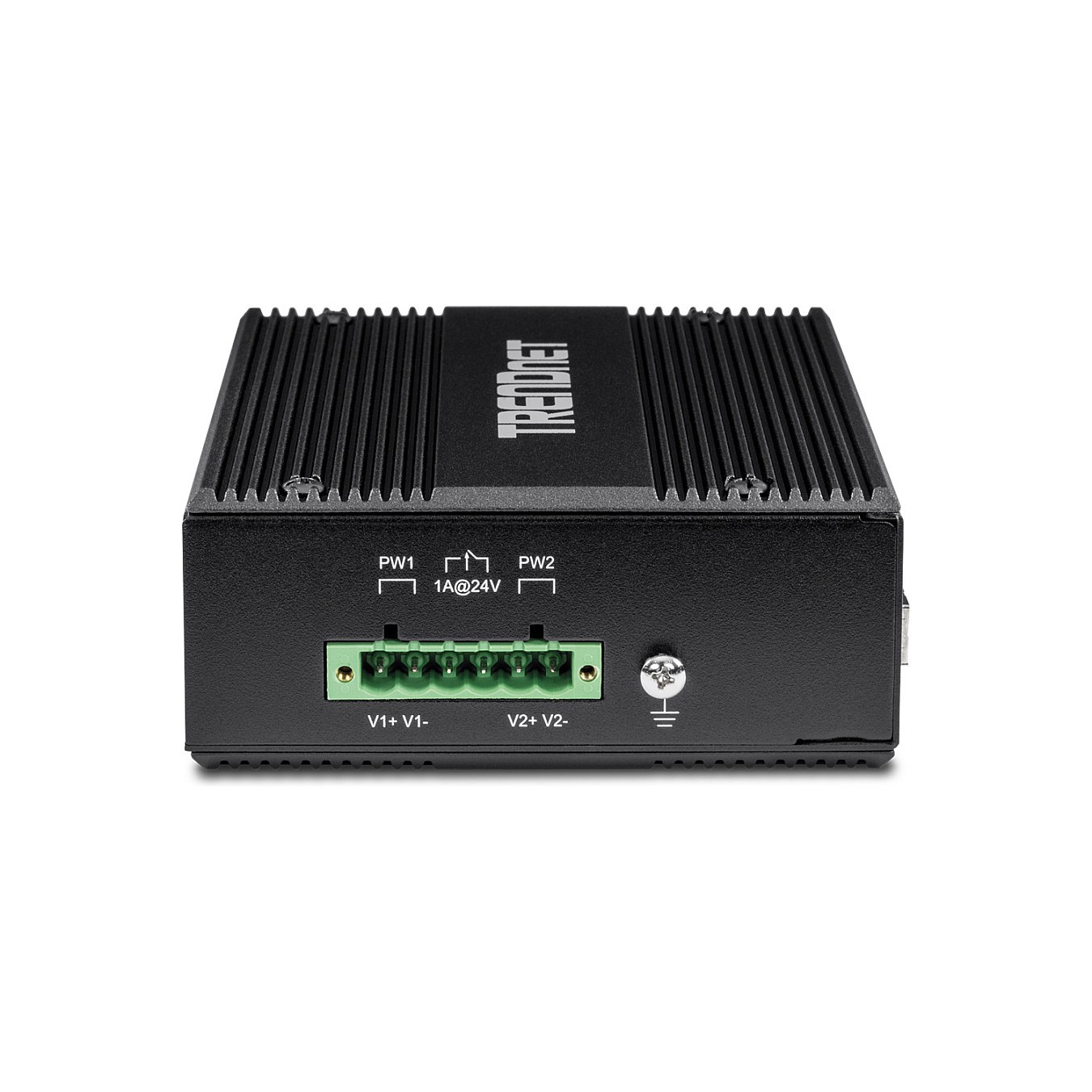

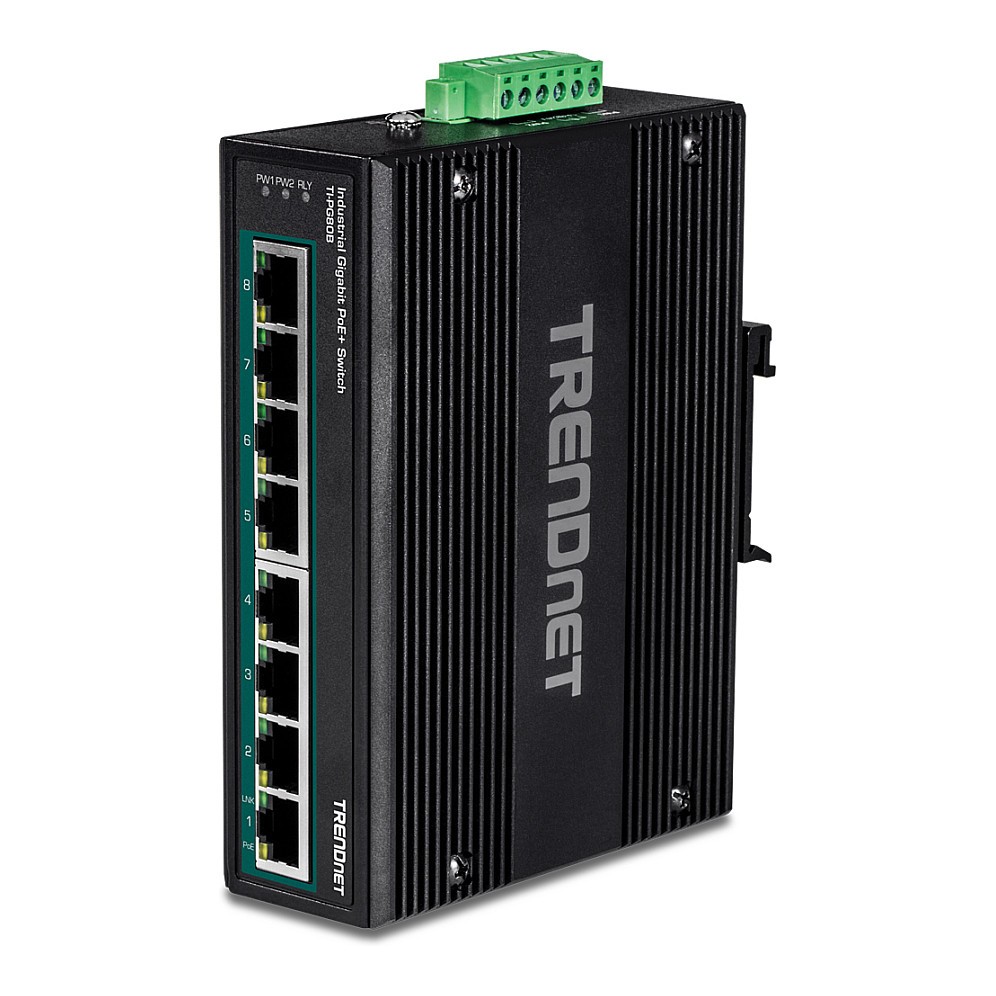

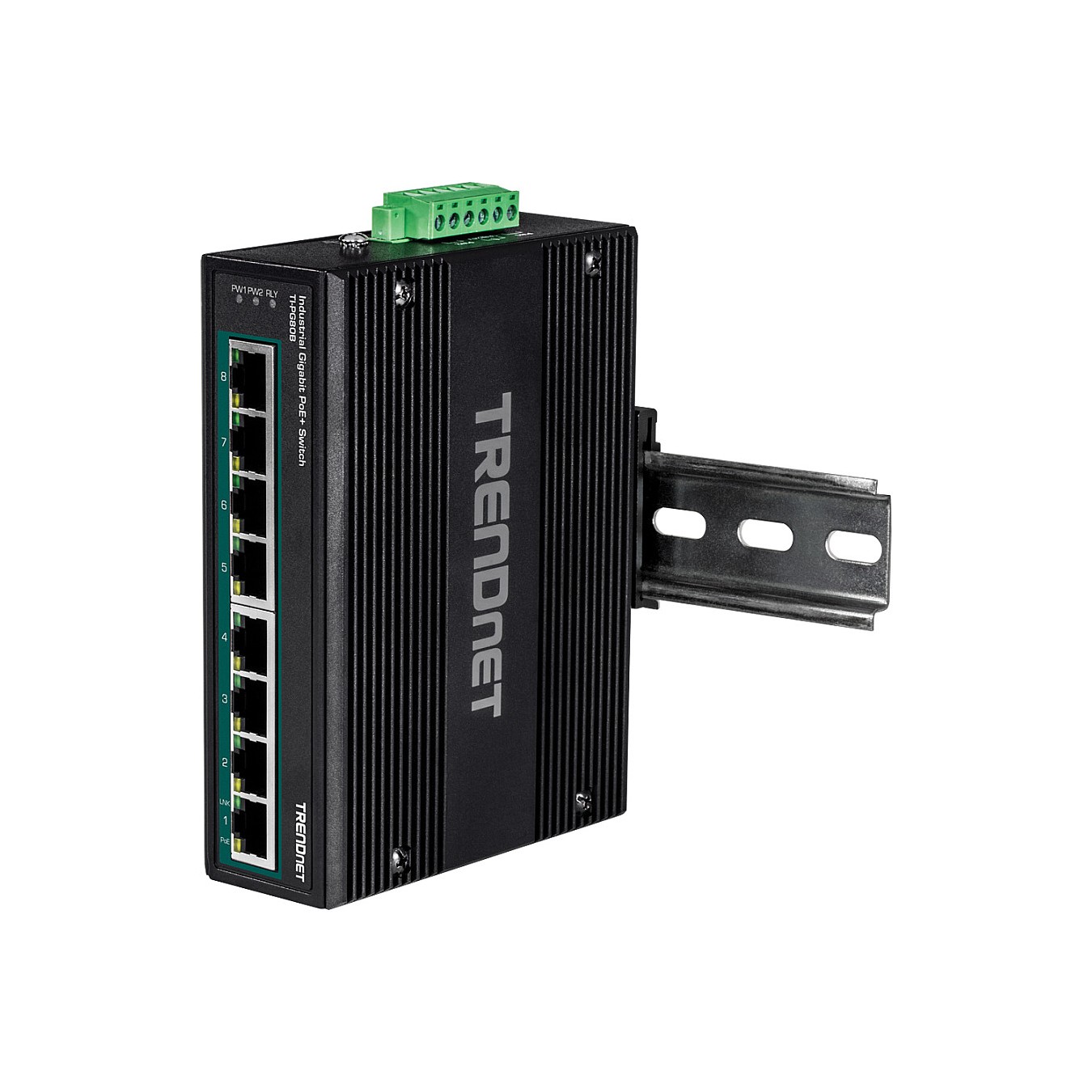

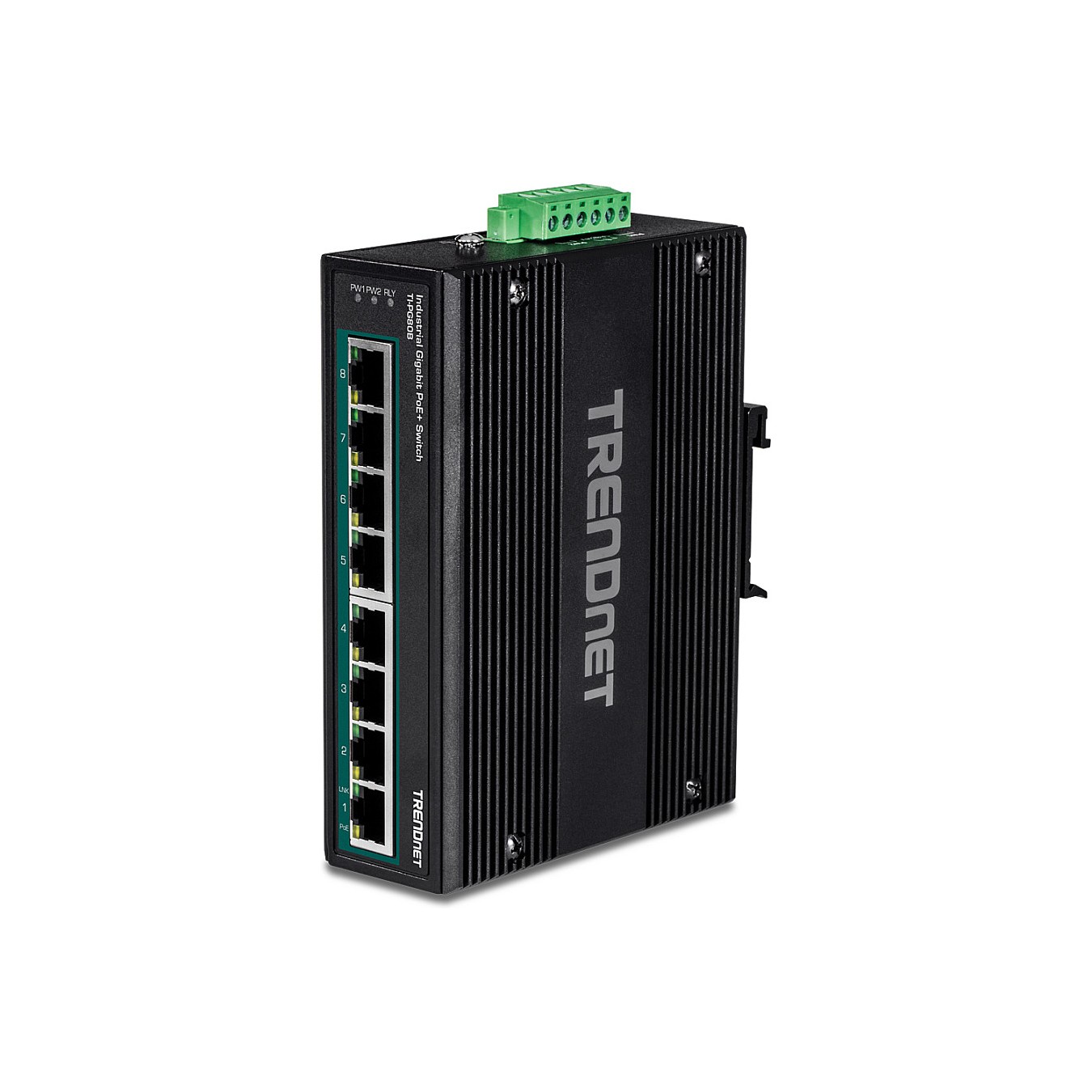

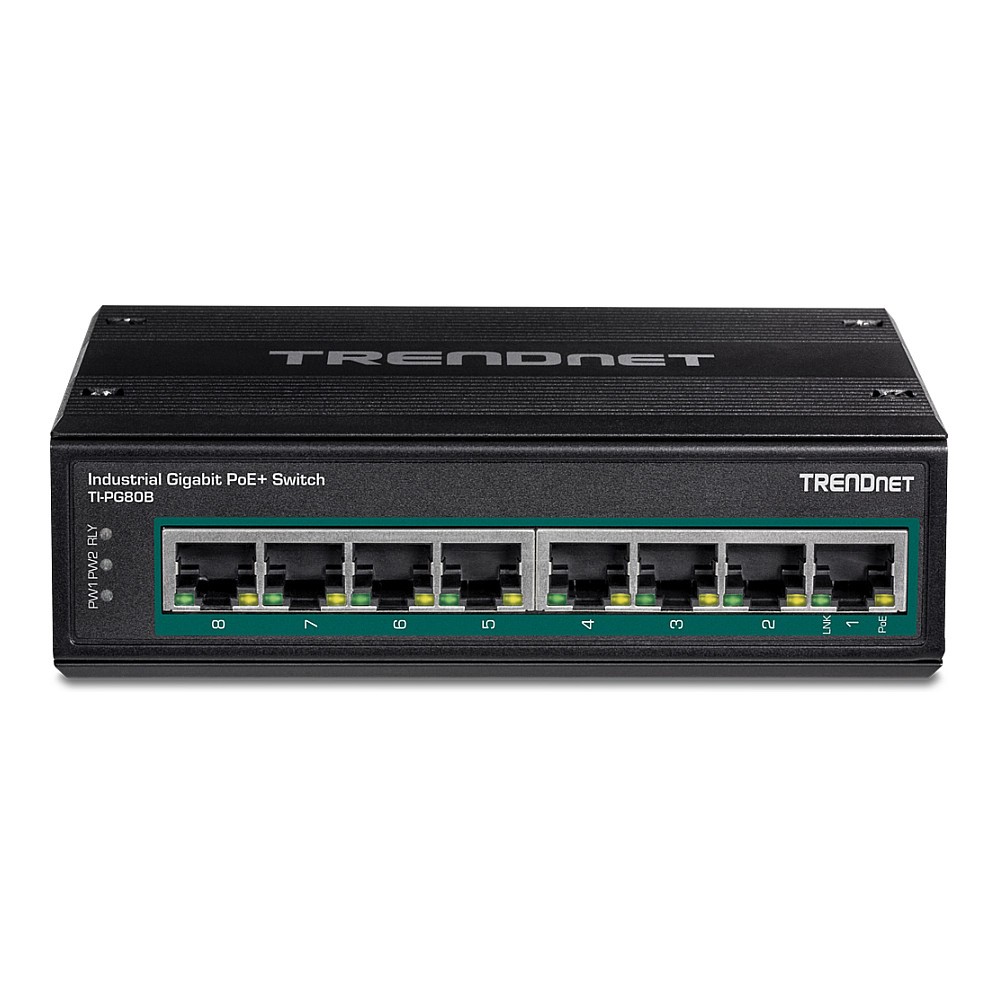

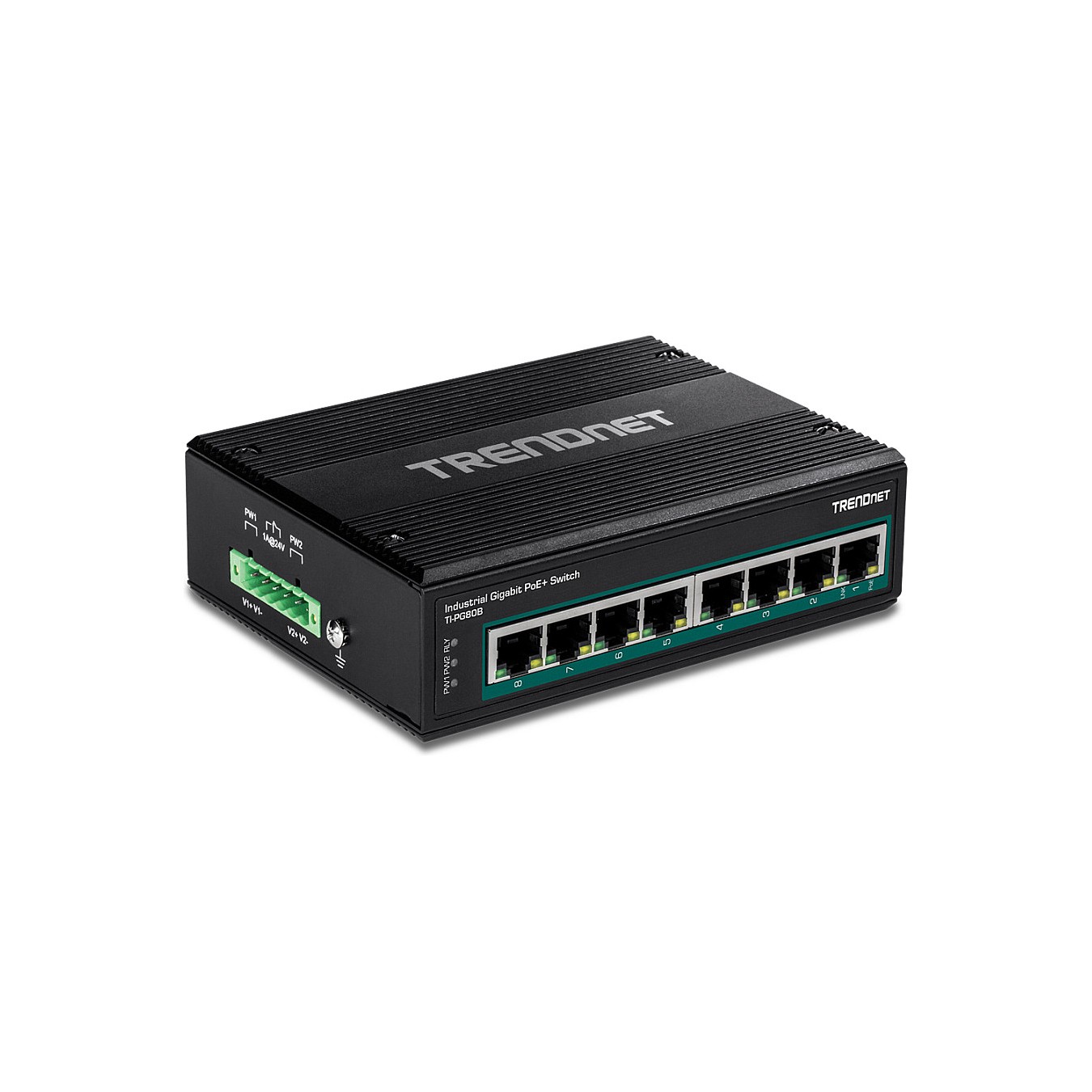

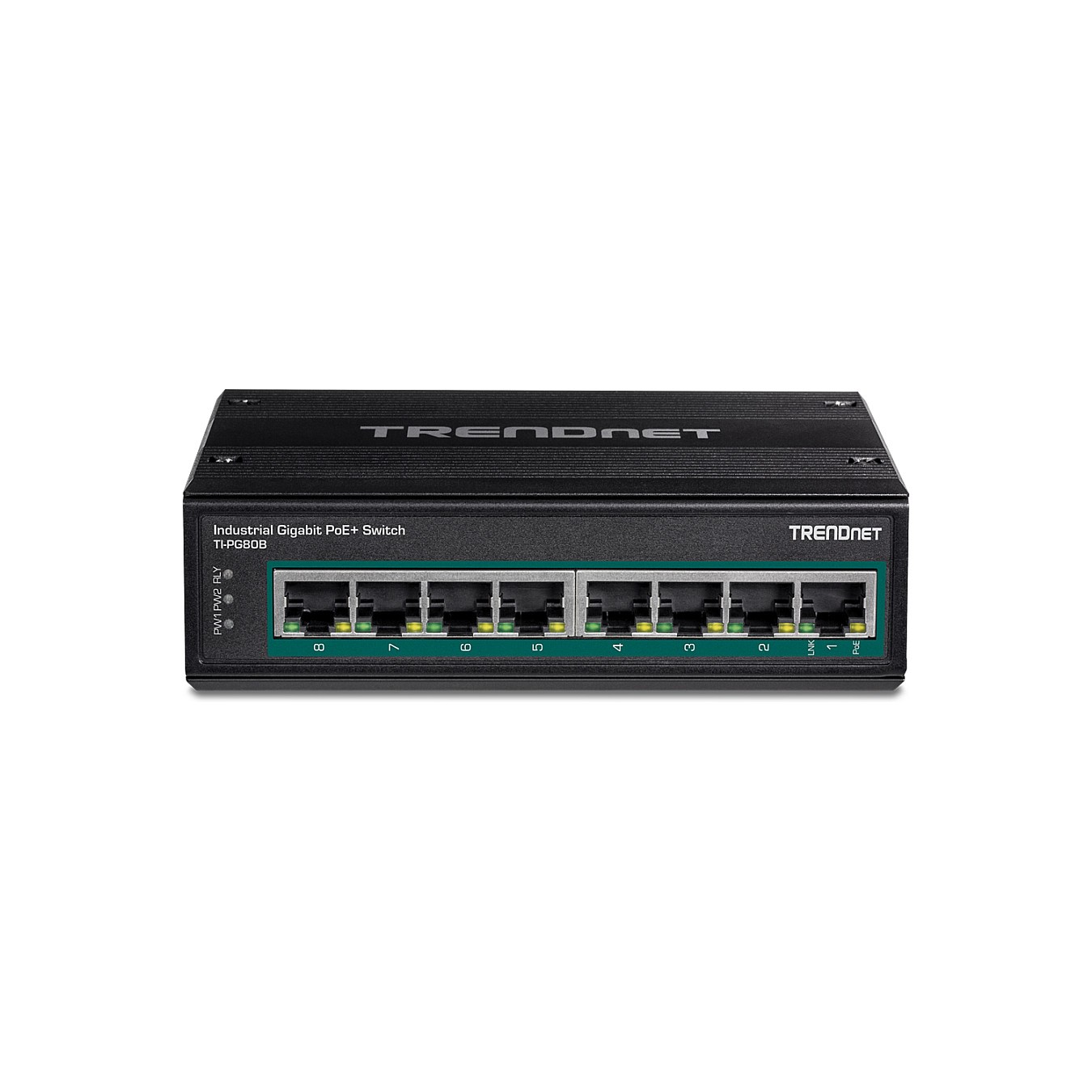

TRENDnet TI-PG80B 8-Port PoE+ Switch Industrial Gigabit DIN-Rail (24-56V)
Trendnet TI-PG80B. Gigabit Ethernet (10/100/1000). Vollduplex. Power over Ethernet (PoE). Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Trendnet TI-PG80B. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Vollduplex. MAC-Adressentabelle: 4000 Eintragungen. Routing-/Switching-Kapazität: 16 Gbit/s. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x. DC input Spannung: 24 - 56 V. Power over Ethernet (PoE). Wandmontage
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x |
| Feature | Schnellstartübersicht |
| Routing-/Switching-Kapazität | 16 Gbit/s |
| Transferrate | 11.9 Mpps |
| MAC-Adressentabelle | 4000 Eintragungen |
| Jumbo-Frames | 9000 |
| Datenpaket-Pufferspeicher | 1 MB |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| Internationale Schutzart (IP-Code) | IP30 |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 529765 h |
| DC input Spannung | 24 - 56 V |
| Stromverbrauch (max.) | 5.3 W |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 8 |
| Gesamtleistung Power over Ethernet (PoE) | 200 W |
| Betriebstemperatur | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Breite | 142 mm |
| Tiefe | 105 mm |
| Höhe | 36 mm |
| Gewicht | 622 g |
| Zertifizierung | CEFCCIEC 60068-2-27IEC 60068-2-32IEC 60068-2-6IEC 61000-4-2IEC 61000-4-4IEC 61000-4-5 |
| Warentarifnummer (HS) | 85176990 |
