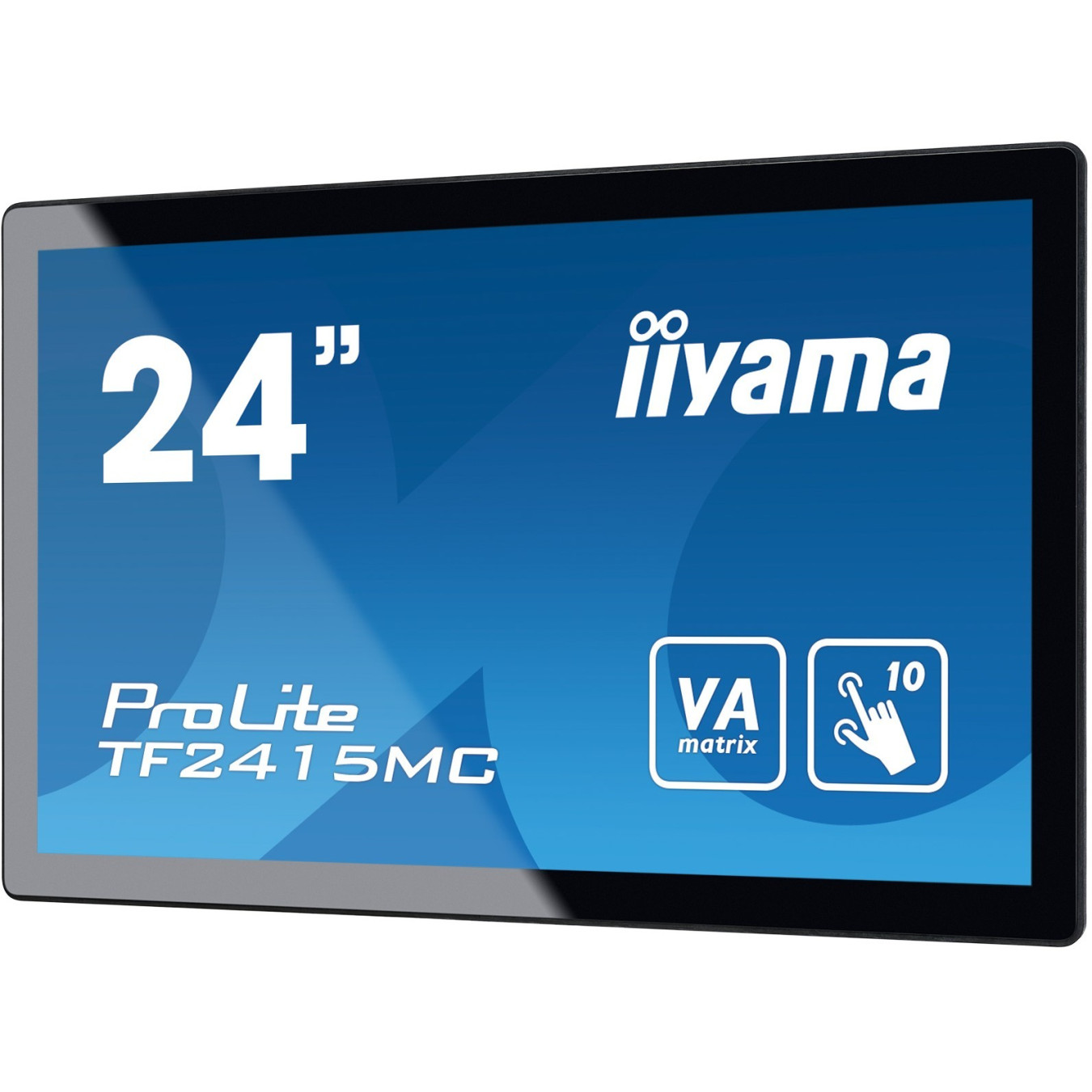

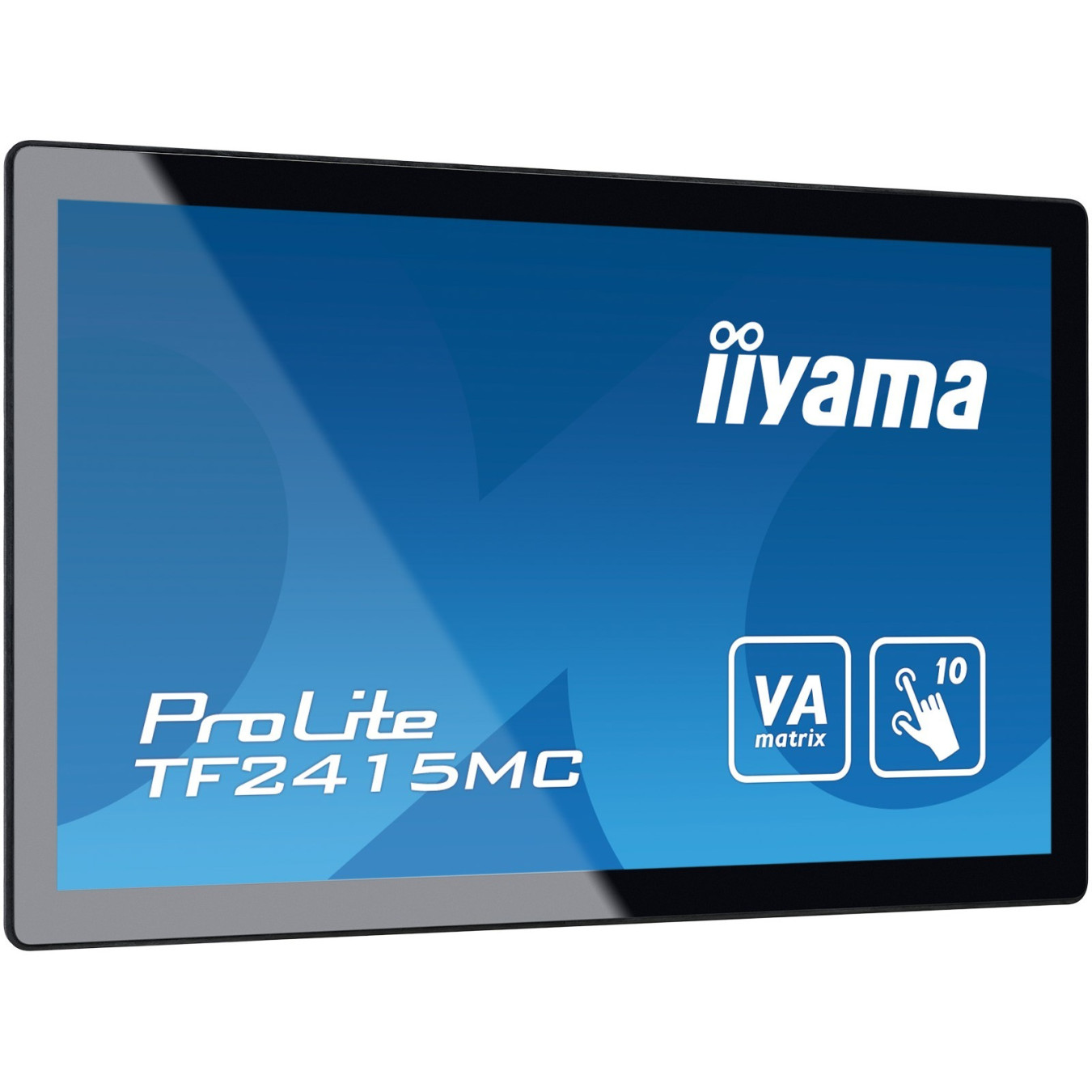

iiyama ProLite TF2415MC-B2 - 23.8" PCAP Multi-Touch Open Frame Monitor, Full HD, HDMI & DisplayPort, Black
23.8" iiyama ProLite TF2415MC-B2 open-frame PCAP 10-point touch-through-glass monitor, Full HD 1920x1080, 315 cd/m², HDMI + DisplayPort, VESA 100x100, IP65, black
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitors - Curvature | Flat |
|---|
iiyama ProLite Open Frame PCAP 10 point touch screen equipped with touch through glass function. Display diagonal: 60.5 cm (23.8"). Display resolution: 1920 x 1080 pixels. HD type: Full HD. Display technology: LCD. Response time: 16 ms. Native aspect ratio: 16:9. Viewing angle. horizontal: 178°. Viewing angle. vertical: 178°. VESA mounting. Product colour: Black
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Feature | Glass protection |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 315 cd/m² |
| Response time | 16 ms |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Horizontal scan range | 31.4 - 82 kHz |
| Vertical scan range | 56 - 75 Hz |
| Display diagonal (metric) | 60.5 cm |
| Product colour | Black |

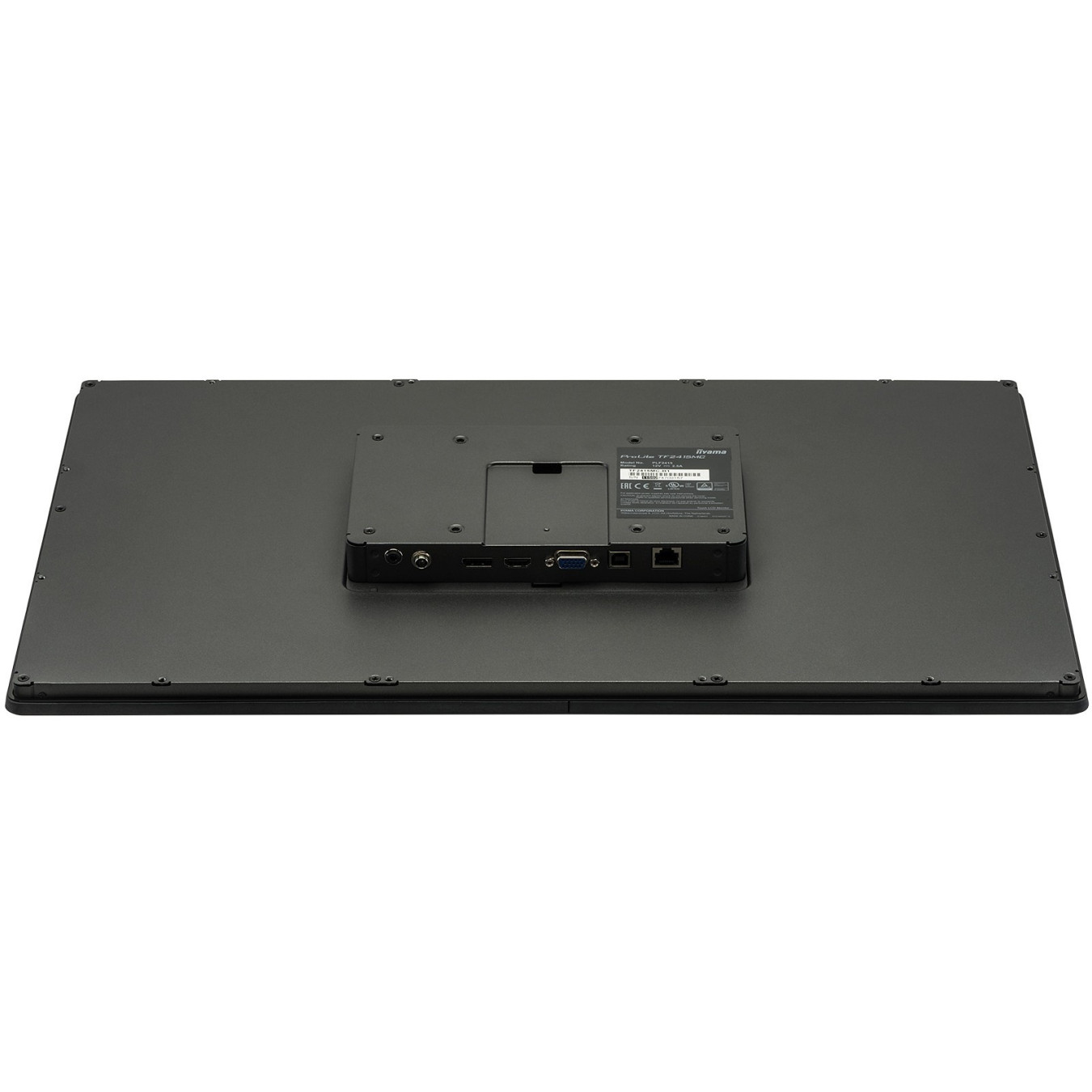

| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio output | 1 |

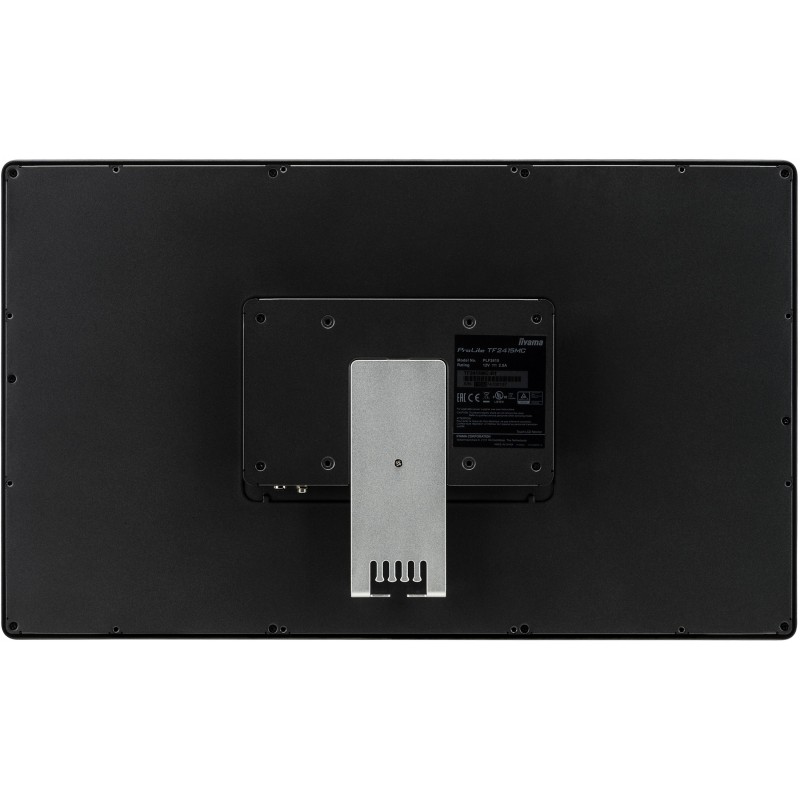

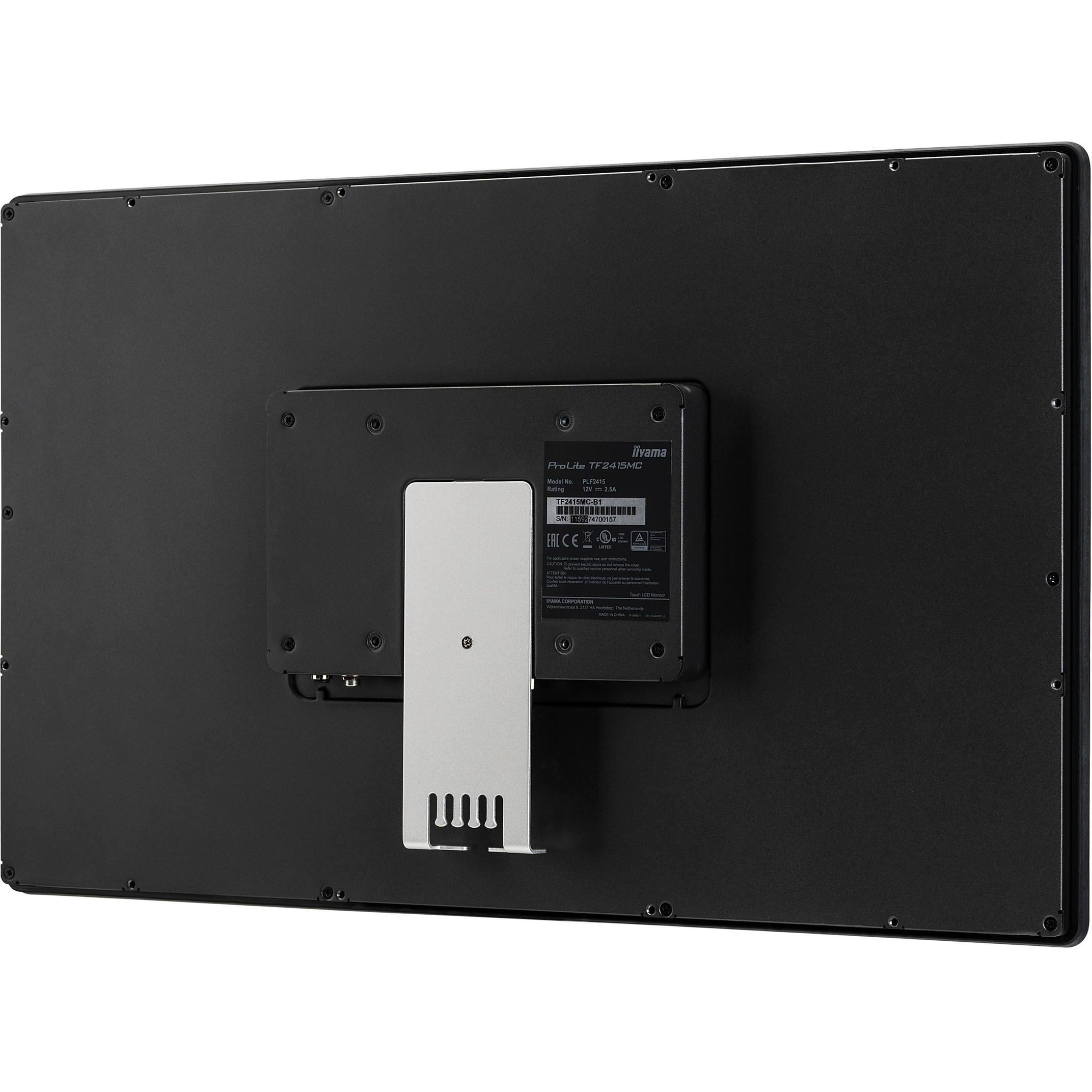

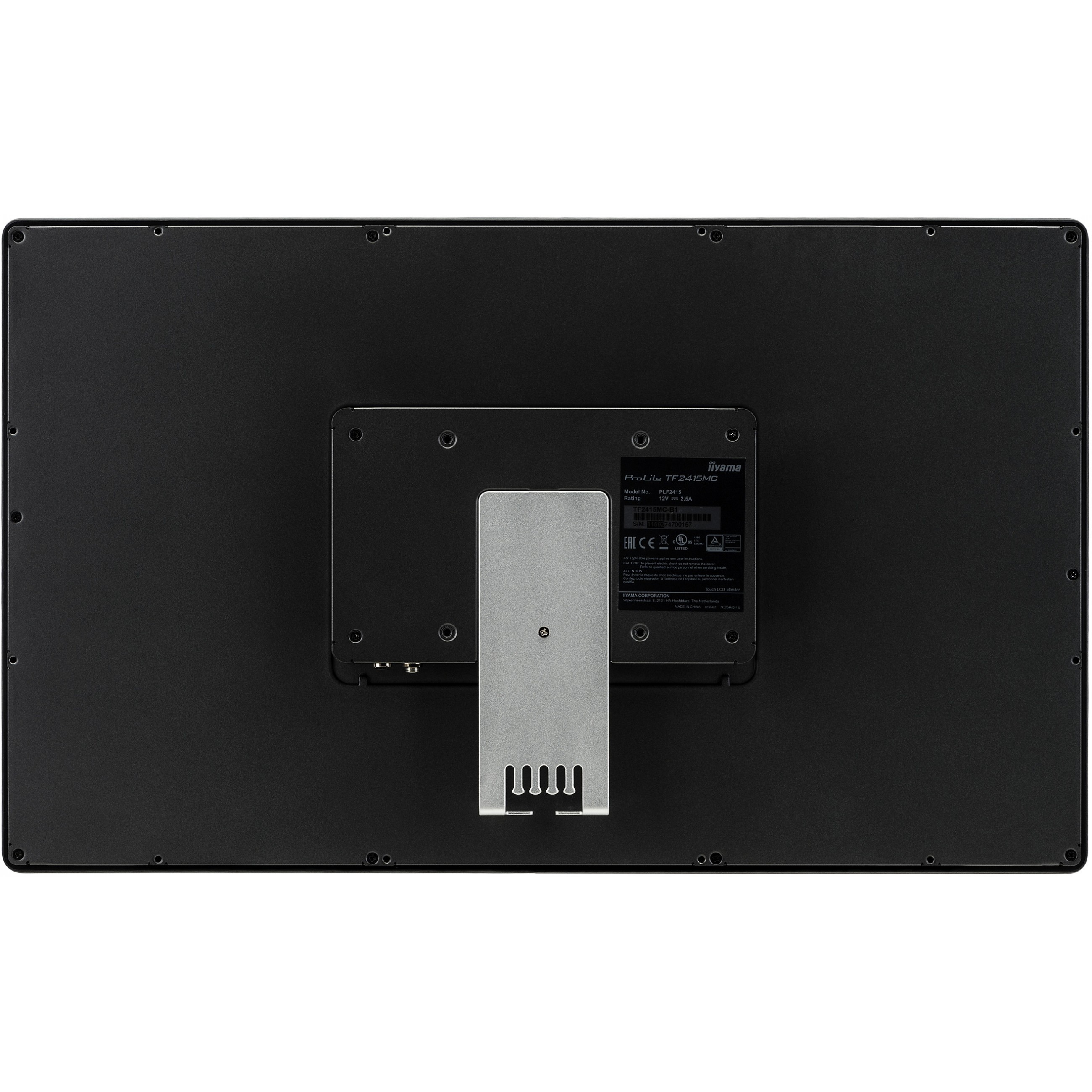

| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | German. English. Spanish. French. Italian. Japanese |
| Number of OSD languages | 7 |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 22 kWh |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 1.2 W |
| Power supply type | DC |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 378595 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Width (without stand) | 575 mm |
| Depth (without stand) | 42.5 mm |
| Height (without stand) | 347 mm |
| Weight (without stand) | 5.8 kg |

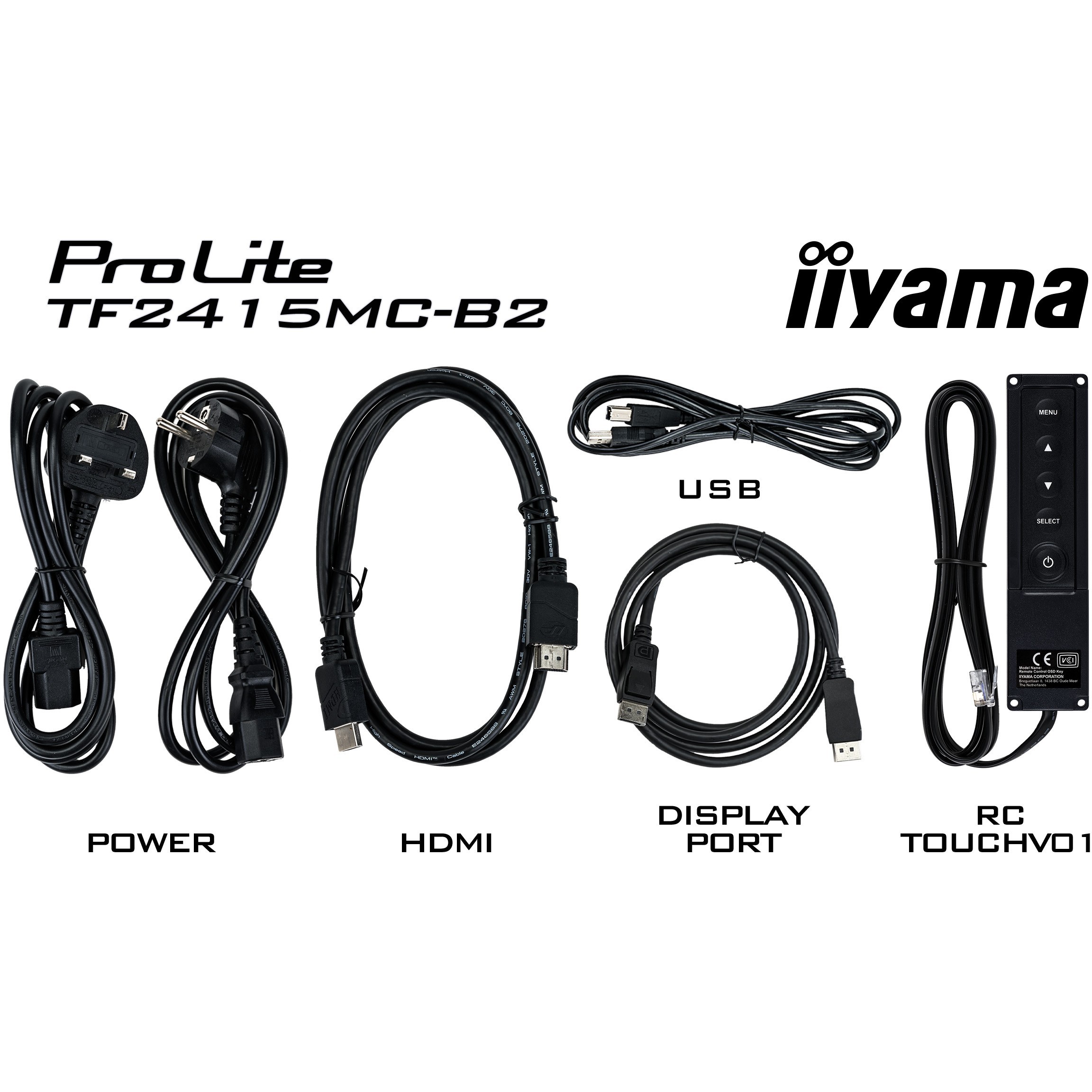

| Cables included | AC. DisplayPort. HDMI. USB |
| International Protection (IP) code | IP65 |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Placement supported | Horizontal/Vertical |
| Certification | CB. CE. TÜV-Bauart. CU. cULus |
| Harmonized System (HS) code | 85285210 |
