Dell Pro Micro QCM1250 - i5-14500T - 16GB DDR5, 512GB PCIe 4.0 SSD, Intel UHD 770, Windows 11 Pro, Black

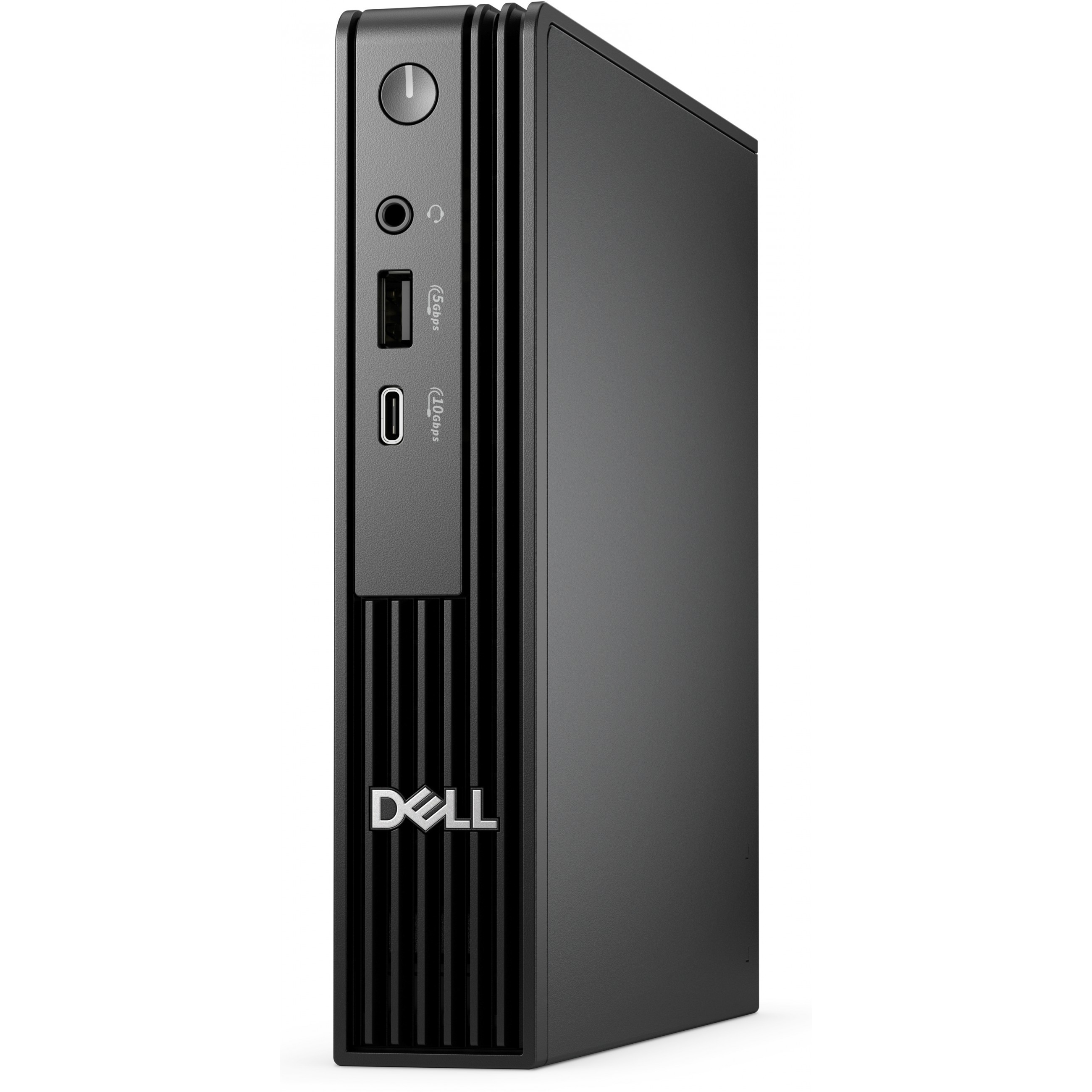

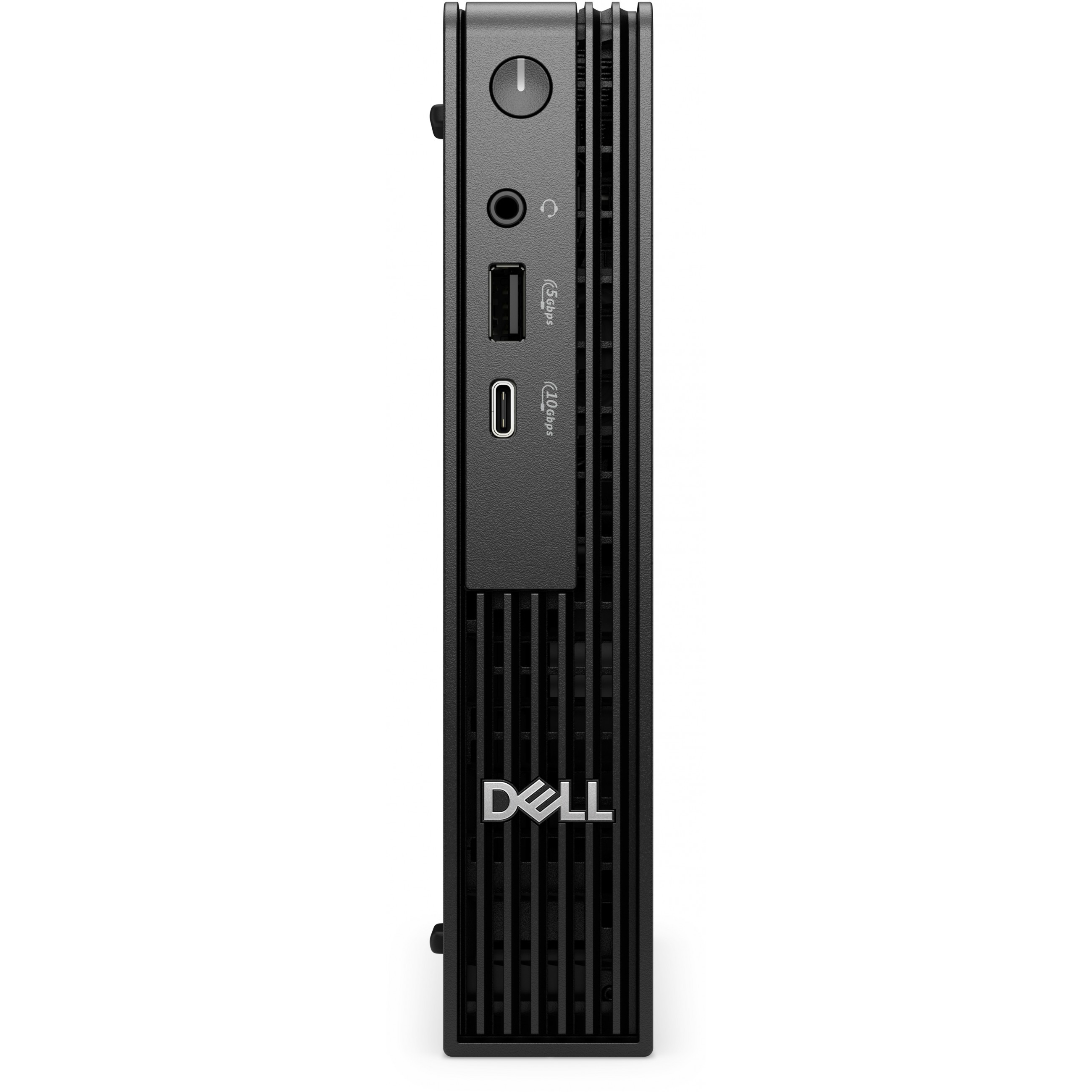

Compact Dell Pro Micro QCM1250 mini PC — Intel Core i5-14500T (14th gen), 16GB DDR5, 512GB PCIe 4.0 SSD, Intel UHD 770, Wi‑Fi 6E, Windows 11 Pro.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Other PC Accessories - Type | Other |
|---|---|
| Other PC Accessories - Lighting | None |
DELL Pro QCM1250. Processor family: Intel® Core™ i5. Processor model: i5-14500T. Internal memory: 16 GB. Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB. Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Wi-Fi. Operating system installed: Windows 11 Pro. Operating system architecture: 64-bit. Power supply: 90 W. Chassis type: Micro PC. Product type: Mini PC. Weight: 1.16 kg. Product colour: Black
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor model | i5-14500T |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.2 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 35 W |
| Maximum turbo power | 92 W |
| AI software frameworks supported by NPU | DirectML. OpenVINO. Windows ML. ONNX RT. WebNN |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Feature | Trusted Platform Module (TPM) |
| Memory channels | Single-channel |
| Memory data transfer rate | 4800 MT/s |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel WGI219LM |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Antenna design | Internal |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of rear USB ports | 4 |
| Number of front USB ports | 2 |
| Number of front audio ports | 1 |
| Chassis type | Micro PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Market positioning | Business |
| Motherboard chipset | Intel Q870 |
| Audio chip | Realtek ALC3204 |
| Audio system | High Definition Audio |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
| Power supply | 90 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 / 60 Hz |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.26 G |
| Non-operating vibration | 1.37 G |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
| Sustainability certificates | ENERGY STAR. EPEAT Climate +. EPEAT Gold |
| Width | 36 mm |
| Depth | 178 mm |
| Height | 182 mm |
| Weight | 1.16 kg |
