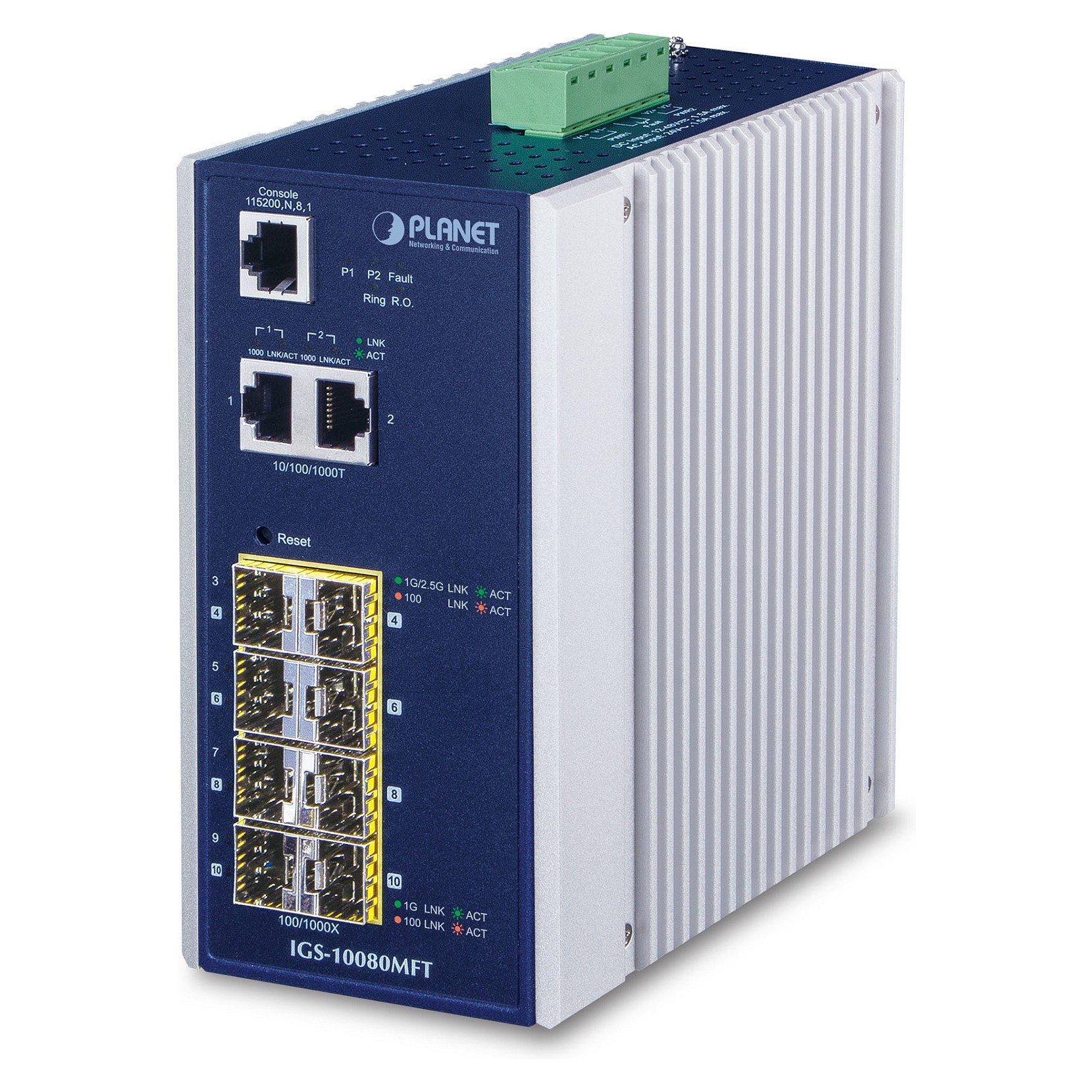

Planet IGS-10080MFT Industrial Managed Switch
PLANET IGS-10080MFT, Managed, Gigabit Ethernet (10/100/1000), Vollduplex, Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET IGS-10080MFT. Switch-Typ: Managed. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 2. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen, Routing-/Switching-Kapazität: 26 Gbit/s. Netzstandard: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input Spannung: 12 - 48 V. Wandmontage
| Switch-Typ | Managed |
| Quality of Service (QoS) Support | Ja |
| Web-basiertes Management | Ja |
| Traffic-Klassifizierung | Ja |
| ARP-Inspektion | Ja |
| Systemereignisprotokoll | Ja |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 2 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 2 |
| Menge SFP-Modul-Steckplätze | 8 |
| Optischer Kabelverbinder | MiniGBIC |
| Netzstandard | IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G-Unterstützung | Nein |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port-Spiegelung | Ja |
| Vollduplex | Ja |
| Halb-Duplex | Ja |
| Unterstützung Datenflusssteuerung | Ja |
| Link Aggregation | Ja |
| Ratenbeschränkung | Ja |
| Spannbaum-Protokoll | Ja |
| Auto-Negotiation-Funktion | Ja |
| Selbstlernen von MAC-Adressen unterstützt | Ja |
| Auto-Alterung von MAC-Adressen unterstützt | Ja |
| VLAN-Unterstützung | Ja |
| Virtuelle LAN-Funktionen | Private VLAN, Tagged VLAN, Protocol-based VLAN |
| Anzahl der VLANs | 4095 |
| Ethernet-Kabel Verkablungstechnologie | 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX |
| Routing-/Switching-Kapazität | 26 Gbit/s |
| Durchgang | 19,3 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Store-and-Forward | Ja |
| Anzahl Queues | 8 |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 9000 |
| Zugriffkontrollliste | Ja |
| IGMP-Snooping | Ja |
| Unterstützte Sicherheitsalgorithmen | 802.1x RADIUS, SSH, SSL/TLS |
| SSH-/SSL-Unterstützung | Ja |
| Loop Protection | Ja |
| BPDU-Filterung/Schutz | Ja |
| Authentifizierung | Port-basierte Authentifizierung |
| Multicast Unterstützung | Ja |
| Management-Protokolle | web, telnet, SNMP |
| Unterstützte Netzwerkprotokolle | IPv4 / IPv6 |
| Rack-Einbau | Nein |
| Produktfarbe | Blau, Weiß |
| Gehäusematerial | Aluminium |
| Reset-Knopf | Ja |
| LED-Anzeigen | Ja |
| Internationale Schutzart (IP-Code) | IP30 |
| Wandmontage | Ja |
| DIN-Schienen-Montage | Ja |
| Unterstützung für redundantes Netzteil | Ja |
| DC input Spannung | 12 - 48 V |
| Stromverbrauch (max.) | 13,92 W |
| Power over Ethernet (PoE) | Nein |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Wärmeableitung | 47,76 BTU/h |
| Breite | 76,8 mm |
| Tiefe | 107,3 mm |
| Höhe | 152 mm |
| Gewicht | 1,04 kg |
| Zertifizierung | FCC, CE |
| Warentarifnummer (HS) | 85176990 |
