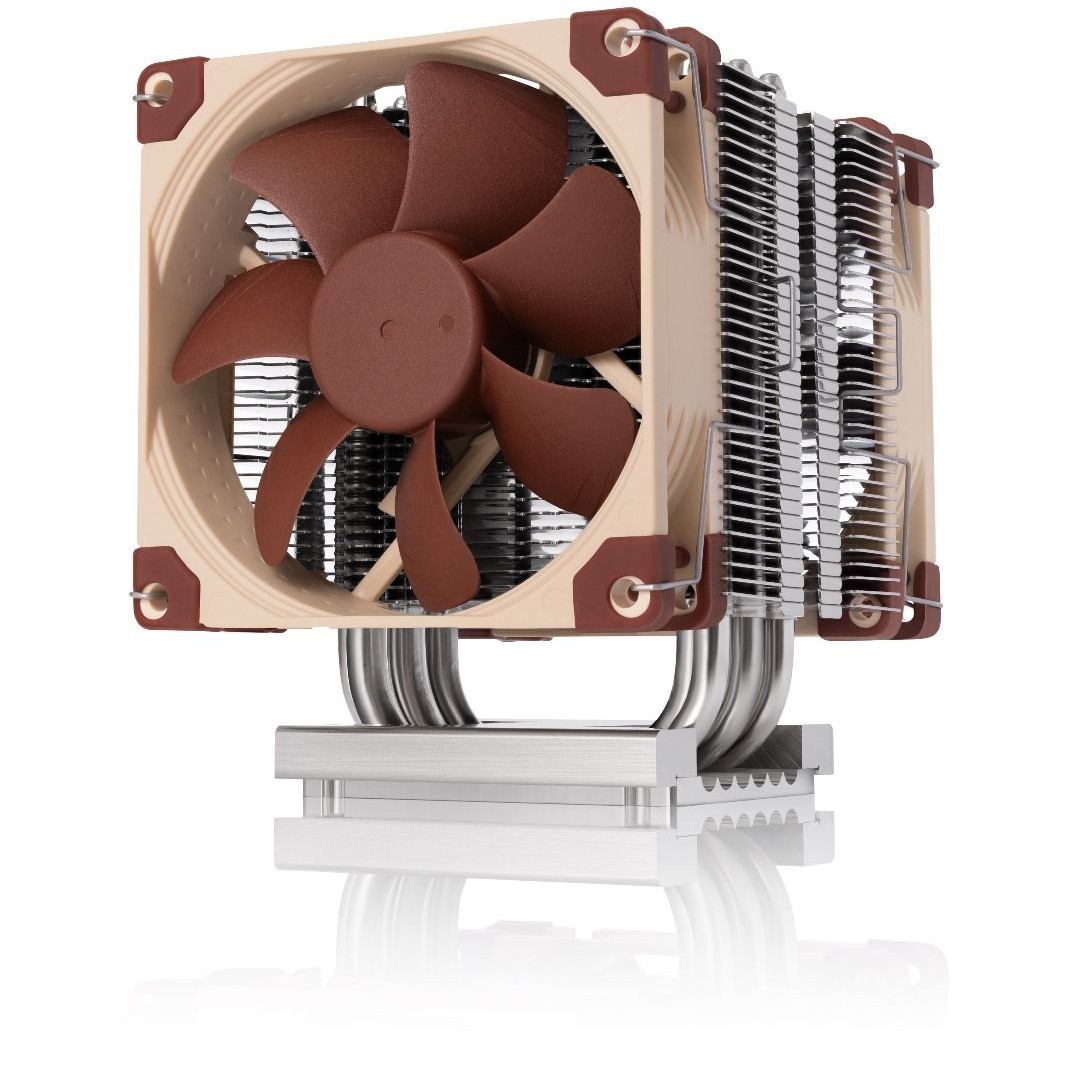

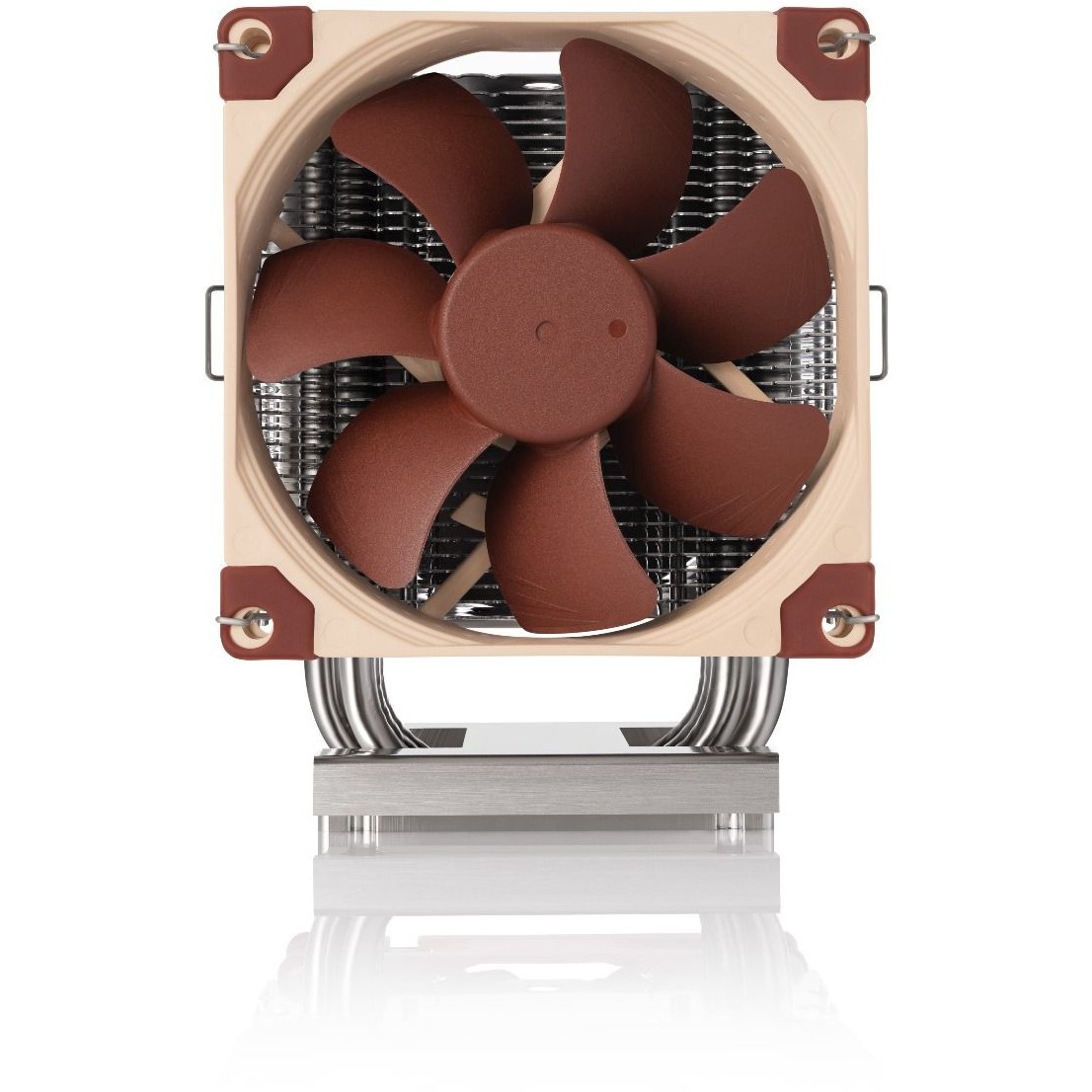

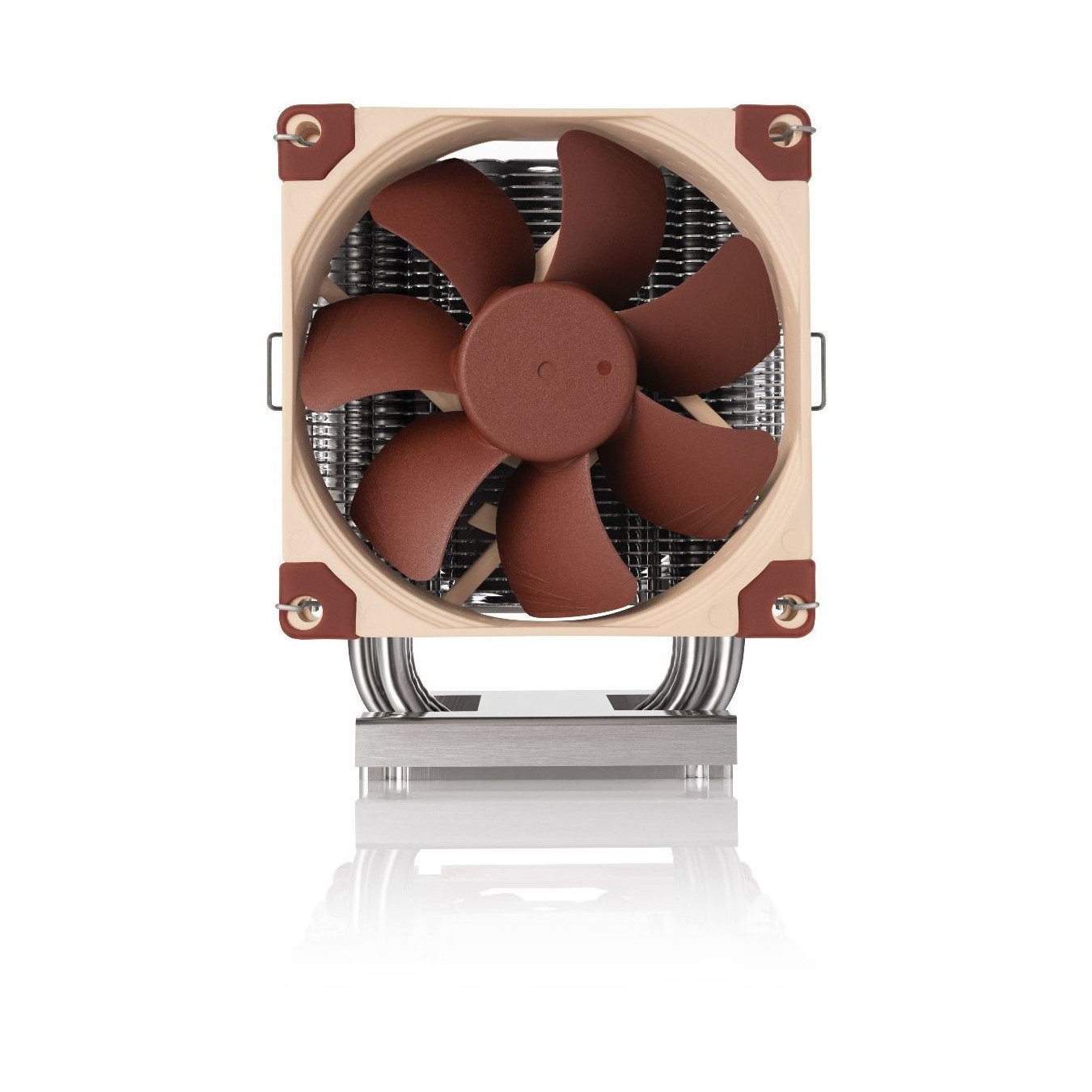

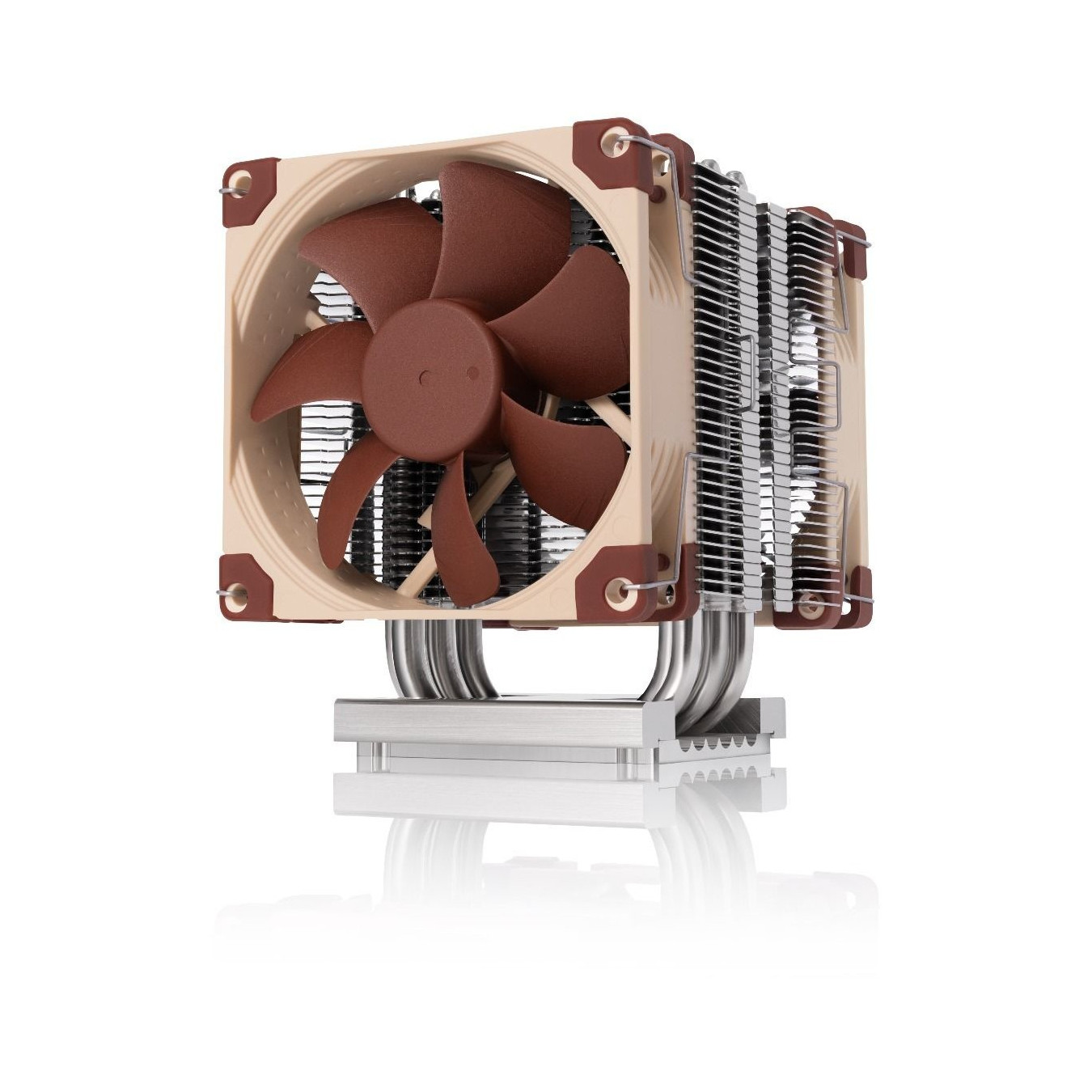

Noctua NH-U9 DX-4677 - Dual 92mm CPU Air Tower Cooler for Intel Xeon (LGA4677) - Beige/Brown, 6 Heatpipes, 2x PWM Fans
Dual 92mm Noctua NH-U9 DX-4677 CPU cooler for Intel Xeon (LGA4677). 2x PWM fans 400–2500 RPM, 96.3 m³/h airflow, SSO bearing, 6 heatpipes, aluminium/copper, 6-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Cooling (CPU & Case) - Type (Cooler) | Air Tower |
|---|---|
| Cooling (CPU & Case) - Height (Air) | 48-155 mm |
| Cooling (CPU & Case) - Noise Level | 31-35 dBA |
| Cooling (CPU & Case) - RGB (Cooler) | None |
| Cooling (CPU & Case) - Fan Size | 92 mm |
| Cooling (CPU & Case) - Fan Thickness | 25 mm (standard) |
| Cooling (CPU & Case) - Fan Connector | 4-pin PWM |
| Cooling (CPU & Case) - Speed (RPM) | 2001-3000 |
| Cooling (CPU & Case) - Use Case | Airflow |
| Cooling (CPU & Case) - Lighting (Fan) | None |
Noctua NH-U9 DX-4677. Type: Air cooler. Fan diameter: 12 cm. Rotational speed (min): 400 RPM. Rotational speed (max): 2500 RPM. Airflow: 96.3 m³/h. Bearing type: Self-Stabilising Oil-pressure Bearing (SSO). Voltage: 12 V. Width: 95 mm. Depth: 120 mm. Height: 125 mm. Product colour: Beige. Brown
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 4677 (Socket E) |
| Compatible processor series | Intel® Xeon® |
| Rotational speed (min) | 400 RPM |
| Rotational speed (max) | 2500 RPM |
| Noise level (high speed) | 30.6 dB |
| Airflow | 96.3 m³/h |
| Fan diameter 2 | 12 cm |
| Fan 2 rotational speed (min) | 400 RPM |
| Fan 2 rotational speed (max) | 2500 RPM |
| Fan 2 noise level (high speed) | 30.6 dB |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Fan noise level (max) | 30.6 dB |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 400 RPM |
| Fan speed (max) | 2500 RPM |
| Fan's mean time to failure (MTTF) | 150000 h |
| Product colour | Beige. Brown |
| Material | Aluminium. Copper |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Number of fan blades | 7 |
| Fins material | Aluminium |
| Number of heat pipes | 6 |
| Fan connector | 4-pin |
| Voltage | 12 V |
| Fan power consumption | 1.68 W |
| Fan voltage | 12 V |
| Width | 95 mm |
| Radiator width | 9.5 cm |
| Radiator depth | 7.1 cm |
| Radiator height | 12.5 cm |
| Depth | 120 mm |
| Height | 125 mm |
| Weight | 895 g |
| Fan dimensions (W x D x H) | 92 x 92 x 25 mm |
| Fan thickness | 2.5 cm |
| Fan 2 dimensions (W x D x H) | 92 x 92 x 25 mm |
| Warranty period | 6 year(s) |
| Package type | Box |

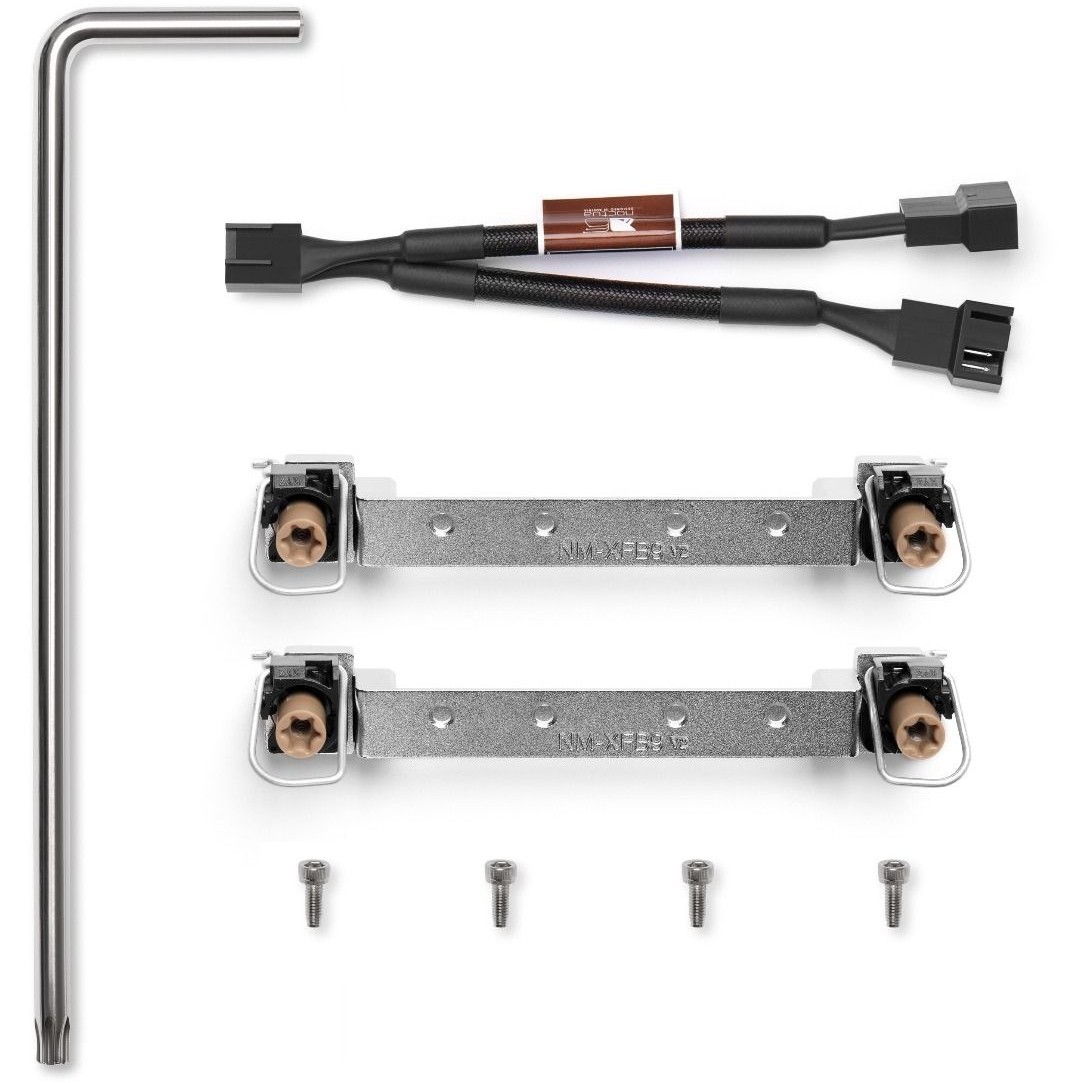

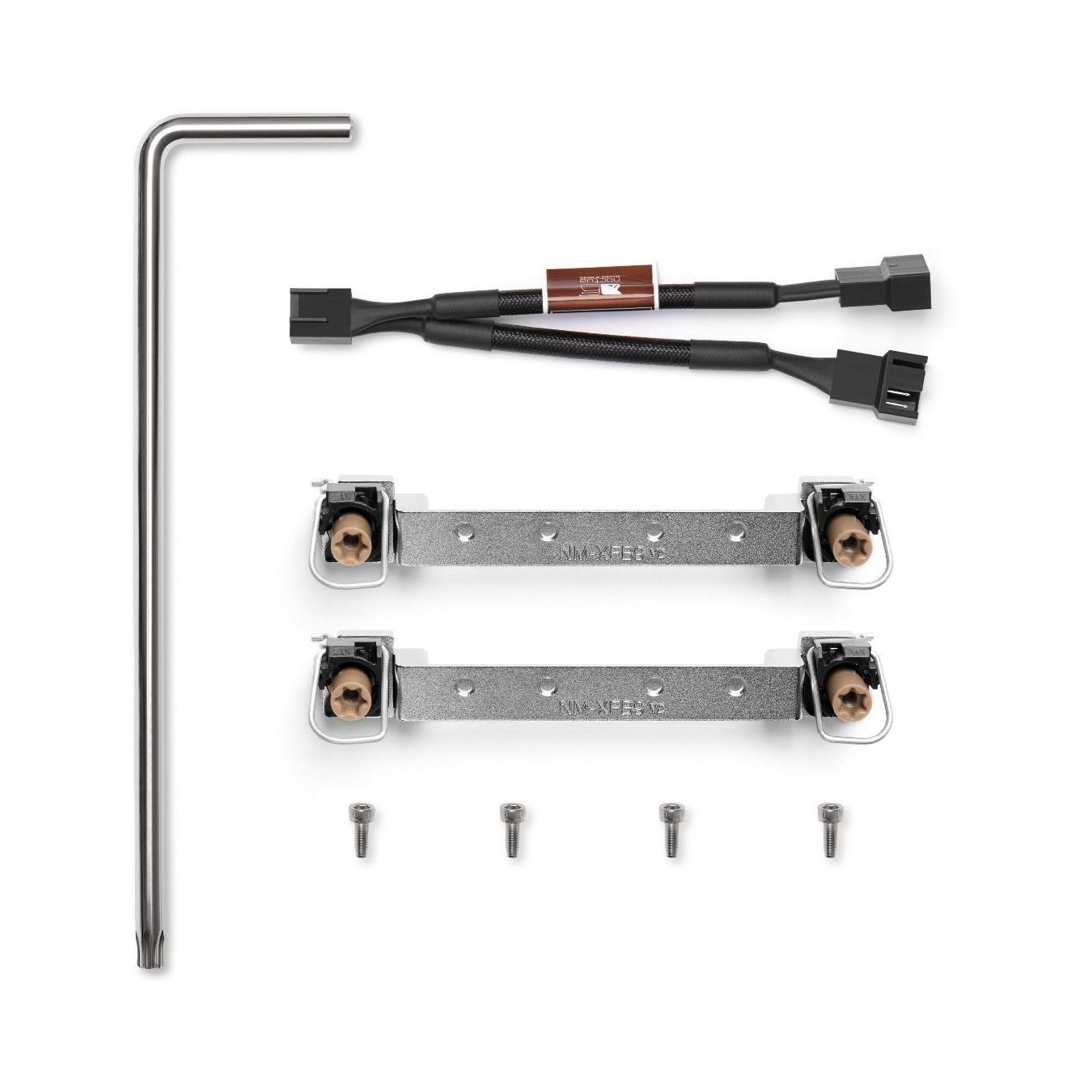

| Feature | Mounting kit |
