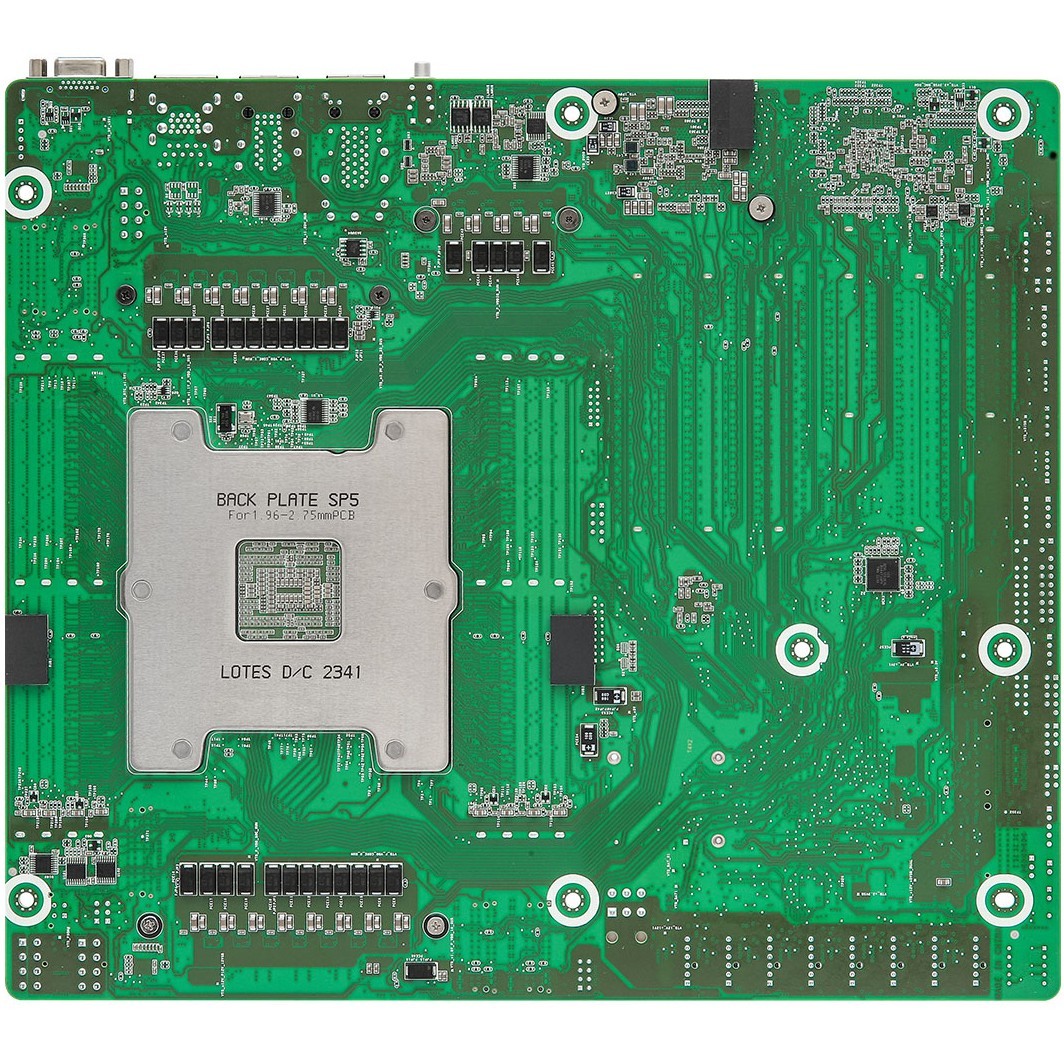

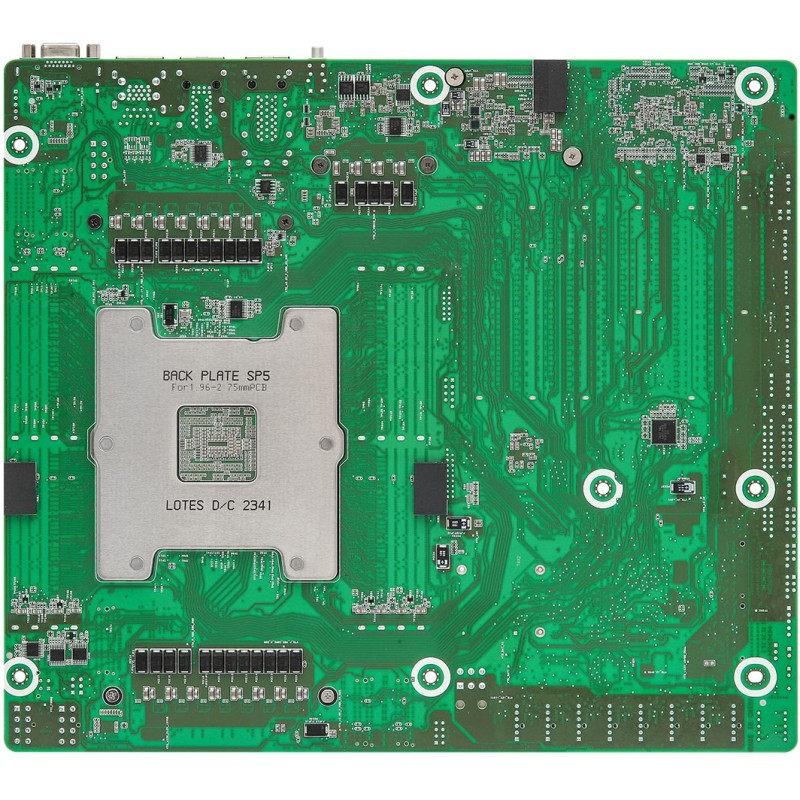

ASRock BERGAMOD8-2L2T - SSI CEB Server Motherboard for AMD EPYC 9004, Socket SP5, 8x DDR5, Dual M.2, 10x SATA, 4x 10Gb LAN
ASRock BERGAMOD8-2L2T SSI CEB server board for AMD EPYC 9004 (Socket SP5). 8x DDR5 (4800 MHz), 2x M.2, 10x SATA III, Aspeed AST2600 BMC, 4x 10Gb RJ45.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Memory Type | DDR5 |
|---|---|
| Motherboards - Memory Slots | 8 (HEDT) |
| Motherboards - PCIe Version (primary GPU) | PCIe 5.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 10+ |
Asrock BERGAMOD8-2L2T. Processor manufacturer: AMD. Processor socket: Socket SP5. Compatible processor series: AMD EPYC 9004. Supported memory types: DDR5-SDRAM. Memory voltage: 1.1 V. Supported memory clock speed (max): 4800 MHz. Supported storage drive interfaces: M.2. On-board graphics card model: Aspeed AST2600. On-board graphics card memory: 512 MB. Ethernet interface type: 10 Gigabit Ethernet. LAN controller: Intel X710-AT2
| Processor manufacturer | AMD |
| Processor socket | Socket SP5 |
| Compatible processor series | AMD EPYC 9004 |
| Supported processor sockets | Socket SP5 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory voltage | 1.1 V |
| Supported memory clock speed (max) | 4800 MHz |
| Supported storage drive interfaces | M.2 |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 512 MB |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 10 |
| Feature | Ethernet LAN |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel X710-AT2 |
| PC health monitoring | CPU. Fan |
| Component for | Server |
| Motherboard form factor | SSI CEB |
| Motherboard chipset family | AMD |
| PCI Express x8 (Gen 5.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 4 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Width | 304.8 mm |
| Depth | 266.7 mm |
