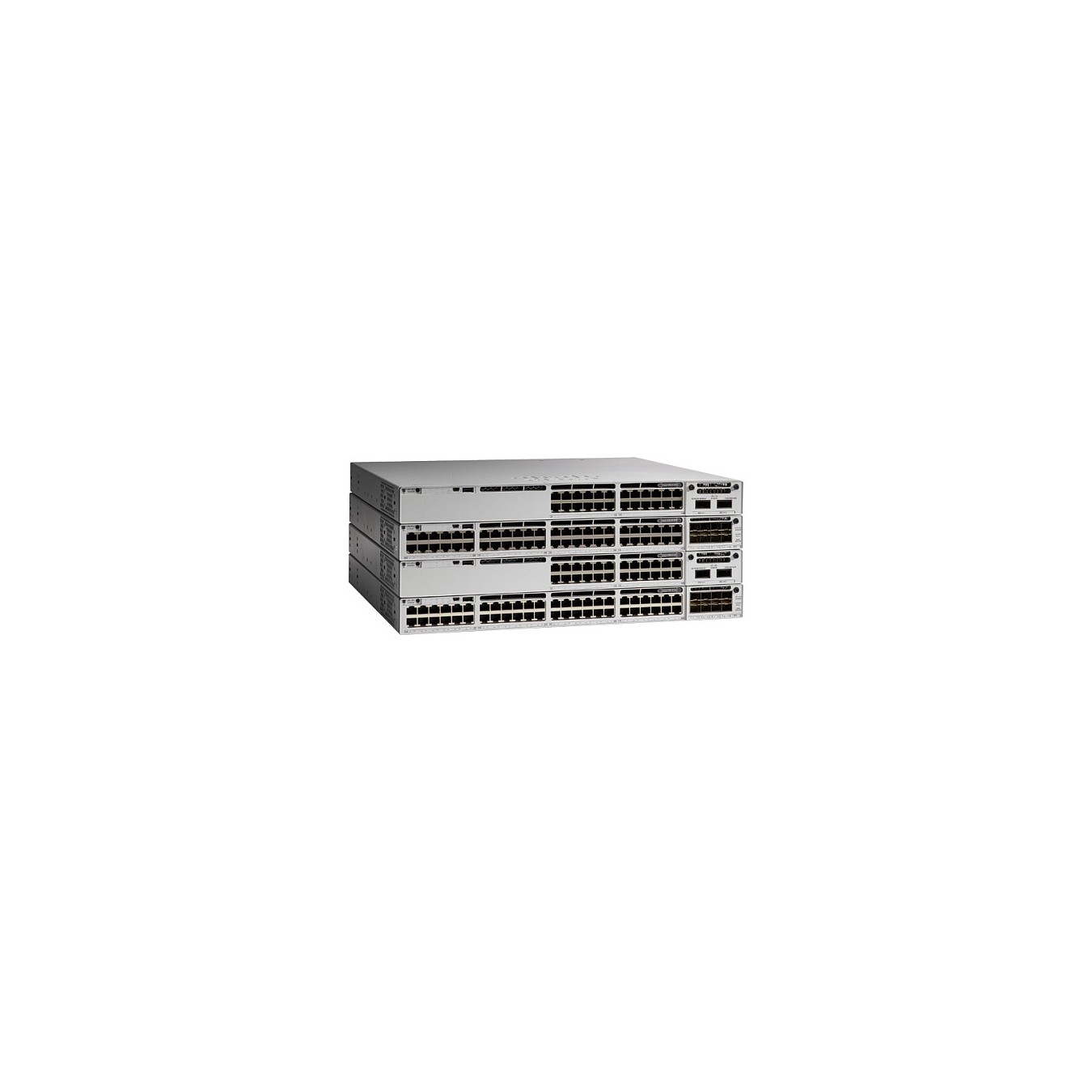

Catalyst 9300X - Network Advantage - Switch - L3 - managed - 8 x 100 1000 2.5G 5G 10GBase-T (UPOE+) + 40 x 100 1000 2...
Cisco Catalyst 9300, Managed, L3, Vollduplex, Power over Ethernet (PoE), Rack-Einbau, 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco Catalyst 9300. Switch-Typ: Managed, Switch-Ebene: L3. Vollduplex. MAC-Adressentabelle: 32000 Eintragungen, Routing-/Switching-Kapazität: 2000 Gbit/s. Netzstandard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack-Einbau, Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Quality of Service (QoS) Support | Ja |
| ARP-Inspektion | Ja |
| Konfiguration der Standorteinstellungen (CLI) | Ja |
| MIB Unterstützung | Y |
| Netzstandard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G-Unterstützung | Ja |
| Vollduplex | Ja |
| VLAN-Unterstützung | Ja |
| Routing-/Switching-Kapazität | 2000 Gbit/s |
| MAC-Adressentabelle | 32000 Eintragungen |
| Statische Route | Ja |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 9216 |
| Zugriffkontrollliste | Ja |
| IGMP-Snooping | Ja |
| Multicast Unterstützung | Ja |
| Rack-Einbau | Ja |
| Stapelbar | Ja |
| Formfaktor | 1U |
| LED-Anzeigen | Ja |
| Speicherkapazität | 16384 MB |
| Flash-Speicher | 16384 MB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 206480 h |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 230 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Stromverbrauch (Standardbetrieb) | 715 W |
| Power over Ethernet (PoE) | Ja |
| Betriebstemperatur | -5 - 45 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 90% |
| Breite | 445 mm |
| Tiefe | 483 mm |
| Höhe | 44 mm |
| Gewicht | 6,62 kg |
