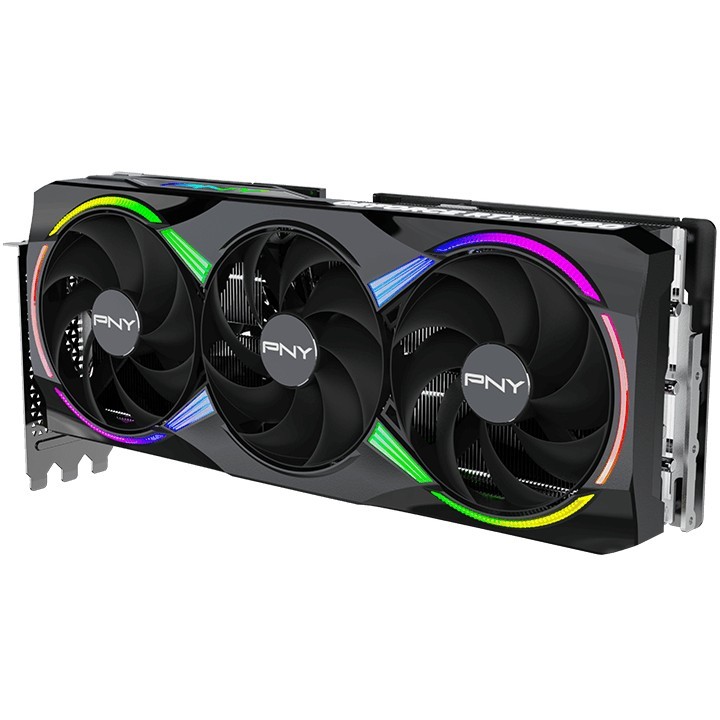

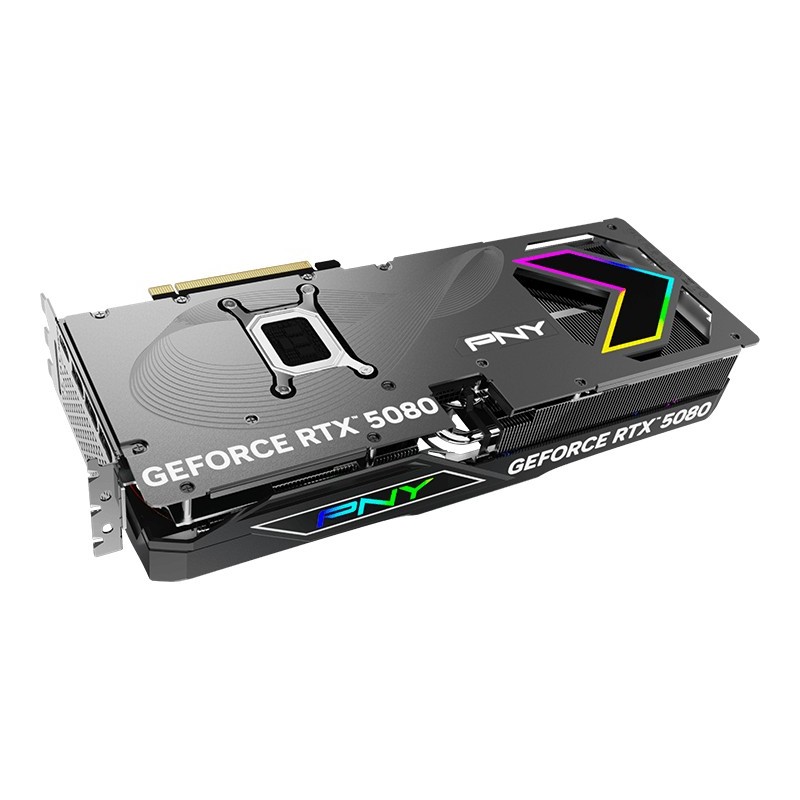

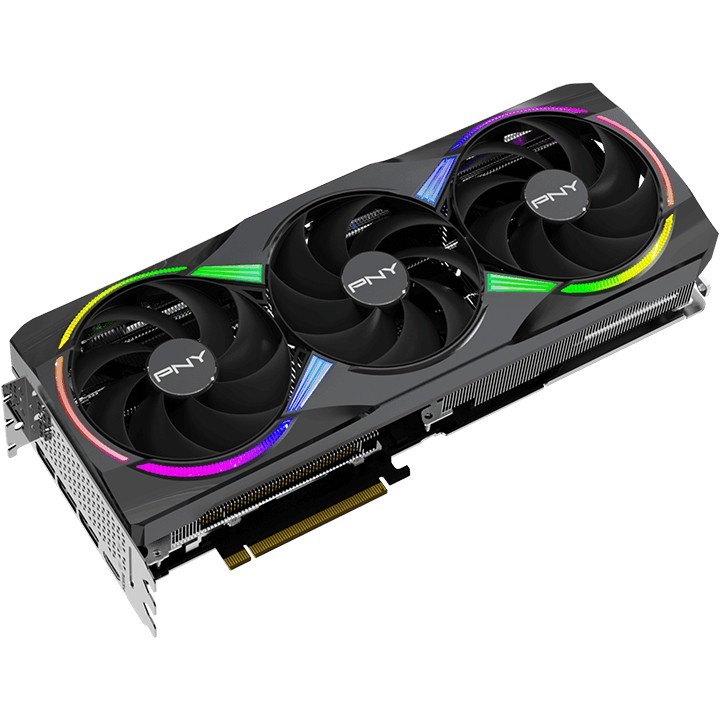

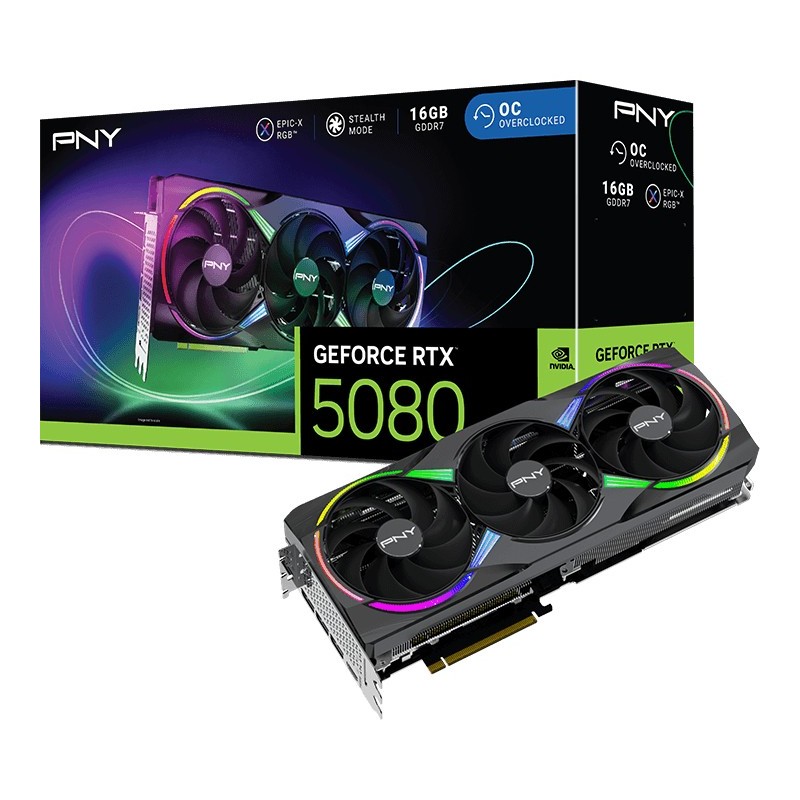

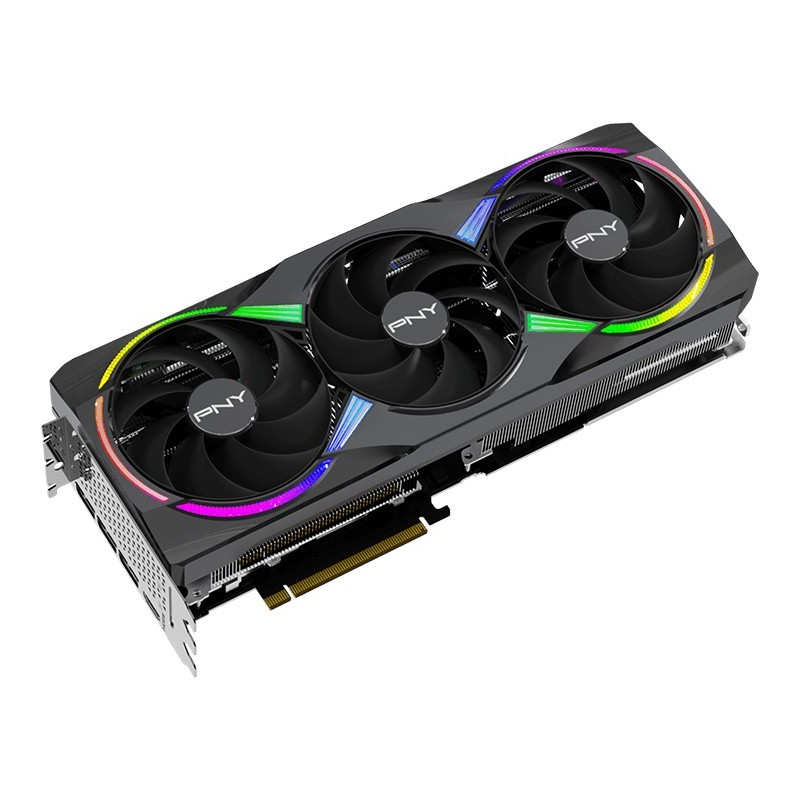

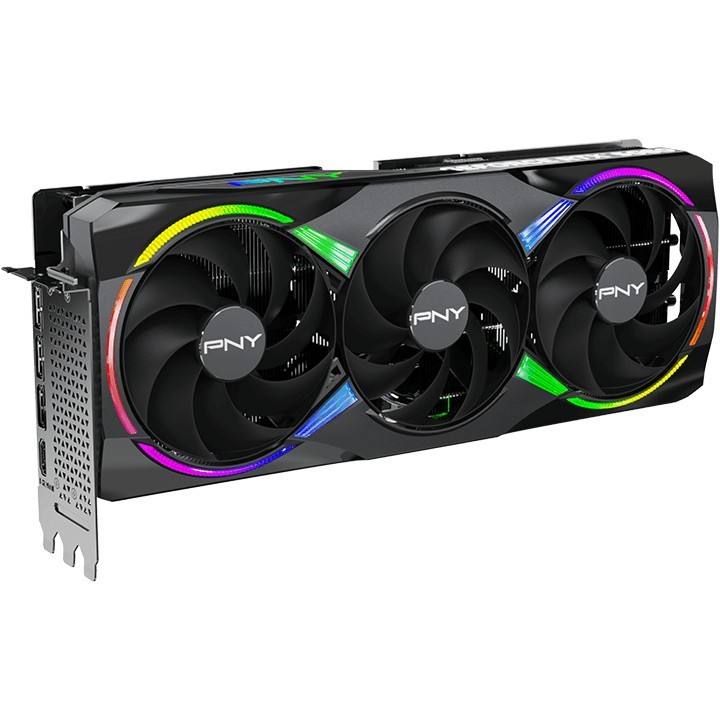

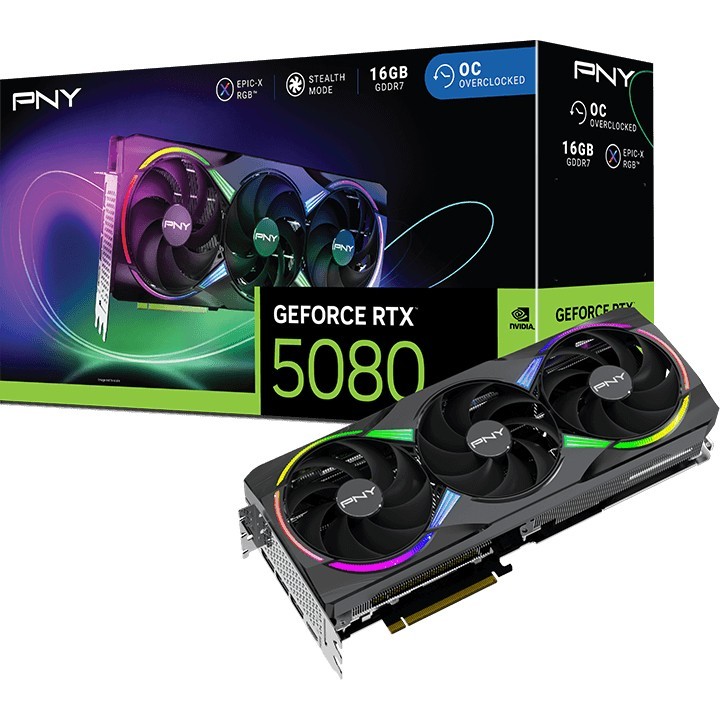

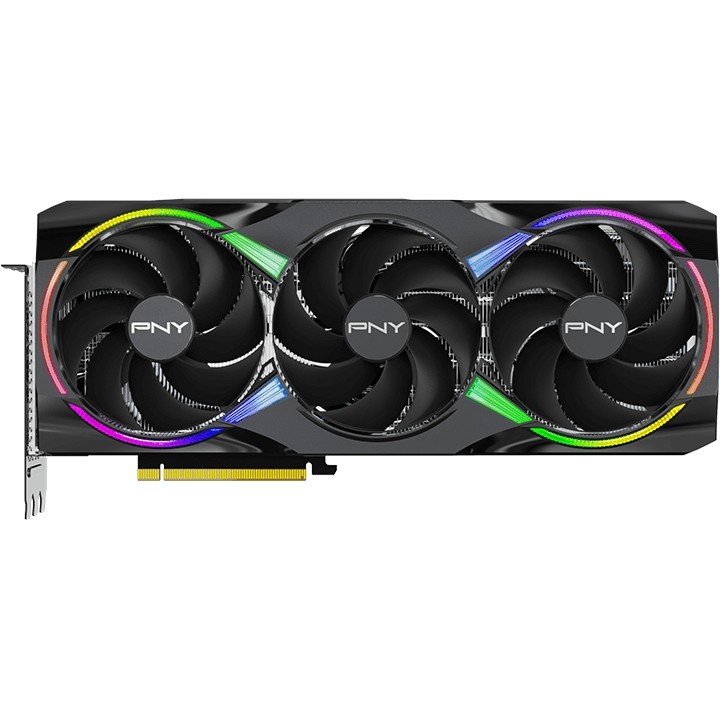

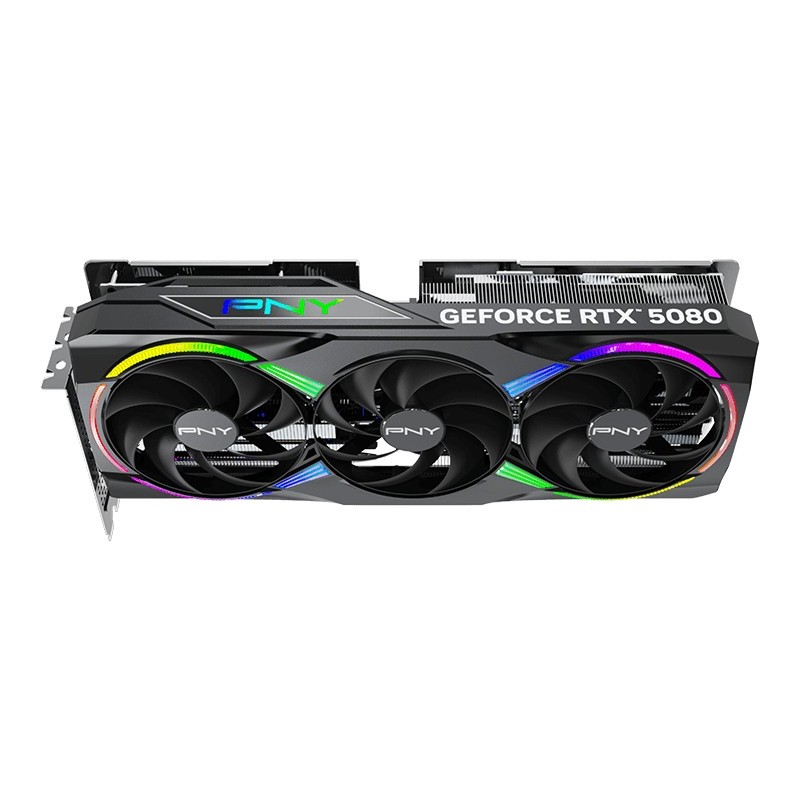

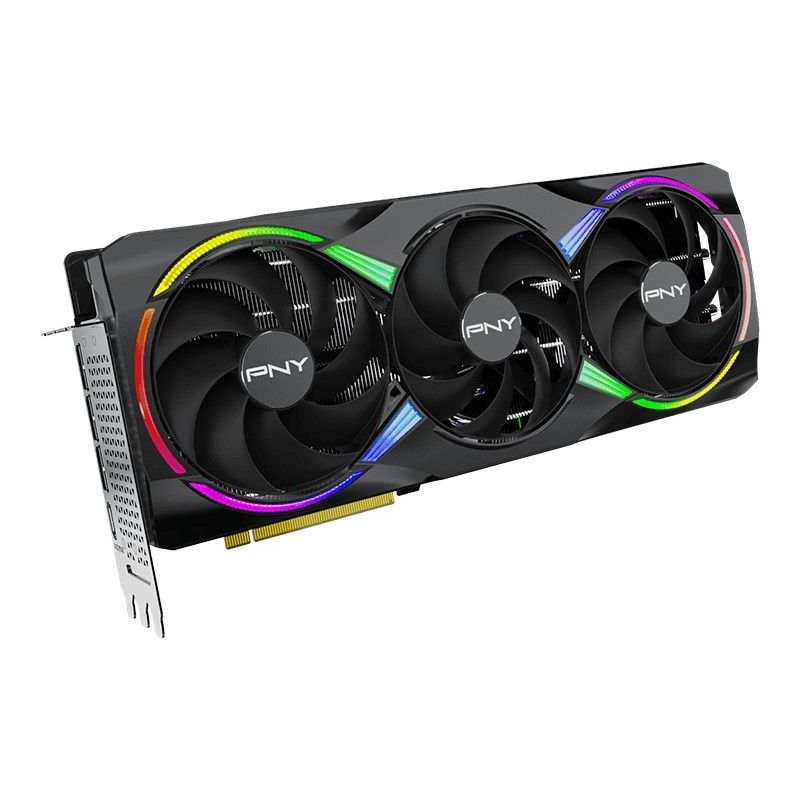

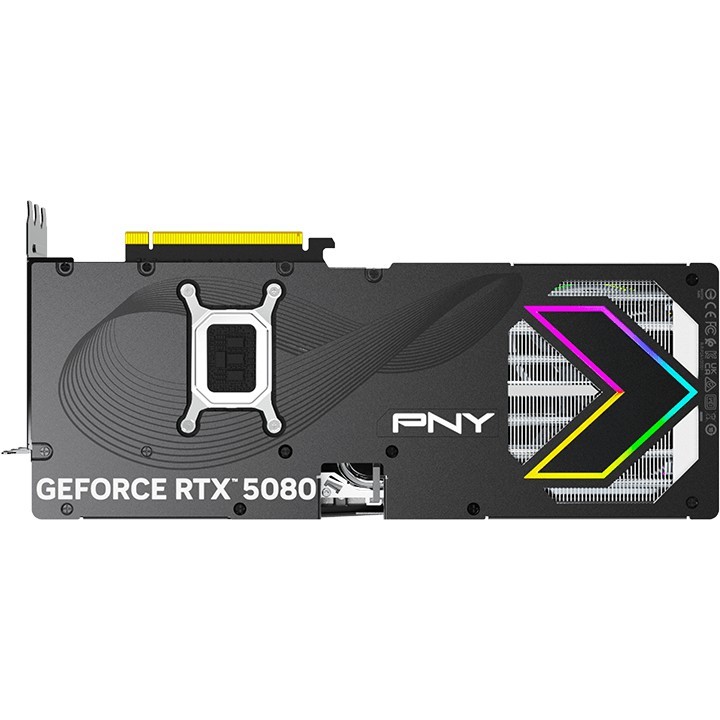

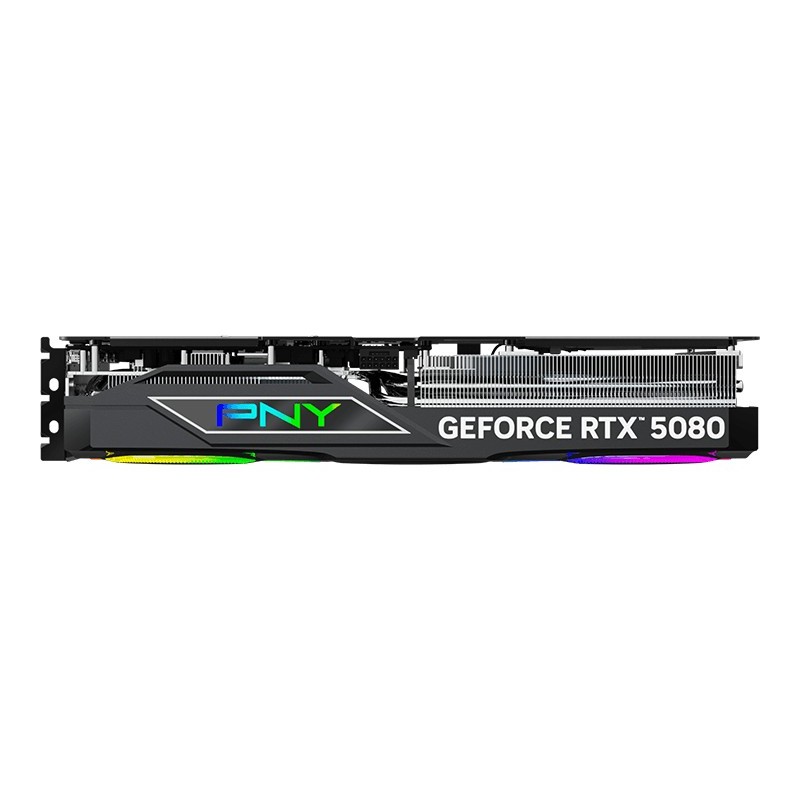

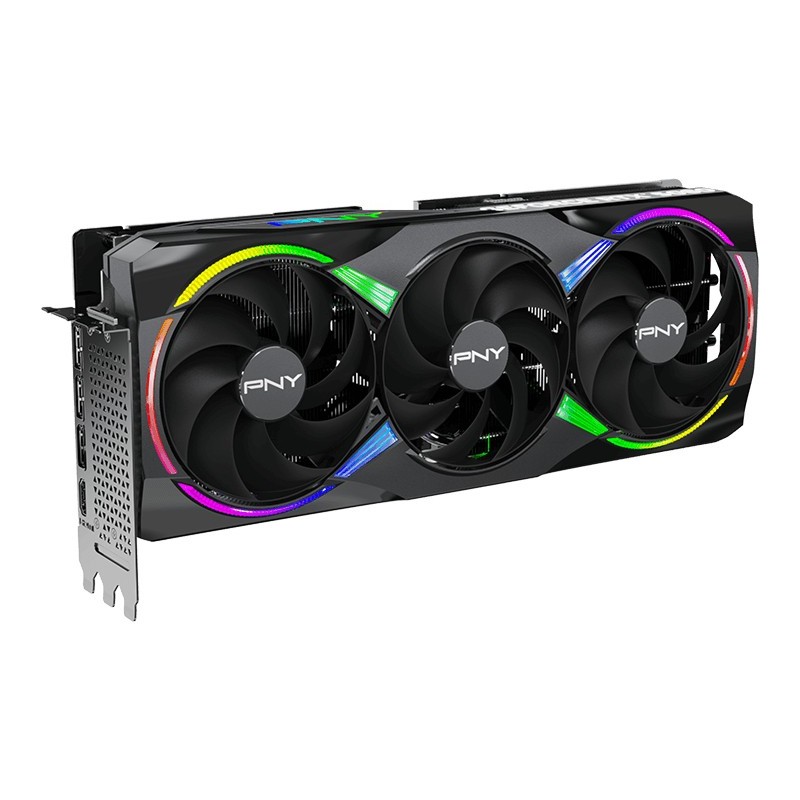

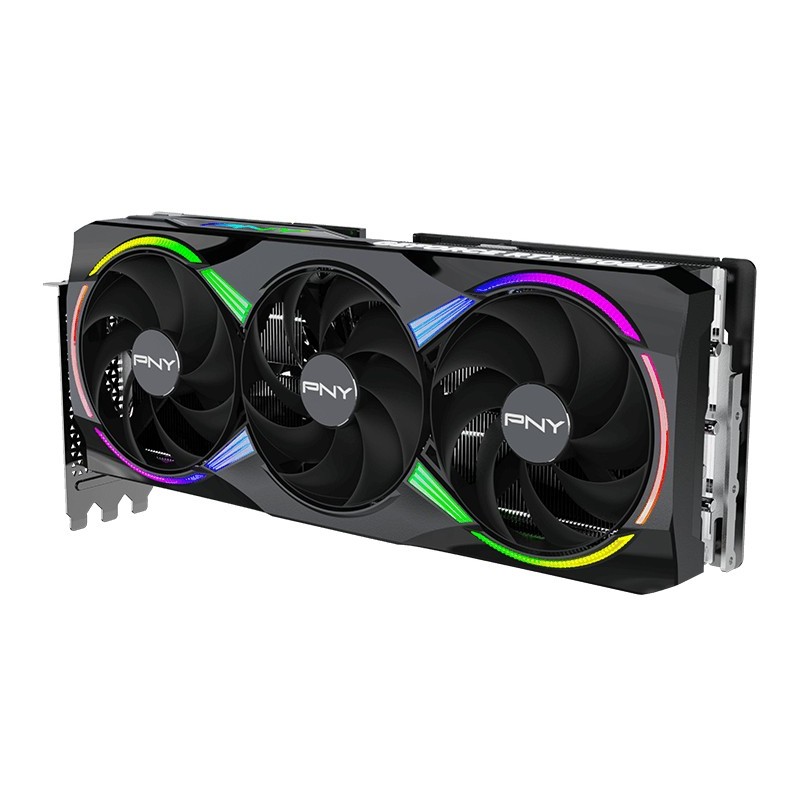

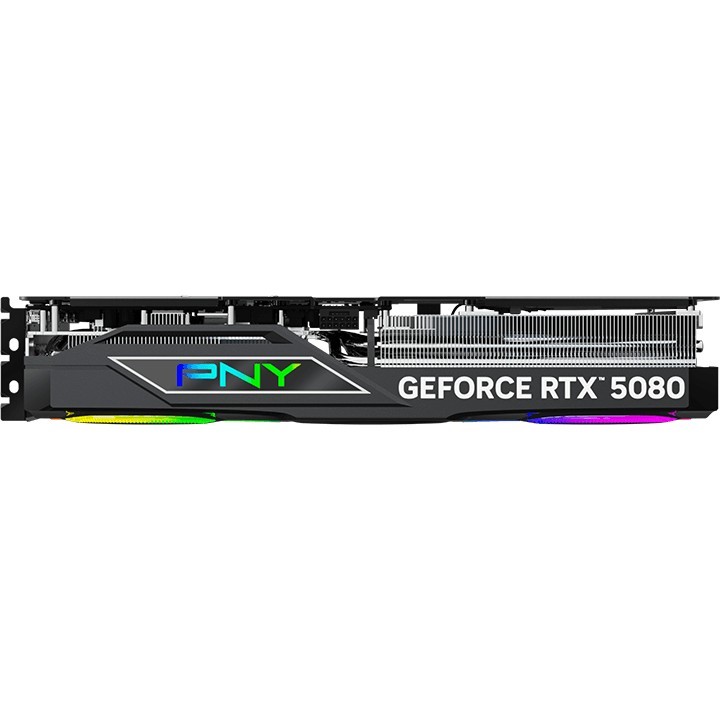

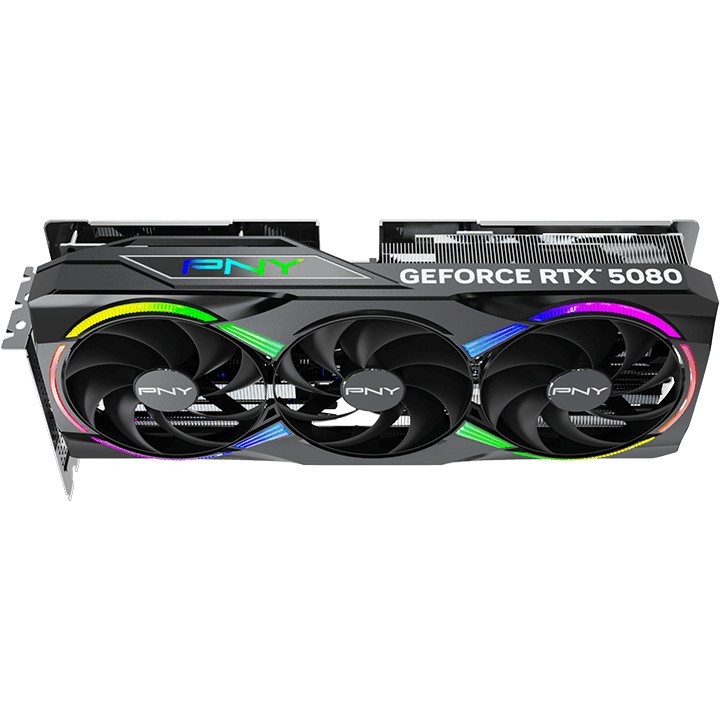

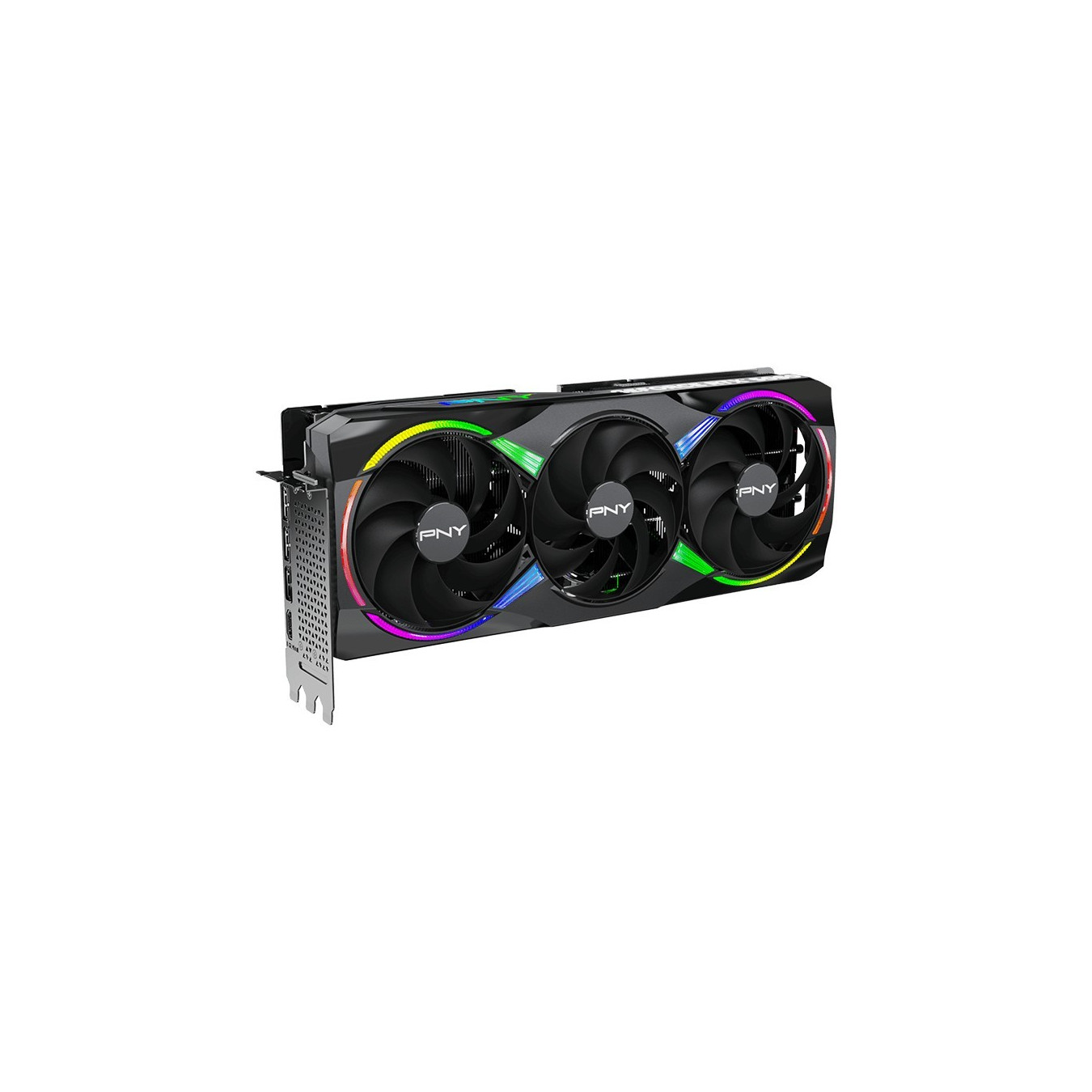

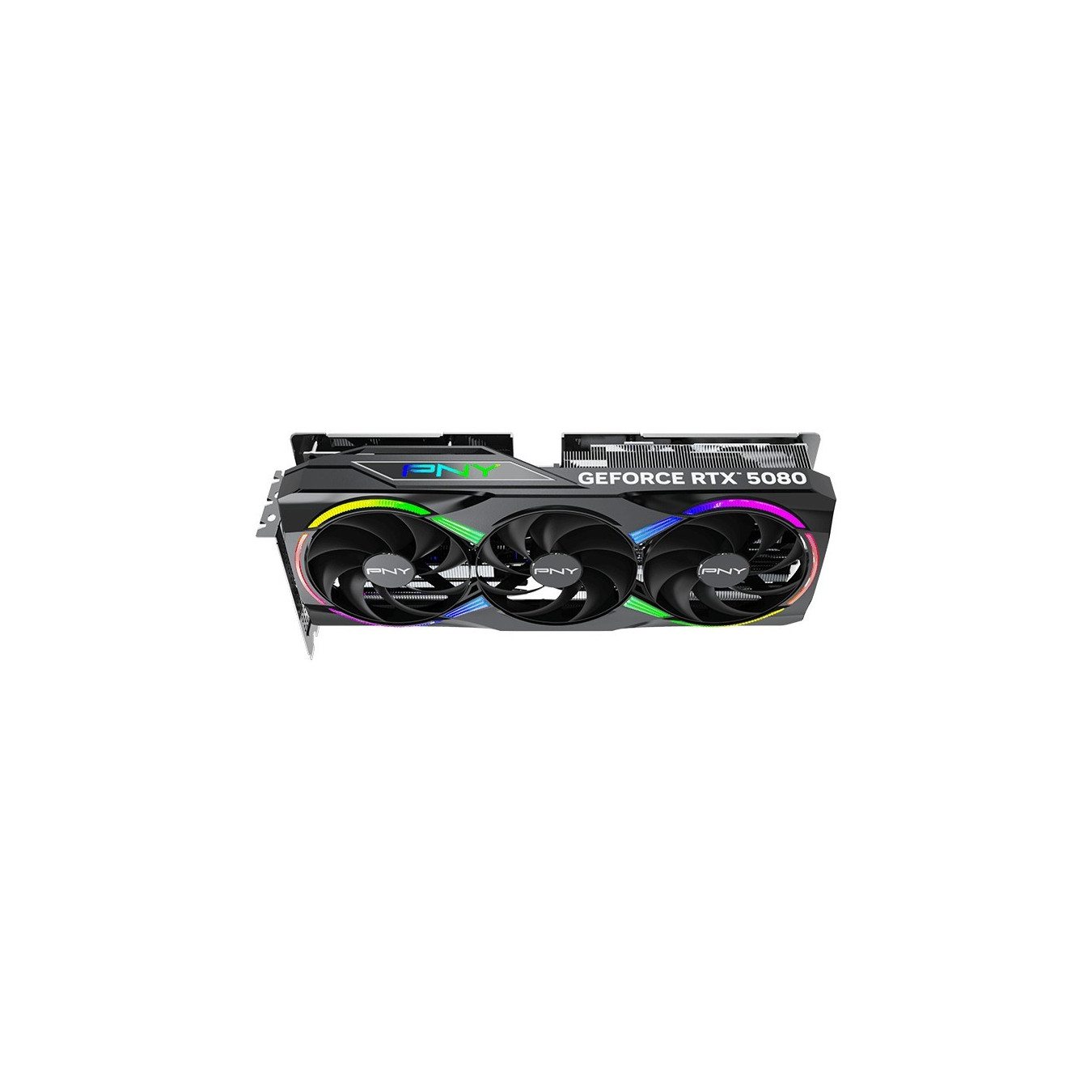

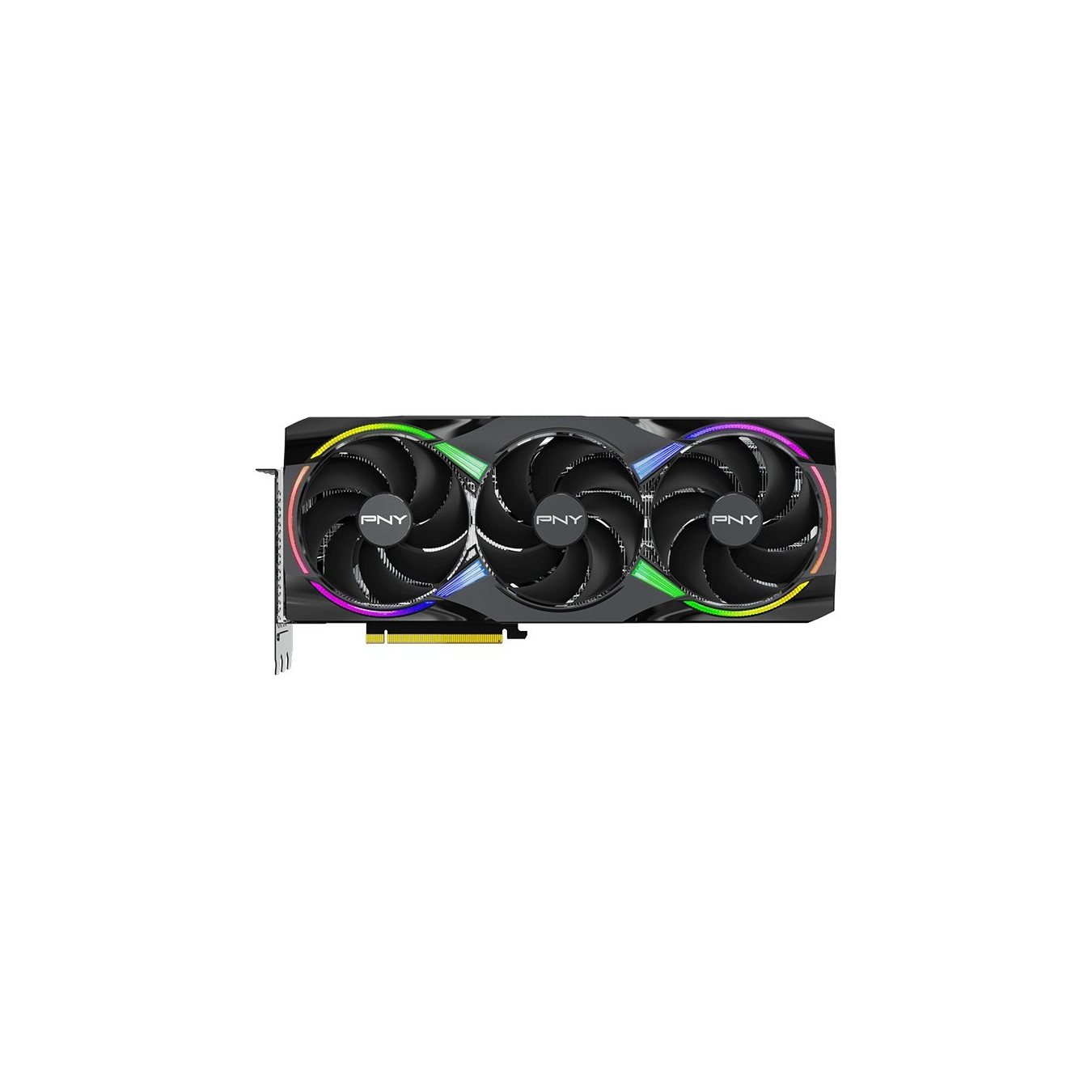

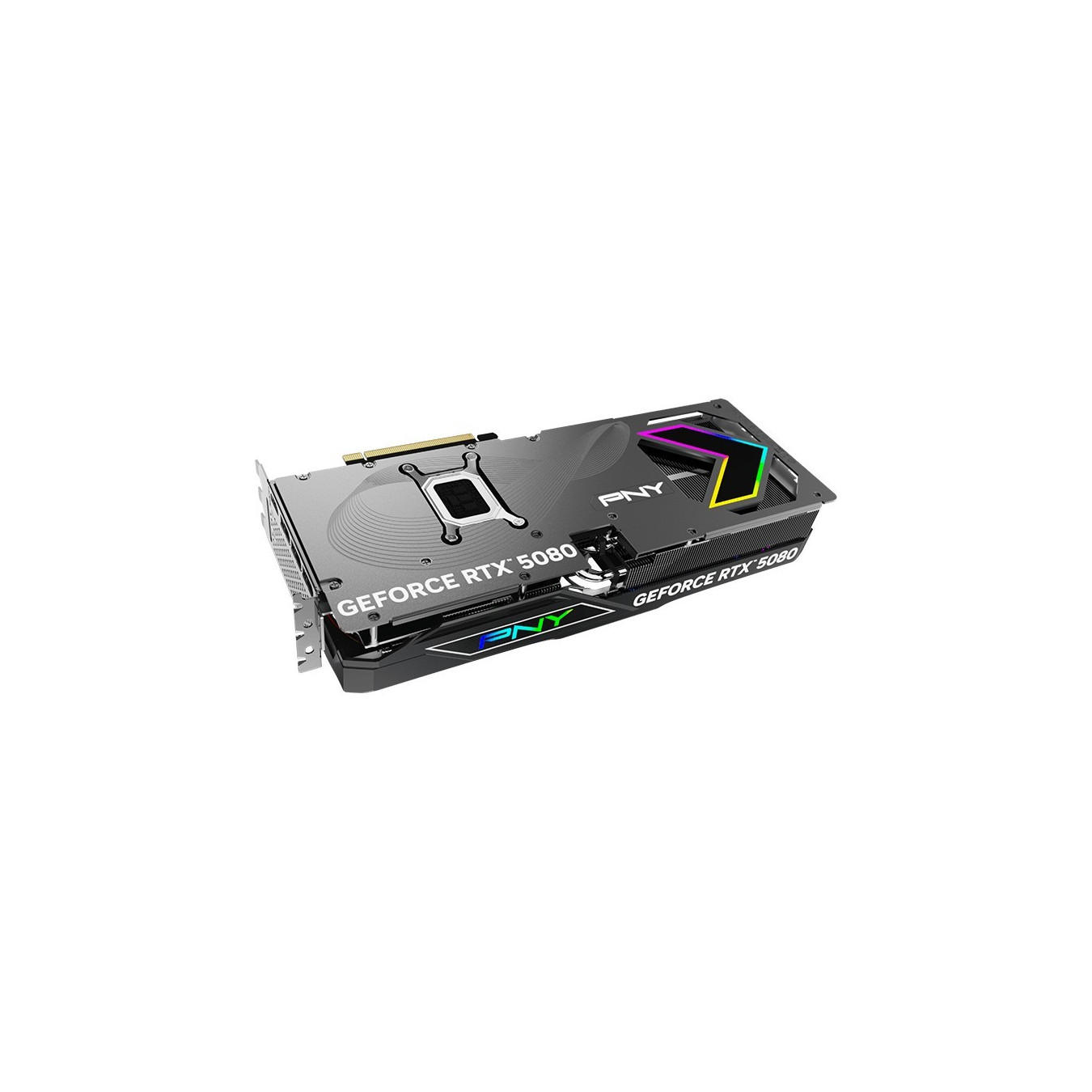

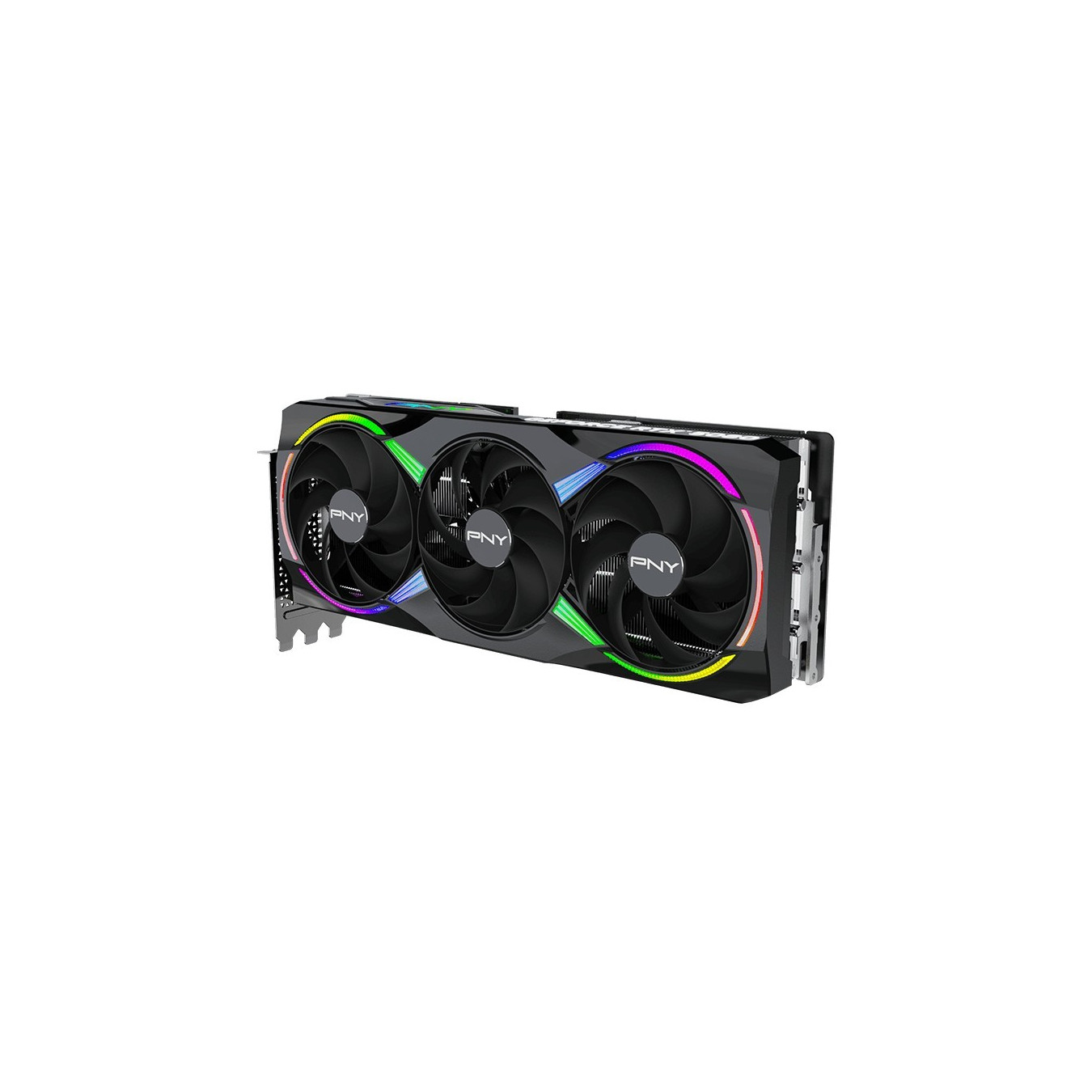

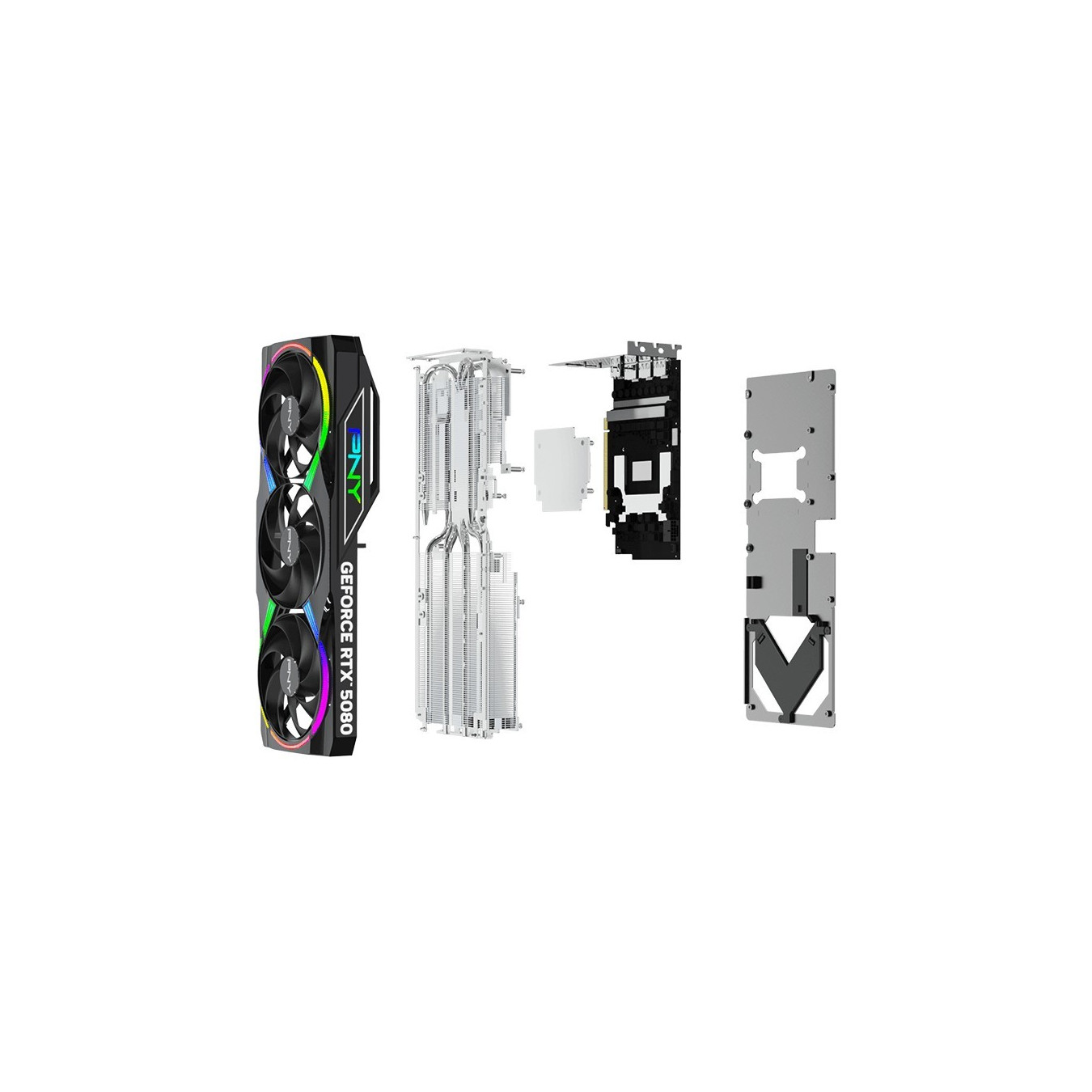

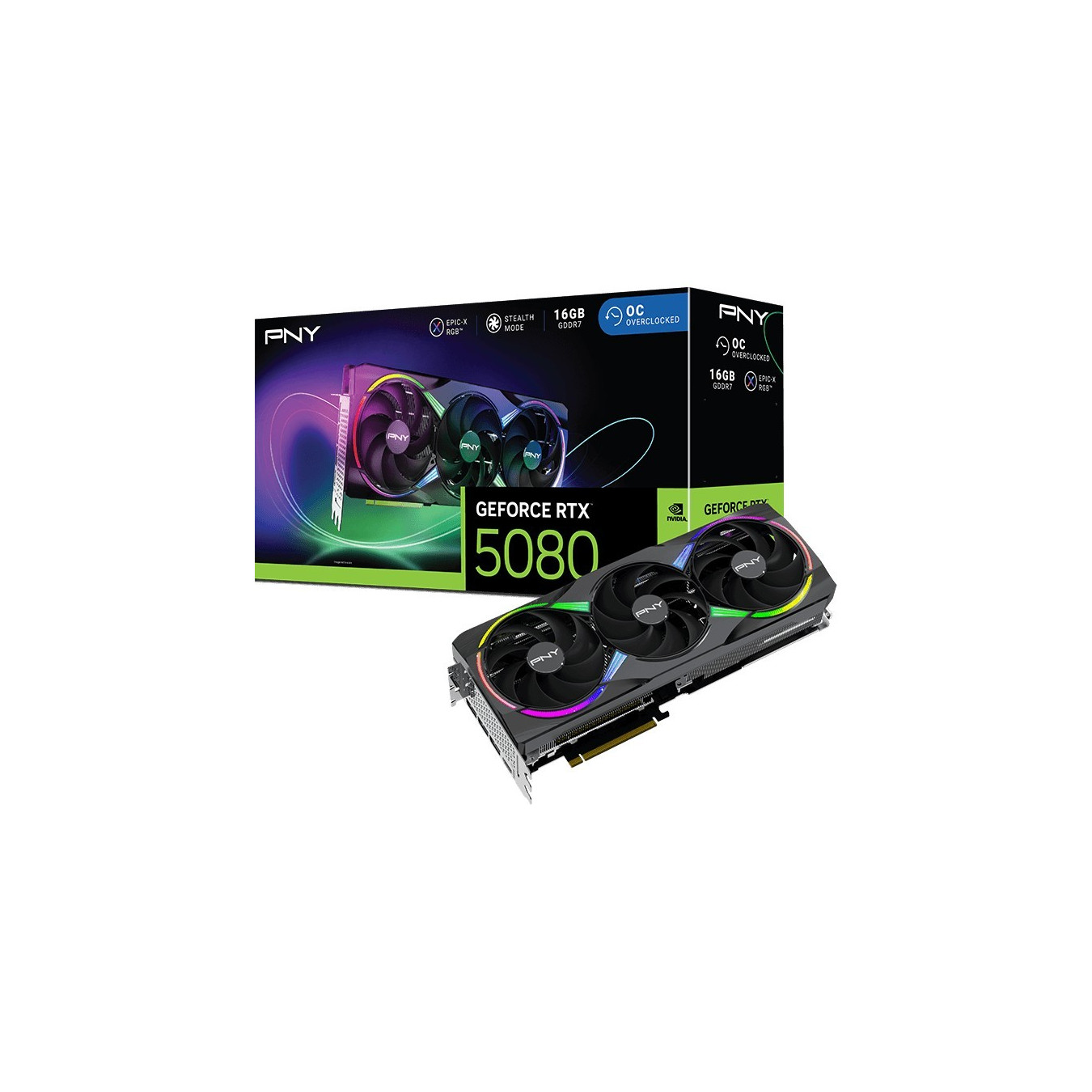

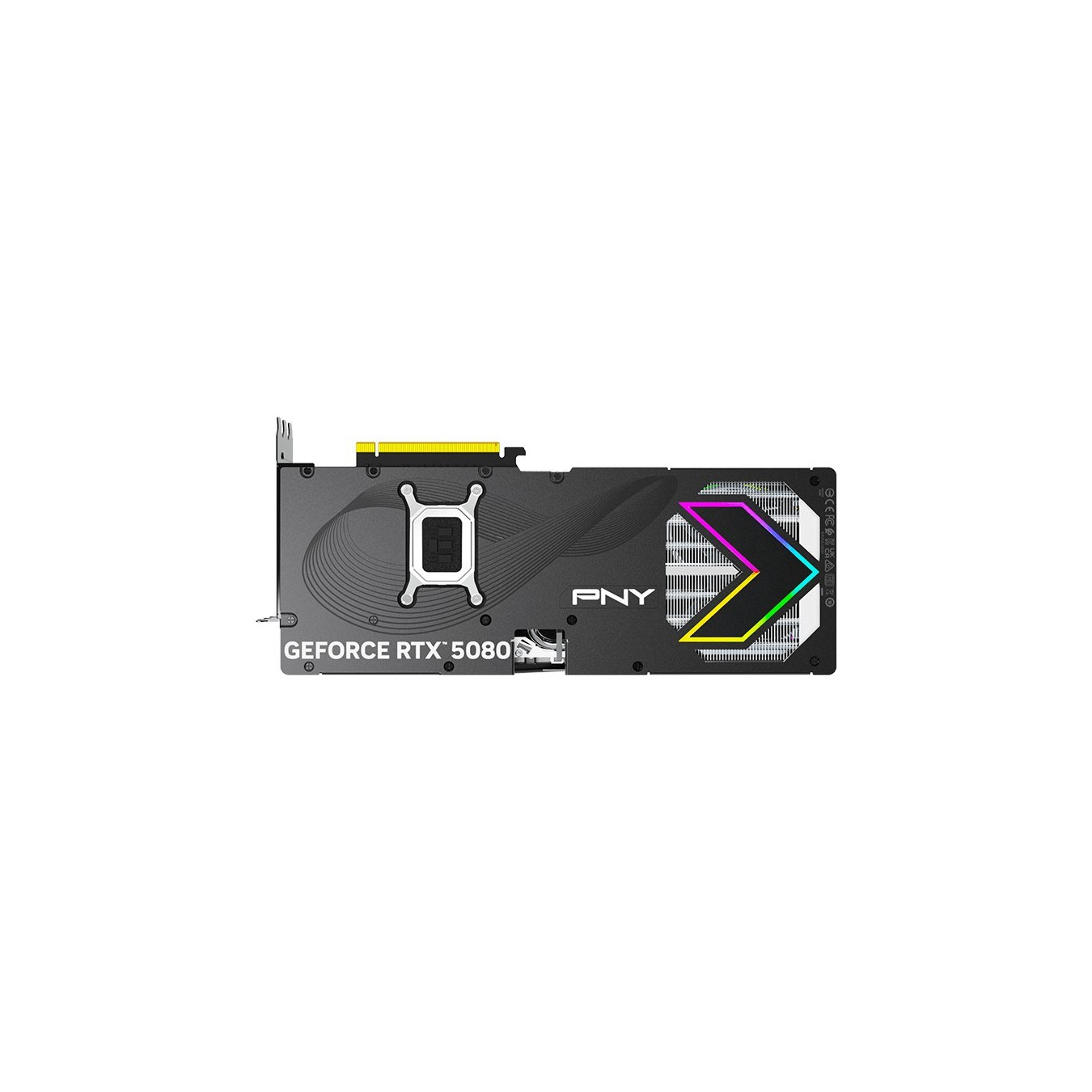

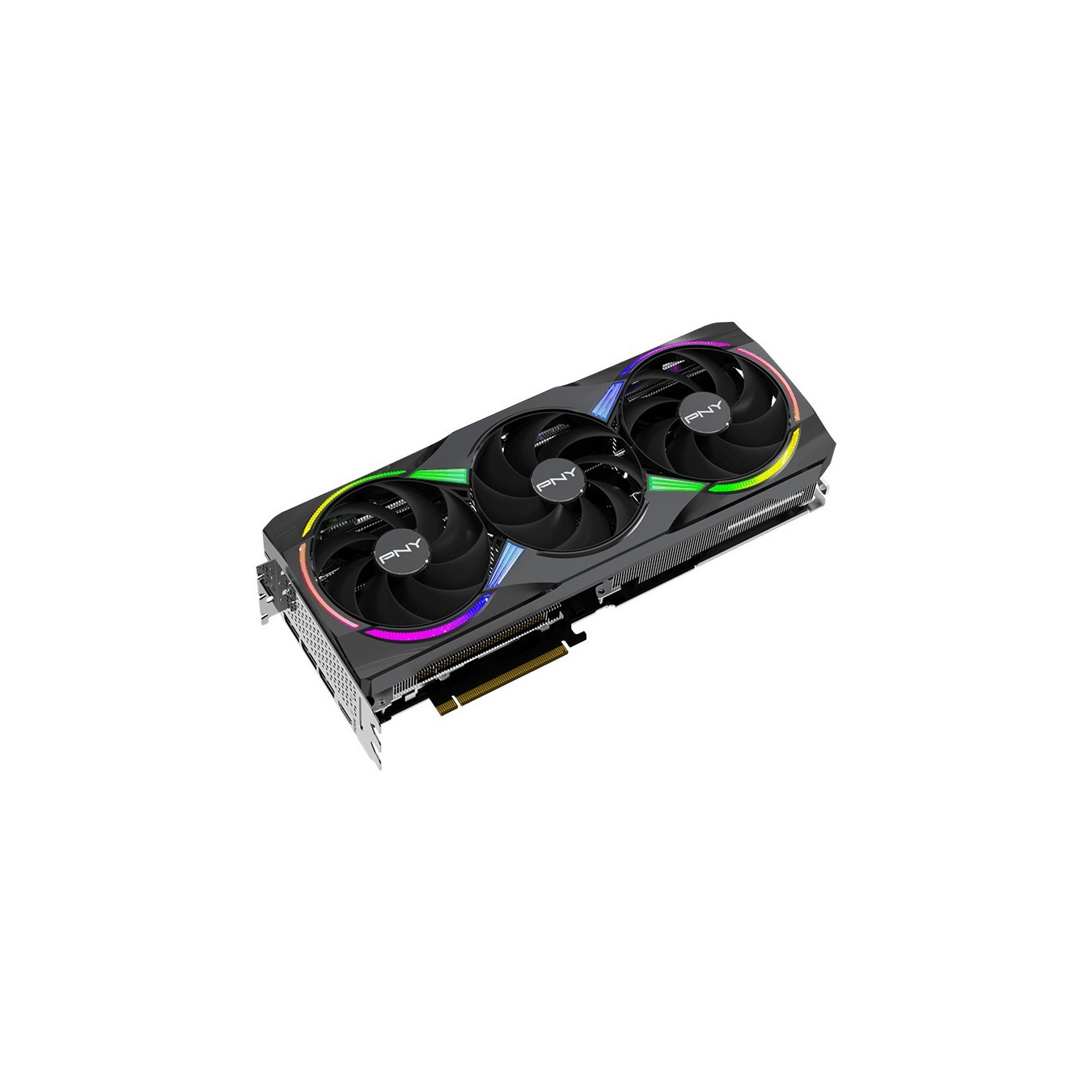

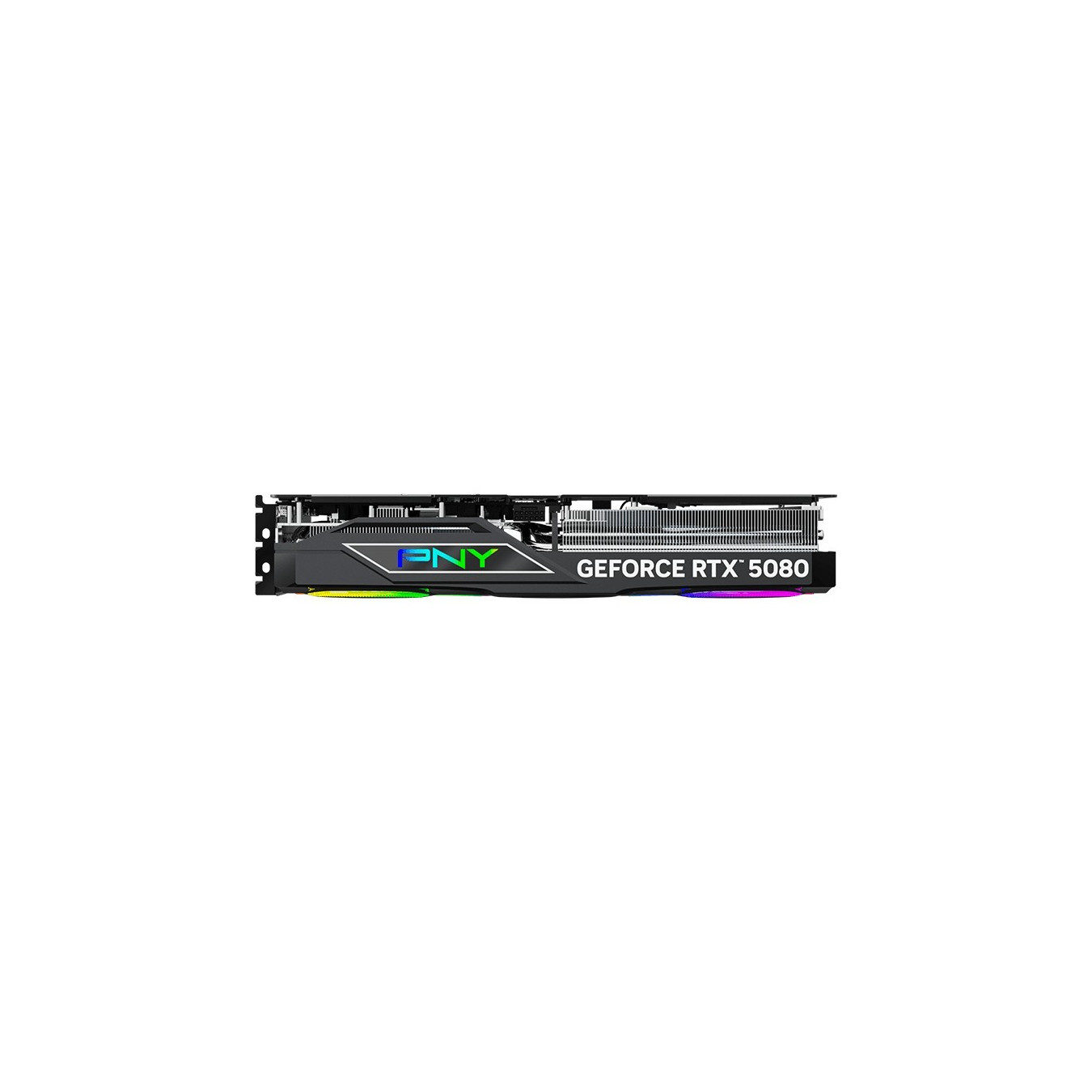

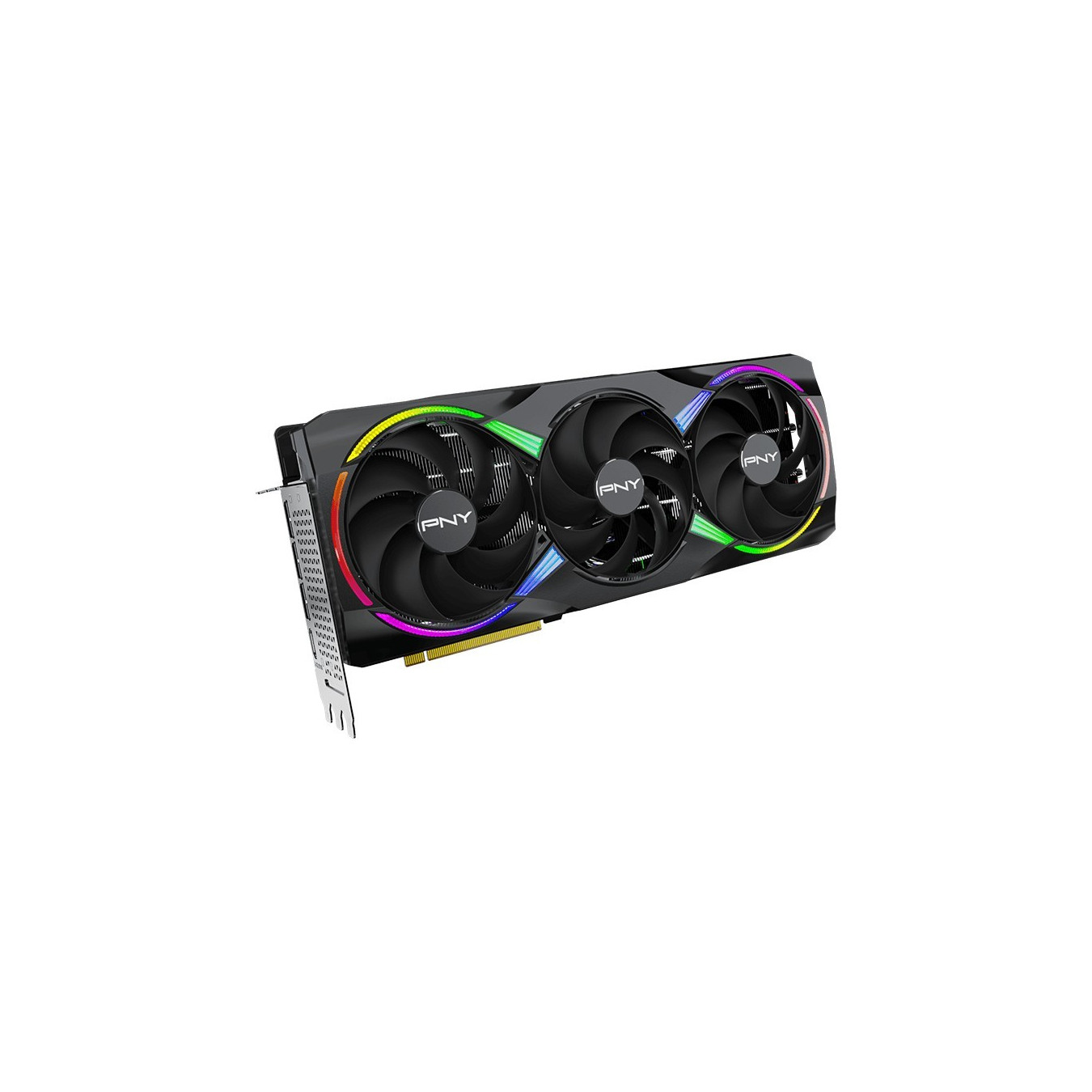

PNY GeForce RTX 5080 - VCG508016TFXXPB1-O - Black ARGB, 16GB GDDR7, OC (2775 MHz boost), PCIe 5.0, 3-fan

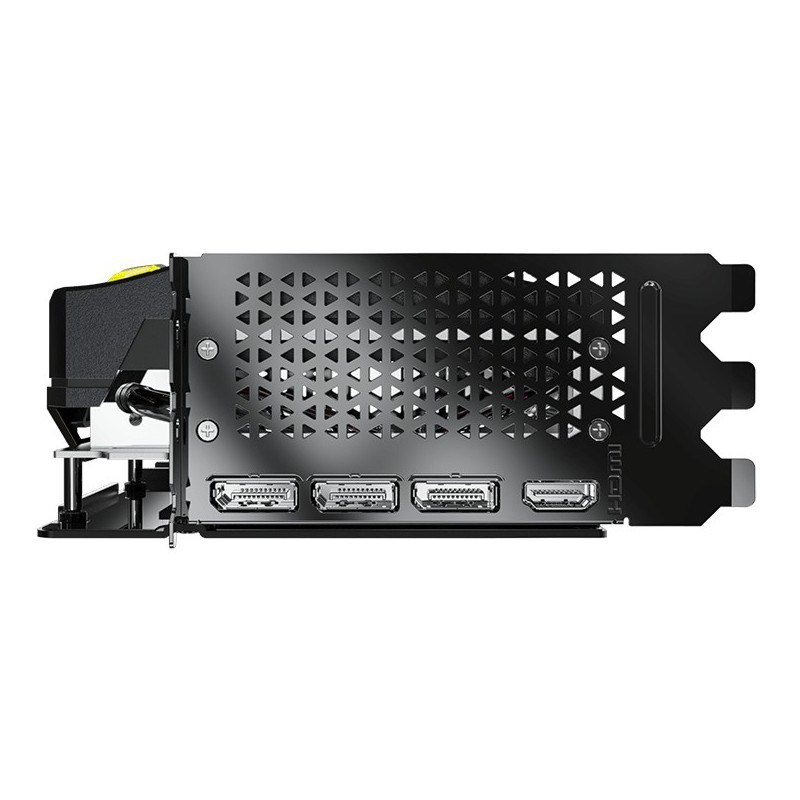

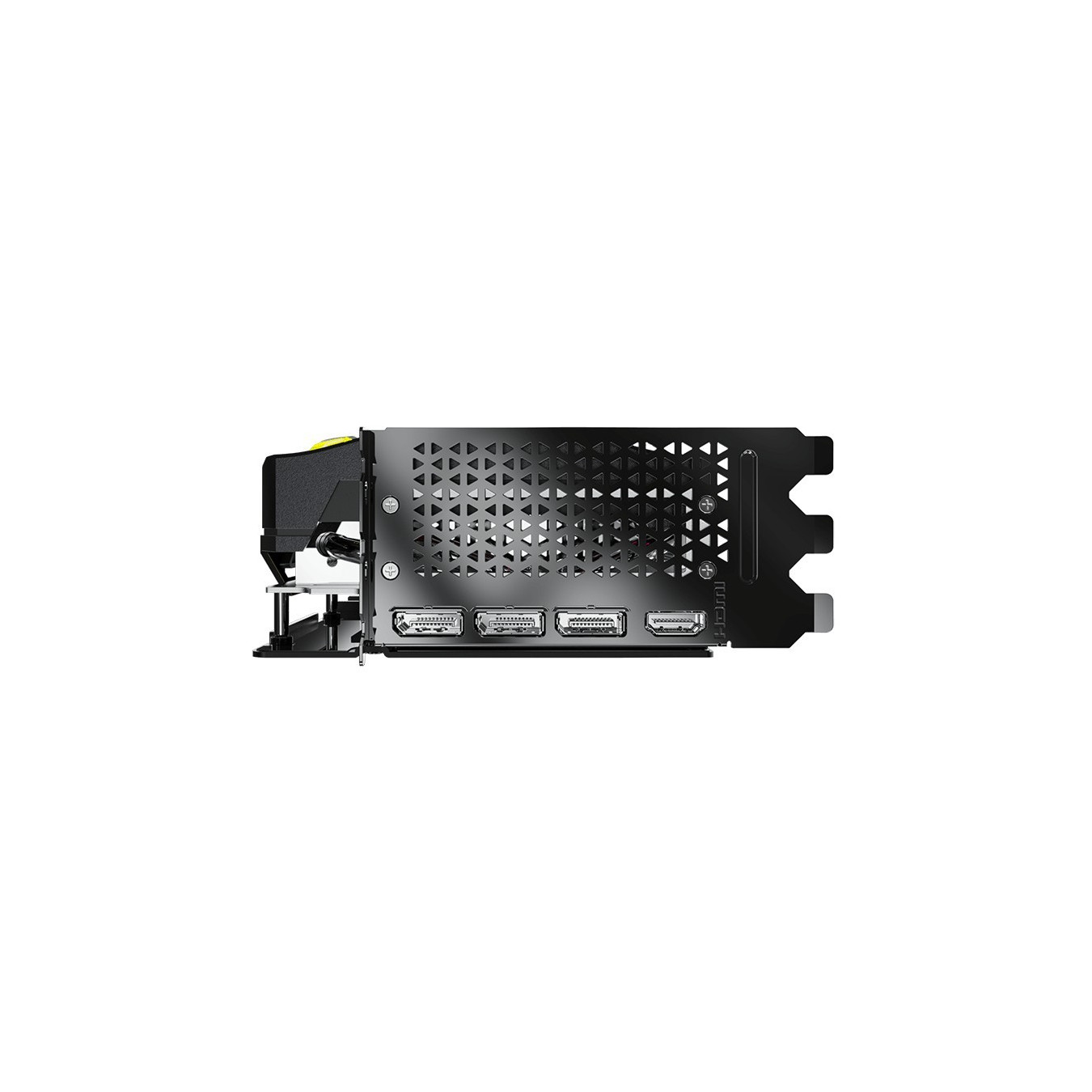

PNY GeForce RTX 5080 VCG508016TFXXPB1-O — OC GPU, 16GB GDDR7 (256-bit, 960 GB/s), PCIe 5.0 x16, Boost 2775 MHz, 3x DisplayPort 2.1, 1x HDMI 2.1b, ARGB, TDP 360W
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
|---|---|
| GPU (Graphics Cards) - Outputs | DisplayPort |
| GPU (Graphics Cards) - Power Connector | 12VHPWR (16-pin) |
| GPU (Graphics Cards) - Card Length | 321-360 mm |
| GPU (Graphics Cards) - Slot Thickness | 3-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
PNY VCG508016TFXXPB1-O. Graphics processor family: NVIDIA. Graphics processor: GeForce RTX 5080. Processor frequency: 2295 MHz. Discrete graphics card memory: 16 GB. Graphics card memory type: GDDR7. Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active. Number of fans: 3 fan(s). Illumination colour: Multi
| Feature | Linux operating systems supported |
| CUDA cores | 10752 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Processor frequency | 2295 MHz |
| Processor boost clock speed | 2775 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Data transfer rate | 30 Gbit/s |
| Memory bandwidth (max) | 960 GB/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP version | 2.3 |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of slots | 3 |
| Illumination colour | Multi |
| Product colour | Black |
| Minimum system power supply | 850 W |
| Supplementary power connectors | 1x 16-pin. 3x 8-pin |
| Thermal Design Power (TDP) | 360 W |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| Length | 328.7 mm |
| Depth | 59.6 mm |
| Height | 137.6 mm |
| Package width | 404.9 mm |
| Package depth | 102.9 mm |
| Package height | 198.9 mm |
| External video modes refresh rate (max) | 480 Hz |
