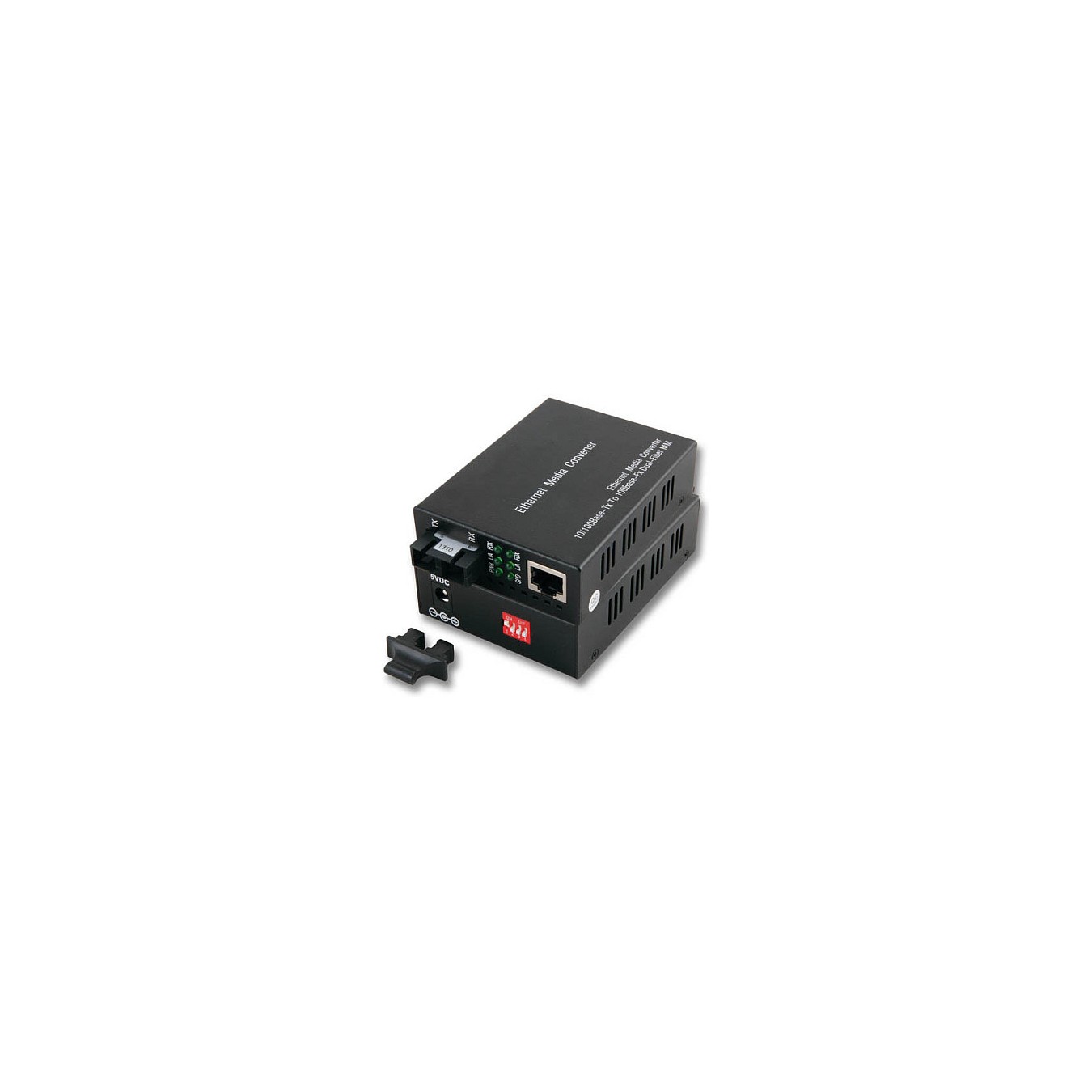

Medienkonverter Fast Ethernet RJ45 auf Multimode SC 100FX 2KM inklusive Netzteil
EFB Elektronik EL023V2, 100 Mbit/s, 100Base-TX, 100Base-FX, Schnelles Ethernet, 10,100 Mbit/s, Voll, Halb
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
EFB Elektronik EL023V2. Maximale Datenübertragungsrate: 100 Mbit/s, Converter Eingangsschnittstelle: 100Base-TX, Converter output Oberfläche: 100Base-FX. Maximal mögliche Übertragungsstrecke: 2000 m, Wellenlänge: 850 nm, Kabel mode struktur: Multi-Modus. Produktfarbe: Schwarz. Optischer Kabelverbinder: SC, Übertragungstechnik: Kabelgebunden. Abmessungen (BxTxH): 70,5 x 115,6 x 26 mm
| Maximale Datenübertragungsrate | 100 Mbit/s |
| Converter Eingangsschnittstelle | 100Base-TX |
| Converter output Oberfläche | 100Base-FX |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Ethernet LAN Datentransferraten | 10,100 Mbit/s |
| Auto MDI/MDI-X | Ja |
| Duplex-System | Voll, Halb |
| Maximal mögliche Übertragungsstrecke | 2000 m |
| Wellenlänge | 850 nm |
| Kabel mode struktur | Multi-Modus |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 26300 h |
| Eingebaut | Nein |
| LED-Anzeigen | Ja |
| Produktfarbe | Schwarz |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Optischer Kabelverbinder | SC |
| Externes Netzteil | Ja |
| Betriebstemperatur | 0 - 70 °C |
| Temperaturbereich bei Lagerung | -45 - 80 °C |
| Warentarifnummer (HS) | 85176990 |
| Abmessungen (BxTxH) | 70,5 x 115,6 x 26 mm |
