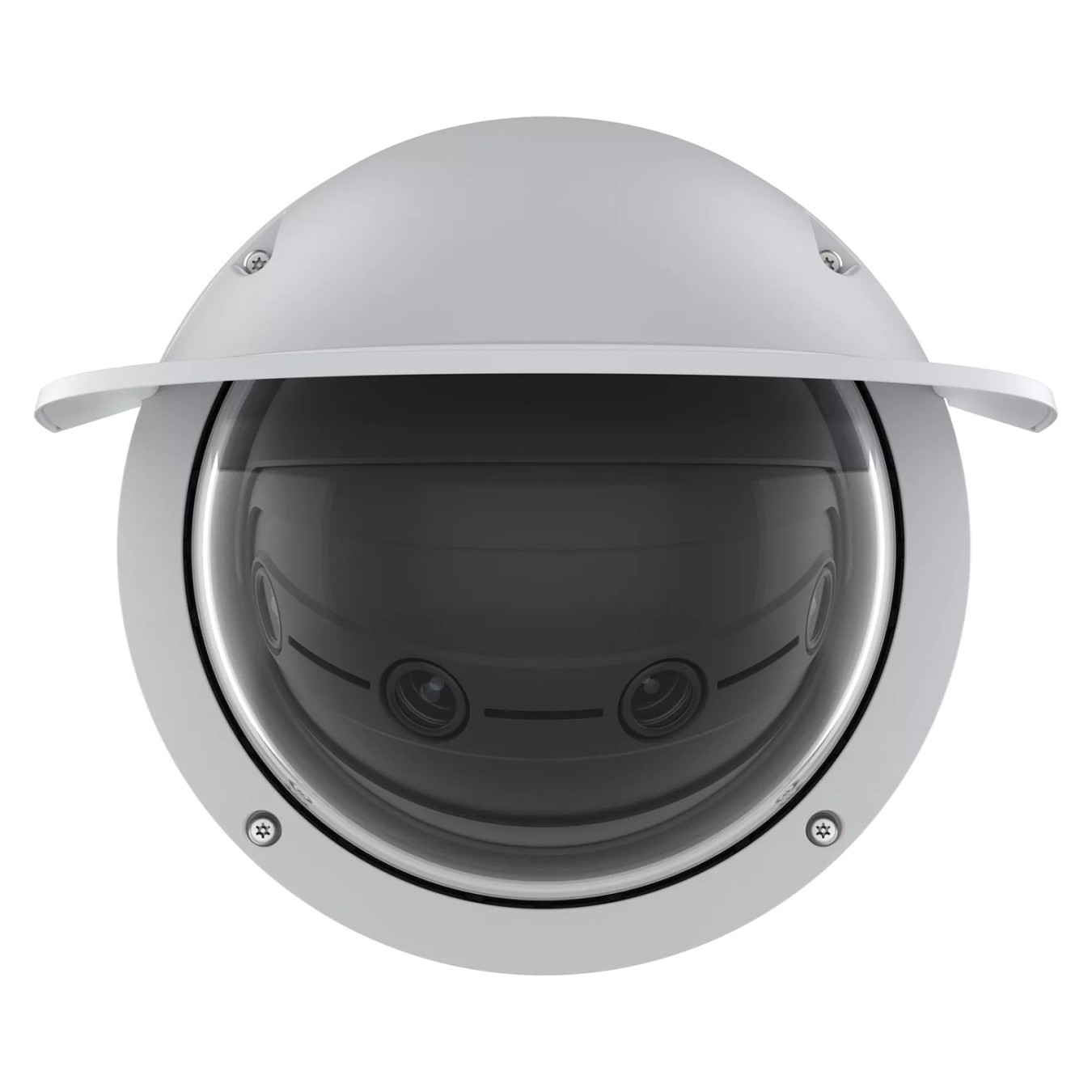

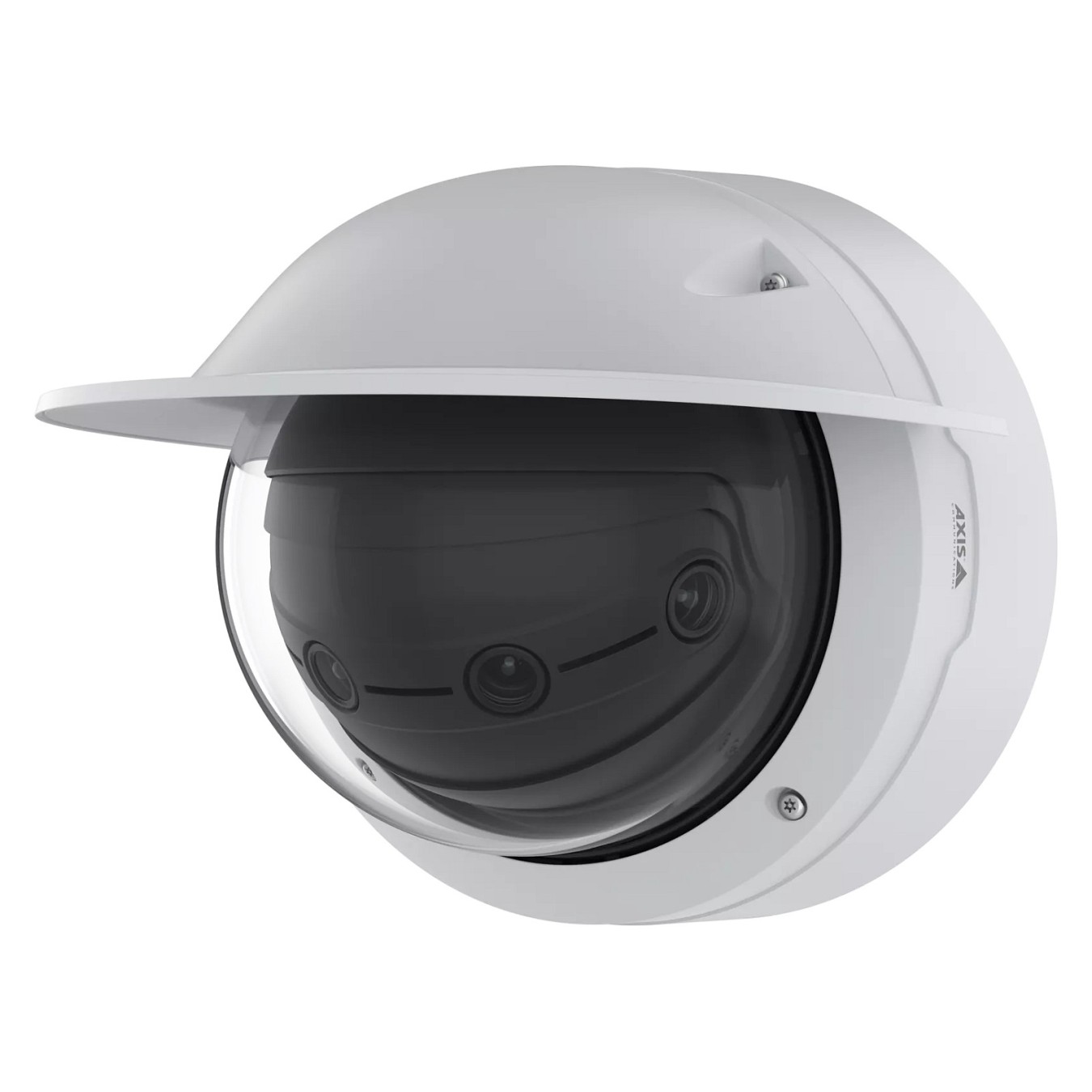

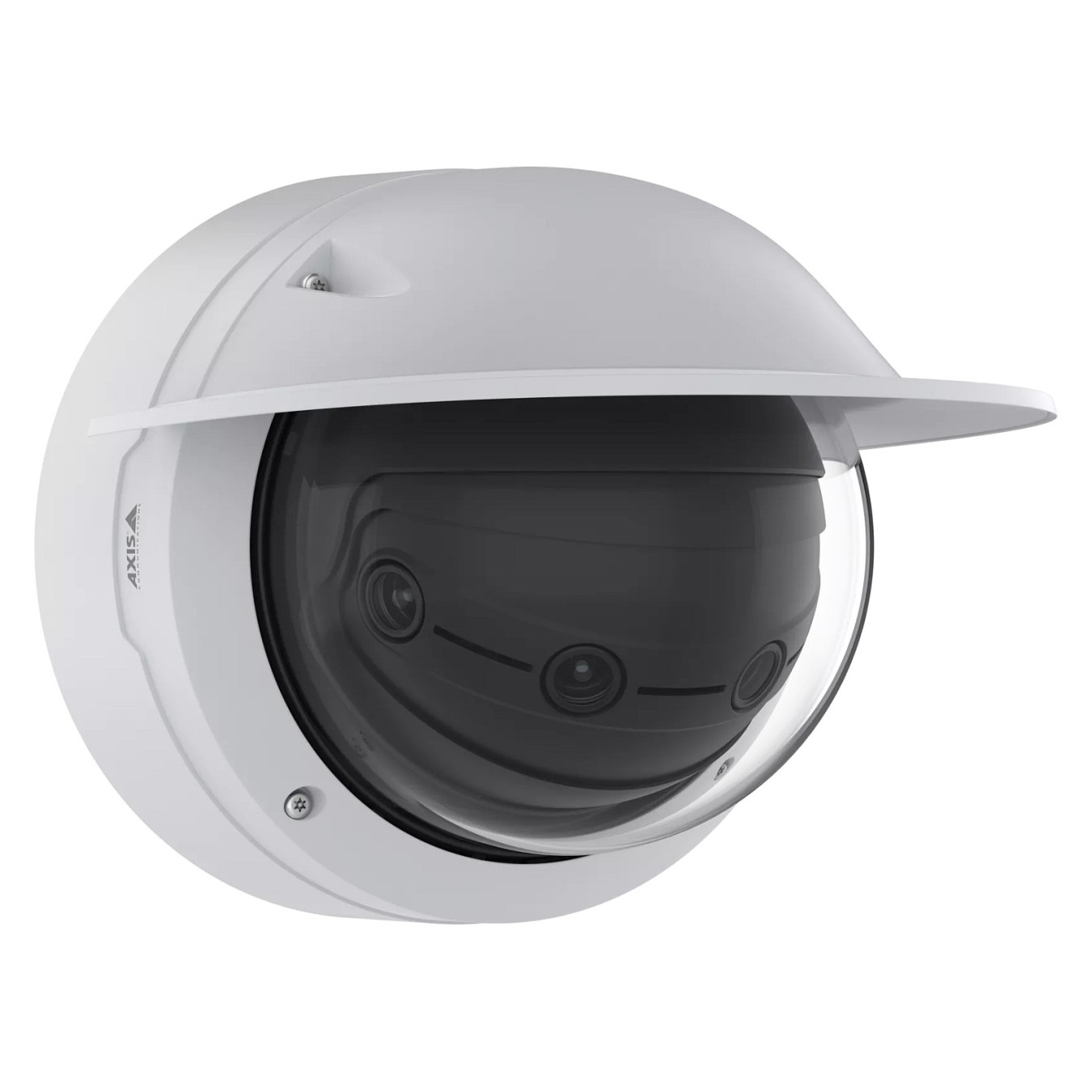

AXIS Netzwerkkamera Panorama Dome Q3839-PVE 180° 29MP
Axis Q3839-PVE, IP-Sicherheitskamera, Draußen, Kabelgebunden, ARTPEC-8, 120 dB, Wand- / Mast
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis Q3839-PVE. Typ: IP-Sicherheitskamera, Unterstützte Positionierung: Draußen, Übertragungstechnik: Kabelgebunden. Befestigungstyp: Wand- / Mast, Produktfarbe: Weiß, Formfaktor: Dome. Mindestbeleuchtung: 0,03 Lux, Betrachtungswinkel (horizontal): 180°, Betrachtungswinkel (vertikal): 90°. Sensor-Typ: CMOS, Größe des Bildsensors: 25,4 / 1,8 mm (1 / 1.8"). Sensortyp (Panoramakamera): CMOS, Signal-Rausch-Verhältnis (SNR) (Panoramakamera): 55 dB
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Draußen |
| Übertragungstechnik | Kabelgebunden |
| PTZ Kontrolle | Ja |
| Wide Dynamic Range (WDR) | Ja |
| Tag/ Nachtmodus | Ja |
| Infrarot (IR)-Abschaltfilter | Ja |
| Prozessor | ARTPEC-8 |
| Eingebauter Prozessor | Ja |
| Dynamischer Bereich | 120 dB |
| Formfaktor | Dome |
| Befestigungstyp | Wand- / Mast |
| Produktfarbe | Weiß |
| Gehäusematerial | Aluminium, Polycarbonat (PC) |
| Internationale Schutzart (IP-Code) | IP66, IP67 |
| IK-Kodex | IK10 |
| Kameraschwenkkontrolle | Ja |
| Kamera-Schwenksteuerung | Ja |
| Mindestbeleuchtung | 0,03 Lux |
| Betrachtungswinkel (horizontal) | 180° |
| Betrachtungswinkel (vertikal) | 90° |
| Neigungswinkelbereich | 30 - 88° |
| Schwenkbereich | -176 - 176° |
| Pixelgröße Kamera | 2 µm |
| Kamera Verschlusszeit | 1/8500 - 1/5 s |
| Anzahl der Sensoren | 4 |
| Größe des Bildsensors | 25,4 / 1,8 mm (1 / 1.8") |
| Vollbildverfahren | Ja |
| Sensor-Typ | CMOS |
| Sensortyp (Panoramakamera) | CMOS |
| Signal-Rausch-Verhältnis (SNR) (Panoramakamera) | 55 dB |
| Zoom-Fähigkeit | Ja |
| Abstandsfeststellung | 88,3 m |
| Abstandsbeobachtung | 35 m |
| Abstandserkennung | 17,7 m |
| Objektivdurchmesser | 4,6 mm |
| Fester Fokus | Ja |
| Maximale Blendenzahl | 1,8 |
| Abstandsermittlung | 8,8 m |
| Nachtsicht | Ja |
| LED Typ | IR |
| Maximale Auflösung | 7552 x 3776 Pixel |
| Megapixel insgesamt | 29 MP |
| Videokompressionsformate | H.264, H.265, M-JPEG |
| Videoaufnahme | Ja |
| Bis zu 30 Frames pro Sekunde | 30 fps |
| Videostreaming | Ja |
| Geräuschunterdrückung | Ja |
| Geräuschunterdrückungstechnologie | 2D-Rauschunterdrückung, 3D-Rauschunterdrückung |
| Verstärkungssteuerungstyp | Auto |
| Bildqualitätsanpassung | Helligkeit, Kontrast, Farbsättigung, Schärfe, Weißabgleich |
| Textüberlagerung | Ja |
| Audio-System | 1-Weg |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| Netzstandard | IEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| WLAN | Nein |
| Bluetooth | Nein |
| Quality of Service (QoS) Support | Ja |
| Eingebaute HDD | Nein |
| Integrierter Kartenleser | Ja |
| Kompatible Speicherkarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash-Speicher | 8192 MB |
| RAM-Kapazität | 4096 MB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Mikrofon-Eingang | Ja |
| Terminalblock-Anschluss | Ja |
| Gleichstrom-Anschluss (DC) | Ja |
| Video-Bewegungsmelder | Ja |
| Aktiver Fälschungsalarm | Ja |
| Netzwerkzugriffsspeicher (NAS) | Ja |
| Cloud-verwaltet | Ja |
| Energiequelle | Gleichstrom, PoE |
| Stromverbrauch (Standardbetrieb) | 9,74 W |
| Stromverbrauch (max.) | 19,1 W |
| DC-Ausgang Volt | 12 |
| DC Ausgangssstrom | 0,05 A |
| Betriebstemperatur | -40 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 65 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 100% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Gewicht | 3,32 kg |
| Anzahl der Kameras | 1 |
| Montageset | Ja |
| Bohrschablone enthalten | Ja |
| Betriebsanleitung | Ja |
